System Diagram

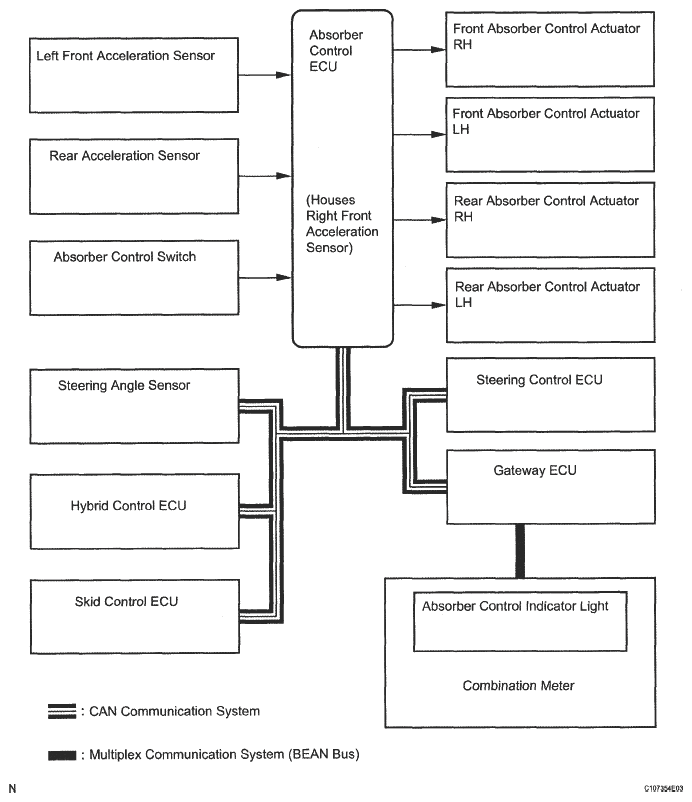

Fig 1: Adaptive Variable Suspension System Diagram
G05305438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SIGNALS AND COMMUNICATION METHOD REFERENCE

Transmitting ECU (Sensor) Receiving ECU Signals Communication method
Steering angle sensor Absorber Control ECU
  • Steering angle signal
  • VGRS setting status signal
  • Steering angle sensor trouble signal
 CAN communication system
Hybrid control ECU Absorber Control ECU
  • Anti-squat control signal
  • TC terminal signal
 CAN communication system
Skid control ECU Absorber Control ECU
  • Vehicle speed signal
  • Stop light switch signal
  • TS terminal signal
  • Damping force demand signal
 CAN communication system
Steering control ECU Absorber Control ECU
  • VGRS control signal
 CAN communication system
Absorber Control ECU Combination meter (CPU)
  • Absorber control Indicator signal
  • DTC output signal
  • CAN communication system
  • Multiplex communication system
