Suspension Control Module

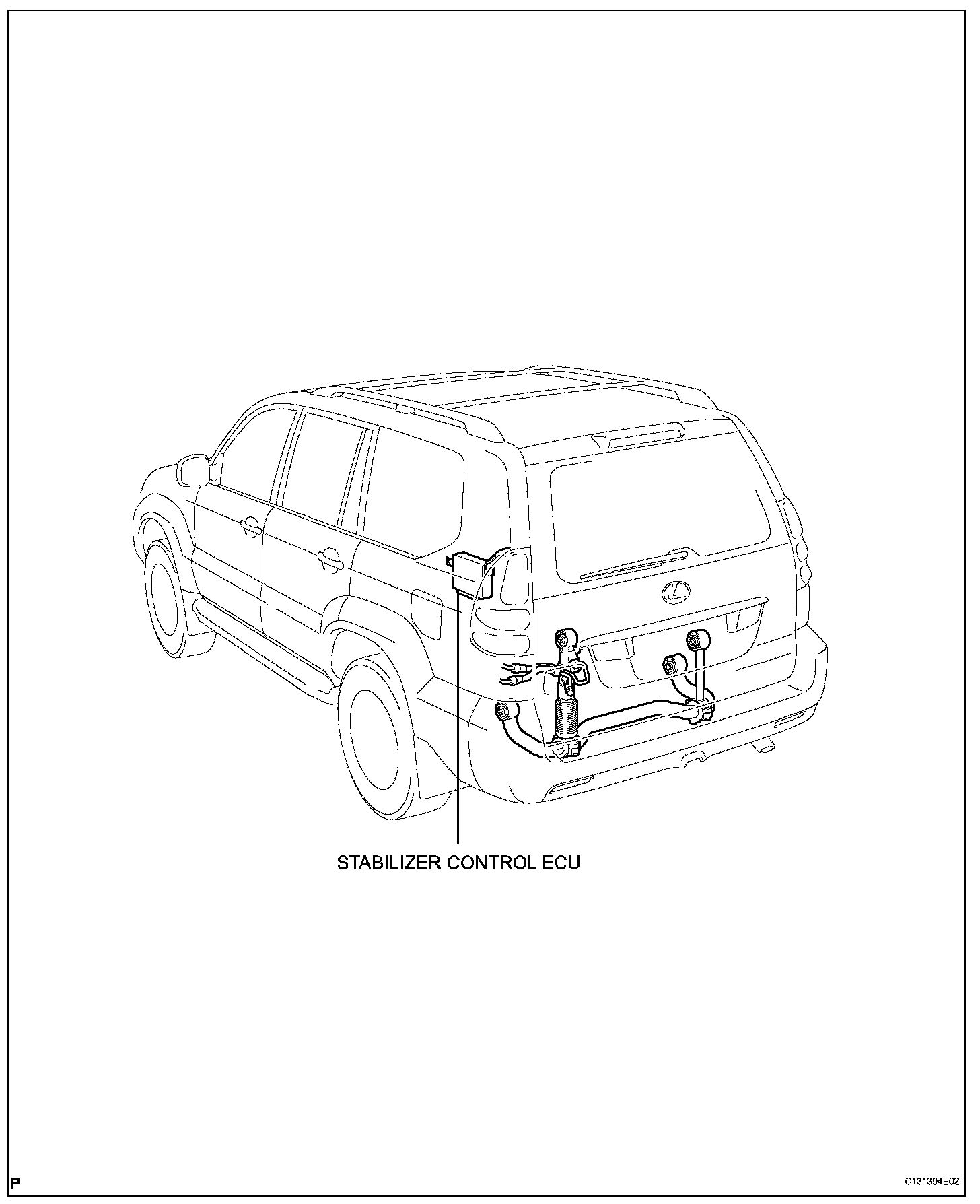

Stabilizer Control ECU (w/KDSS):



Stabilizer Control ECU (w/KDSS):

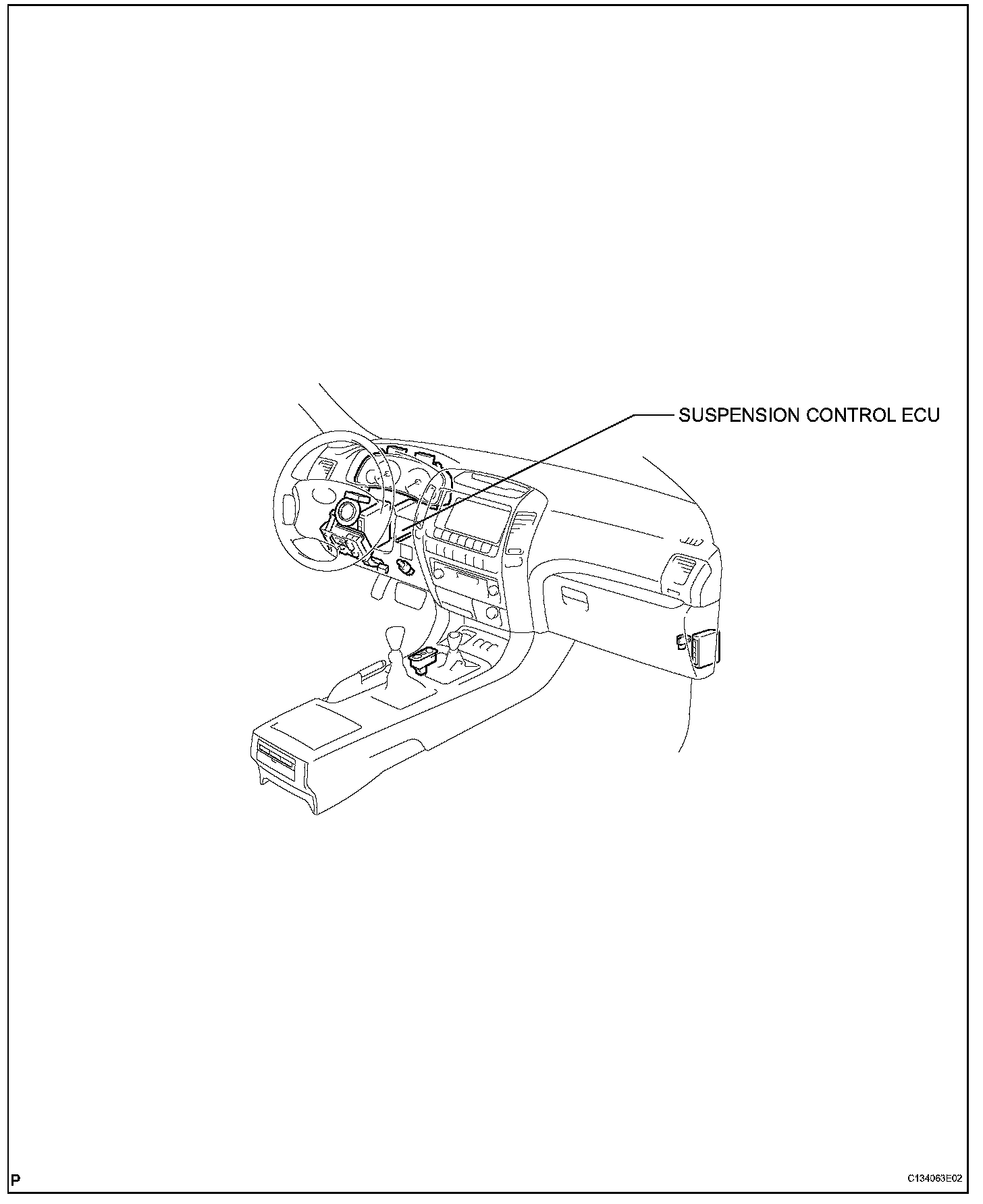

Suspension Control ECU:



Suspension Control ECU:



Suspension Control ECU:
