Control Module HVAC: Service and Repair

Air Conditioning Amplifier:

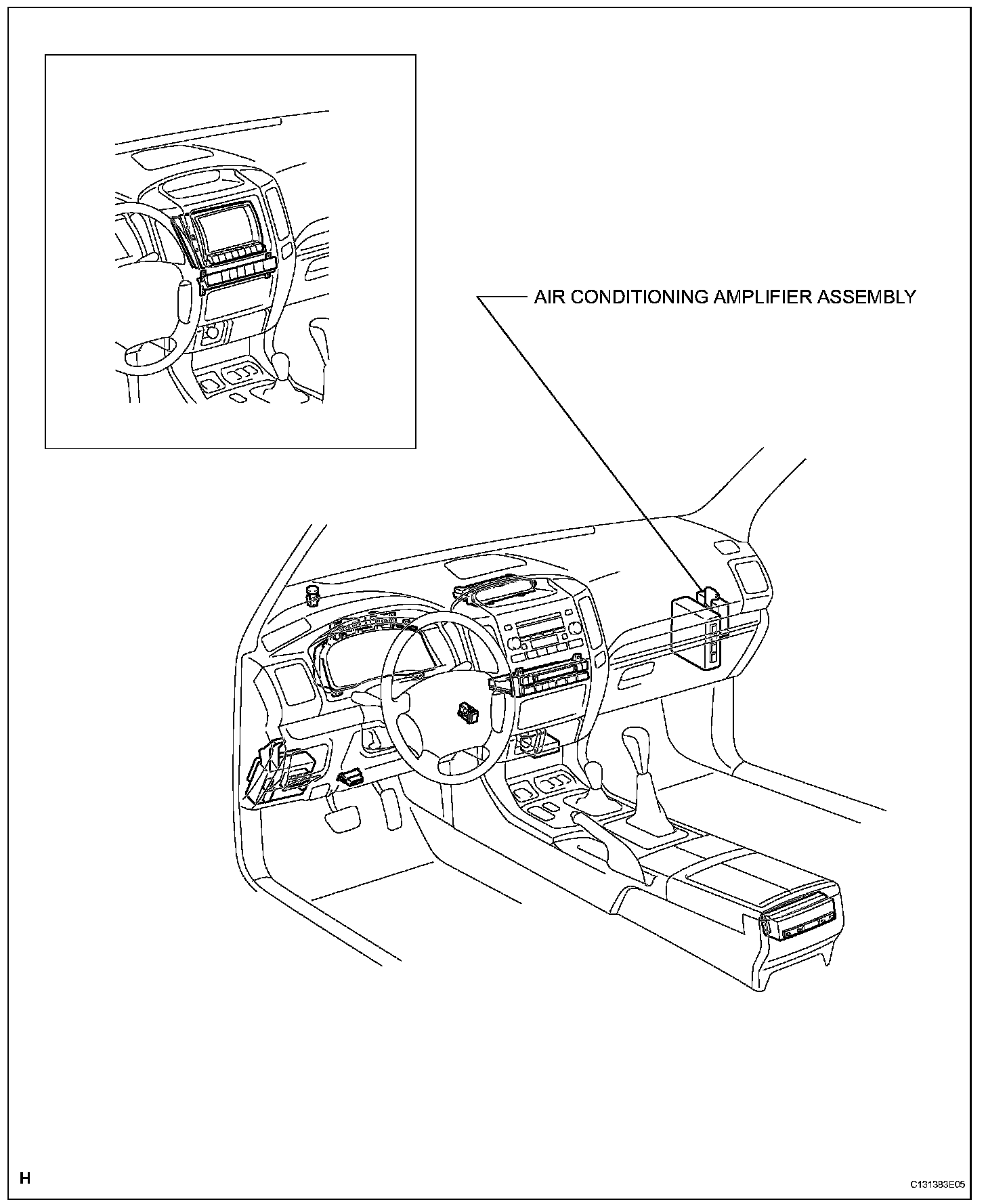

AIR CONDITIONING AMPLIFIER

REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE RH
2. REMOVE COWL SIDE TRIM BOARD RH
3. REMOVE INSTRUMENT PANEL UNDER COVER NO. 2
4. REMOVE GLOVE COMPARTMENT DOOR SUB-ASSEMBLY
5. REMOVE INSTRUMENT PANEL ORNAMENT
6. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER NO. 2
7. REMOVE ECM
8. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY

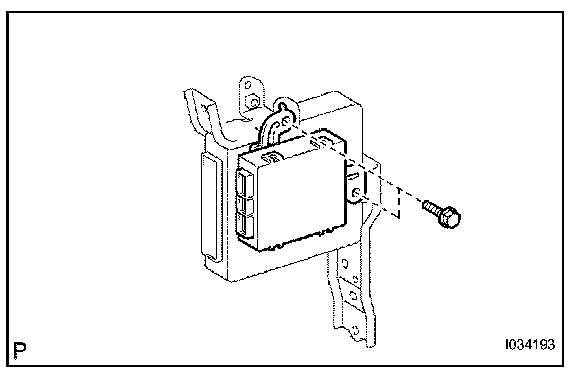

a. Remove the 2 bolts and the air conditioning amplifier assembly.

INSTALLATION

1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY

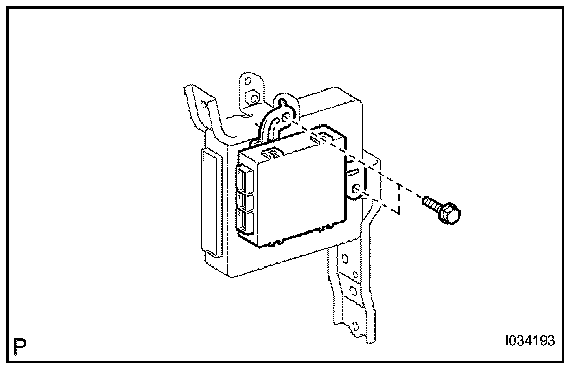

a. Install the air conditioning amplifier assembly with the 2 bolts.

2. INSTALL ECM
3. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER NO. 2
4. INSTALL INSTRUMENT PANEL ORNAMENT
5. INSTALL GLOVE COMPARTMENT DOOR SUB-ASSEMBLY
6. INSTALL INSTRUMENT PANEL UNDER COVER NO. 2
7. INSTALL COWL SIDE TRIM BOARD RH
8. INSTALL FRONT DOOR SCUFF PLATE RH
