Circuit Opening Relay
INSPECTION

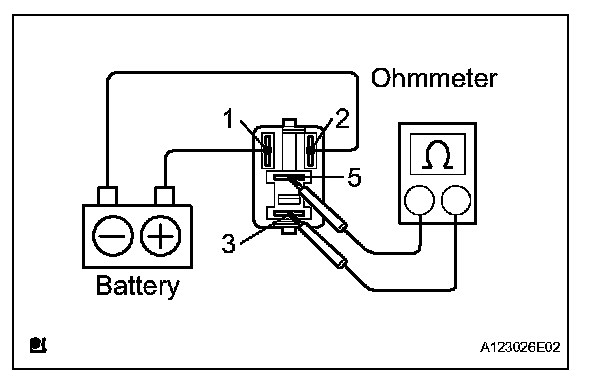

1. INSPECT CIRCUIT OPENING RELAY
a. Check the resistance.
1. Using an ohmmeter, measure the resistance between the terminals.

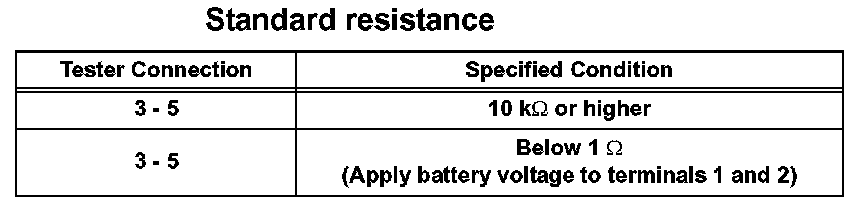

If the result is not as specified, replace the circuit opening relay.
1. INSPECT CIRCUIT OPENING RELAY
a. Check the resistance.
1. Using an ohmmeter, measure the resistance between the terminals.
If the result is not as specified, replace the circuit opening relay.
