Wiper Control Module: Service and Repair

Wiper ECU:

Wiper ECU:

Wiper ECU:

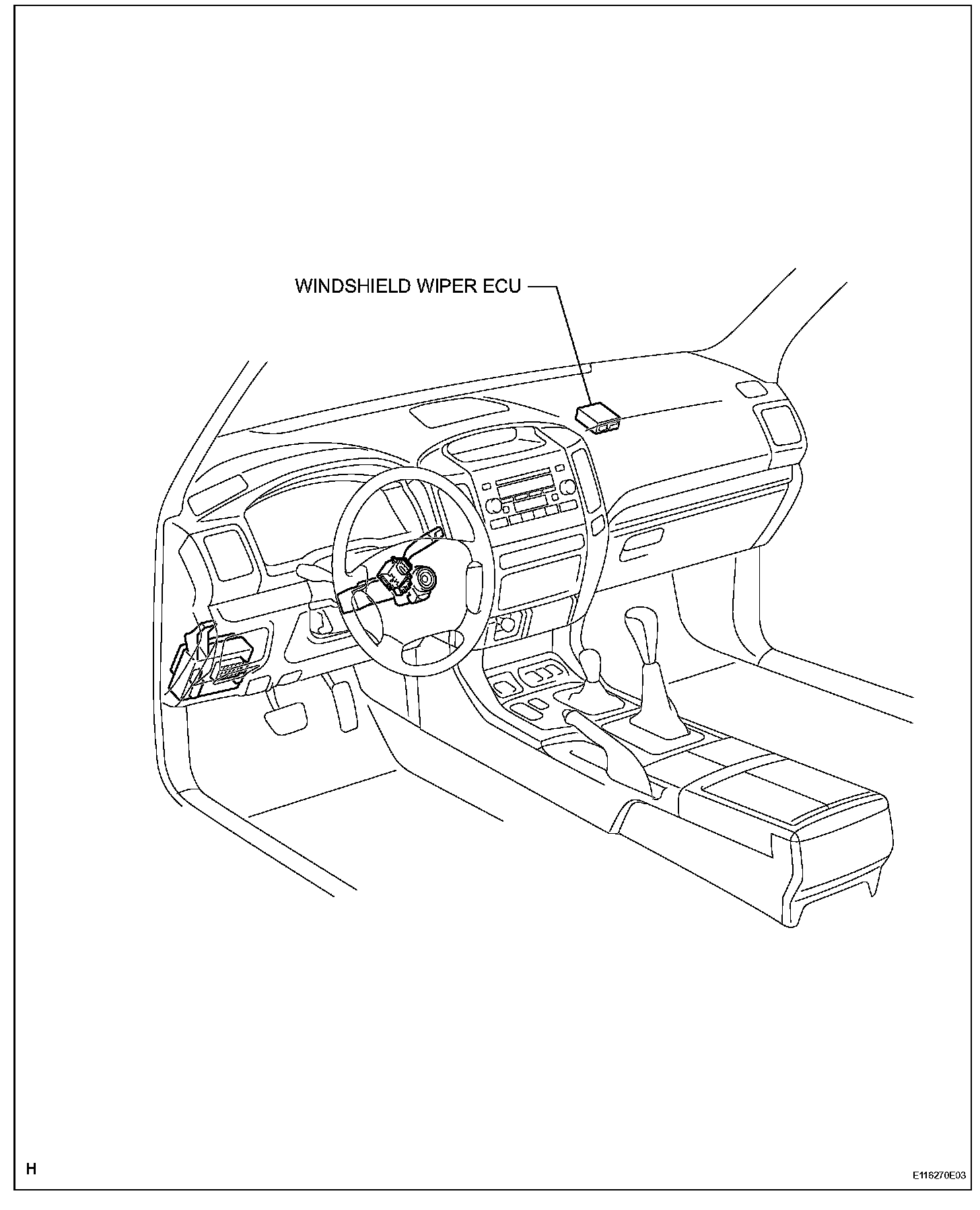

WIPER ECU

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

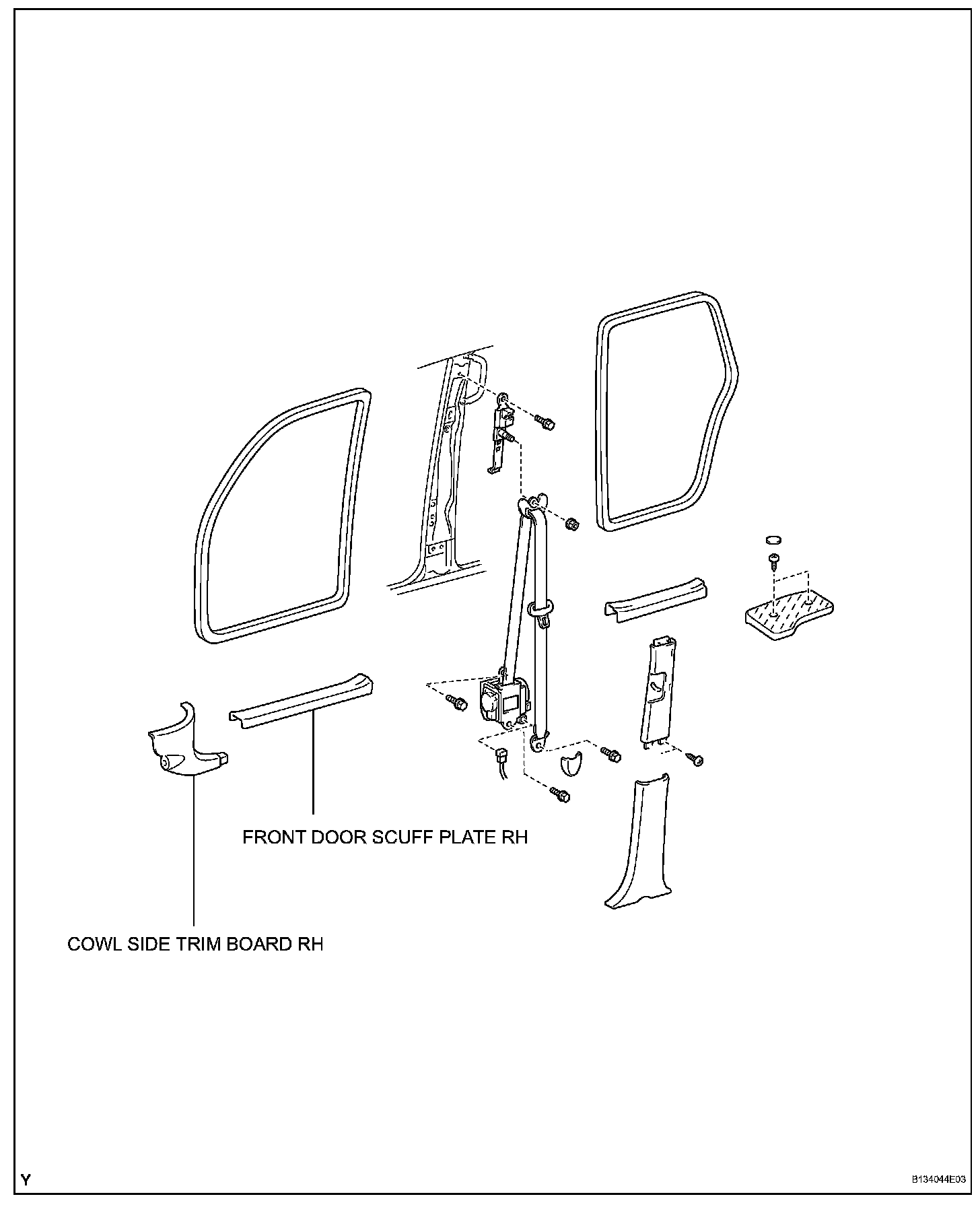

2. REMOVE FRONT DOOR SCUFF PLATE RH
3. REMOVE COWL SIDE TRIM BOARD RH

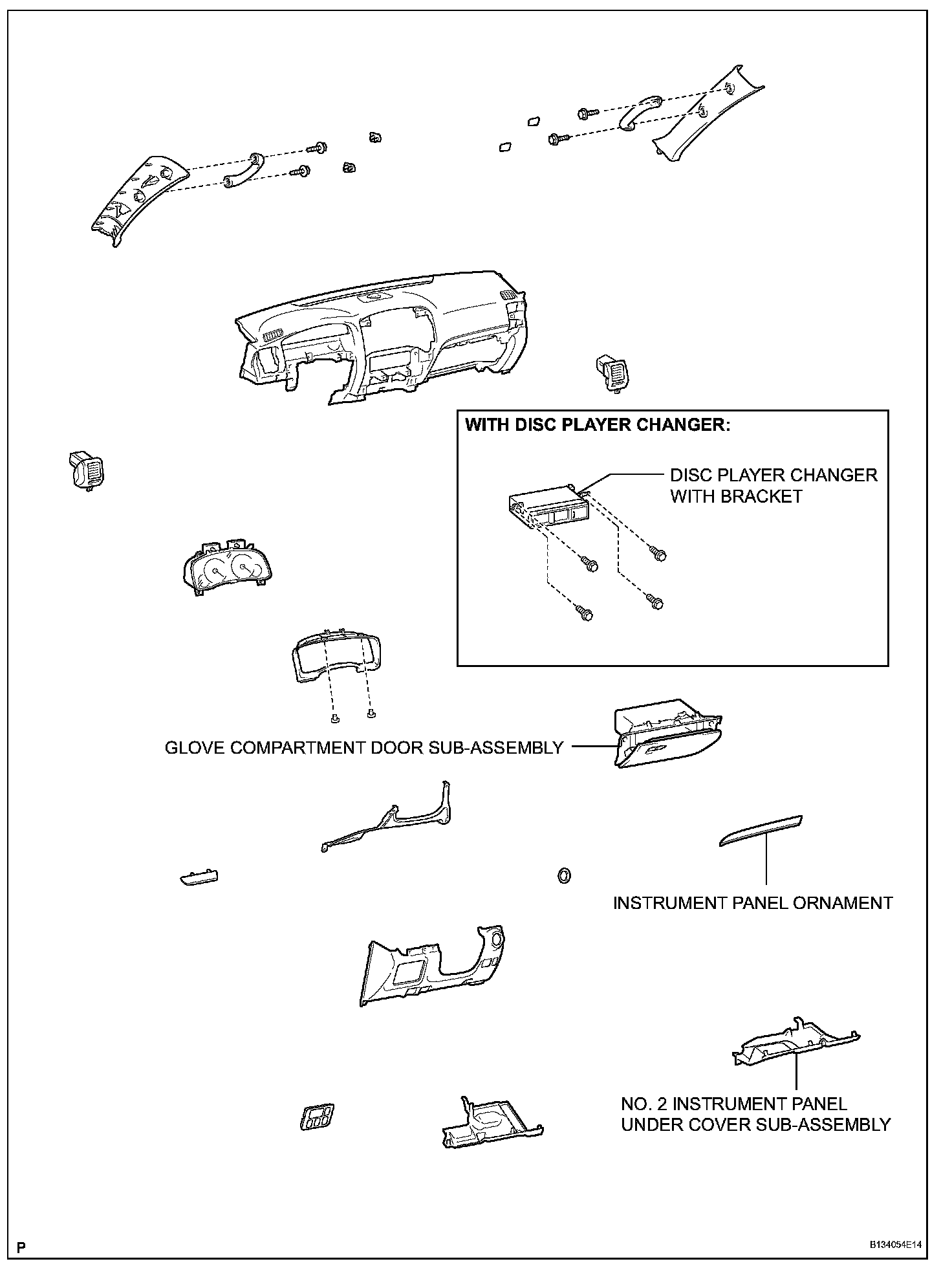

4. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
5. REMOVE GLOVE COMPARTMENT DOOR SUB-ASSEMBLY
6. REMOVE INSTRUMENT PANEL ORNAMENT
7. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER NO. 2
8. REMOVE DISC PLAYER CHANGER WITH BRACKET (WITH CD CHANGER)
9. REMOVE WINDSHIELD WIPER ECU




a. Disconnect the connector.

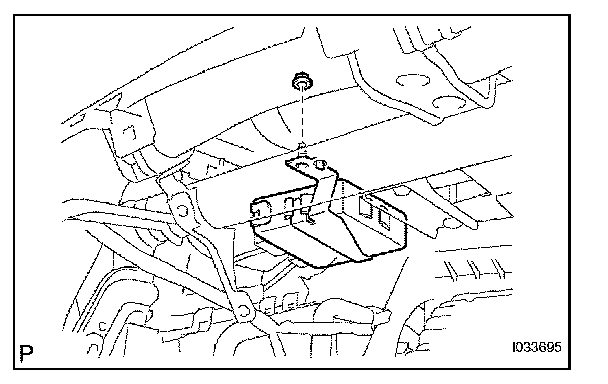

b. Remove the screw and the wiper ECU.

INSTALLATION

1. INSTALL WINDSHIELD WIPER ECU
2. INSTALL DISC PLAYER CHANGER WITH BRACKET (WITH CD CHANGER)
3. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER NO.2
4. INSTALL INSTRUMENT PANEL ORNAMENT
5. INSTALL GLOVE COMPARTMENT DOOR SUB-ASSEMBLY
6. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
7. INSTALL COWL SIDE TRIM BOARD RH
8. INSTALL FRONT DOOR SCUFF PLATE RH
9. CONNECT CABLE TO BATTERY NEGATIVE TERMINAL
