DTC Check/Clear

HINT:

Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be exactly the same as on the actual vehicle.
If the system cannot enter the diagnostic mode, inspect all AVC-LAN communication components and repair or replace problem parts (See AVC-LAN CIRCUIT ).
After the ignition switch is turned ON, check that the map is displayed before starting the diagnostic mode. Otherwise, some items cannot be checked.

START DIAGNOSTIC MODE
1. Turn the ignition switch ACC.
2. Press the "DISPLAY" switch.
3. From the display quality adjustment screen, touch the corners of the screen in the following order: upper left → lower left → upper left → lower left → upper left → lower left.
4. The diagnostic mode starts and the "System Check Mode" screen will be displayed. Service inspection starts automatically and the result will be displayed.
FINISH DIAGNOSTIC MODE

Fig 2: Identifying Tester Display - Diagnostic Mode
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Turn the ignition switch OFF.
DIAGNOSIS MENU

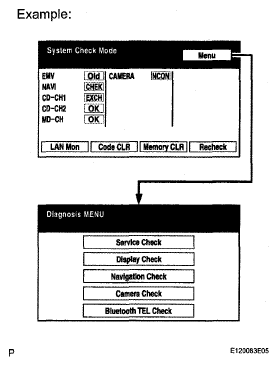

Fig 3: Identifying Diagnosis MENU Screen Display
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. The "Diagnosis MENU" screen will be displayed by pressing the menu switch on the "System Check Mode" screen.
CHECK DTC
1. Read the system check result.
  1. If the check result is "EXCH", "CHEK" or "Old", touch the displayed check result to view the results on the "Unit Check Mode" screen and record them.
    HINT:
    - If all check results are "OK", go to the communication DTC check.
    - If a device name is not known, its physical address is displayed.
      HINT:

      When proceeding to view the results of another device, press the service switch to return to the "System Check Mode" screen. Repeat this step.

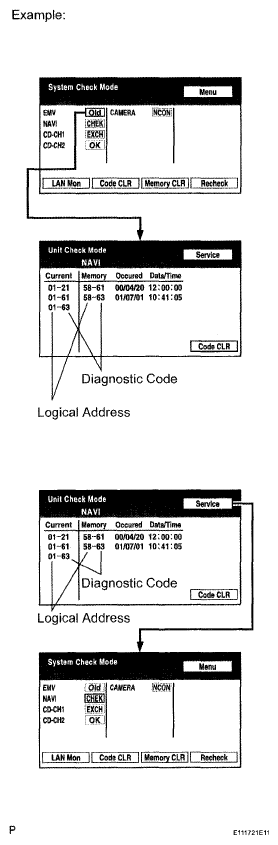

      Fig 4: Diagnostic Tool Display - System Check Mode And Unit Check Mode Screen
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Read the communication diagnostic check result.
  1. Return to the "System Check Mode" screen, and press the "LAN Mon" switch to enter the "LAN Monitor" screen.
  2. If the check result is "CHEK" or "Old", touch the displayed check result to view the results on the individual communication diagnostic screen and record them.
    HINT:
    - If all check results are "No Err", the system judges that no DTC exists.
    - The sub-code (relevant device) will be indicated by its physical address.
    - When proceeding to view the results of another device, press the "Service" switch to return to the original "LAN Monitor" screen. Repeat this step.

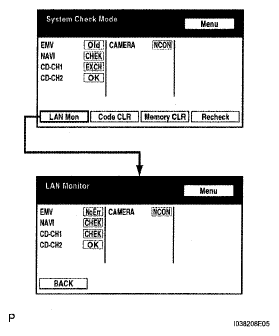

    Fig 6: Identifying Tester Display - LAN Monitor
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DTC CLEAR/RECHECK
1. Clear DTC
  1. Press the "Code CLR" switch for 3 seconds.
  2. The check results are cleared.
2. Recheck
  1. Press the "Recheck" switch.
  2. Confirm that all diagnostic codes are "OK" when the check results are displayed. If a code other than "OK" is displayed, troubleshoot again.
  3. Press the "LAN Mon" switch to change to the "LAN Monitor" screen.
  4. Confirm that all diagnostic codes are "No Err". If a code other than "No Err" is displayed, troubleshoot again.
