Audio System with LEXUS Navigation System: Notes

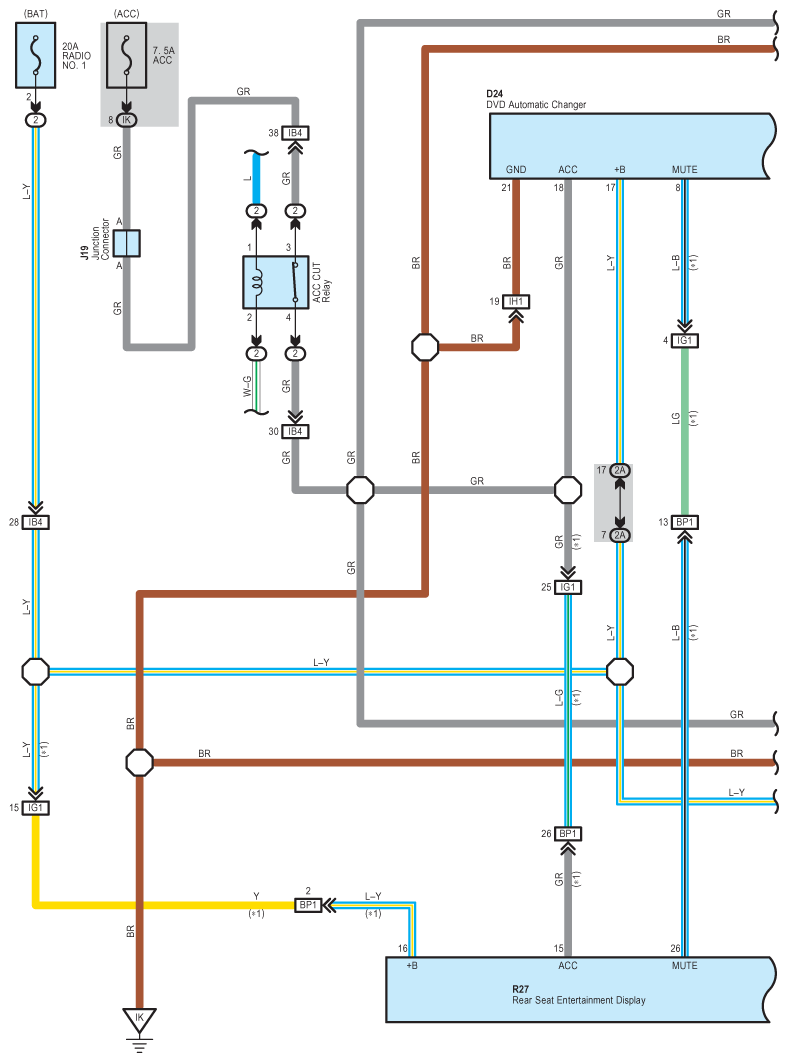

Fig 1: Audio System With LEXUS Navigation System Wiring Diagram (1 Of 9)
G08917688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

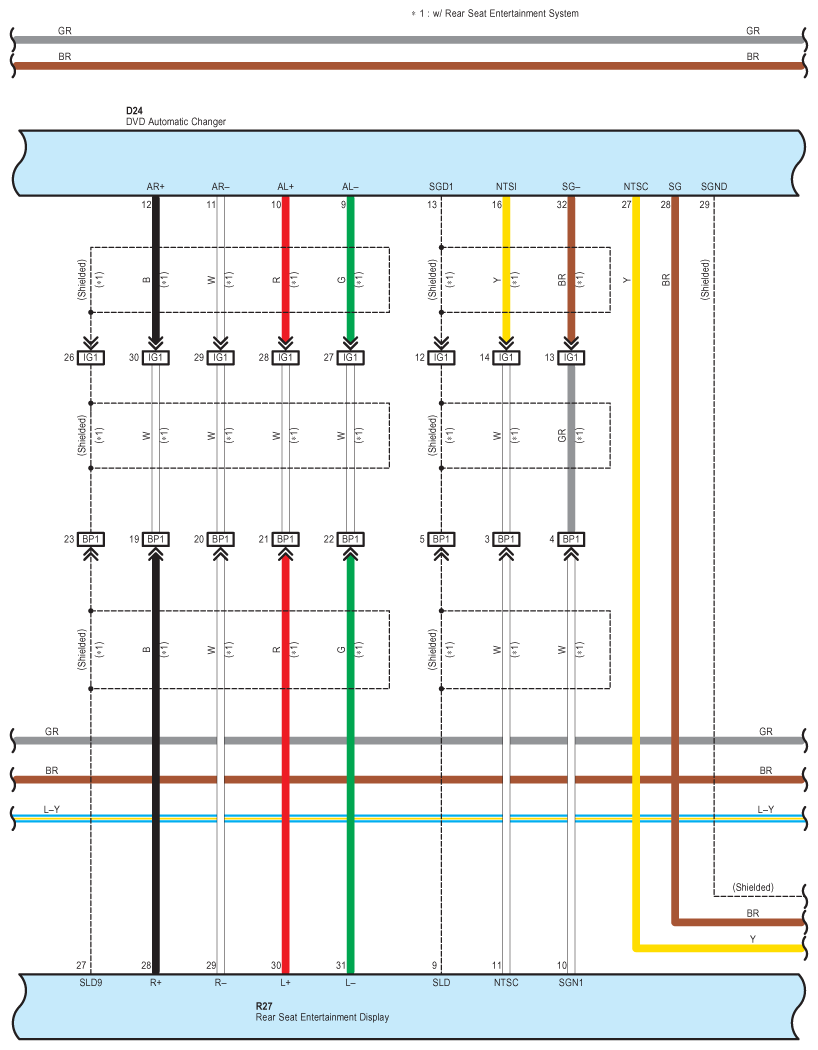

Fig 2: Audio System With LEXUS Navigation System Wiring Diagram (2 Of 9)
G08917689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

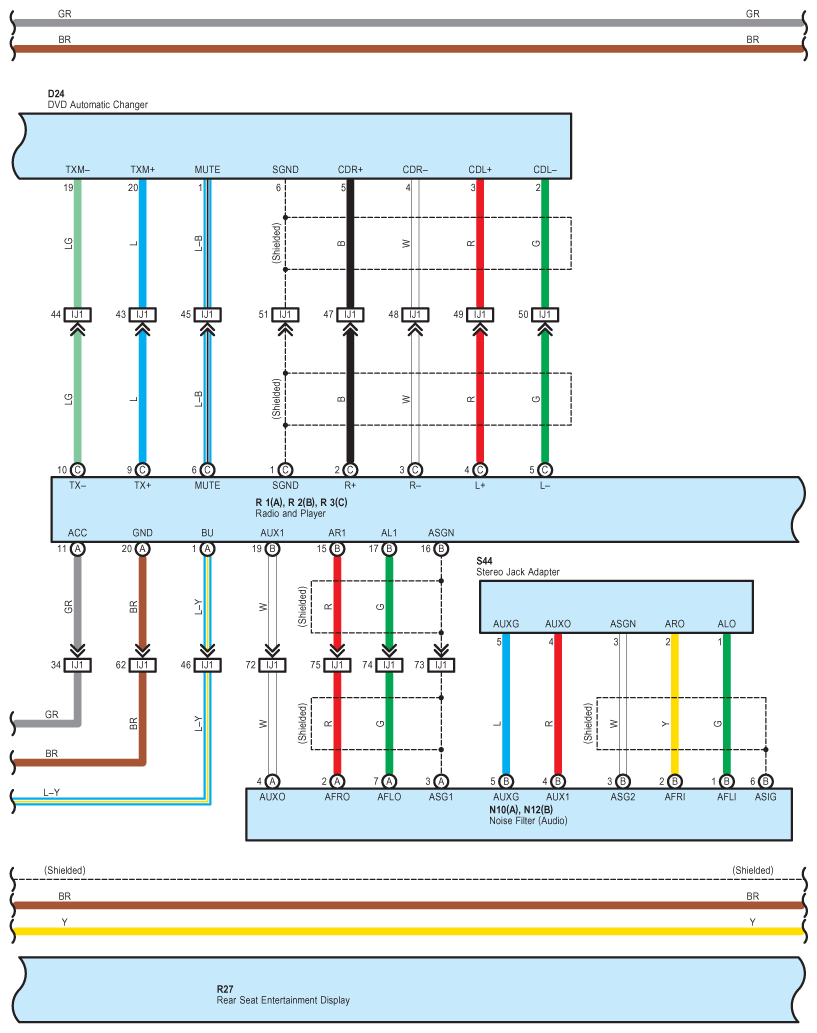

Fig 3: Audio System With LEXUS Navigation System Wiring Diagram (3 Of 9)
G08917690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

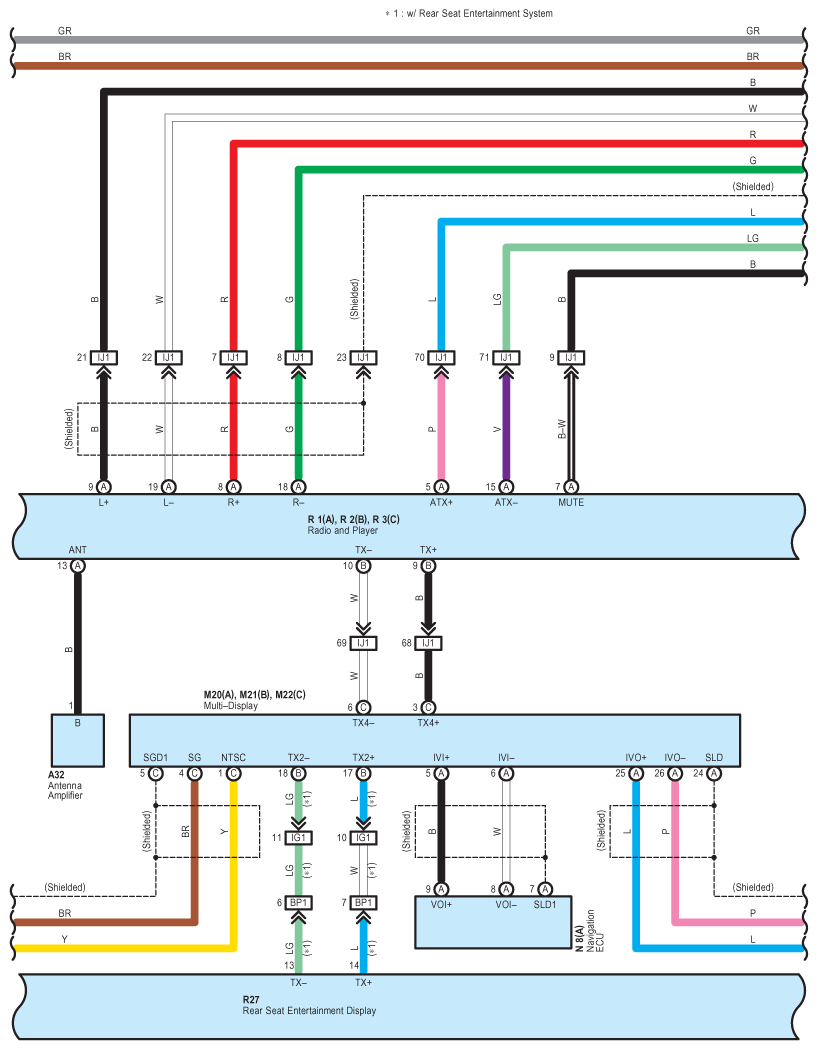

Fig 4: Audio System With LEXUS Navigation System Wiring Diagram (4 Of 9)
G08917691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

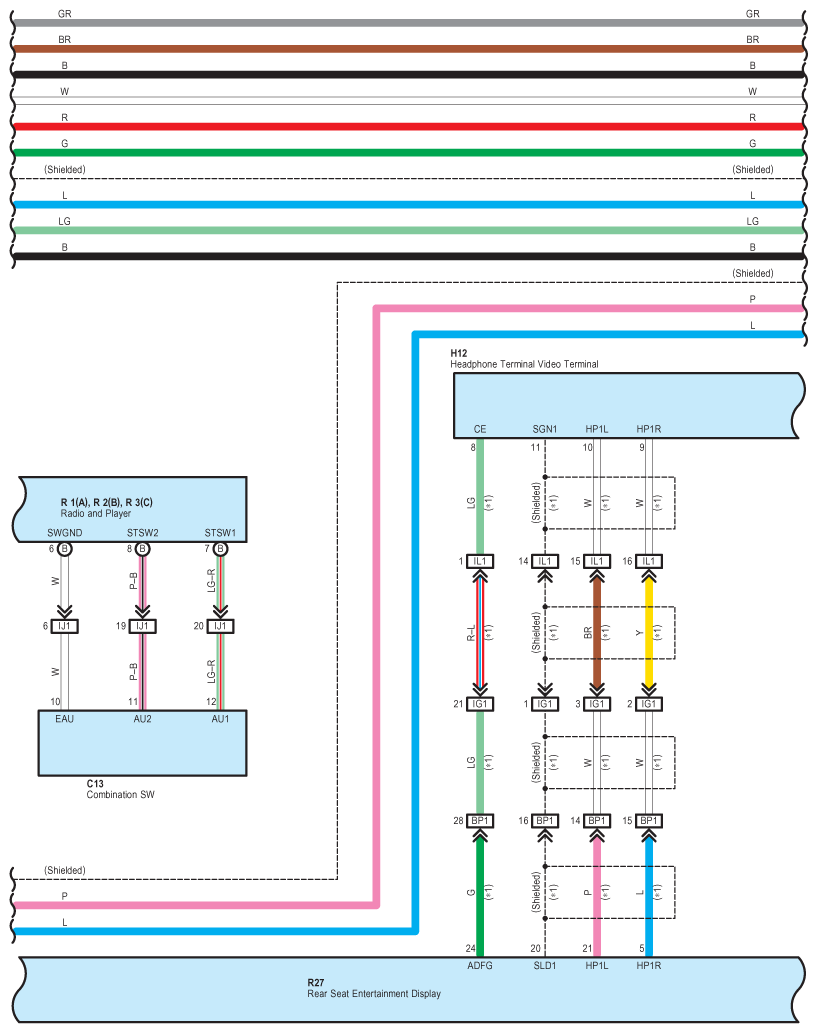

Fig 5: Audio System With LEXUS Navigation System Wiring Diagram (5 Of 9)
G08917692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

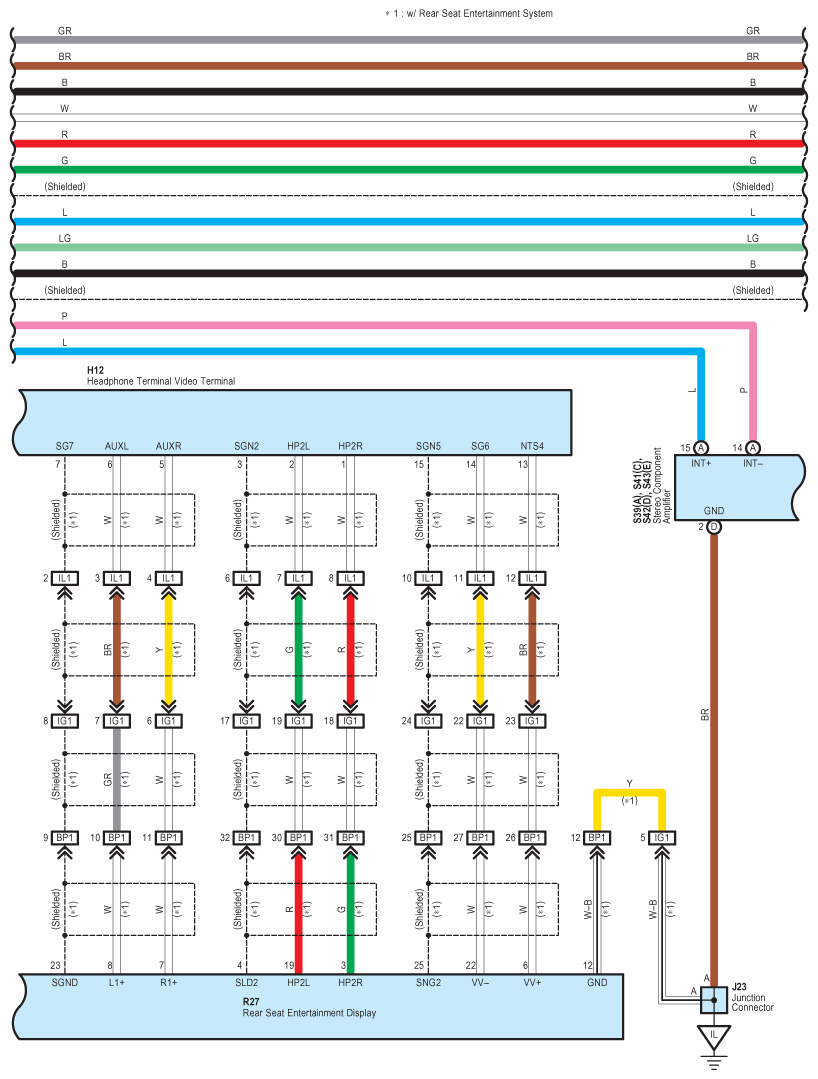

Fig 6: Audio System With LEXUS Navigation System Wiring Diagram (6 Of 9)
G08917693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

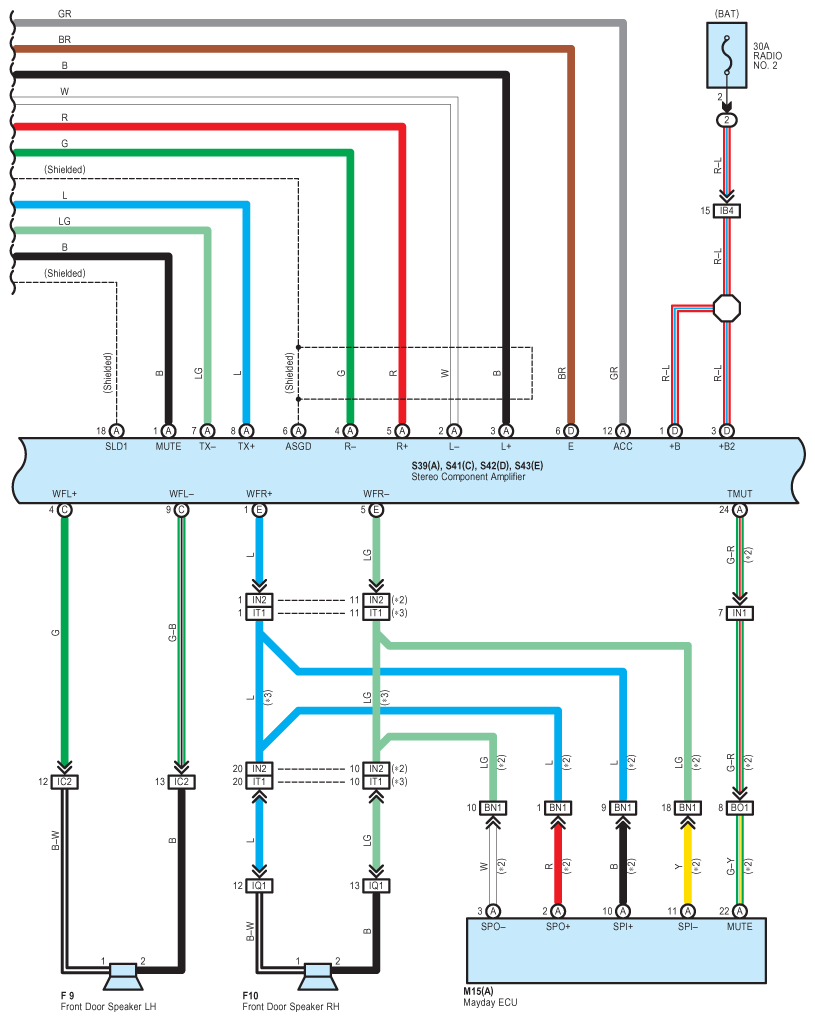

Fig 7: Audio System With LEXUS Navigation System Wiring Diagram (7 Of 9)
G08917694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

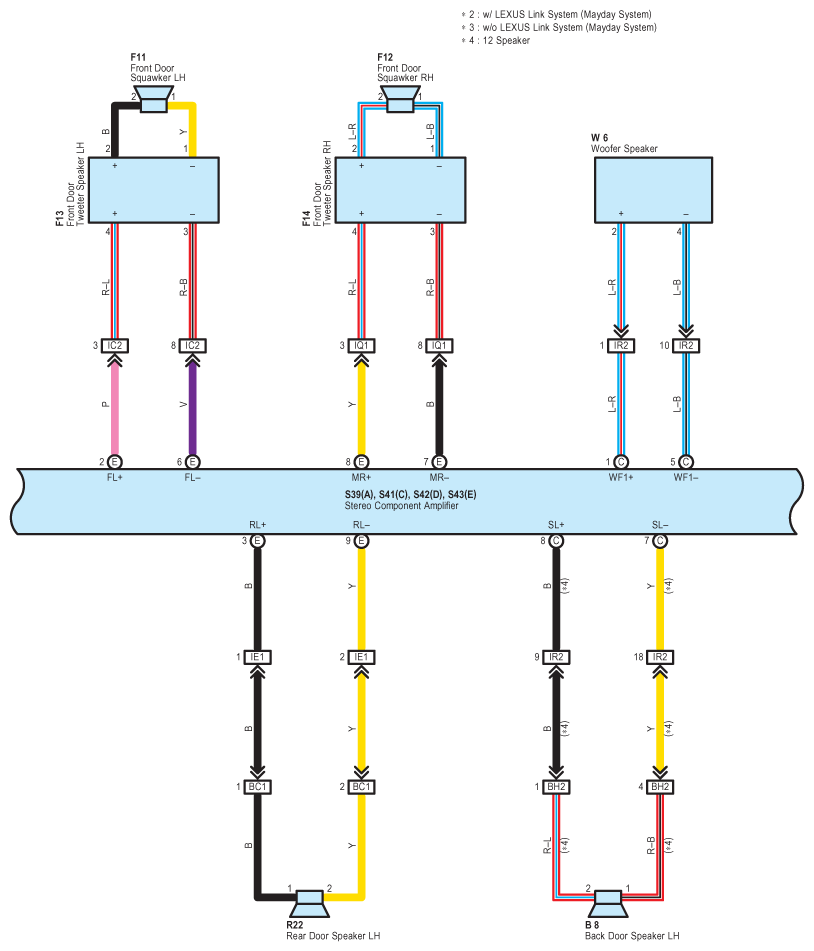

Fig 8: Audio System With LEXUS Navigation System Wiring Diagram (8 Of 9)
G08917695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

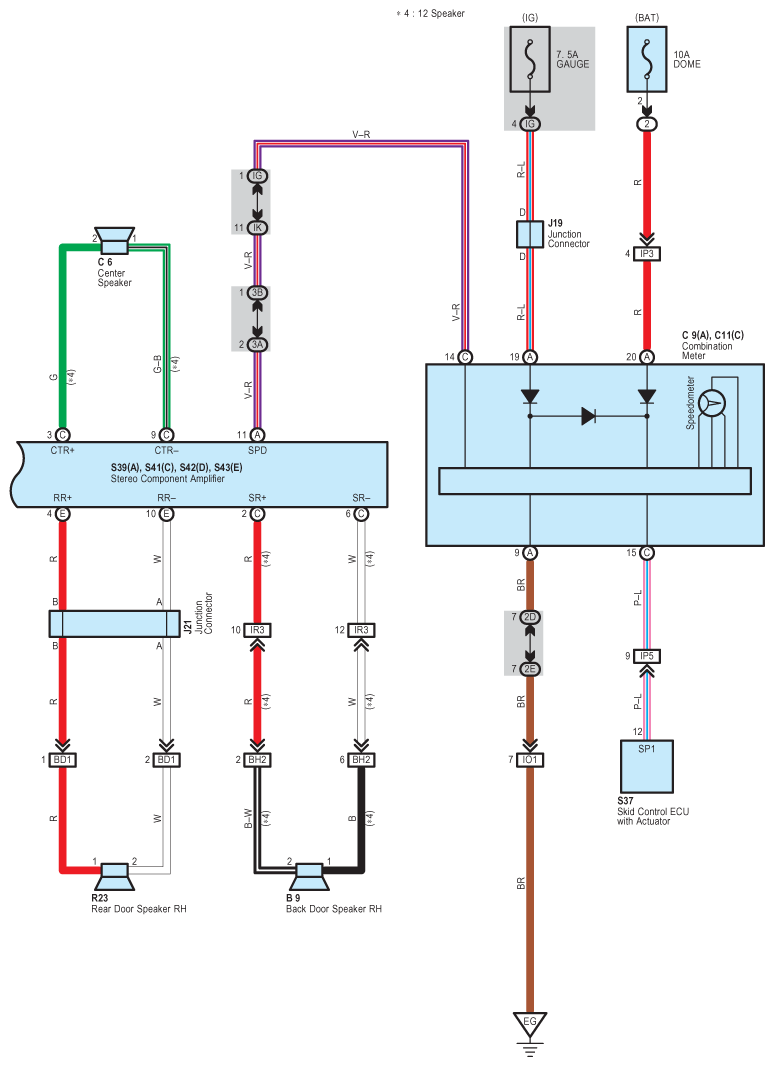

Fig 9: Audio System With LEXUS Navigation System Wiring Diagram (9 Of 9)
G08917696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
