Power Window: Notes

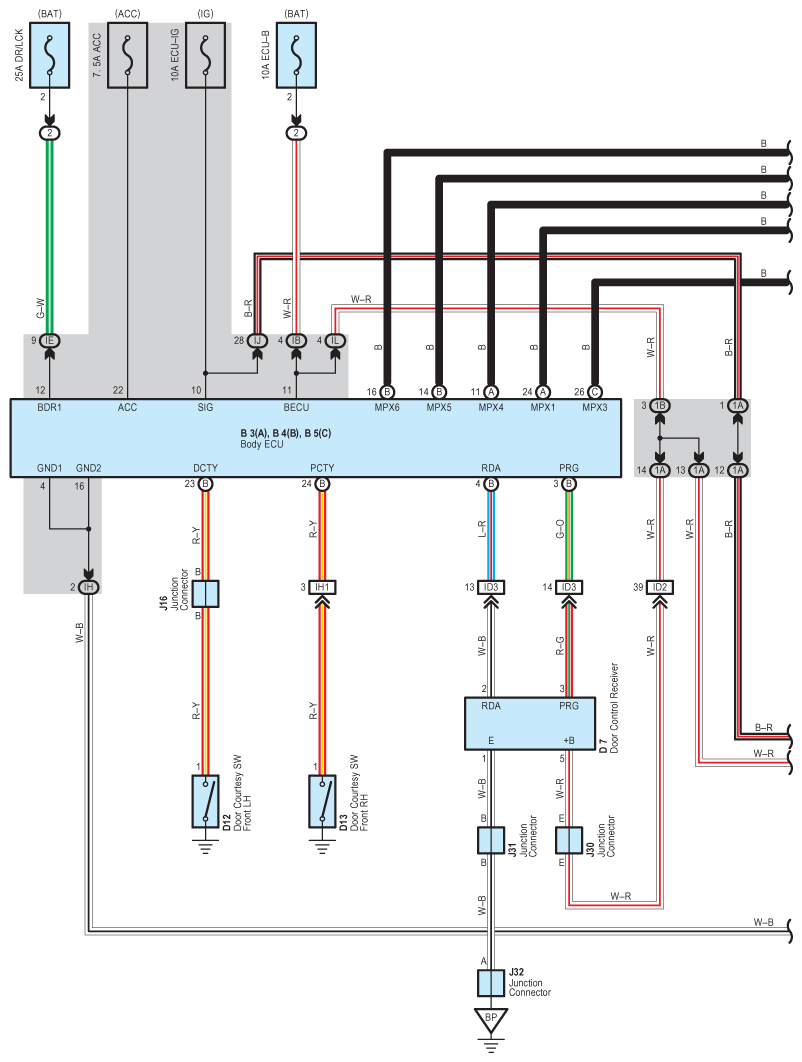

Fig 1: Power Window System Wiring Diagram (1 Of 5)
G08917600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

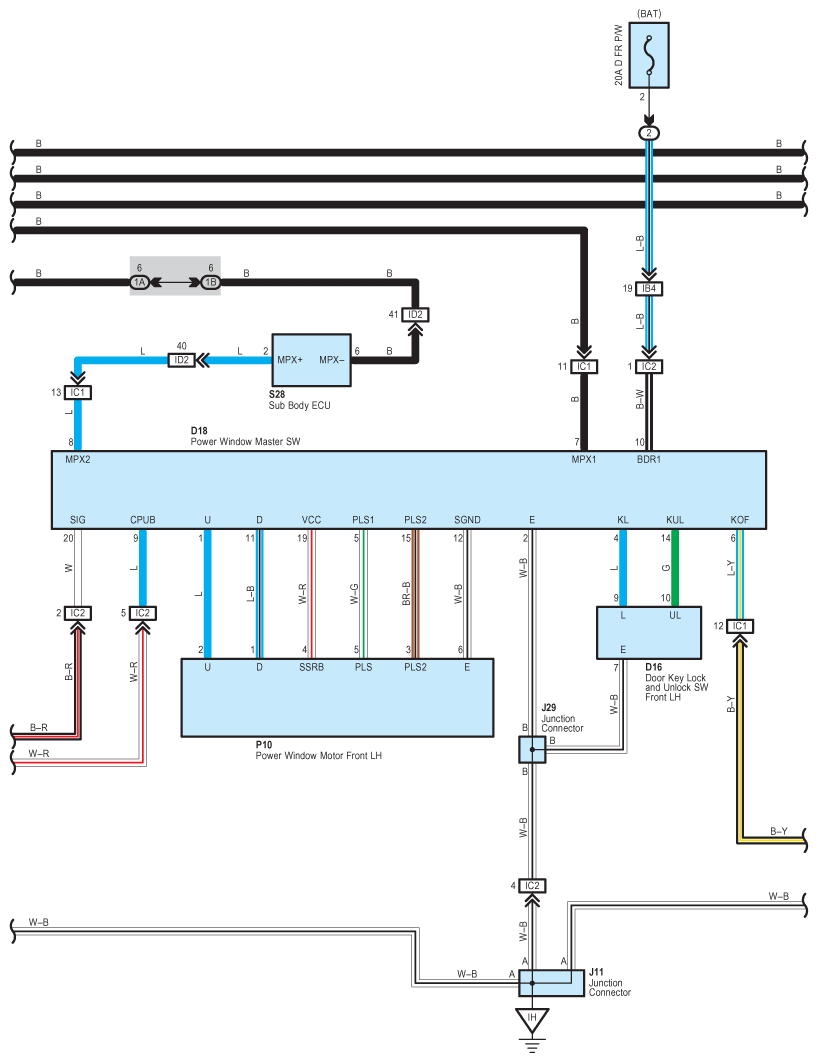

Fig 2: Power Window System Wiring Diagram (2 Of 5)
G08917601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

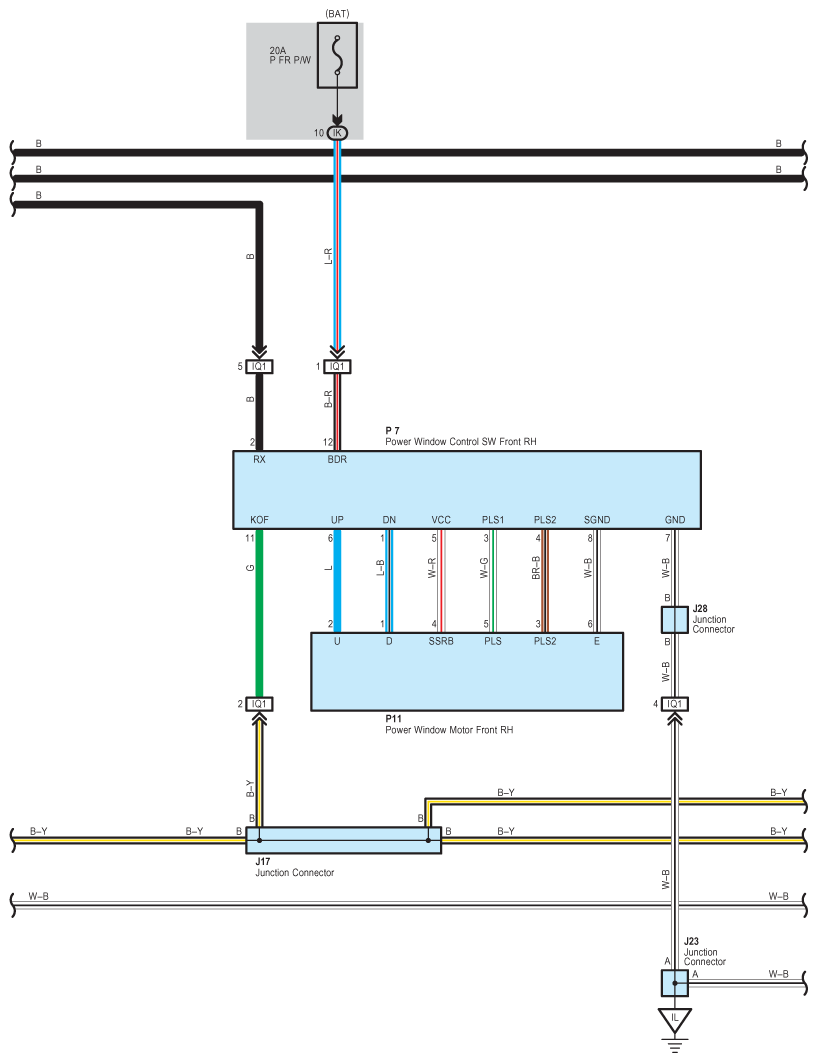

Fig 3: Power Window System Wiring Diagram (3 Of 5)
G08917602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

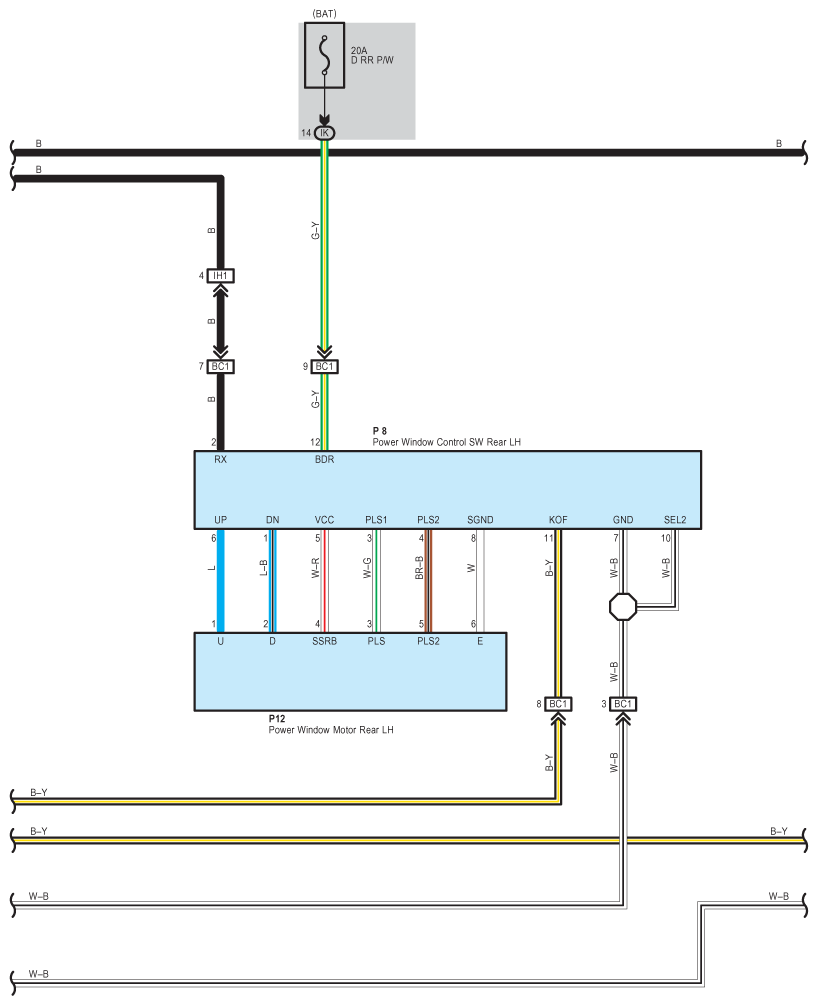

Fig 4: Power Window System Wiring Diagram (4 Of 5)
G08917603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

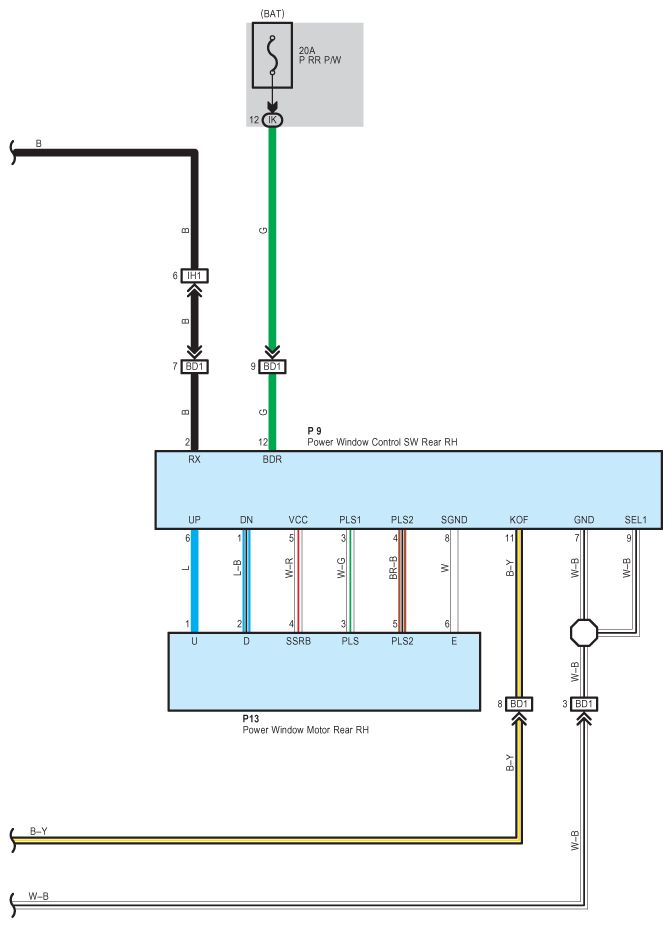

Fig 5: Power Window System Wiring Diagram (5 Of 5)
G08917604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
