Outer Mirror Switch: Inspection

1. Select "L" on the left/right adjustment switch: Check the switch resistance.

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Switch Position	Specified Condition
   -	OFF	Below 1 Ω
   1 - 8	UP	Below 1 Ω
   3 - 4		Below 1 Ω
   7 - 8		Below 1 Ω
   1 - 8	DOWN	Below 1 Ω
   3 - 8		Below 1 Ω
   4 - 7		Below 1 Ω
   1 - 8	LEFT	Below 1 Ω
   4 - 9		Below 1 Ω
   7 - 8		Below 1 Ω
   1 - 8	RIGHT	Below 1 Ω
   4 - 7		Below 1 Ω
   8 - 9		Below 1 Ω

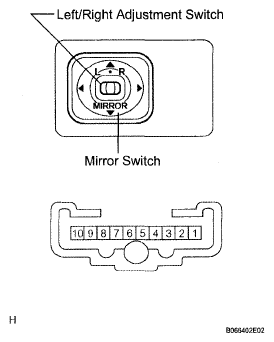

   Fig 1: Identifying Left/Right Adjustment Switch And Outer Mirror Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   If the result is not as specified, replace the switch assembly.

2. Select "R" on the left/right adjustment switch: Check the switch resistance.

Standard resistance

If the result is not as specified, replace the switch assembly.
