Inspection Procedure

NOTE: When replacing the master cylinder solenoid, perform zero point calibration (See CALIBRATION  ).
  1. CHECK STOP LIGHT SWITCH OPERATION
    1. Check that the stop light comes on when the brake pedal is depressed, and goes off when the brake pedal is released.

      OK: Stop light switch function is normal.

      HINT:

      Check the stop light bulb as it may have burnt out.

    NG:  Go to step  9

    OK: Go to Next Step

  2. INSPECT SKID CONTROL ECU (STP TERMINAL)
    Fig 1: Identifying Skid Control ECU Connector S37
    G05262752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the skid control ECU connector.
    2. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION TABLE

      Tester Connection Condition Specified Condition
      S37-7 (STP) - Body ground Stop light switch ON (Brake pedal depressed) 8 to 14 V
      S37-7 (STP) - Body ground Stop light switch OFF (Brake pedal released) Below 1.5 V

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (STP CIRCUIT)

    OK: Go to Next Step

  3. INSPECT SKID CONTROL ECU (STP2 TERMINAL)
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION TABLE

      Tester Connection Specified Condition
      S37-7 (STP) - S37-45 (STP2) Below 1 Ω
      Fig 2: Identifying Skid Control ECU Connector Terminals S37
      G05262753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (STP2 CIRCUIT)

    OK: Go to Next Step

  4. PERFORM ACTIVE TEST BY INTELLIGENT TESTER (STOP LIGHT OPERATION RELAY)
    1. Reconnect the skid control ECU connector.
    2. Connect the intelligent tester to the DLC3.
    3. Turn the ignition switch to the ON position and push the intelligent tester main switch ON.
    4. Select "ACTIVE TEST" mode on the intelligent tester.
      ACTIVE TEST

      Item Tester Part Control Range Diagnostic Note
      STP LIGHT RELAY Turns stop light operation relay Relay ON / OFF Observe rear combination light (Does not come on for 5 seconds or more)
    5. Check that "ON" and "OFF" of the stop light can be shown on the rear combination light by the intelligent tester.

      OK: The stop light turns on or off in accordance with the intelligent tester.

    OK:  Go to step  8

    NG: Go to Next Step

  5. INSPECT STOP LIGHT OPERATION RELAY (POWER SOURCE TERMINAL)
    1. Remove the stop light operation (downhill assist control) relay.
    2. Turn the ignition switch to the ON position.
    3. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION TABLE

      Tester Connection Condition Specified Condition
      1 - Body ground Ignition switch ON 8 to 14 V
      5 - Body ground Ignition switch ON 8 to 14 V
      Fig 3: Identifying Stop Light Operation (Downhill Assist Control) Relay Terminal
      G05262754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

    OK: Go to Next Step

  6. INSPECT STOP LIGHT OPERATION RELAY (DOWNHILL ASSIST CONTROL RELAY)
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION TABLE

      Tester Connection Specified Condition
      3- 4 Below 1 Ω
      3 - 5 10 kΩ or higher
      3 - 4 10 kΩ or higher
      (When battery positive voltage is applied to terminal 1 and battery negative voltage to terminal 2.)
      3 - 5 Below 1 Ω
      (When battery positive voltage is applied to terminal 1 and battery negative voltage to terminal 2.)
      Fig 4: Identifying Stop Light Operation Relay
      G04965497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE STOP LIGHT OPERATION RELAY (DOWNHILL ASSIST CONTROL RELAY)

    OK: Go to Next Step

  7. INSPECT SKID CONTROL ECU (STPO TERMINAL)
    Fig 5: Identifying Skid Control ECU Connector S37
    G05262756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Instal the stop light operation (downhill assist control) relay.
    2. Disconnect the skid control ECU connector.
    3. Turn the ignition switch to the ON position.
    4. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION TABLE

      Tester Connection Condition Specified Condition
      S37-16 (STPO) - Body ground Ignition switch ON 10 to 14 V

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (STPO CIRCUIT)

    OK: Go to Next Step

  8. RECONFIRM DTC
    1. Clear the DTC (See DTC CHECK/CLEAR  ).
    2. Check if the same DTC is detected (See DTC CHECK/CLEAR  ).

      HINT:

      Reinstall the sensors, connectors, etc. and restore the previous vehicle conditions before rechecking for DTCs.

    Result

    RESULT TABLE

    Condition Proceed to
    DTC is output A
    DTC is not output B

    B: END

    A: REPLACE MASTER CYLINDER SOLENOID

  9. INSPECT STOP LIGHT SWITCH ASSEMBLY (POWER SOURCE TERMINAL)
    Fig 6: Identifying Stop Light Switch Connector S17
    G05262757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the stop light switch connector.
    2. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION TABLE

      Tester Connection Condition Specified Condition
      S17-2 Body ground Always 10 to 14 V

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

    OK: Go to Next Step

  10. INSPECT STOP LIGHT SWITCH ASSEMBLY
    Fig 7: Identifying Stop Light Switch Assembly
    G05262758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION TABLE

      Tester connection Condition Specified condition
      S17-1 - S17-2 Switch pin free Below 1 Ω
      S17-1 - S17-2 Switch pin pushed in 10 kΩ or higher

    NG: REPLACE STOP LIGHT SWITCH ASSEMBLY

    OK: Go to Next Step

  11. CHECK HARNESS AND CONNECTOR (STOP LIGHT SWITCH - STOP LIGHT OPERATION RELAY)

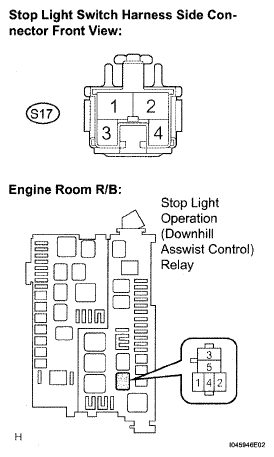

    Fig 8: Identifying Stop Light Operation (Downhill Assist Control) Relay Terminal
    G05262759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the stop light operation (downhill assist control) relay.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION TABLE

      Tester Connection Specified Condition
      S17-1 - Stop light operation (downhill assist control) relay 4 Below 1 Ω
      S17-1 - Body ground 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to Next Step

  12. INSPECT STOP LIGHT OPERATION RELAY (DOWNHILL ASSIST CONTROL RELAY)
    Fig 9: Identifying Stop Light Operation Relay
    G04965497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION TABLE

      Tester Connection Specified Condition
      3 - 4 Below 1 Ω

    NG: REPLACE STOP LIGHT OPERATION RELAY (DOWNHILL ASSIST CONTROL RELAY)

    OK: Go to Next Step

  13. CHECK HARNESS AND CONNECTOR (REAR COMBINATION LIGHT - STOP LIGHT OPERATION RELAY)
    1. Disconnect the rear combination light connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance:

      LH

      TESTER CONNECTION SPECIFIED CONDITION TABLE

      Tester Connection Specified Condition
      R14-6 - Stop light operation (downhill assist control) relay 3 Below 1 Ω
      R14-6 - Body ground 10 kΩ or higher
      R14-5 - Body ground Below 1 Ω

      RH

      TESTER CONNECTION SPECIFIED CONDITION TABLE

      Tester Connection Specified Condition
      R15-3 - Stop light operation (downhill assist control) relay 3 Below 1 Ω
      R15-3 - Body ground 10 kΩ or higher
      R15-5 - Body ground Below 1 Ω

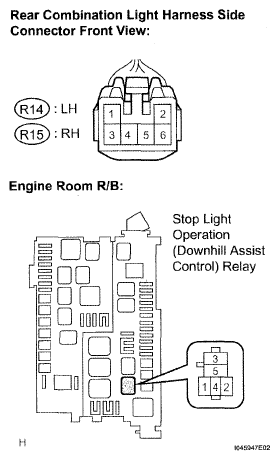

      Fig 10: Identifying Rear Combination Light Connector Terminals R14 & R15
      G05262761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (STOP LIGHT CIRCUIT)

    OK: END
