Skid Control Buzzer Circuit: Wiring Diagram

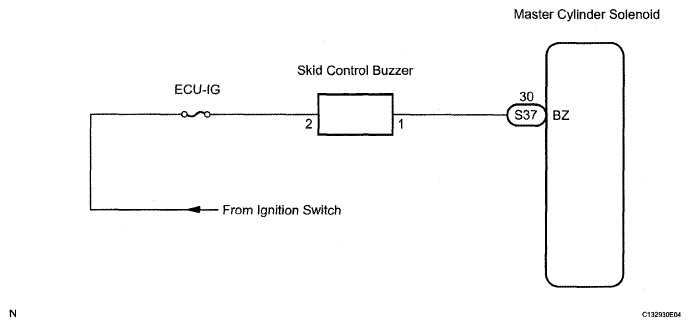

Fig 1: Identifying Skid Control Buzzer Circuit Wiring Diagram
G05262799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
