Inspection Procedure
NOTE:
When replacing the master cylinder solenoid, perform zero point calibration (See CALIBRATION
).
- INSPECT IF SKID CONTROL ECU CONNECTOR IS SECURELY CONNECTED
- Check the skid control ECU connector's connecting condition.
OK: The connector is securely connected.
NG: CONNECT CONNECTOR TO ECU CORRECTLY
OK: Go to Next Step
- Check the skid control ECU connector's connecting condition.
- INSPECT BATTERY
- Check the battery voltage.
Standard voltage: 11 to 14 V
NG: INSPECT CHARGING SYSTEM
OK: Go to Next Step
- Check the battery voltage.

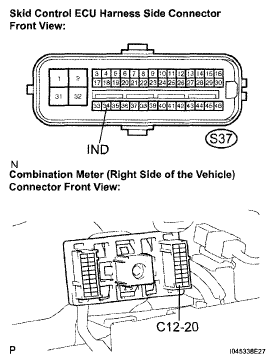

- CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - COMBINATION METER)
- Disconnect the skid control ECU connector and combination meter connector.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITION TABLETester Connection Specified Condition S37-34 (IND) - C12-20 Below 1 Ω S37-34 (IND) - Body ground 10 kΩ or higher
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (IND CIRCUIT)
OK: Go to Next Step
- INSPECT COMBINATION METER ASSEMBLY
- Check the combination meter system (See HOW TO PROCEED WITH TROUBLESHOOTING ).
NG: REPLACE COMBINATION METER ASSEMBLY
OK: REPLACE MASTER CYLINDER SOLENOID
