Inspection Procedure

NOTE: When replacing the master cylinder solenoid, perform zero point calibration (See CALIBRATION  ).
  1. CHECK DTC
    1. Check the DTCs (See DTC CHECK/CLEAR  ).

    Result

    RESULT TABLE

    Condition Proceed to
    DTC is not output A
    DTC is output B

    B: REPAIR CIRCUIT INDICATED BY OUTPUT DTC (See  DIAGNOSTIC TROUBLE CODE TABLE   )

    A: Go to Next Step

  2. INSPECT IF SKID CONTROL ECU CONNECTOR IS SECURELY CONNECTED
    1. Check the skid control ECU connector's connecting condition.

      OK: The connector is securely connected.

    NG: CONNECT CONNECTOR TO ECU CORRECTLY

    OK: Go to Next Step

  3. INSPECT BATTERY
    1. Check the battery voltage.

      Standard voltage: 11 to 14 V

    NG: INSPECT CHARGING SYSTEM

    OK: Go to Next Step

  4. INSPECT SKID CONTROL ECU (EXI TERMINAL)
    1. Disconnect the skid control ECU connector.
    2. Turn the ignition switch to the ON position.
    3. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION TABLE

      Tester Connection Condition Specified Condition
      S37-27 (EXI) - Body ground Center diff. free (Center diff. lock switch OFF) 10 to 14 V
      Fig 1: Identifying Skid Control ECU Connector Terminals S37
      G05262747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (EXI CIRCUIT)

    OK: Go to Next Step

  5. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - COMBINATION METER)

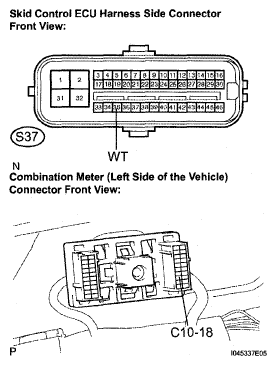

    Fig 2: Identifying Combination Meter Connector C10-18 & Skid Control ECU Connector Terminals S37
    G05262782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the combination meter connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION TABLE

      Tester Connection Specified Condition
      S37-35 (WT) - C10-18 Below 1 Ω
      S37-35 (WT) - Body ground 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (WT CIRCUIT)

    OK: Go to Next Step

  6. INSPECT COMBINATION METER ASSEMBLY
    1. Check the combination meter system (See HOW TO PROCEED WITH TROUBLESHOOTING ).

    NG: REPLACE COMBINATION METER ASSEMBLY

    OK: REPLACE MASTER CYLINDER SOLENOID
