Center Differential Lock: Notes

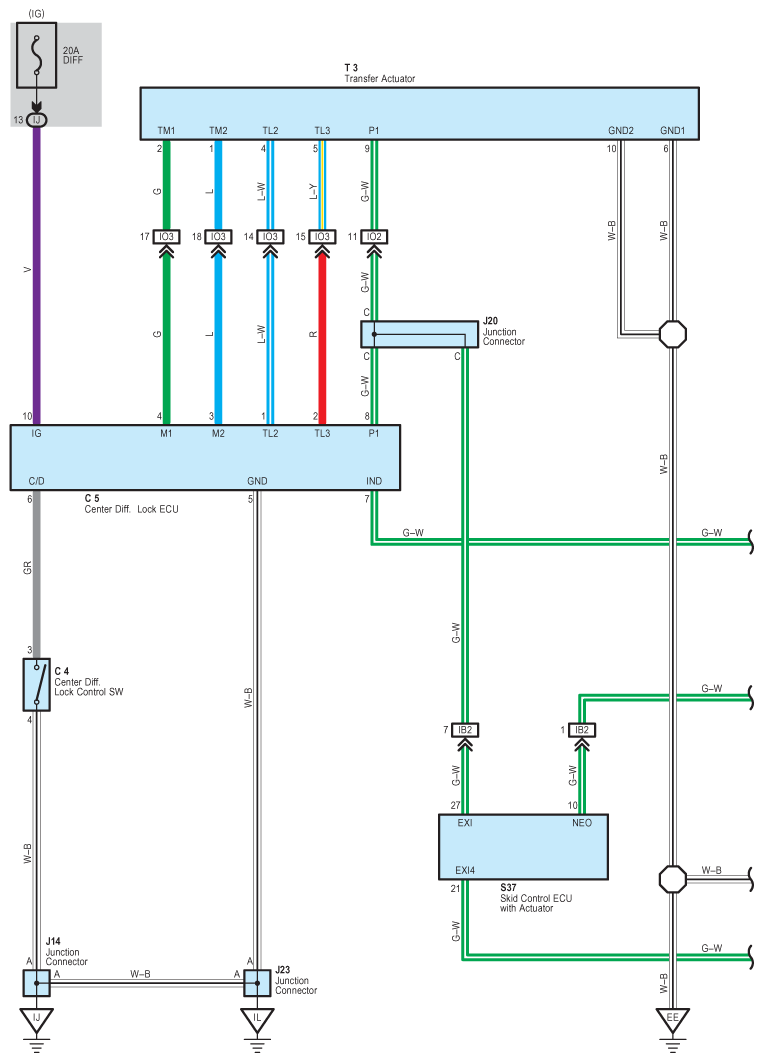

Fig 1: Center Differential Lock System Wiring Diagram (1 Of 2)
G08917644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

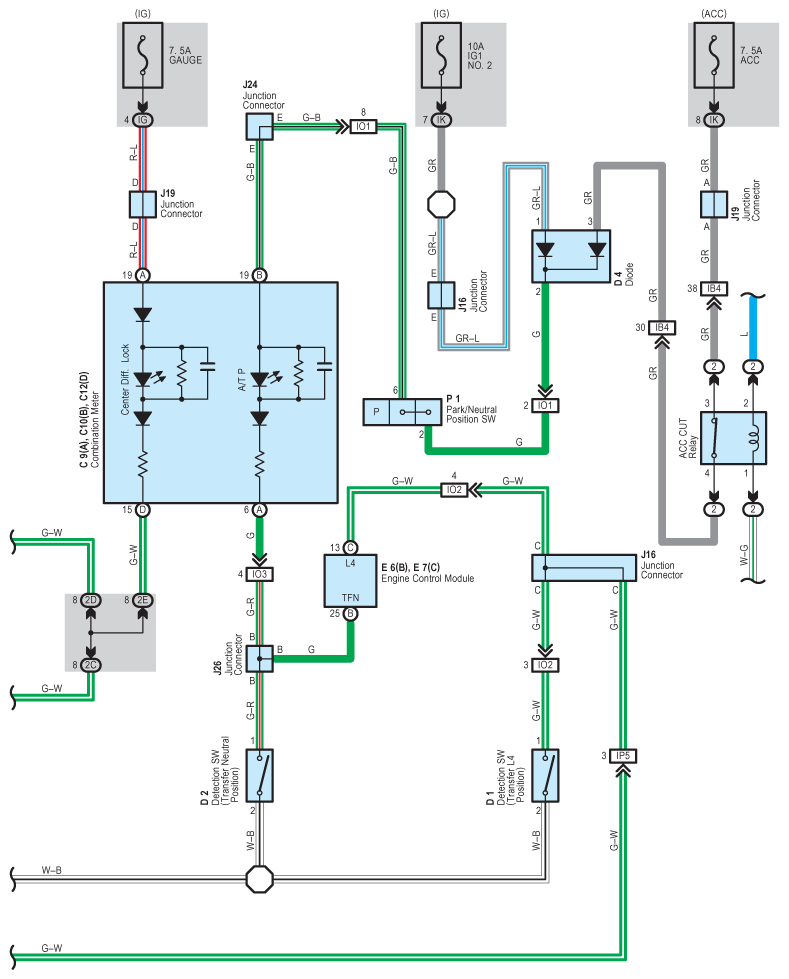

Fig 2: Center Differential Lock System Wiring Diagram (2 Of 2)
G08917645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
