LEXUS Link System (Mayday System): Notes

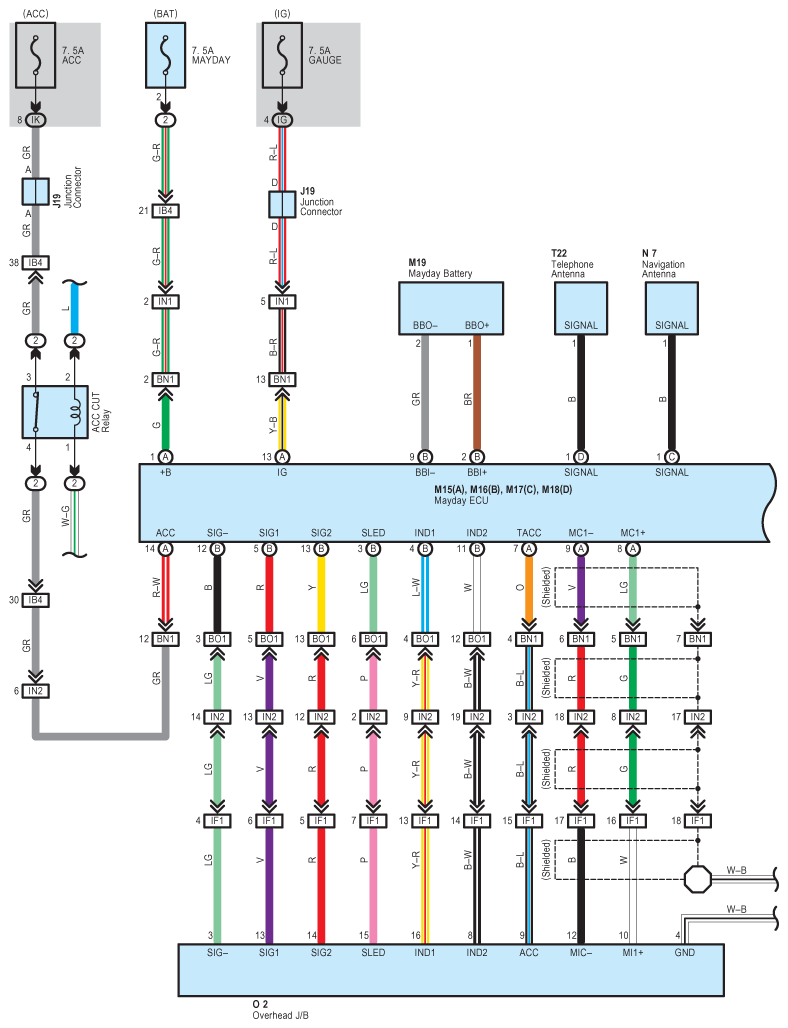

Fig 1: LEXUS Link System (Mayday System) System Wiring Diagram (1 Of 4)
G08917678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

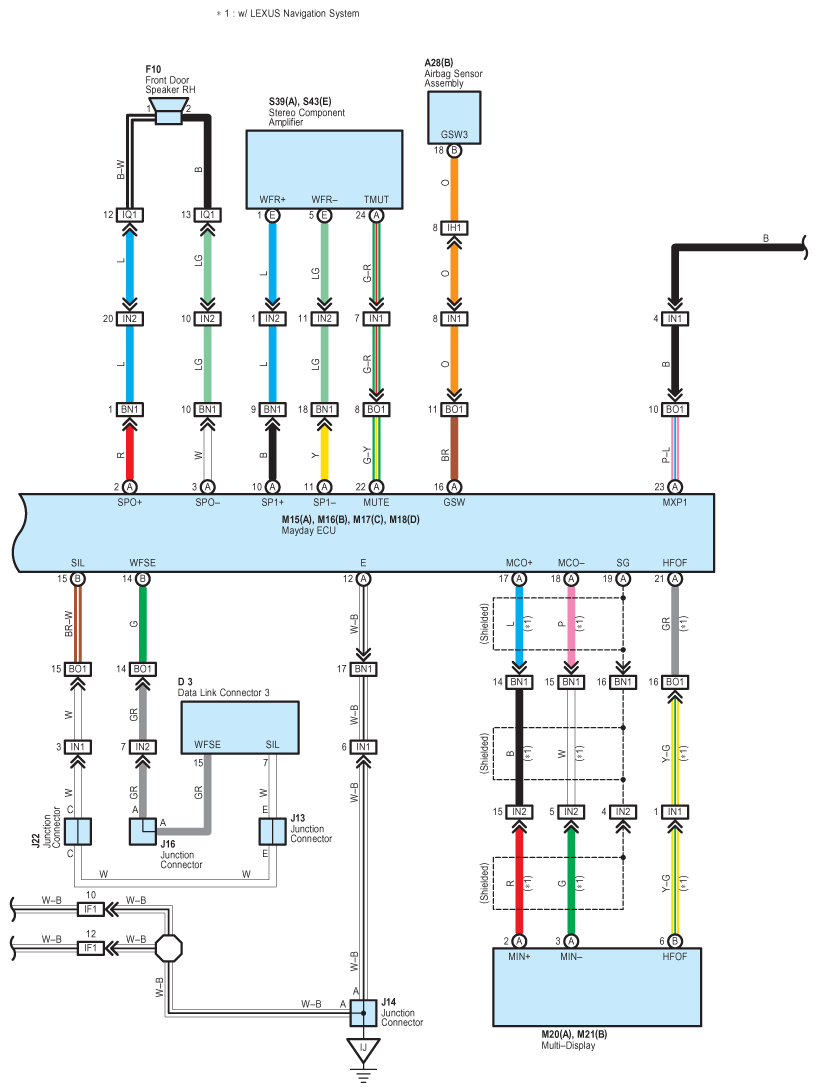

Fig 2: LEXUS Link System (Mayday System) System Wiring Diagram (2 Of 4)
G08917679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

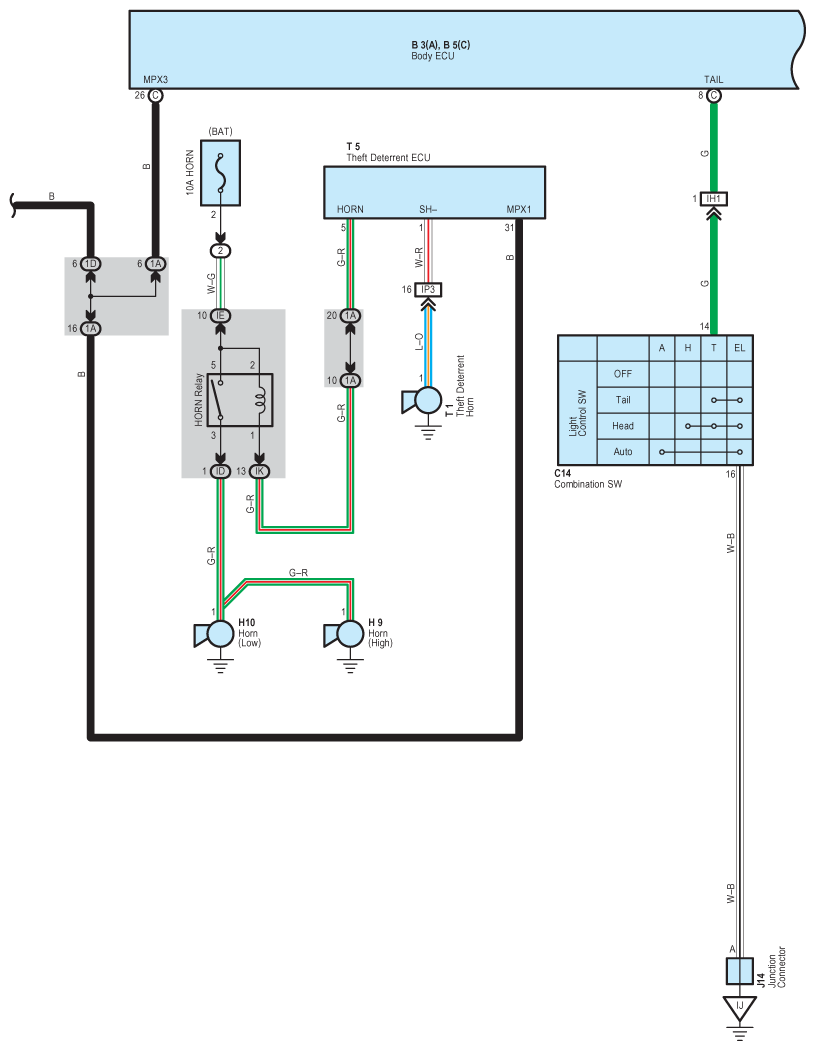

Fig 3: LEXUS Link System (Mayday System) System Wiring Diagram (3 Of 4)
G08917680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

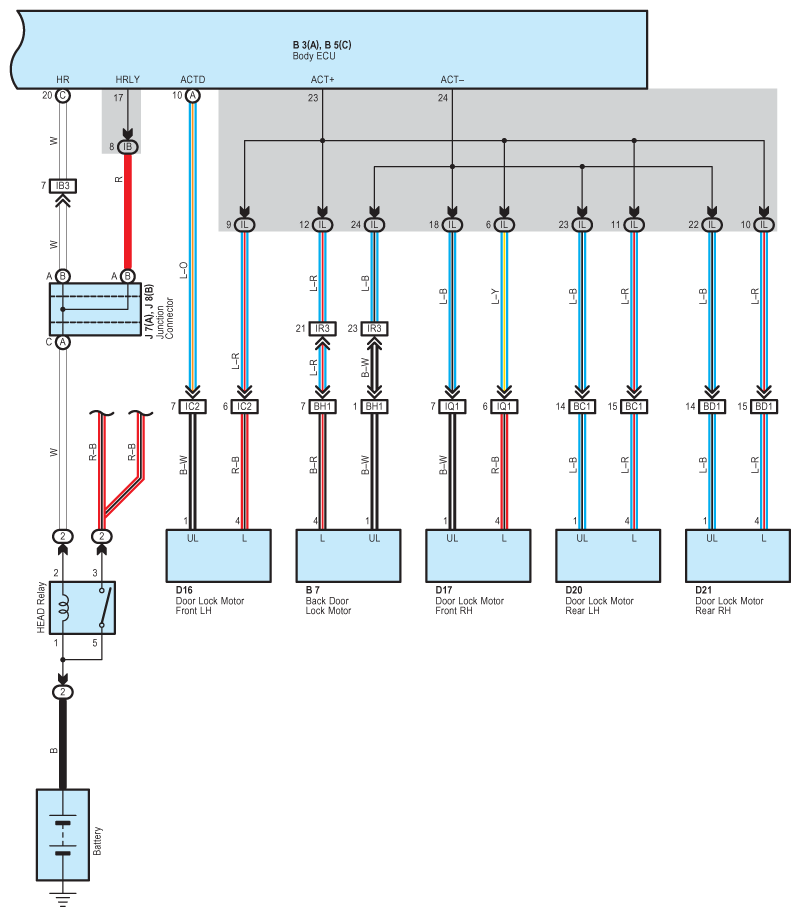

Fig 4: LEXUS Link System (Mayday System) System Wiring Diagram (4 Of 4)
G08917681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
