Multiplex Communication System - BEAN: Notes

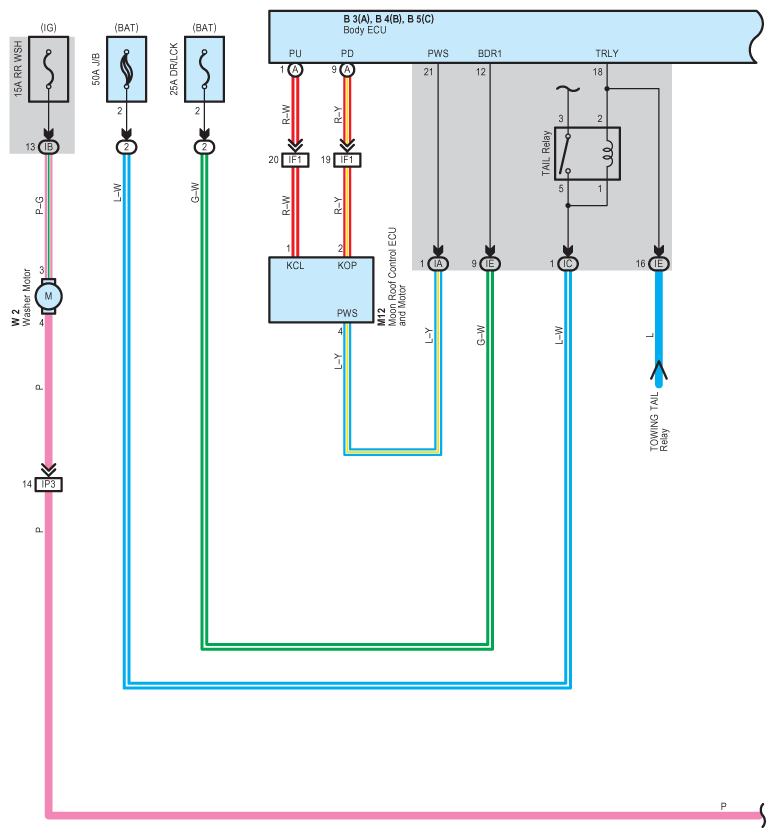

Fig 1: Multiplex Communication System - BEAN System Wiring Diagram (1 Of 21)

G08917540

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

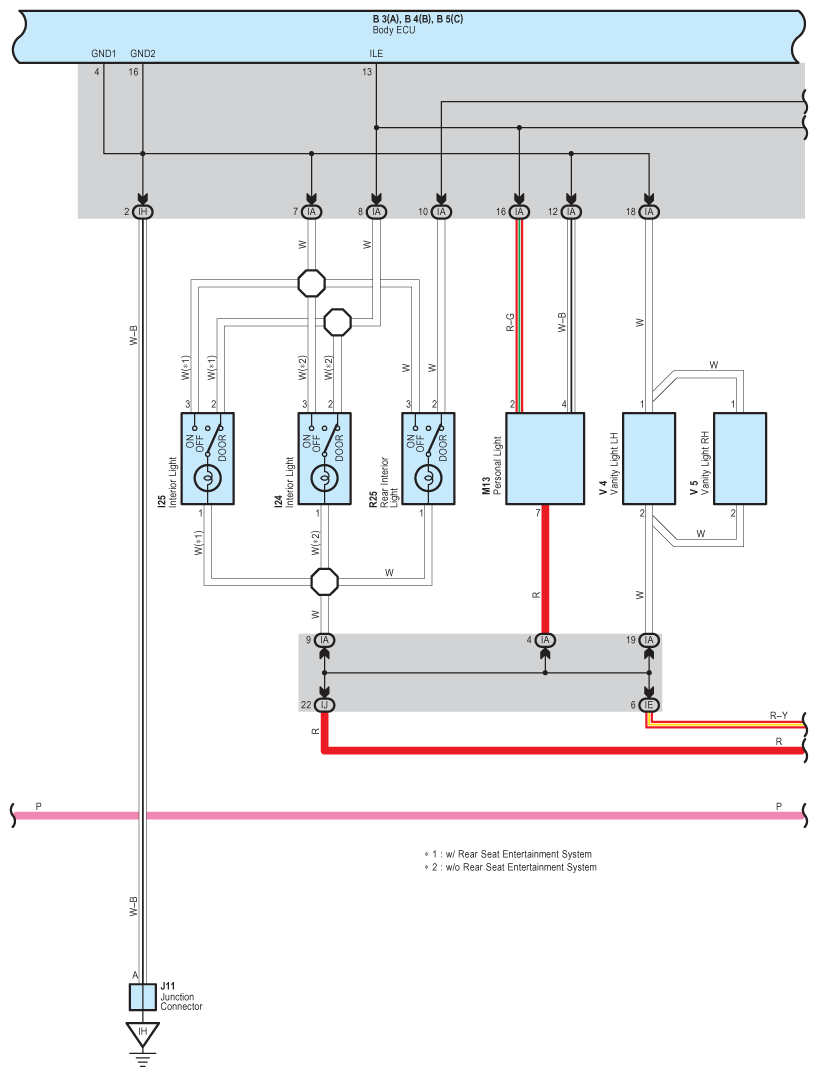

Fig 2: Multiplex Communication System - BEAN System Wiring Diagram (2 Of 21)

G08917541

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

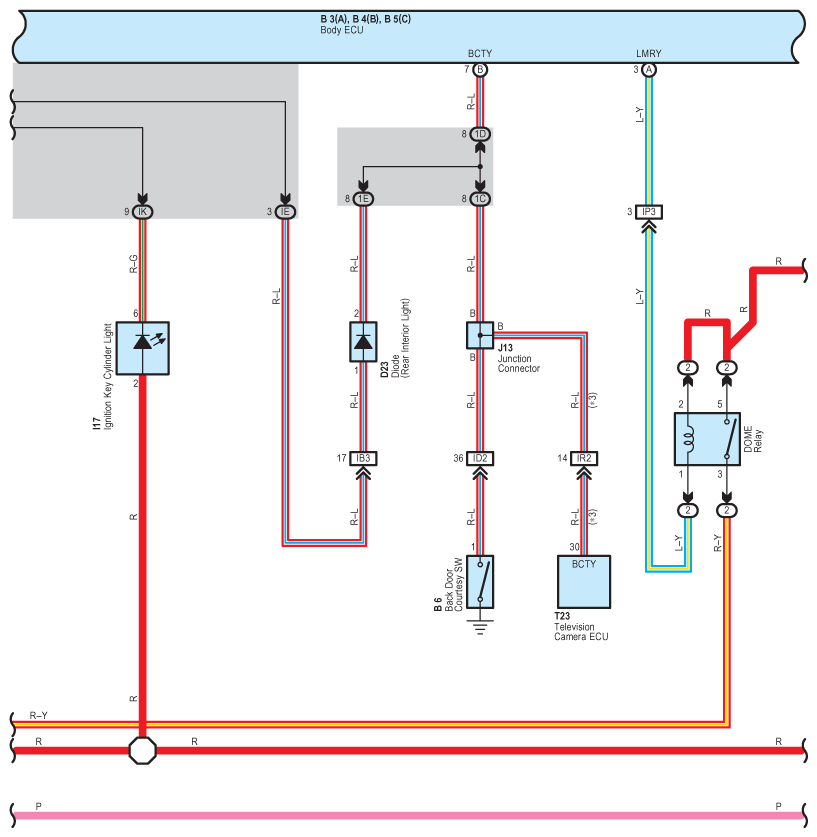

Fig 3: Multiplex Communication System - BEAN System Wiring Diagram (3 Of 21)

G08917542

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

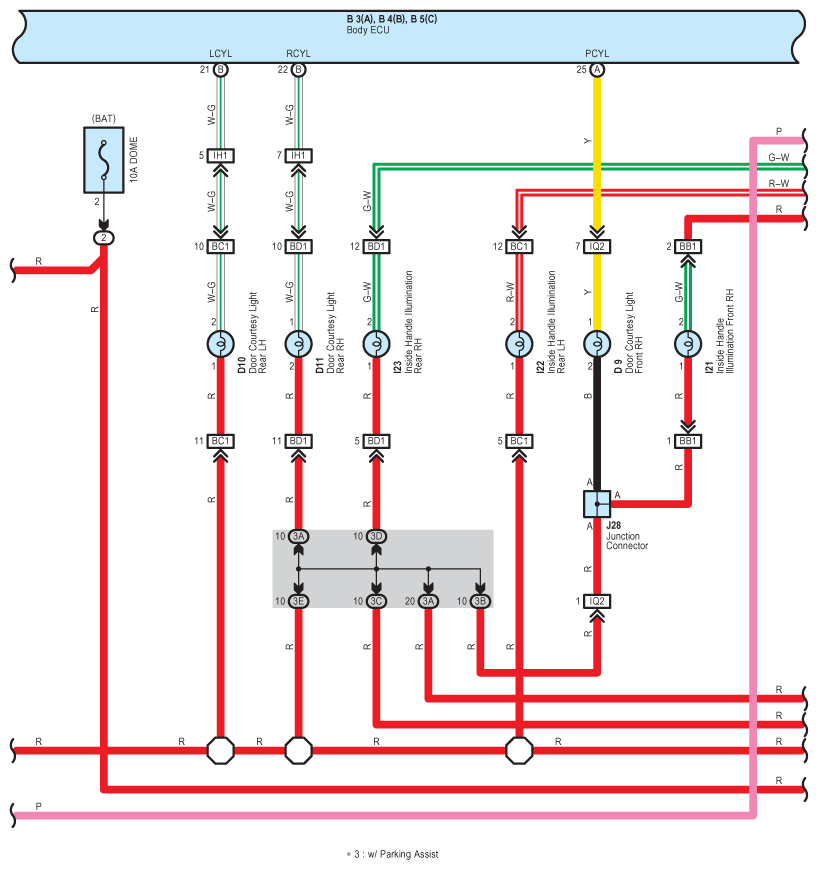

Fig 4: Multiplex Communication System - BEAN System Wiring Diagram (4 Of 21)

G08917543

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

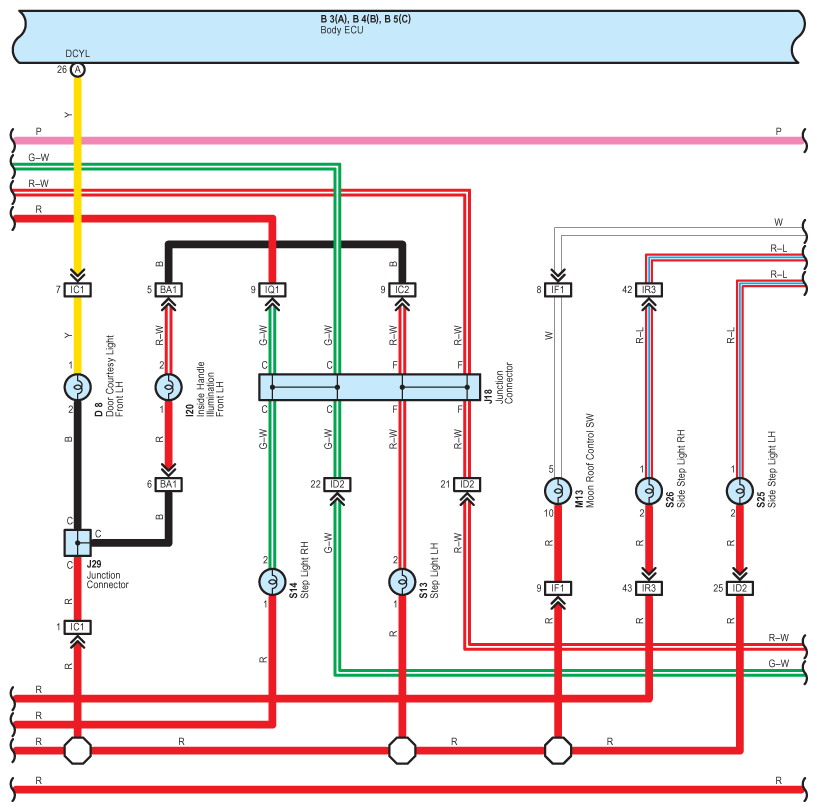

Fig 5: Multiplex Communication System - BEAN System Wiring Diagram (5 Of 21)

G08917544

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

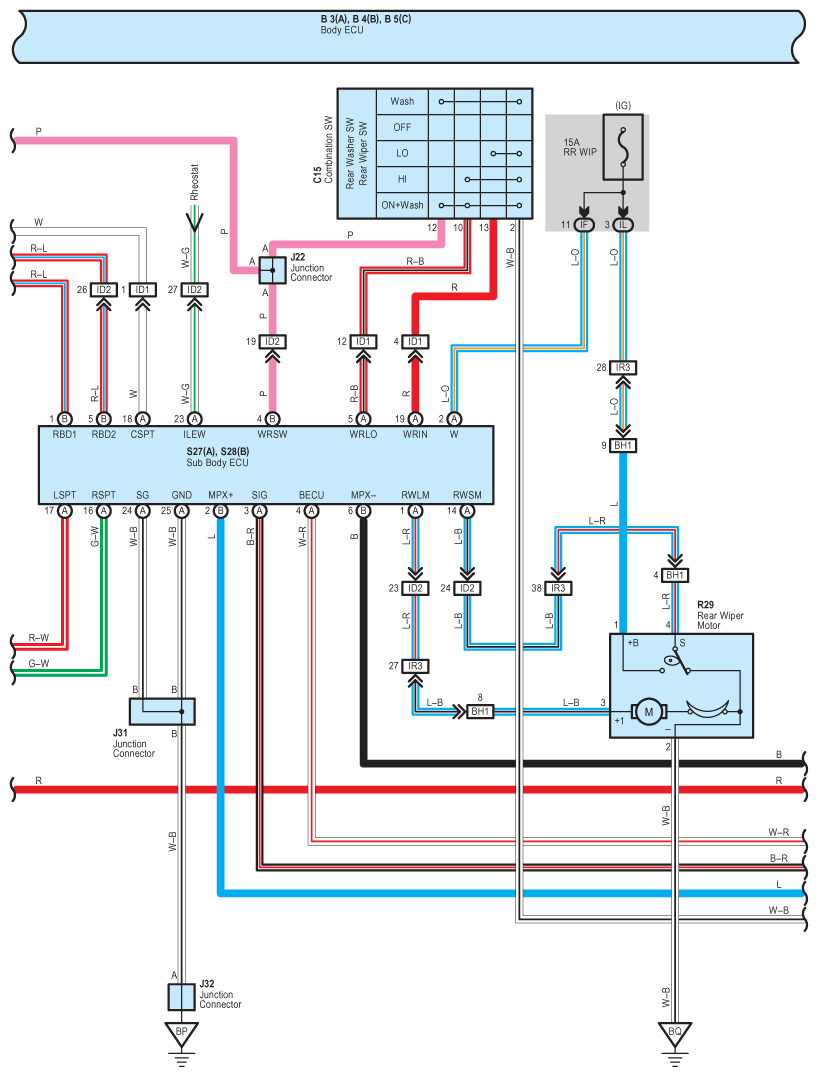

Fig 6: Multiplex Communication System - BEAN System Wiring Diagram (6 Of 21)

G08917545

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

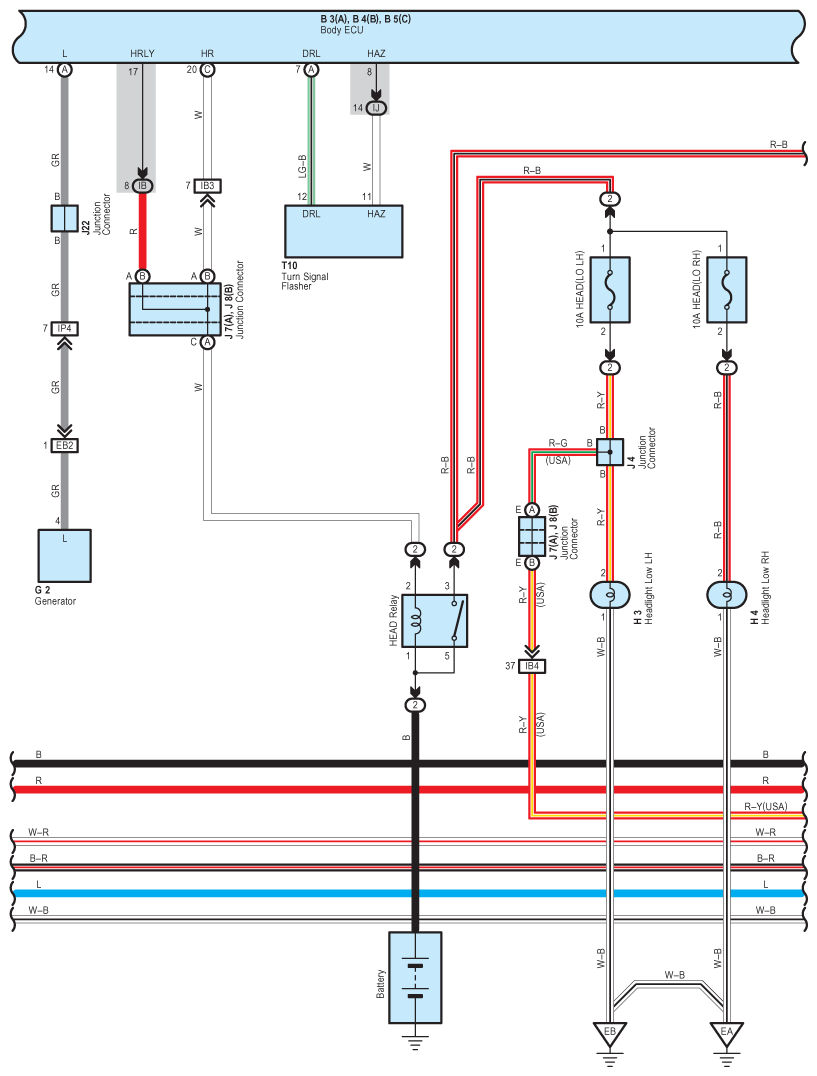

Fig 7: Multiplex Communication System - BEAN System Wiring Diagram (7 Of 21)

G08917546

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

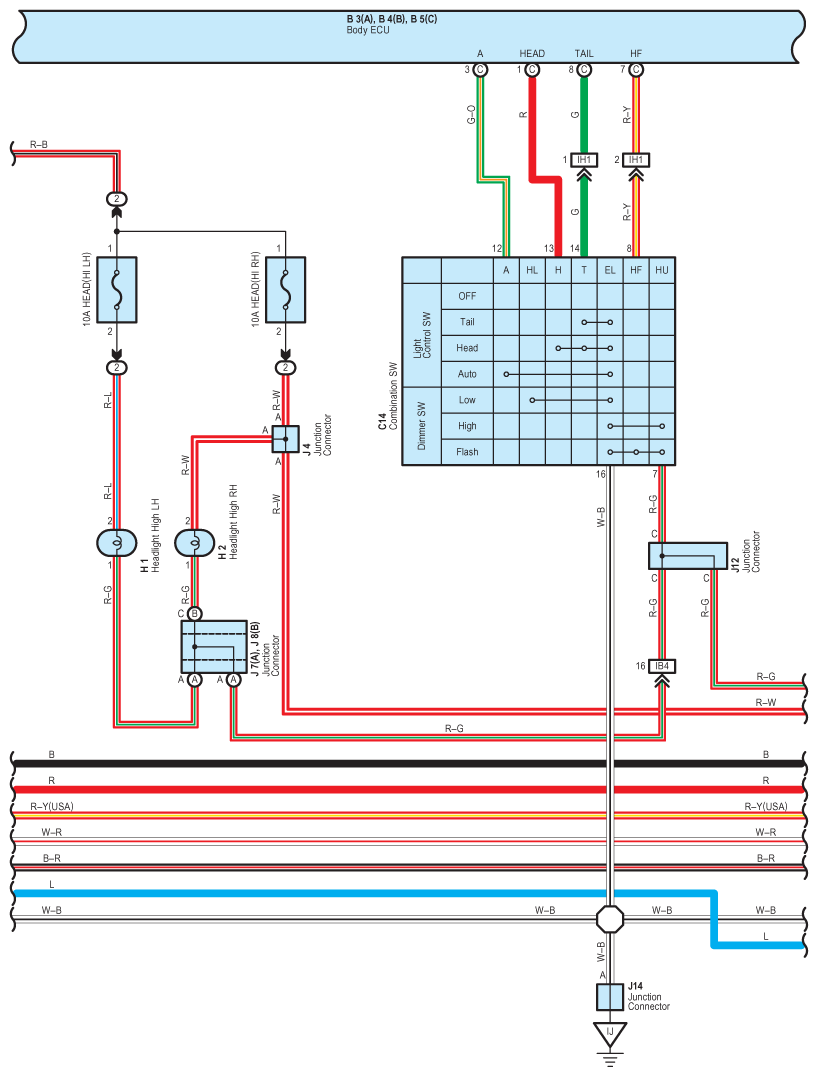

Fig 8: Multiplex Communication System - BEAN System Wiring Diagram (8 Of 21)

G08917547

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

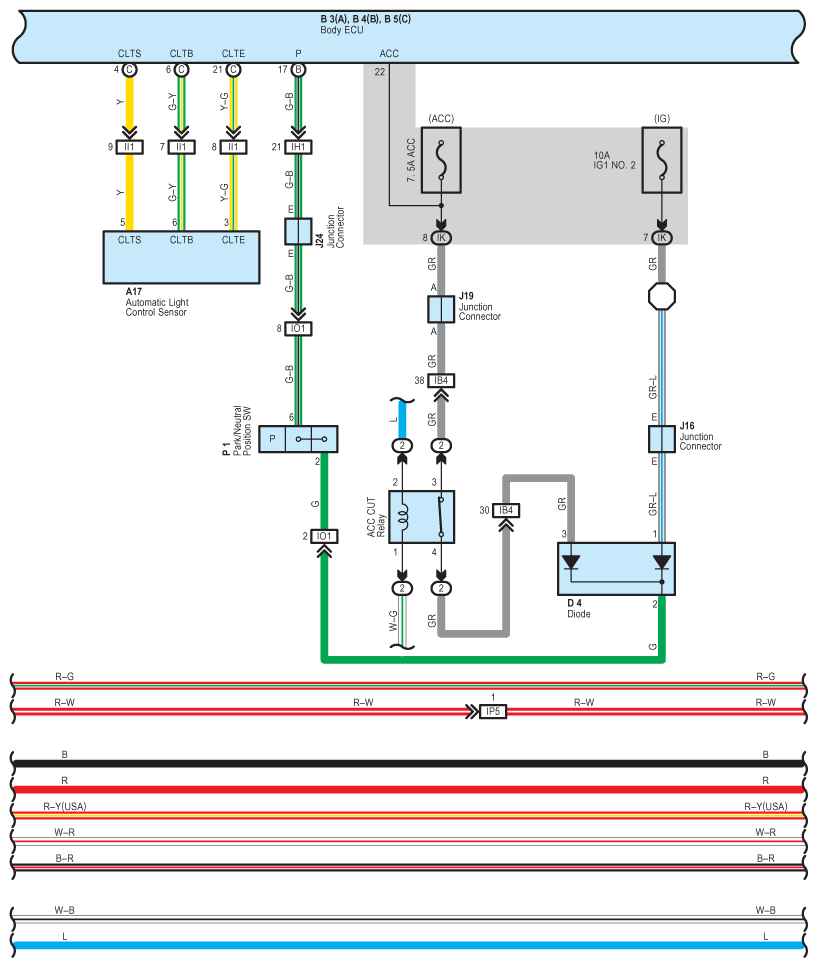

Fig 9: Multiplex Communication System - BEAN System Wiring Diagram (9 Of 21)

G08917548

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

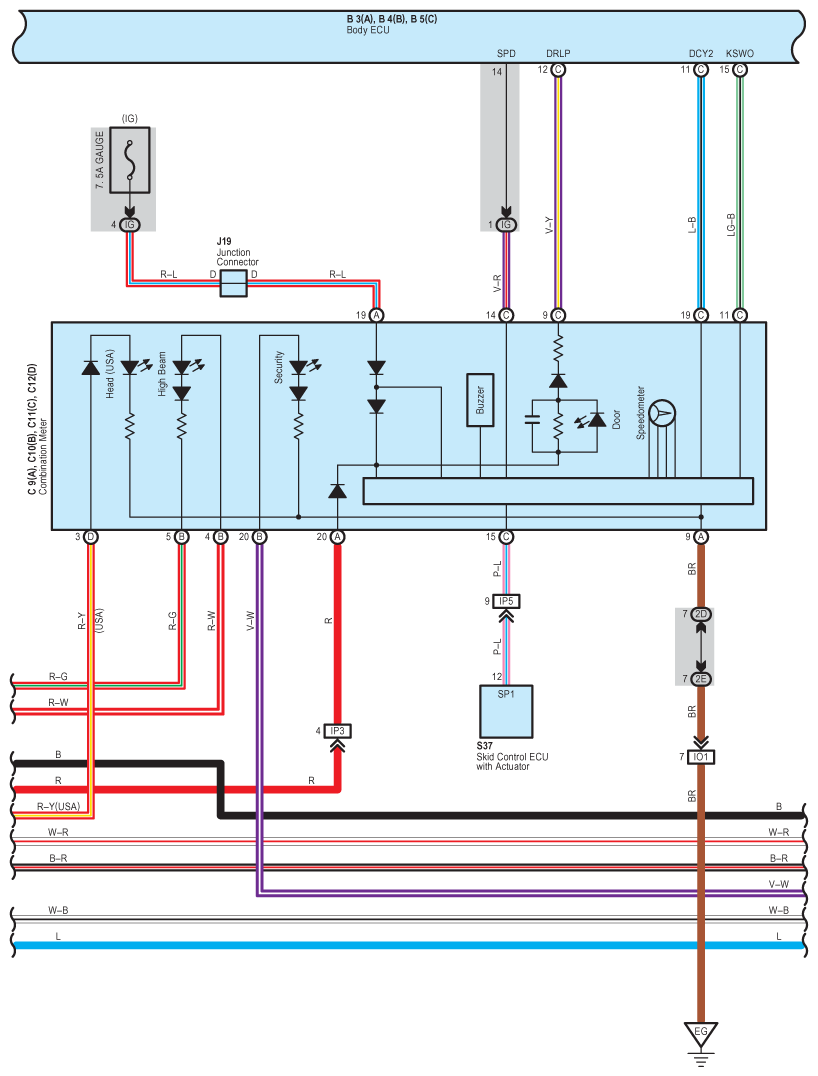

Fig 10: Multiplex Communication System - BEAN System Wiring Diagram (10 Of 21)

G08917549

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

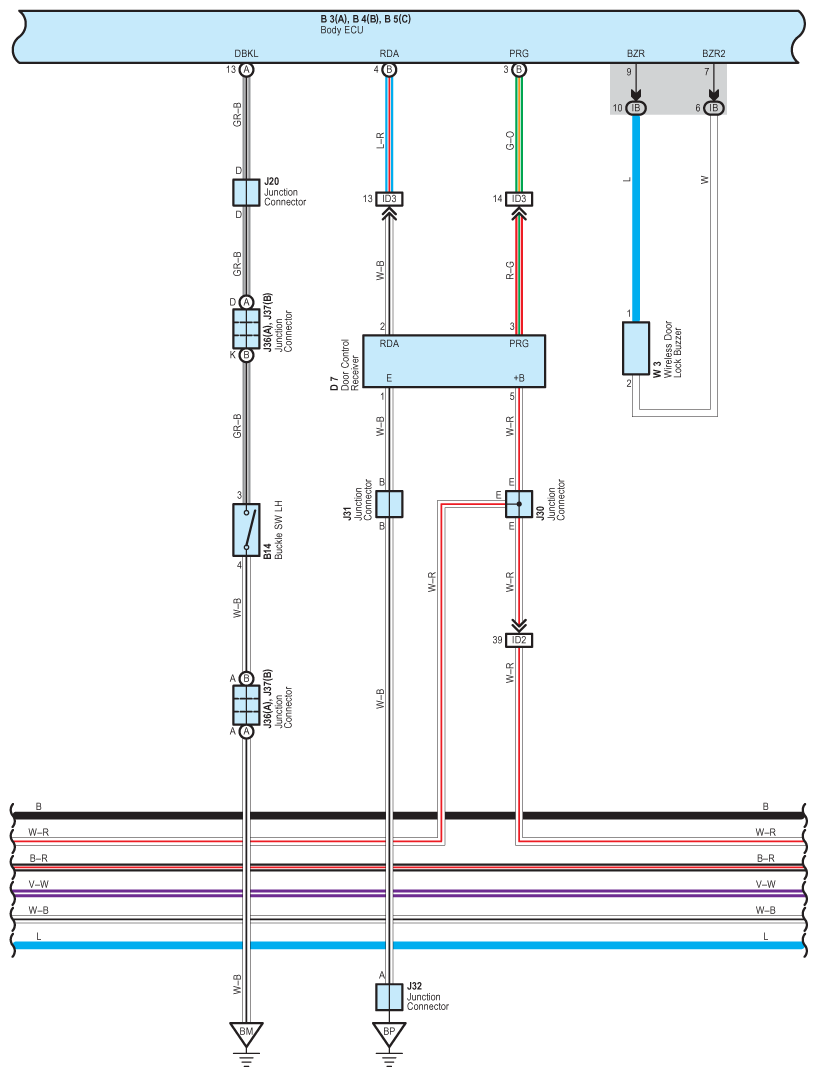

Fig 11: Multiplex Communication System - BEAN System Wiring Diagram (11 Of 21)

G08917550

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Multiplex Communication System - BEAN System Wiring Diagram (12 Of 21)

G08917551

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

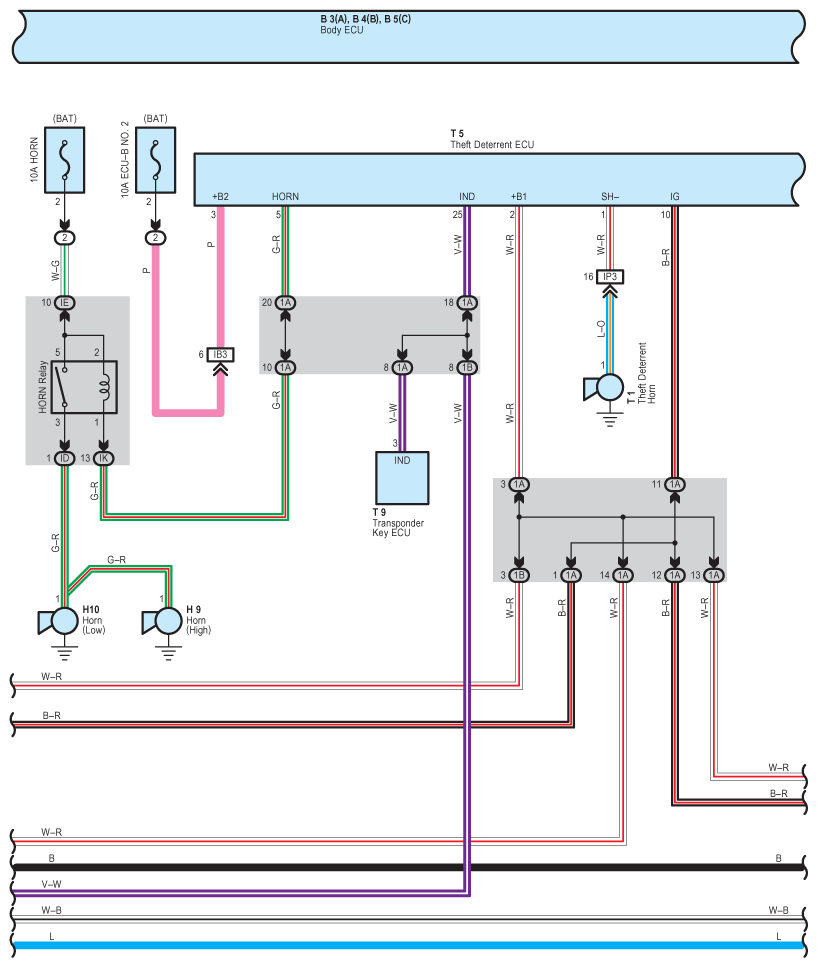

Fig 13: Multiplex Communication System - BEAN System Wiring Diagram (13 Of 21)

G08917552

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

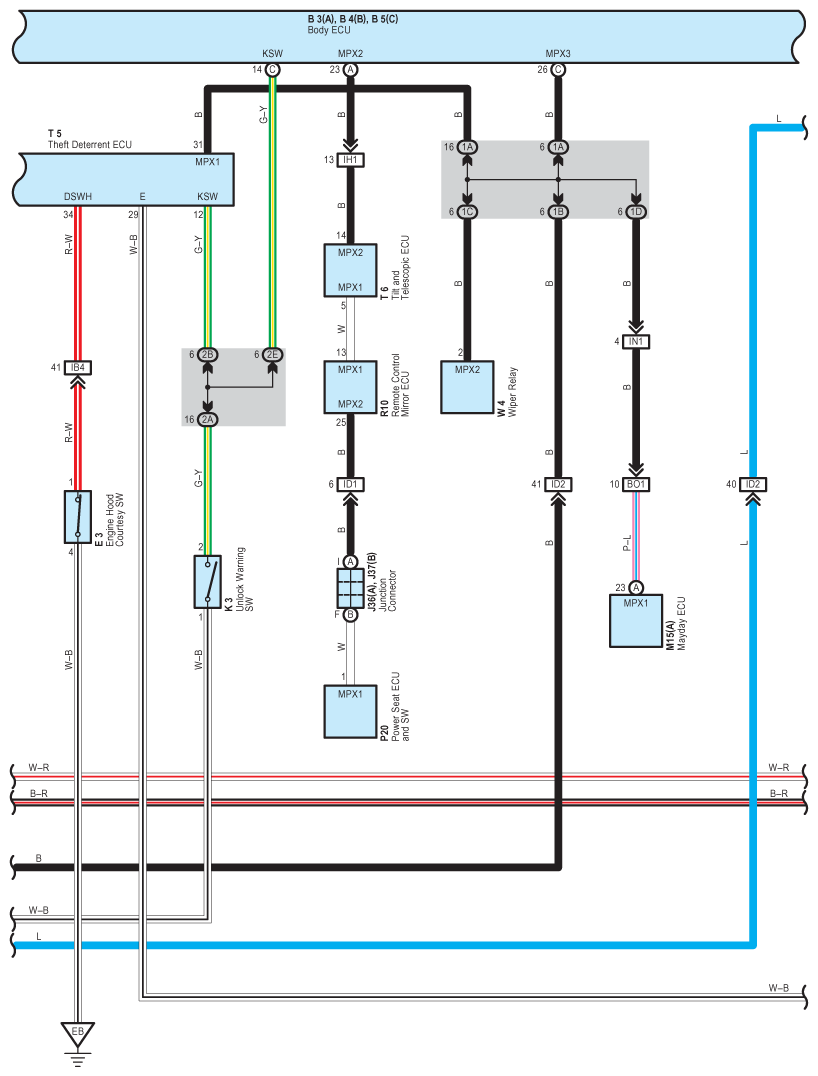

Fig 14: Multiplex Communication System - BEAN System Wiring Diagram (14 Of 21)

G08917553

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

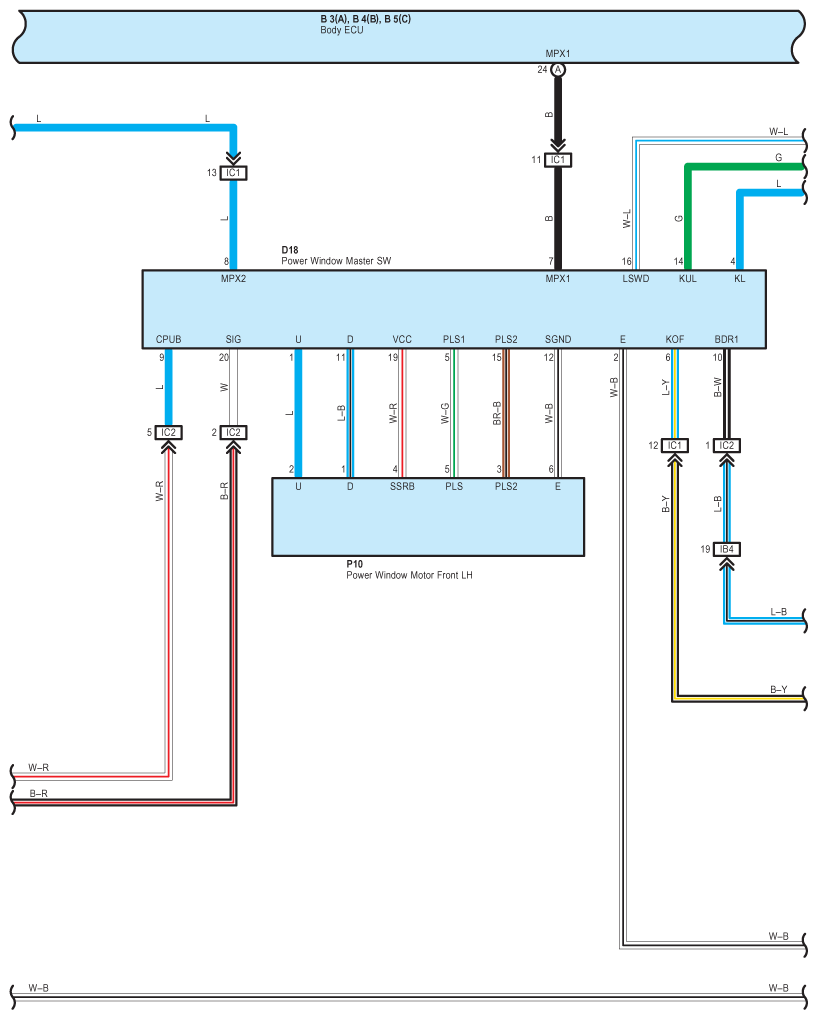

Fig 15: Multiplex Communication System - BEAN System Wiring Diagram (15 Of 21)

G08917554

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

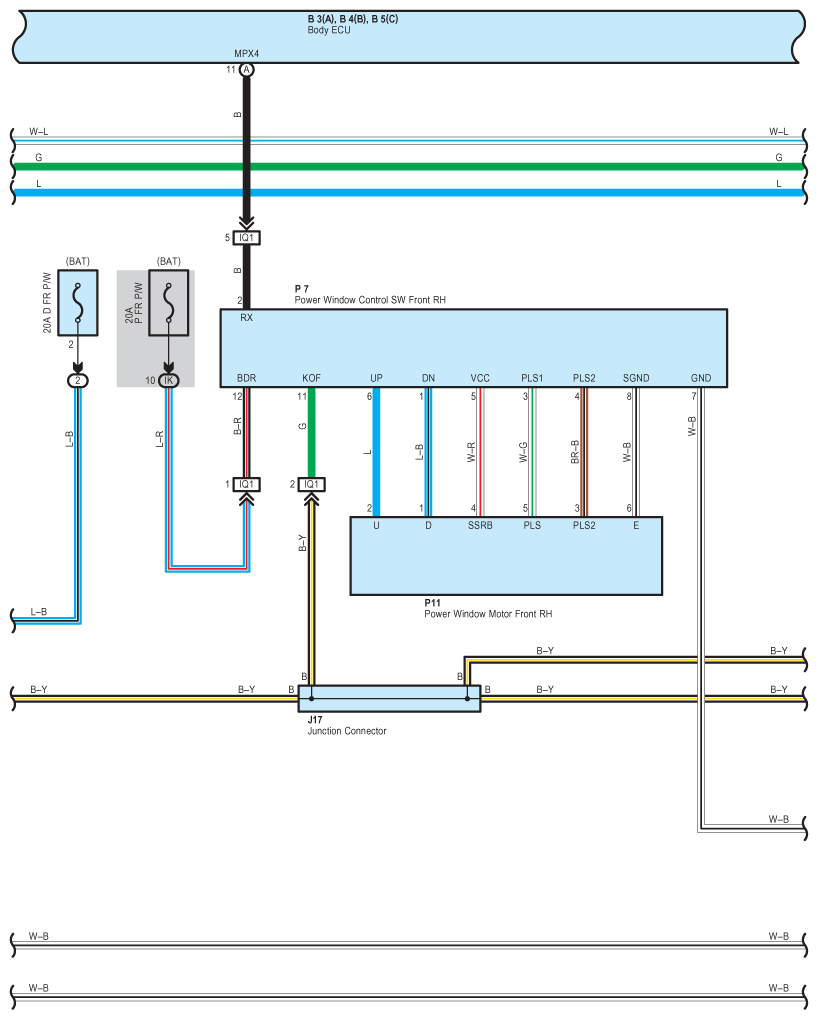

Fig 16: Multiplex Communication System - BEAN System Wiring Diagram (16 Of 21)

G08917555

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

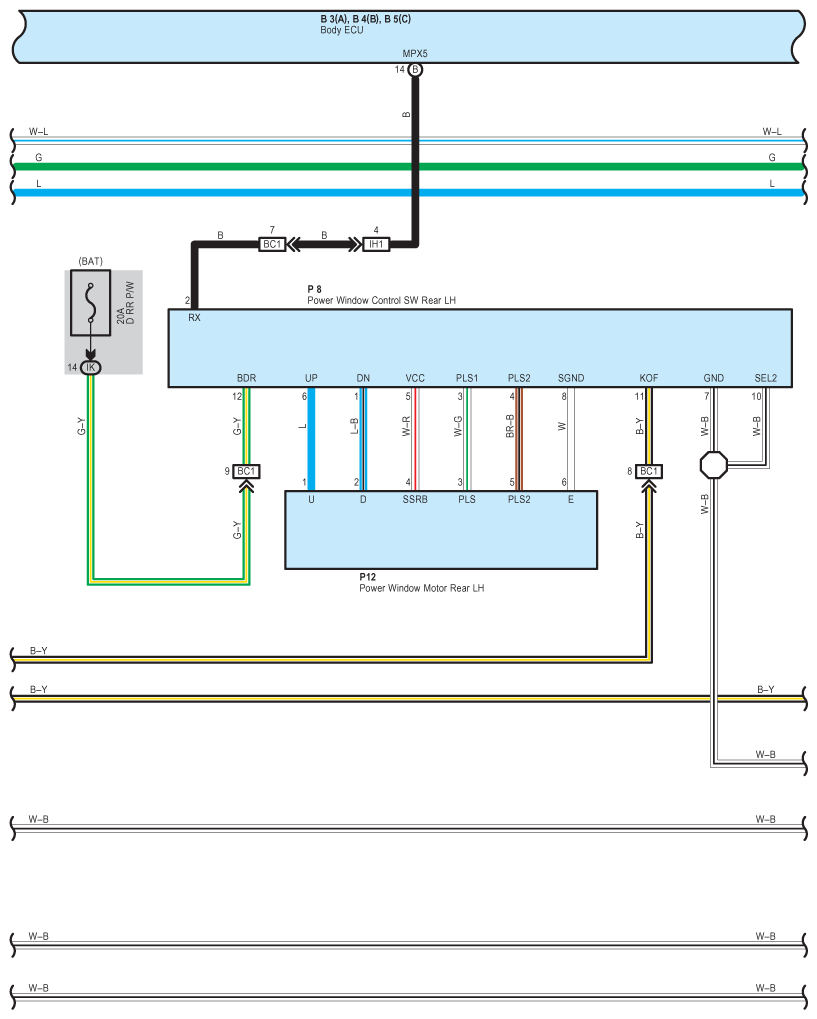

Fig 17: Multiplex Communication System - BEAN System Wiring Diagram (17 Of 21)

G08917556

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

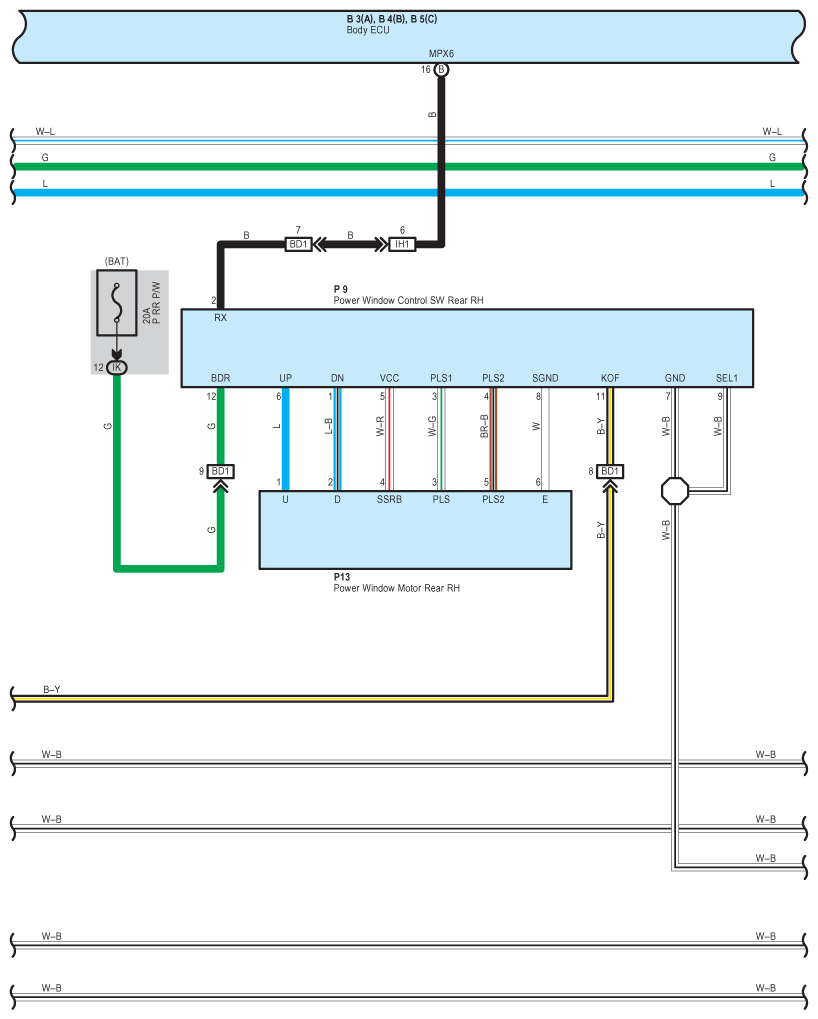

Fig 18: Multiplex Communication System - BEAN System Wiring Diagram (18 Of 21)

G08917557

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

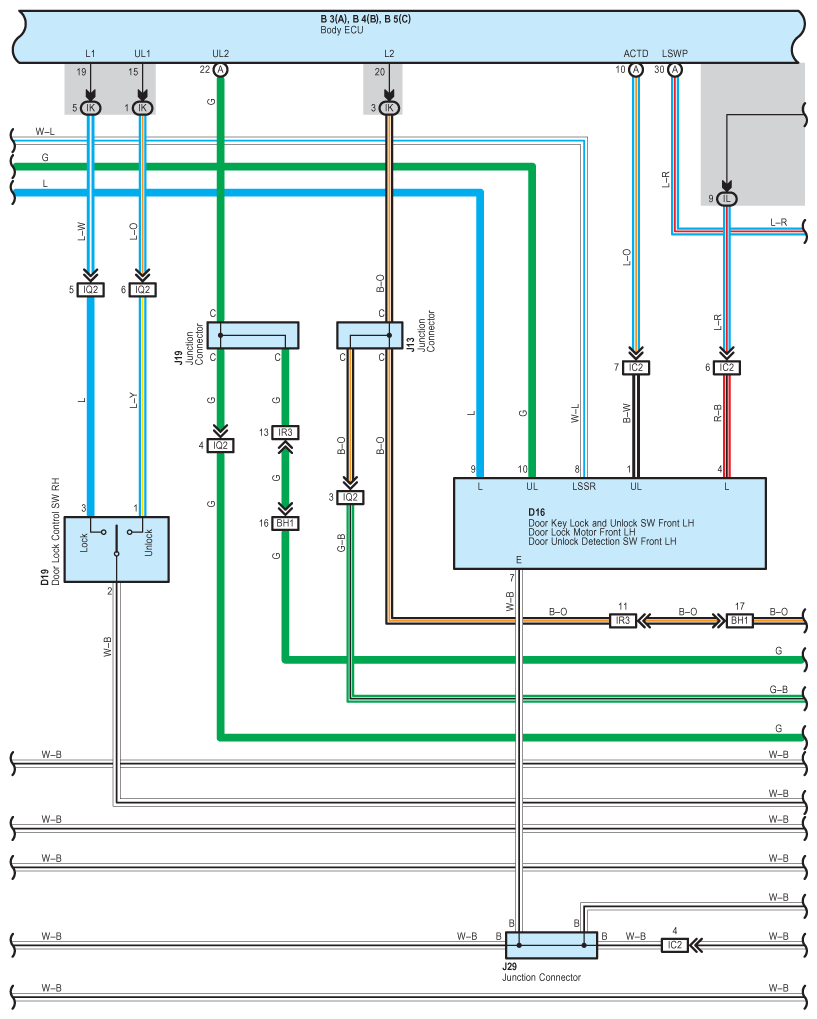

Fig 19: Multiplex Communication System - BEAN System Wiring Diagram (19 Of 21)

G08917558

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

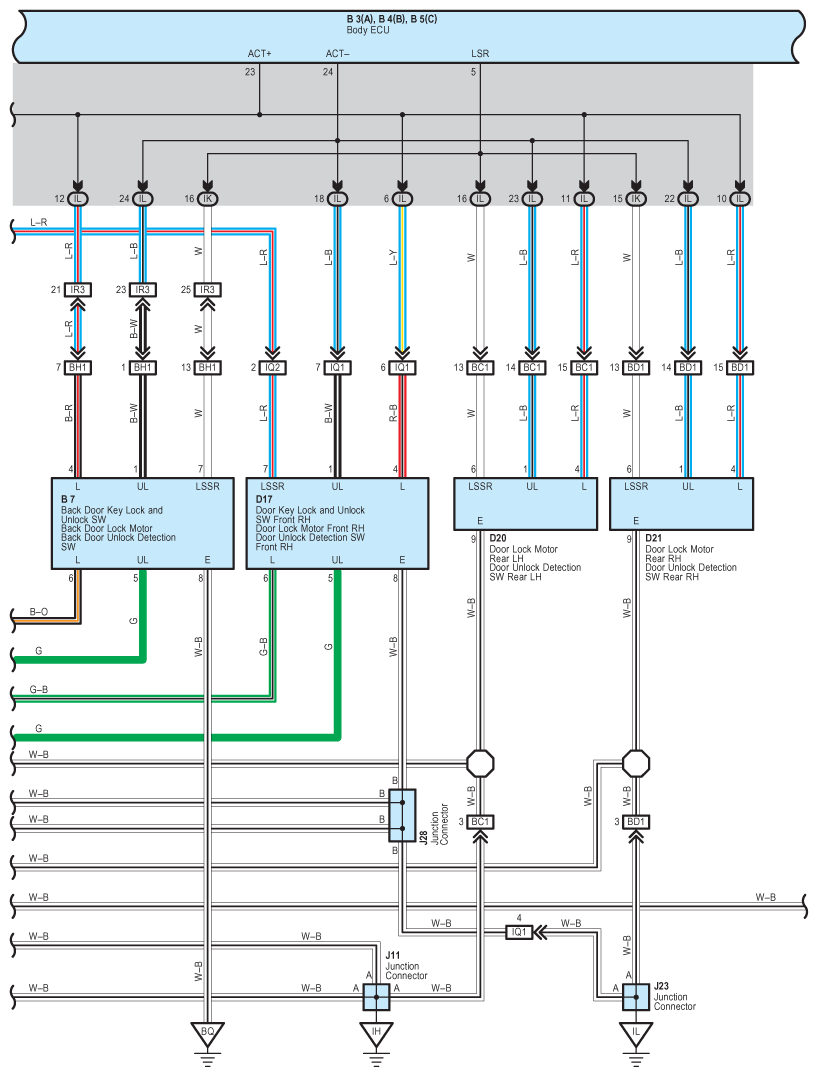

Fig 20: Multiplex Communication System - BEAN System Wiring Diagram (20 Of 21)

G08917559

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

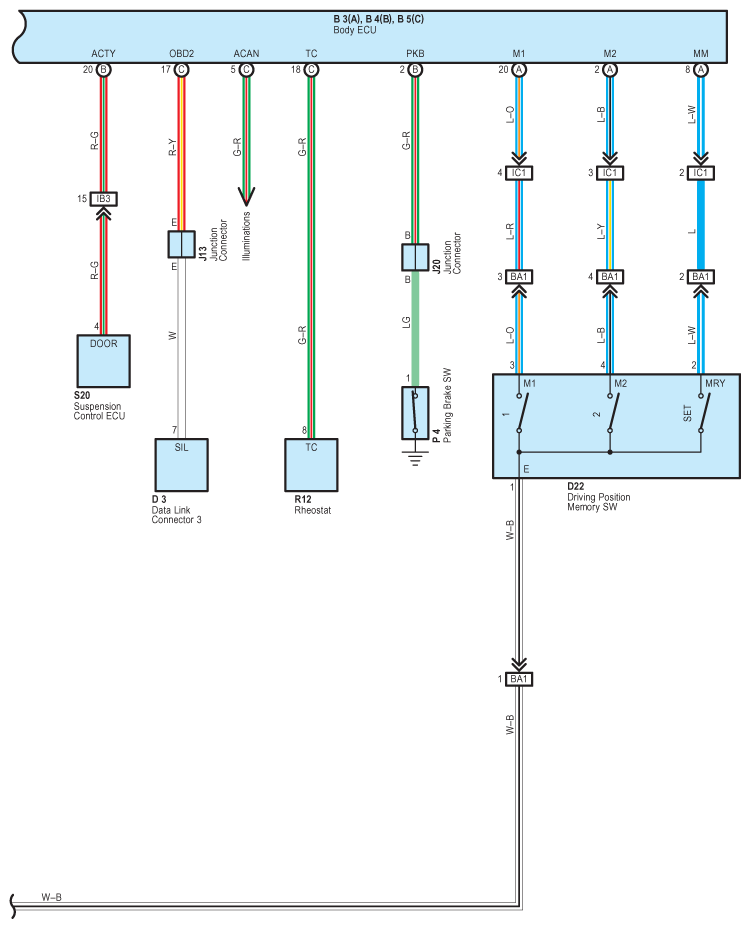

Fig 21: Multiplex Communication System - BEAN System Wiring Diagram (21 Of 21)

G08917560

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
