Oil Pump: Components

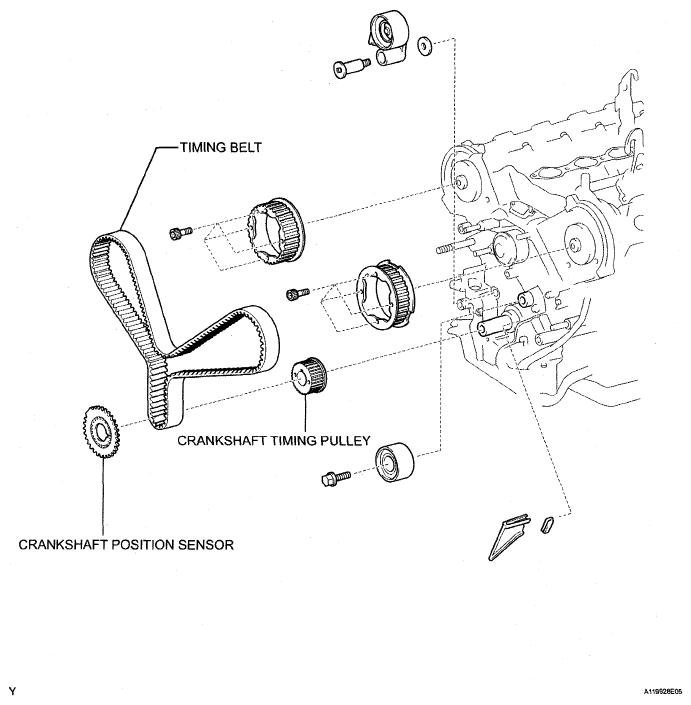

Fig 1: Identifying Oil Pump Components (1 Of 5)
G05265019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

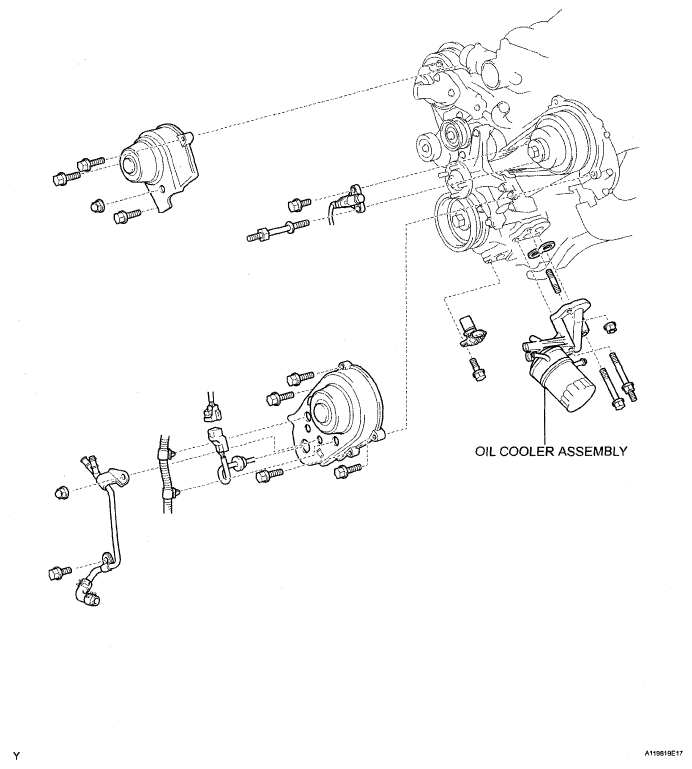

Fig 2: Identifying Oil Pump Components (2 Of 5)
G05265020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

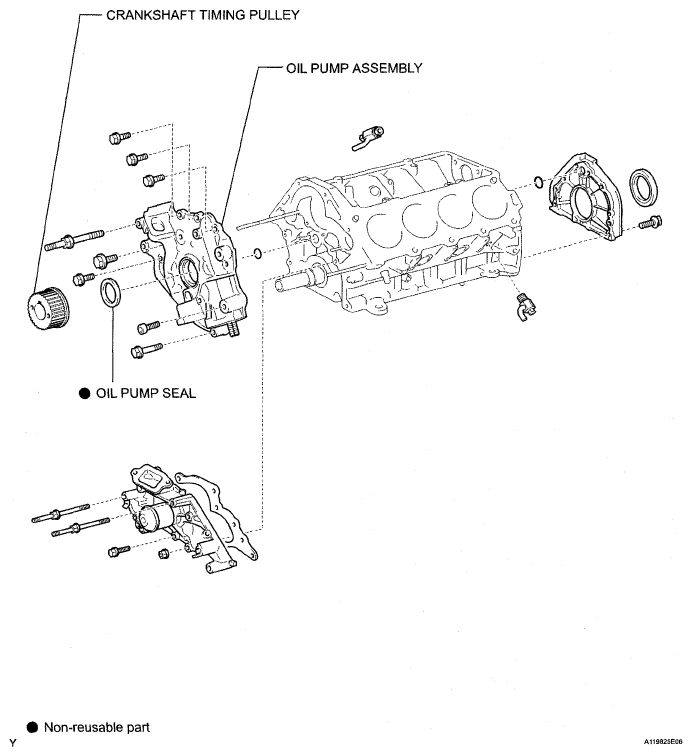

Fig 3: Identifying Oil Pump Components (3 Of 5)
G05265021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

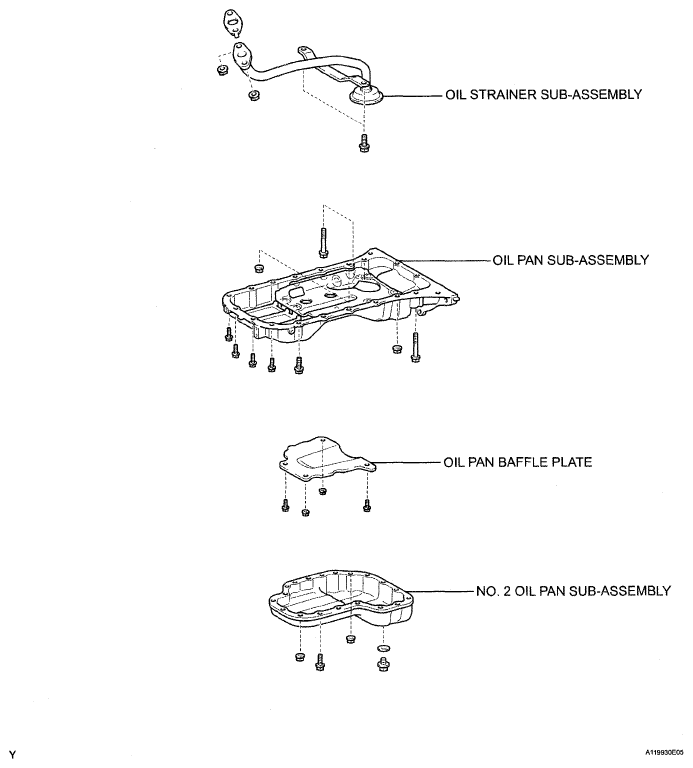

Fig 4: Identifying Oil Pump Components (4 Of 5)
G05265022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

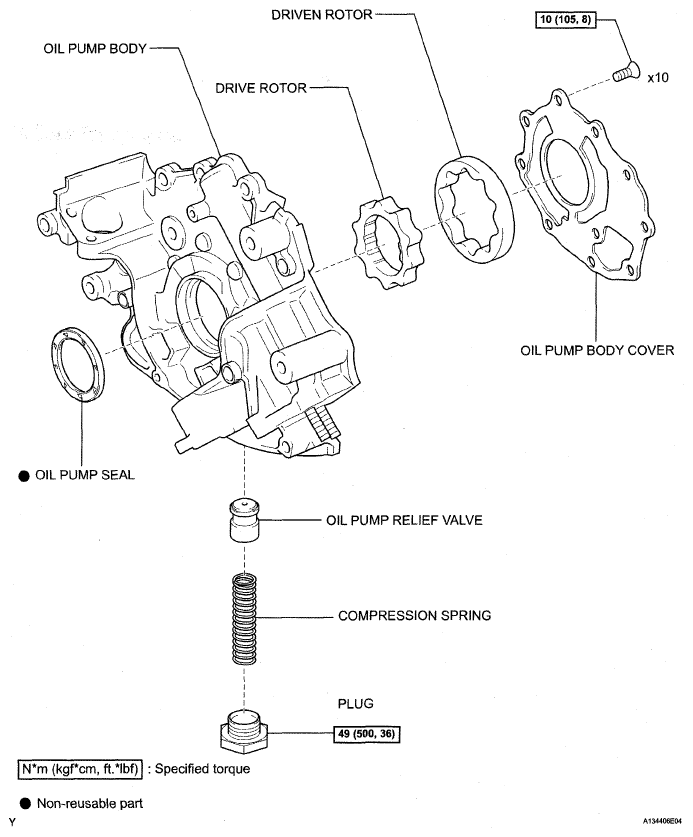

Fig 5: Oil Pump Replacement Components (5 Of 5) With Torque Specifications
G05265023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
