Cranking Holding Function Circuit: Wiring Diagram

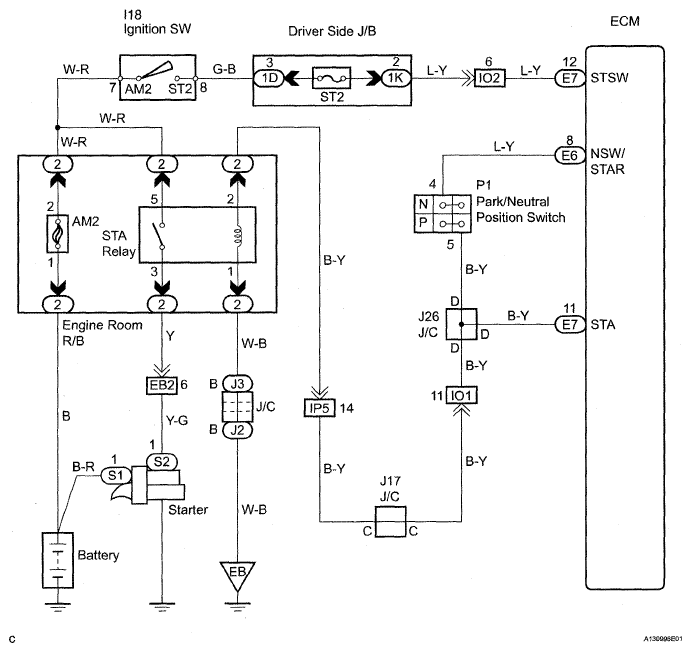

Fig 1: Identifying Cranking Holding Function Wiring Diagram
G05264291Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
