Knock Sensor, Intake Manifold: Installation

  1. INSTALL KNOCK SENSOR
    Fig 1: Identifying Knock Sensors
    G04968239Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    1. Install the 2 knock sensors with the 2 nuts.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

    2. Connect the 2 knock sensor connectors.
  2. INSTALL AIR PUMP ASSEMBLY WITH BRACKET (See  INSTALLATION  )
  3. INSTALL INTAKE MANIFOLD
    1. Place 2 new gaskets on the intake manifold.
      Fig 2: Identifying Intake Manifold Gaskets
      G04968240Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    2. Place the intake manifold on the cylinder heads.
      3. Fig 3: Identifying Cylinder Heads & Bolts
      G04968241Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    3. Install and uniformly tighten the 6 bolts and 4 nuts in several steps.

      Torque: 18 N*m (185 kgf*cm, 13 ft.*lbf)

    4. Install the V-bank cover bracket to the intake manifold.

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

    5. Install the wire bracket to the intake manifold with the bolt.

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

    6. Connect the engine wire to the engine hanger and wire bracket.
      Fig 4: Identifying Cylinder Heads, Bolts & Nuts
      G04968242Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    7. Connect the wire protector to the intake manifold and cylinder heads with the bolt and nut.
      8. Fig 5: Identifying Cylinder Heads Bolts
      G04968234Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    8. Install the 2 ground cables with the 2 bolts to the RH and LH cylinder heads.
    9. Connect the 2 water by-pass hoses to the throttle body.
      Fig 6: Connecting Water By-Pass Hoses To Throttle Body
      G04968244Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    10. Connect the 2 wire clamps to the wire clamp bracket on the RH delivery pipe.
    Fig 7: Locating Wire Clamps To Wire Clamp Bracket On RH Delivery Pipe
    G04968245Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  4. CONNECT HOSES FORM INTAKE MANIFOLD
    1. Connect the vacuum hose [A] to the fuel pressure regulator.
    2. Connect the PCV hose [B] to the PCV valve on the LH cylinder head.
    3. Connect the EVAP hose (from the charcoal canister) [C] to the purge VSV.
    4. Connect the 2 vacuum hoses [D] to the VSV for the air injection system.
  5. CONNECT CONNECTORS FROM INTAKE MANIFOLD
    1. Connect the throttle control connector.
    2. Connect the 2 VSV connectors for the air injection system.
    3. Connect the purge VSV connector.
    4. Connect the 8 injector connectors.
    5. Connect the ECT sensor connector.
    6. Connect the 8 ignition coil connectors.
    7. Connect the 2 air fuel ratio sensor connectors.
  6. INSTALL FUEL HOSE NO.2
  7. INSTALL FUEL HOSE (See  INSTALLATION  )
  8. INSTALL V-BANK COVER SUB-ASSEMBLY (See  INSTALLATION  )
  9. ADD ENGINE COOLANT (See  REPLACEMENT  )
  10. CHECK FOR ENGINE COOLANT LEAKS (See  ON-VEHICLE INSPECTION  )
  11. CHECK FOR FUEL LEAKS (See  ON-VEHICLE INSPECTION  )

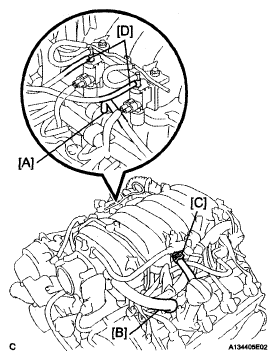

    Fig 8: Identifying Connectors To Intake Manifold
    G04968246Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
