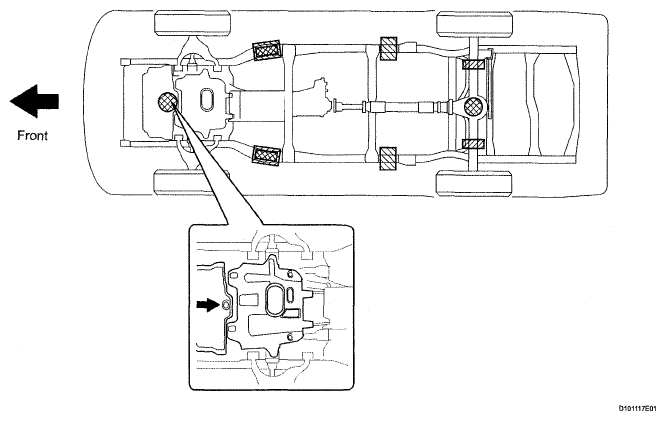

Vehicle Lift And Support Locations

NOTICE ABOUT VEHICLE CONDITION WHEN JACKING UP
1. As a rule, the vehicle must be unloaded when jacking up. Never jack up or lift up the vehicle loaded with things of heavy weight.
2. When removing any parts of heavy weight like the engine and transmission, the center of gravity of the vehicle moves. Place a balance weight so as to keep it from rolling, or hold the jacking support location using the mission jack.
NOTICE FOR USING 4 POST LIFT
1. Follow the instruction manual for a safety operation.
2. Do not damage tires or wheels with a free wheel beam.
3. Using a wheel stopper, fix the vehicle.
NOTICE FOR USING JACK AND SAFETY STAND
1. Work in the flat place using a wheel stopper at all times.
2. Use a safety stand with a rubber attachment.
3. Support the specified location with a jack and safety stand accurately.
4. When jacking up the front wheels, release the parking brake and place wheel stoppers only behind the rear wheels. When jacking up the rear wheels, place wheel stoppers only in front of the front wheels.
5. Do not work or leave the vehicle supported only by a jack. Be sure to support the vehicle with a safety stand.
6. When jacking up only the front wheels or only the rear wheels, place wheel stoppers to both sides of the wheels that contact ground.
7. When jacking down the vehicle with its front wheels jacked up, release the parking brake and place wheel stoppers only in front of the rear wheels. When jacking down the vehicle with its rear wheels jacked up, place wheel stoppers only behind the front wheels.

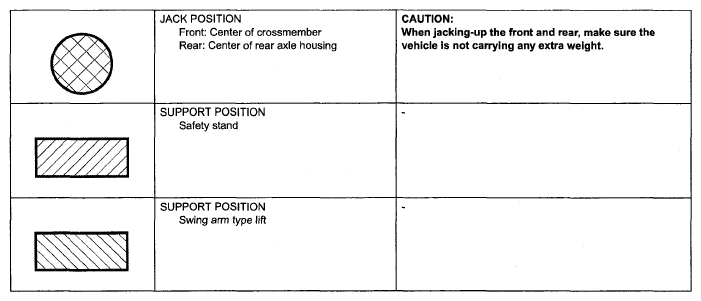

Fig 2: Identifying Vehicle Jack Position Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
