Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location |
|---|---|
| Back Door Courtesy Switch | At left rear of vehicle, below taillight. See Figure. |
| Back Door Lock & Unlock SW | Located in tailgate. See Figure. |
| Back Door Unlock Detection SW | Located in tailgate. See Figure. |
| Brake Fluid Level Warning Switch | On brake master cylinder. See Figure. |
| Buckle SW LH | On left seat belt buckle. See Figure. |
| Buckle SW RH | At passenger's seat buckle. See Figure. |
| Detection SW (Transfer L4 Position) | On transmission housing. See Figure. |
| Detection SW (Transfer Neutral Position) | On transmission housing. See Figure. |
| Door Courtesy Switch Front LH | Lower left "B" pillar. See Figure. |
| Door Courtesy Switch Front RH | Bottom of right "B" pillar. See Figure. |
| Door Courtesy Switch Rear LH | Bottom of left "C" pillar. See Figure. |
| Door Courtesy Switch Rear RH | Bottom of right "C" pillar. See Figure. |
| Door Key Lock & Unlock SW Front LH | In left front door. See Figure. |
| Door Key Lock & Unlock SW Front RH | In right front door. See Figure. |
| Door Unlock Detection SW Front LH | At left front door. See Figure. |
| Door Unlock Detection SW Front RH | At right front door. See Figure. |
| Door Unlock Detection SW Rear LH | At left rear door. See Figure. |
| Door Unlock Detection SW Rear RH | At right rear door. See Figure. |
| Downhill Assist Control SW | In lower center console. See Figure. |
| Engine Hood Courtesy SW | At center front of engine compartment, near hood latch. See Figure. |
| Glove Box Light SW | At right side of glove box. See Figure. |
| Oil Pressure SW | On left front of engine. See Figure. |

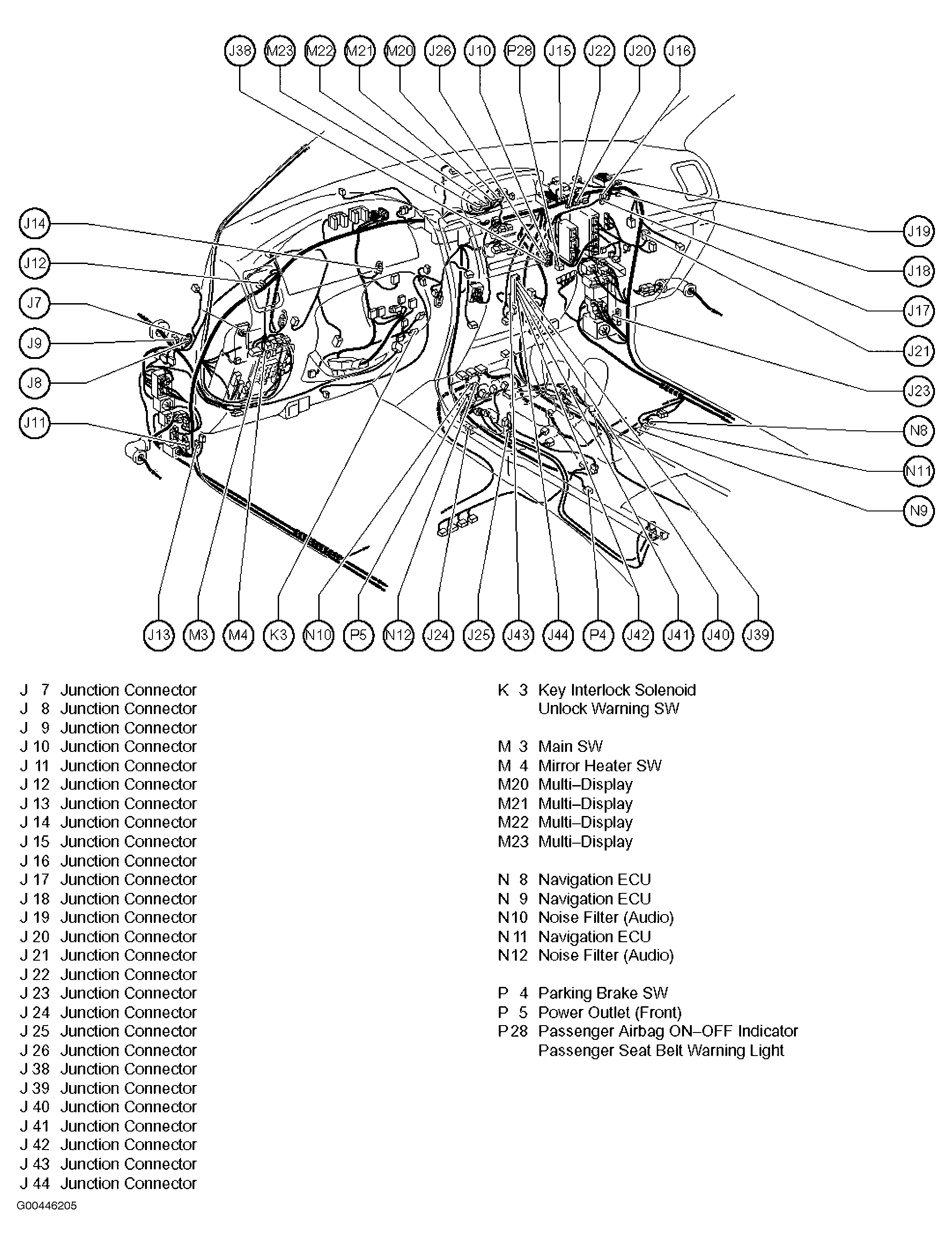

| Parking Brake SW | At base of brake lever assembly. See Figure. |
| Park/Neutral Position SW | On right side of transmission. See Figure. |
| Pressure SW | On right front of engine compartment. See Figure. |
