System Diagram

The configuration of the electronic control system in the A750F automatic transmission.

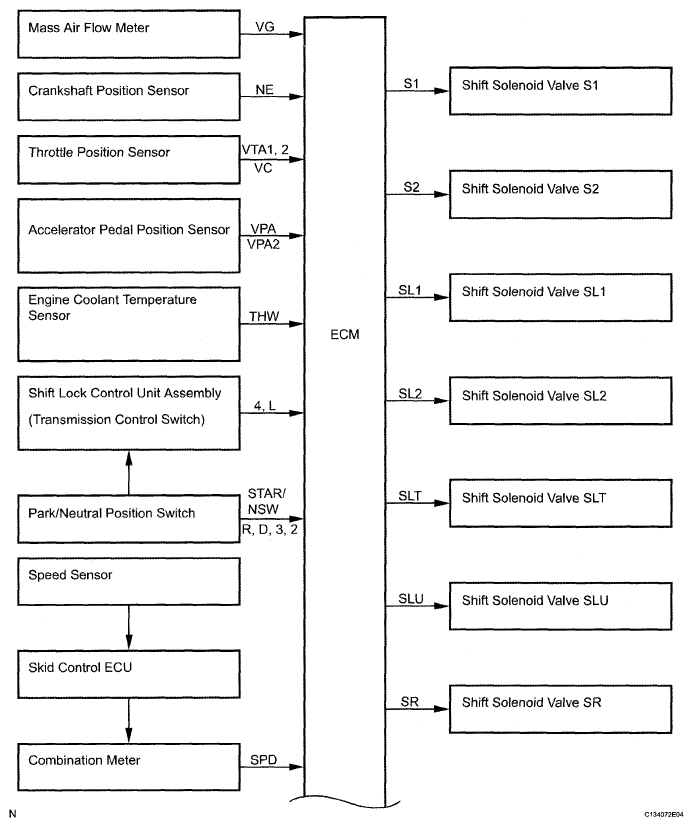

Fig 1: Identifying Automatic Transmission System Diagram (1 Of 2)
G05261185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

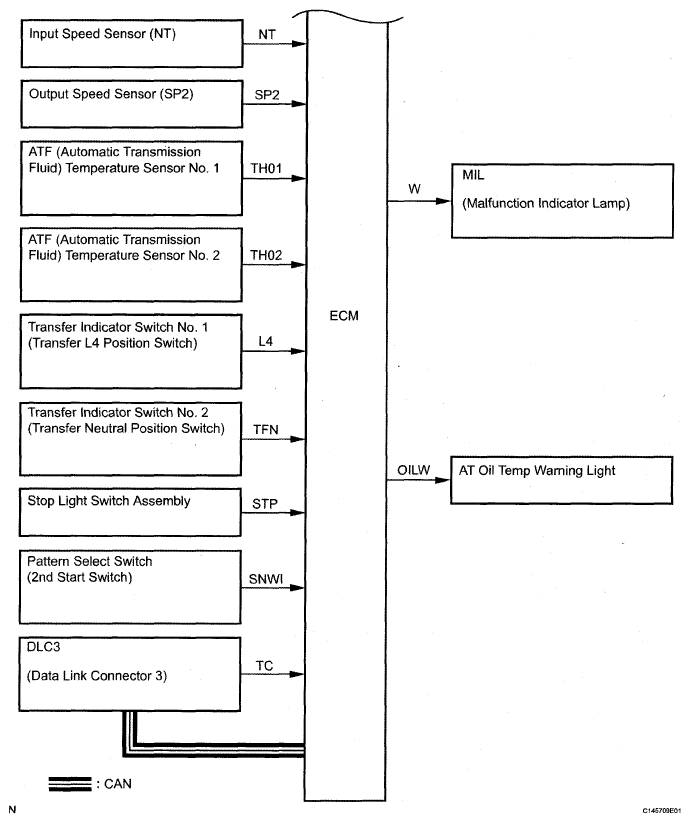

Fig 2: Identifying Automatic Transmission System Diagram (2 Of 2)
G05261186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
