Shift Lever Assembly: Adjustment

1. When shift from P to R position only with ignition switch ON and depress brake pedal, make sure that the shifting lever moves smoothly and can be moderately operated.
2. When starting engine, make sure that the vehicle moves forward when shifting from N to D position and moves rearward when shifting to R position.

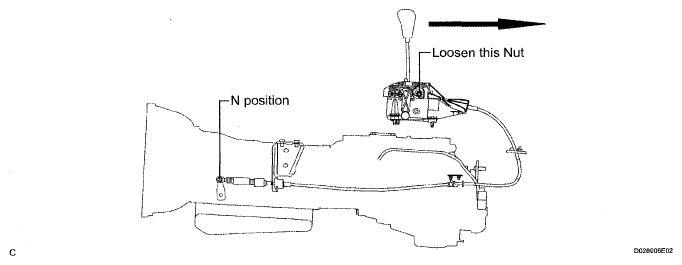

Fig 1: Adjusting Shift Lever Position

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Loosen the nut. (1 mm MAX)
2. Be sure to position the outer lever of the transmission in N position.
Fig 2: Identifying Shift Lever In N Position
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Put the shift lever in N position, and fasten the shift cable temporarily.
4. Push the shift cable end into the rear side of the vehicle approx. 1 kgf of force and then fasten the shift cable completely with the specified torque.

   Torque: 12 N*m (122 kgf*cm, 9.0 ft.*lbf)

HINT:

• Hands can be released after pushing into the shift cable end.
• Perform the final fastening so as not to move the shift cable as much as possible.
