Door Control Switch

Door Control Switch:

DOOR CONTROL SWITCH

REMOVAL

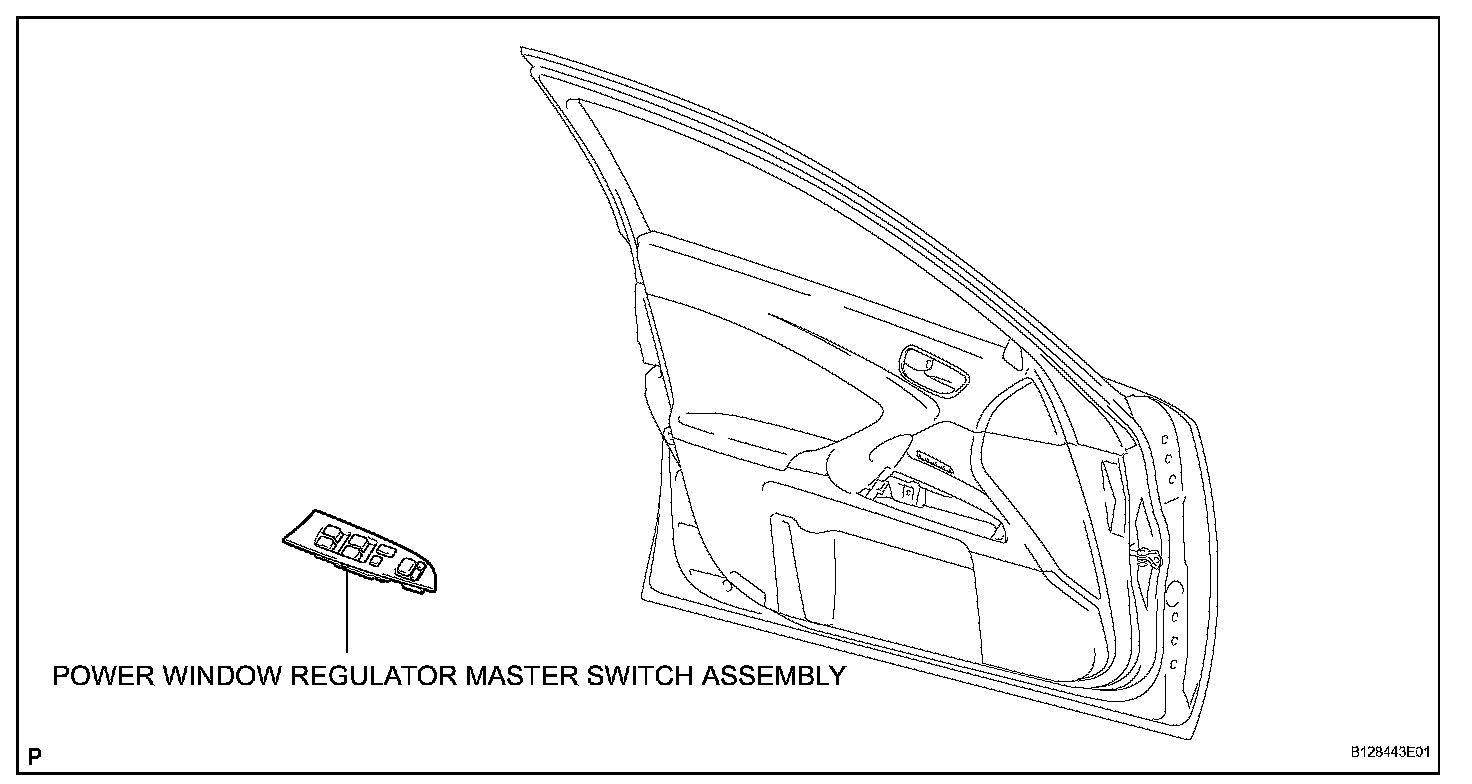

1. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

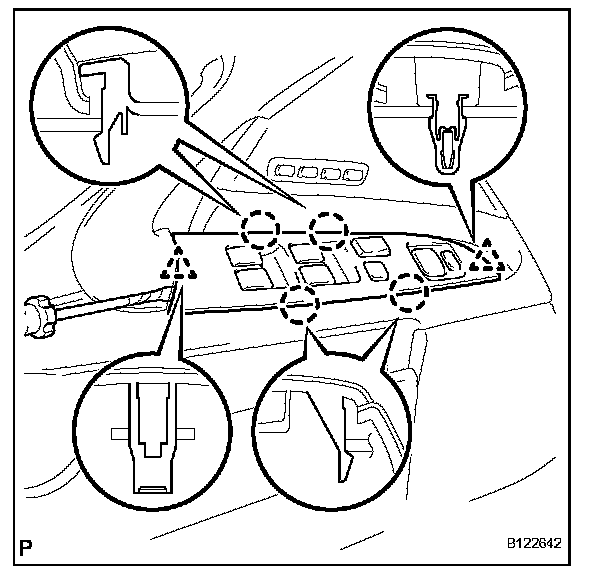

a. Using a screwdriver wrapped with protective tape, disengage the 4 claws and the 2 clips.
b. Disconnect the connector and remove the power window regulator master switch assembly.

INSTALLATION

1. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
a. Connect the power window regulator master switch connector.

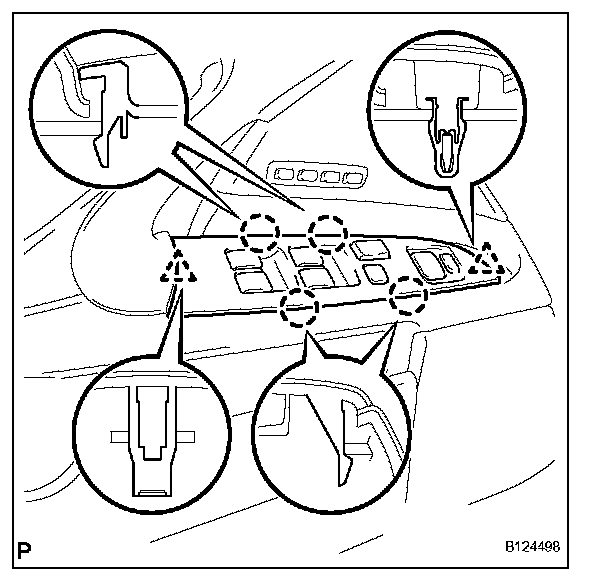

b. Engage the 2 clips and 4 claws, and install the power window regulator master switch assembly.
