Height Control Sensor: Inspection

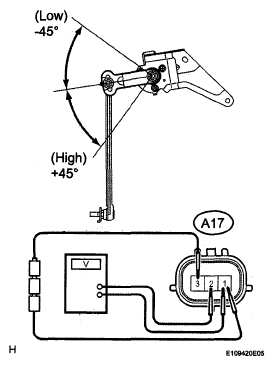

- INSPECT FRONT HEIGHT CONTROL SENSOR SUB-ASSEMBLY
- Connect 3 dry cell batteries (1.5 V) in series.
- Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead from the battery to terminal 3.
- Measure the voltage between terminals 2 and 1 while slowly moving the link up and down.
Standard voltage
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Condition Specified Condition A17-2 (SHFL) - A17-1 (SHG) +45° Approx. 4.5 V A17-2 (SHFL) - A17-1 (SHG) 0° (normal) Approx 2.5 V A17-2 (SHFL) - A17-1 (SHG) -45° Approx 0.5 V Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the result is not as specified, replace the sensor.
- Remove the height control sensor.

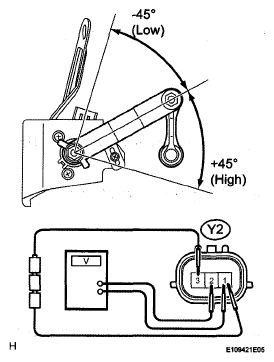

- INSPECT REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY
- Connect 3 dry cell batteries (1.5 V) in series.
- Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead from the battery to terminal 3.
- Measure the voltage between terminals 2 and 1 while slowly moving the link up and down.
Standard voltage
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Condition Specified Condition Y2-2 (SHRL) - Y2-1 (SHG) +45° Approx. 4.5 V Y2-2 (SHRL) - Y2-1 (SHG) 0° (normal) Approx 2.5 V Y2-2 (SHRL) - Y2-1 (SHG) -45° Approx 0.5 V Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the result is not as specified, replace the sensor.
