Inspection Procedure
- INSPECT ENGINE SWITCH
- Remove the engine switch.

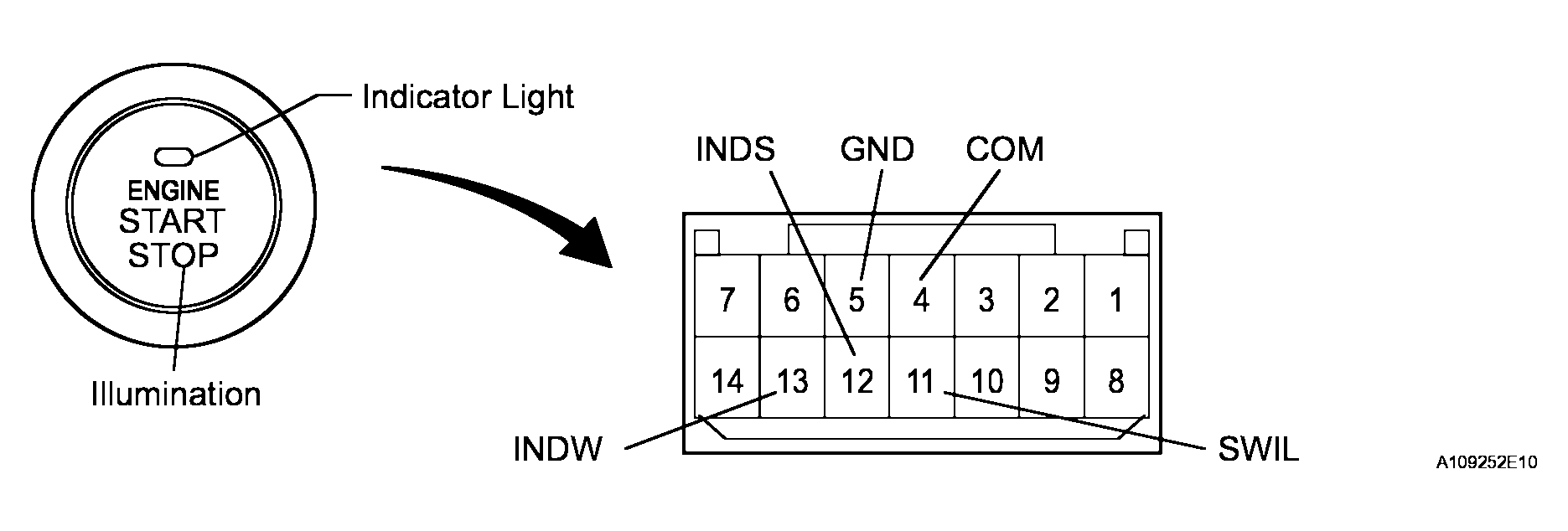

- Apply battery voltage between the terminals of the switch, and check the illumination condition of the switch.NOTE:
- If the positive (+) lead and the negative (-) lead are incorrectly connected, the engine switch indicator does not illuminate.
- If the voltage is too low, the indicator will not illuminate.
OK
ENGINE SWITCHMeasurement Condition Specified Condition Battery Terminal (+) --> positive 11 (SWIL)
Battery negative (-) --> Terminal 4 (COM) or 5 (GND)Illuminates Battery positive (+) --> Terminal 12 (INDS)
Battery negative (-) --> Terminal 4 (COM) or 5 (GND)Illuminates Battery positive (+) --> Terminal 13 (INDW)
Battery negative (-) --> Terminal 4 (COM) or 5 (GND)Illuminates NG: REPLACE ENGINE SWITCH
OK: Go To Next Step
- CHECK WIRE HARNESS (ENGINE SWITCH - POWER SOURCE CONTROL ECU AND BODY GROUND)
- Disconnect the J31 switch connector.
- Disconnect the J55 ECU connector.

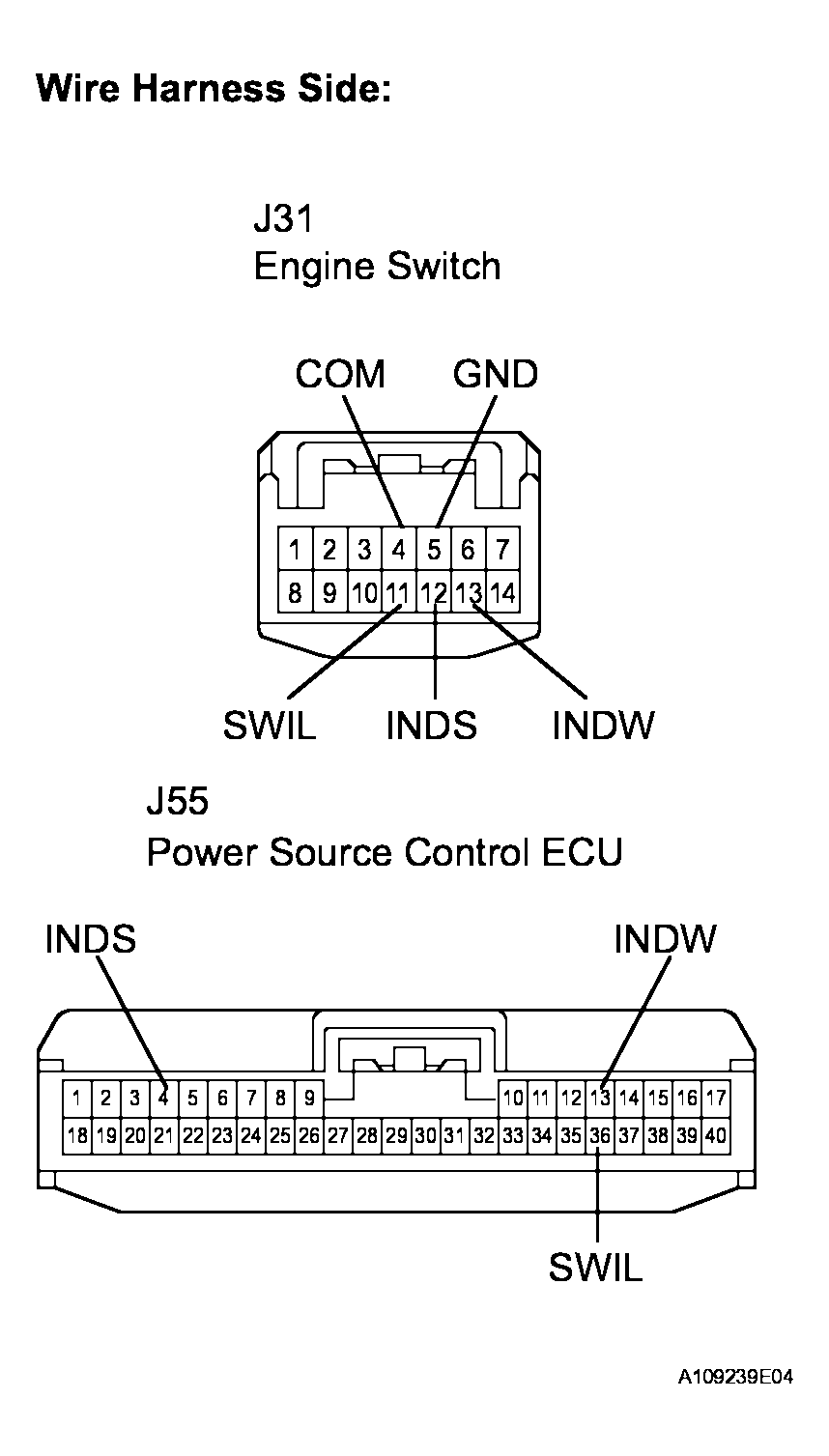

- Measure the resistance of the wire harness side connectors.
Standard resistance
ENGINE SWITCH - POWER SOURCE CONTROL ECU AND BODY GROUNDTester Connection Specified Condition J31-11 (SWIL) - J55-36 (SWIL) Below 1 ohms J31-12 (INDS) - J55-4 (INDS) Below 1 ohms J31-13 (INDW) - J55-13 (INDW) Below 1 ohms J31-5 (GND) - Body ground Below 1 ohms J31-4 (COM) - Body ground Below 1 ohms J31-11 (SWIL) or J55-36 (SWIL) - Body ground 10 k ohms or higher J31-12 (INDS) or J55-4 (INDS) - Body ground 10 k ohms or higher J31-13 (INDW) or J55-13 (INDW) - Body ground 10 k ohms or higher NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE POWER SOURCE CONTROL ECU
