Outer Mirror Switch: Removal

  1. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (See Step 2 in  DISASSEMBLY  )
  2. REMOVE OUTER MIRROR SWITCH ASSEMBLY (for Standard)
    1. Disengage the 4 claws and remove the outer mirror switch assembly.

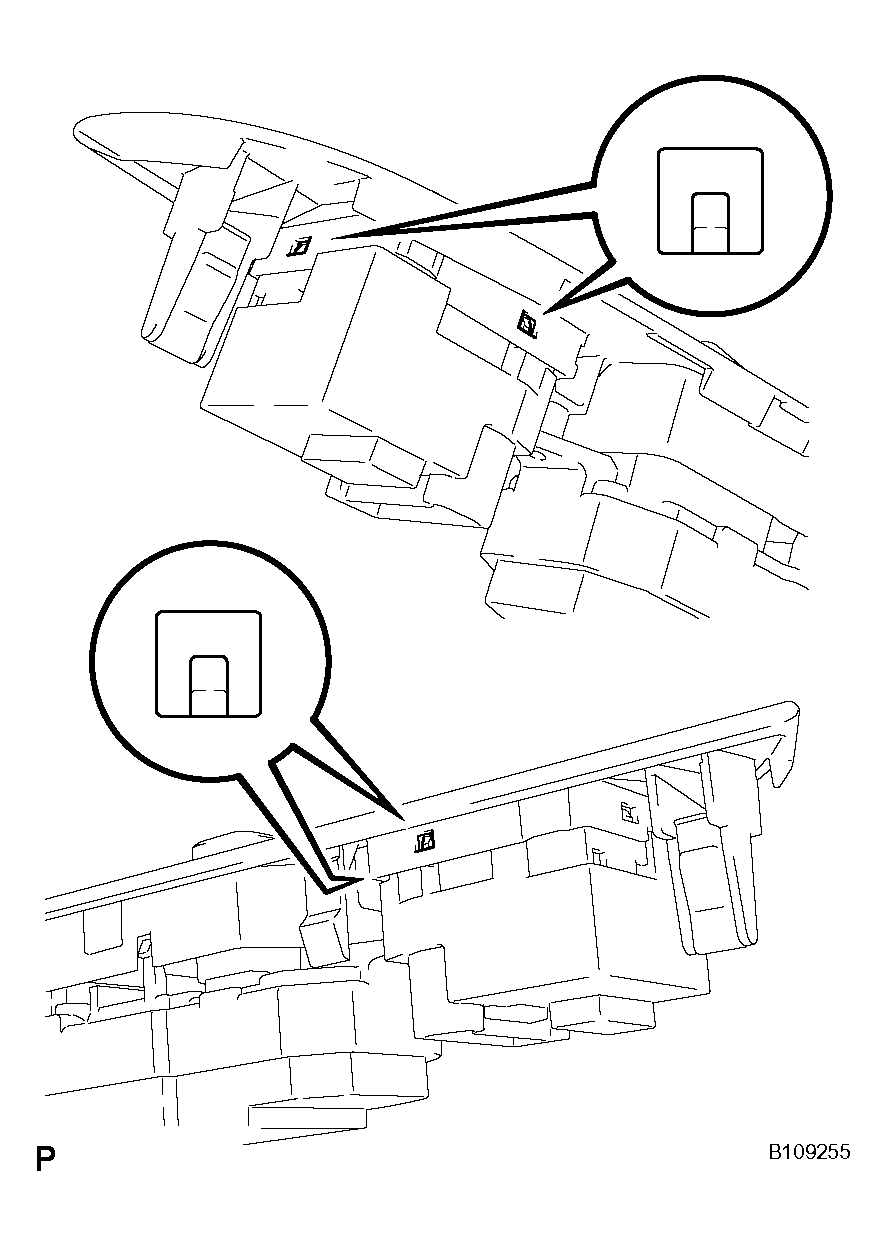

    Fig 1: Identifying Claws & Outer Mirror Switch Assembly (For Standard)
    G04050868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE OUTER MIRROR SWITCH ASSEMBLY (for Wood Panel)
    1. Remove the 2 screws and the outer mirror switch assembly with the front door armrest base cover lower LH.

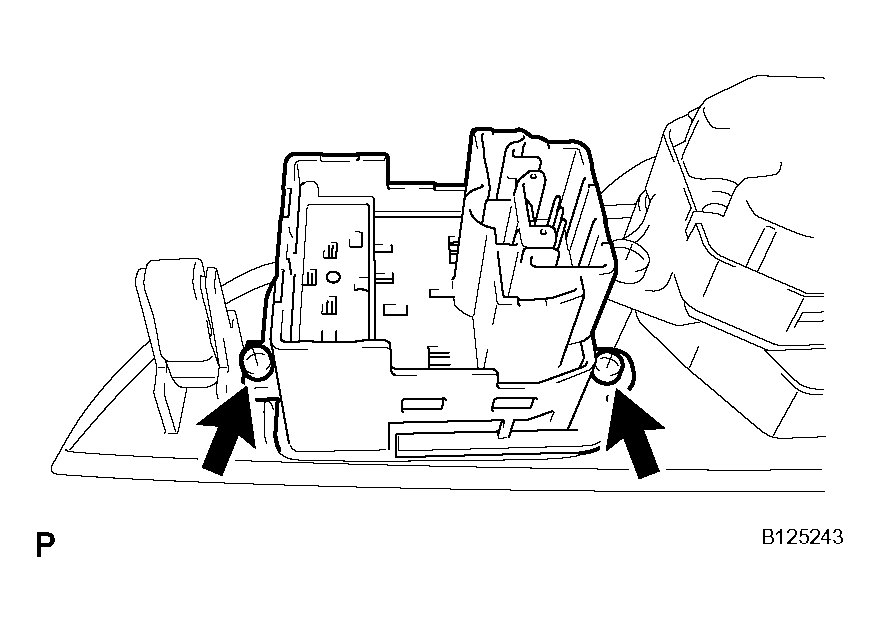

      Fig 2: Identifying Screws & Outer Mirror Switch Assembly (For Wood Panel)
      G04050869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 claws to remove the outer mirror switch assembly.

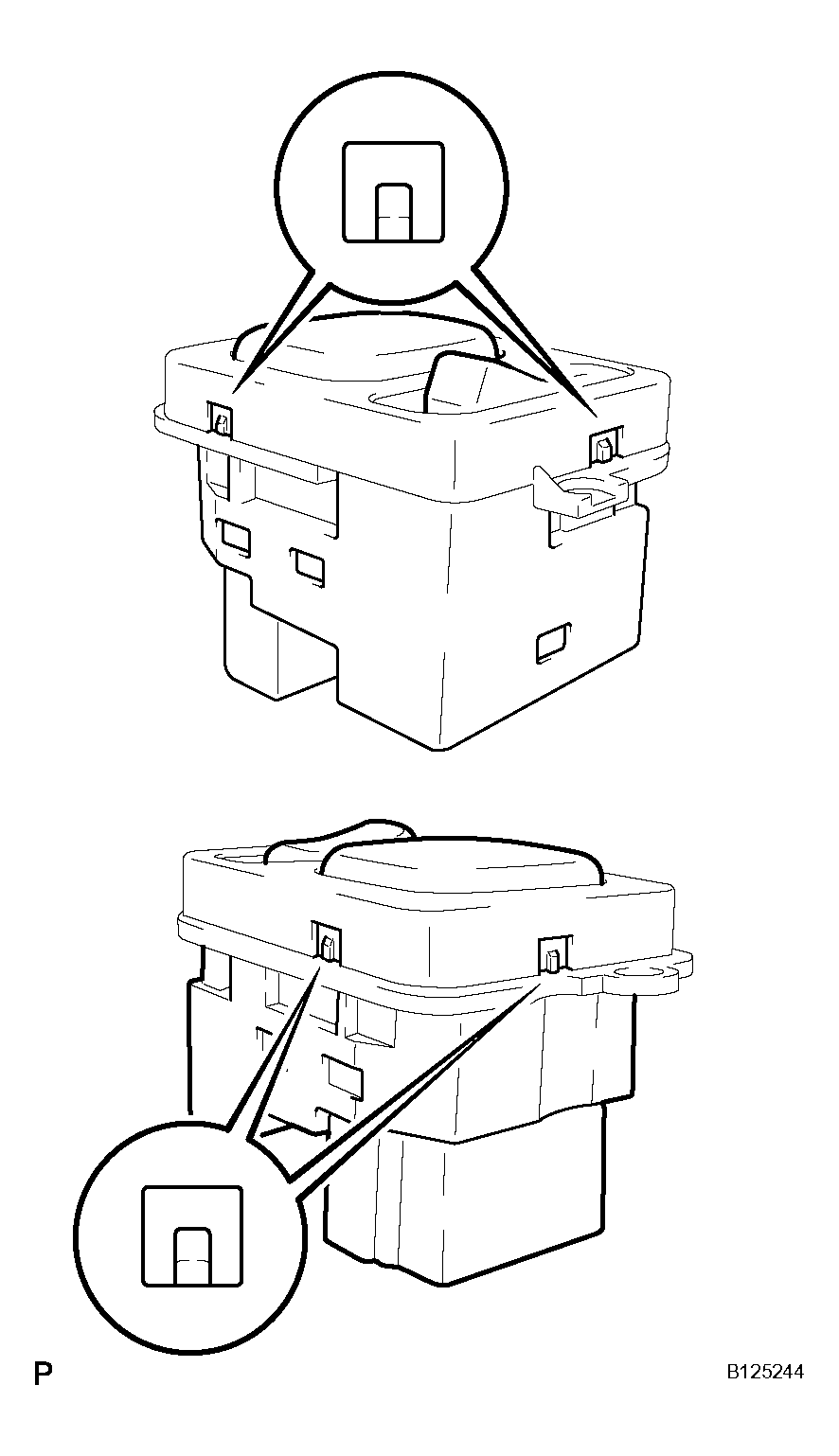

    Fig 3: Removing Outer Mirror Switch Assembly
    G04050870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
