Inner Rear View Mirror: Removal

  1. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER
    1. Disengage the 2 claws and remove the inner rear view mirror stay holder cover.

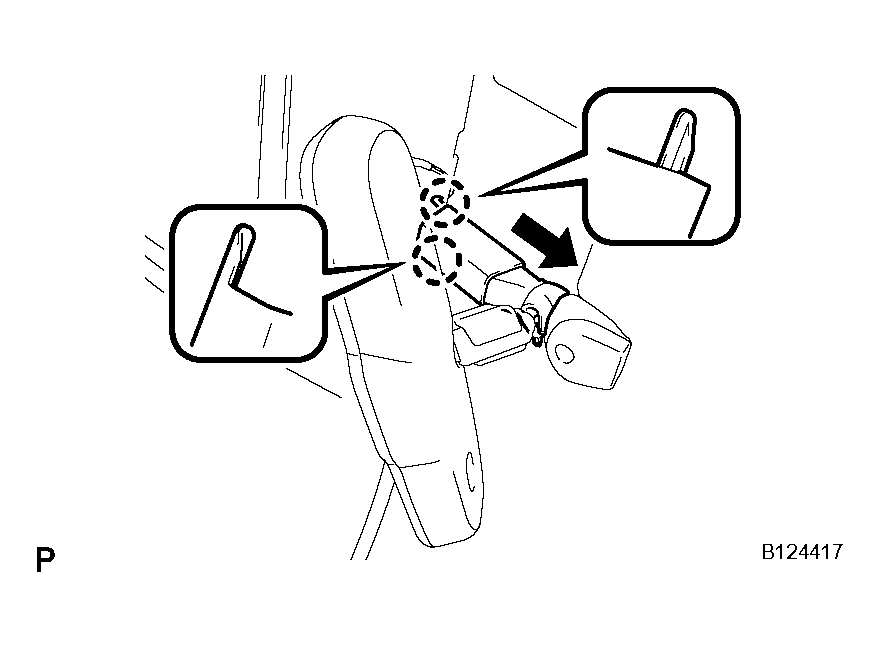

    Fig 1: Identifying Inner Rear View Mirror Stay Holder Cover Claws
    G04050840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE INNER REAR VIEW MIRROR ASSEMBLY
    1. Disconnect the connector.
    2. Using a "torx" socket wrench (T20), remove the screw and the inner rear view mirror.

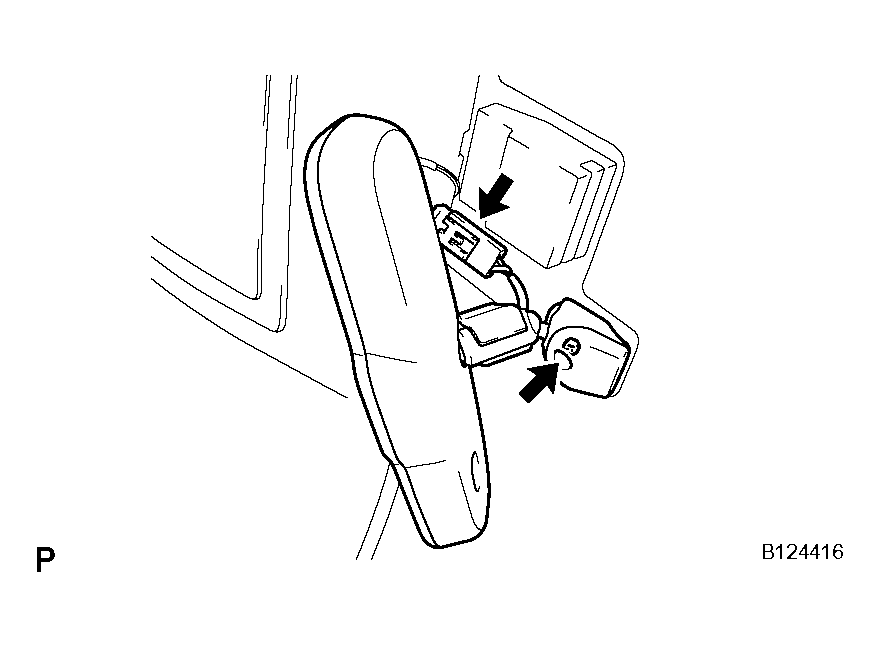

    Fig 2: Identifying Inner Rear View Mirror Assembly
    G04050841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
