Outer Rear View Mirror: Inspection

  1. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH (w/Memory)
    1. Inspect outer mirror motor operation.
      1. Apply battery voltage and check operation of the mirror face, as shown in MEASUREMENT CONDITION SPECIFIED CONDITION TABLE  and Fig 1 .

        Standard

        MEASUREMENT CONDITION SPECIFIED CONDITION TABLE

        Measurement Condition Specified Condition
        Battery positive (+) --> Terminal 1 (MV)
        Battery negative (-) --> Terminal 10 (M+)        		 Turns upward (A)
        Battery positive (+) --> Terminal 10 (M+)
        Battery negative (-) --> Terminal 1 (MV)        		 Turns downward (B)
        Battery positive (+) --> Terminal 9 (MH)
        Battery negative (-) --> Terminal 10 (M+)        		 Turns left (C)
        Battery positive (+) --> Terminal 10 (M+)
        Battery negative (-) --> Terminal 9 (MH)        		 Turns right (D)

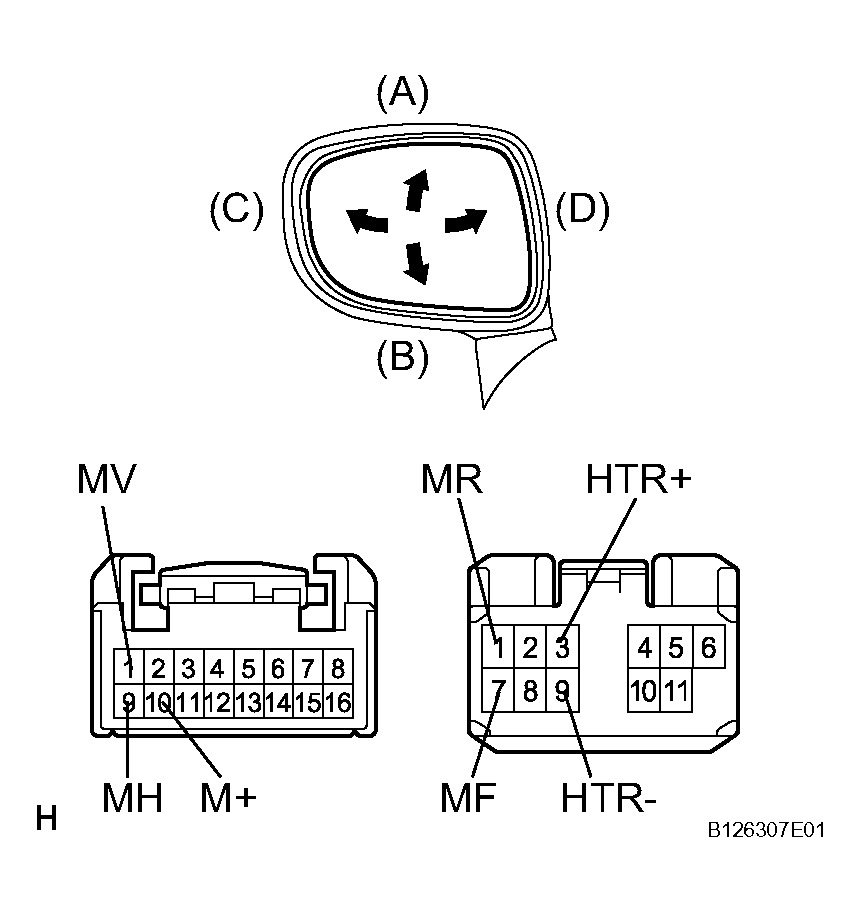

      Fig 1: Inspecting Outer Mirror Motor Operation
      G04050850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Inspect the retract mirror operation.
      1. Apply battery voltage and check operation of the mirror, as shown in MEASUREMENT CONDITION SPECIFIED CONDITION TABLE  .

        Standard

        MEASUREMENT CONDITION SPECIFIED CONDITION TABLE

        Measurement Condition Specified Condition
        Battery positive (+) --> Terminal 7 (MF)
        Battery negative (-) --> Terminal 1 (MV)        		 Returns (Driving position)
        Battery positive (+) --> Terminal 1 (MV)
        Battery negative (-) --> Terminal 7 (MF)        		 Retracts
    3. Inspect outer mirror heater operation.
      1. Apply battery voltage and check operation of the mirror face, as shown in MEASUREMENT CONDITION SPECIFIED CONDITION TABLE  .

        Standard

        MEASUREMENT CONDITION SPECIFIED CONDITION TABLE

        Measurement Condition Specified Condition
        Battery positive (+) --> Terminal 3 (HTR+)
        Battery negative (-) --> Terminal 9 (HTR-)        		 Mirror surface temperature becomes higher
    4. Inspect electrochromatic outer mirror operation.
      1. Apply battery voltage and check operation of the mirror face, as shown in MEASUREMENT CONDITION SPECIFIED CONDITION TABLE  and Fig 2 .

        Standard

        MEASUREMENT CONDITION SPECIFIED CONDITION TABLE

        Measurement Condition Specified Condition
        Battery positive (+) --> Terminal 7 (EC+)
        Battery negative (-) --> Terminal 15 (EC-)        		 Mirror surface changes to dark

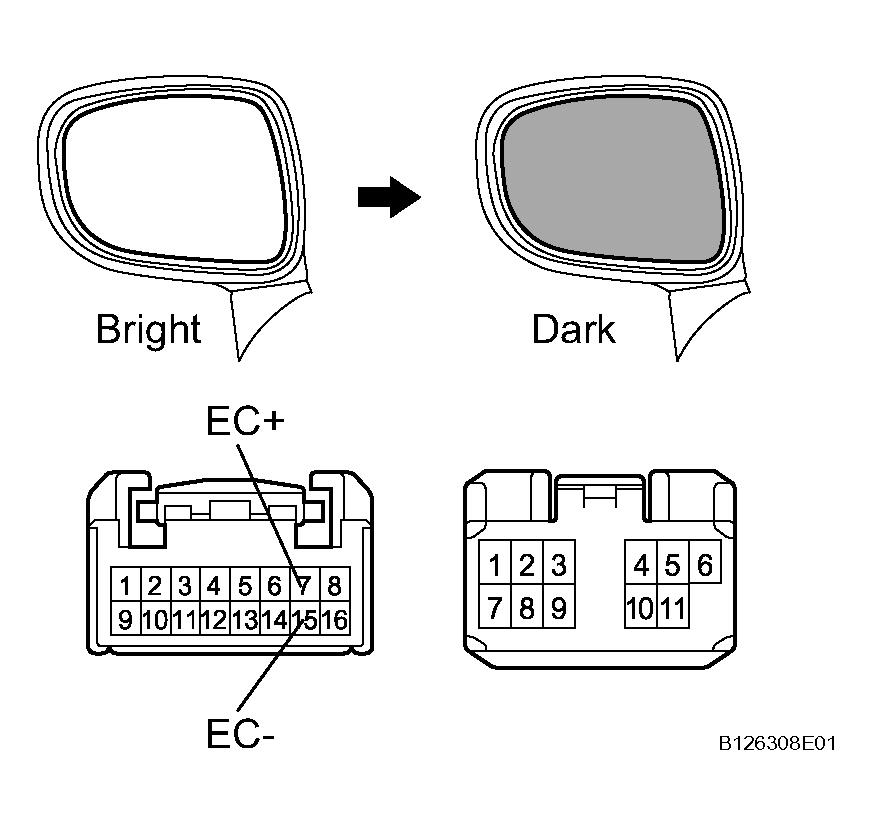

    Fig 2: Inspecting Electrochromic Outer Mirror Operation
    G04050851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH (w/o Memory)
    1. Inspect outer mirror motor operation.
      1. Apply battery voltage and check operation of the mirror face, as shown in MEASUREMENT CONDITION SPECIFIED CONDITION TABLE  and Fig 3 .

        Standard

        MEASUREMENT CONDITION SPECIFIED CONDITION TABLE

        Measurement Condition Specified Condition
        Battery positive (+) --> Terminal 5 (MV)
        Battery negative (-) --> Terminal 6 (M+)        		 Turns upward (A)
        Battery positive (+) --> Terminal 6 (M+)
        Battery negative (-) --> Terminal 5 (MV)        		 Turns downward (B)
        Battery positive (+) --> Terminal 11 (MH)
        Battery negative (-) --> Terminal 6 (M+)        		 Turns left (C)
        Battery positive (+) --> Terminal 6 (M+)
        Battery negative (-) --> Terminal 11 (MH)        		 Turns right (D)

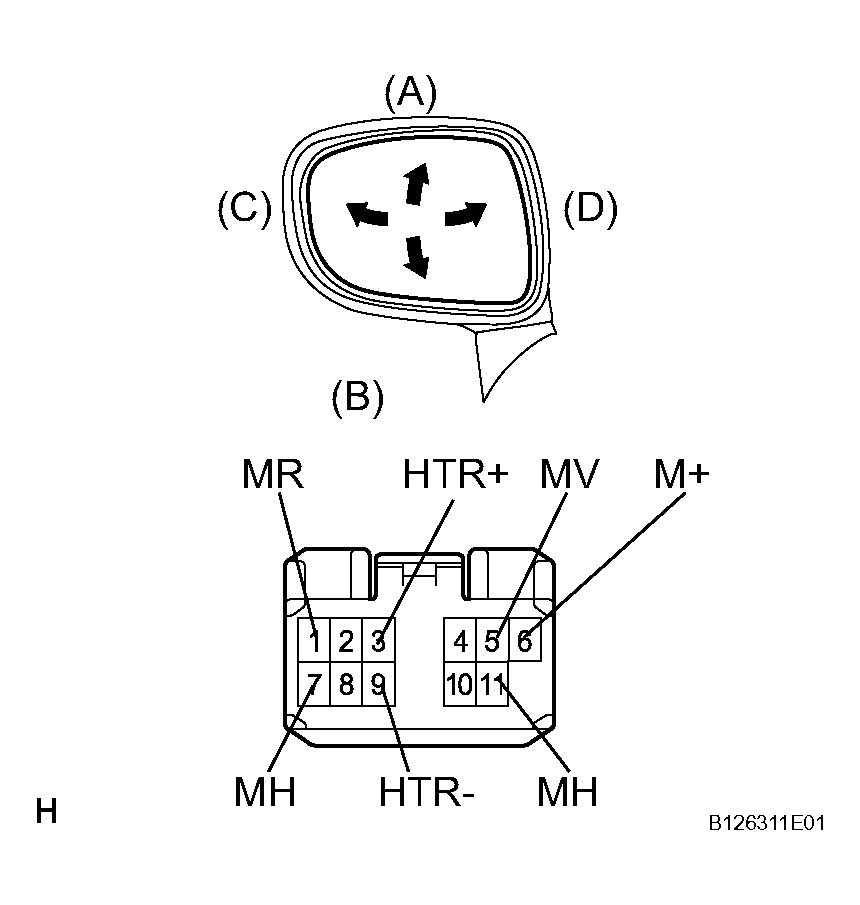

      Fig 3: Inspecting Outer Rear View Mirror Assembly RH (W/O Memory)
      G04050852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Inspect the retract mirror operation.
      1. Apply battery voltage and check operation of the mirror, as shown in MEASUREMENT CONDITION SPECIFIED CONDITION TABLE  .

        Standard

        MEASUREMENT CONDITION SPECIFIED CONDITION TABLE

        Measurement Condition Specified Condition
        Battery positive (+) --> Terminal 7 (MF)
        Battery negative (-) --> Terminal 1 (MV)        		 Returns (Driving position)
        Battery positive (+) --> Terminal 1 (MV)
        Battery negative (-) --> Terminal 7 (MF)        		 Retracts
    3. Inspect outer mirror heater operation.
      1. Apply battery voltage and check operation of the mirror face, as shown in MEASUREMENT CONDITION SPECIFIED CONDITION TABLE  .

        Standard

        MEASUREMENT CONDITION SPECIFIED CONDITION TABLE

        Measurement Condition Specified Condition
        Battery positive (+) --> Terminal 3 (HTR+)
        Battery negative (-) --> Terminal 9 (HTR-)        		 Mirror surface temperature becomes higher
    4. Inspect electrochromatic outer mirror operation.
      1. Apply battery voltage and check operation of the mirror face, as shown in MEASUREMENT CONDITION SPECIFIED CONDITION TABLE  or Fig 4 .

        Standard

        MEASUREMENT CONDITION SPECIFIED CONDITION TABLE

        Measurement Condition Specified Condition
        Battery positive (+) --> Terminal 4 (EC+)
        Battery negative (-) --> Terminal 10 (EC-)        		 Mirror surface changes to dark

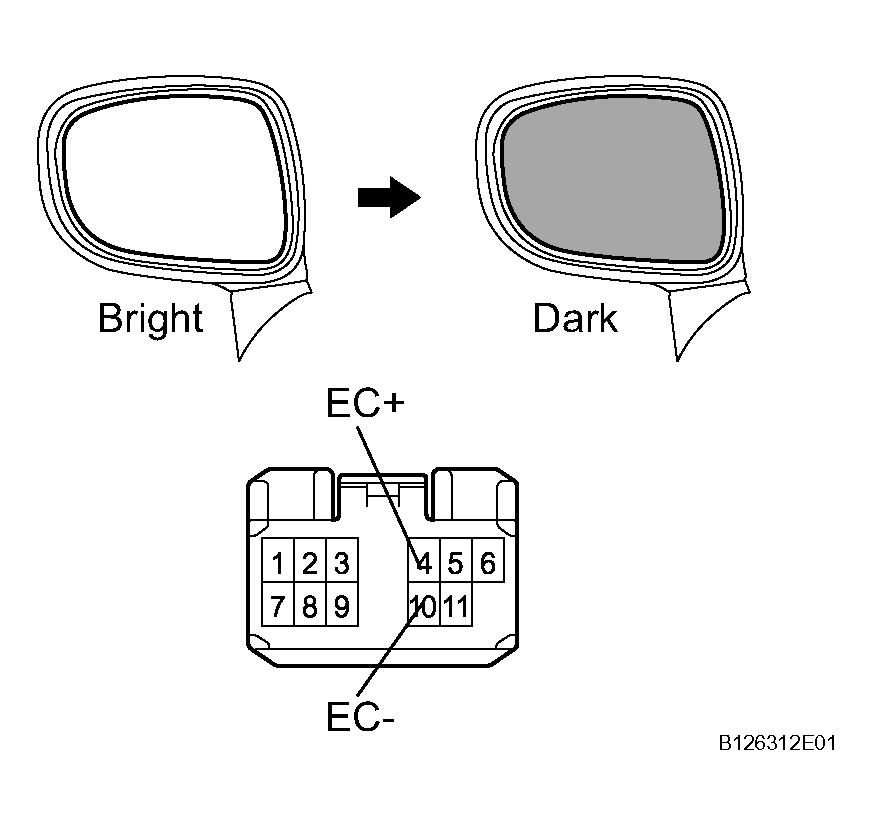

    Fig 4: Inspecting Electrochromic Outer Mirror Operation
    G04050853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH (w/Memory)
    1. Inspect outer mirror motor operation.
      1. Remove the outer rear view mirror assembly.
      2. Apply battery voltage and check operation of the mirror face, as shown in MEASUREMENT CONDITION SPECIFIED CONDITION TABLE  and Fig 5 .

        Standard

        MEASUREMENT CONDITION SPECIFIED CONDITION TABLE

        Measurement Condition Specified Condition
        Battery positive (+) --> Terminal 1 (MV)
        Battery negative (-) --> Terminal 10 (M+)        		 Turns upward (A)
        Battery positive (+) --> Terminal 10 (M+)
        Battery negative (-) --> Terminal 1 (MV)        		 Turns downward (B)
        Battery positive (+) --> Terminal 9 (LMHR)
        Battery negative (-) --> Terminal 10 (LM+R)        		 Turns left (C)
        Battery positive (+) --> Terminal 10 (M+)
        Battery negative (-) --> Terminal 9 (MH)        		 Turns right (D)

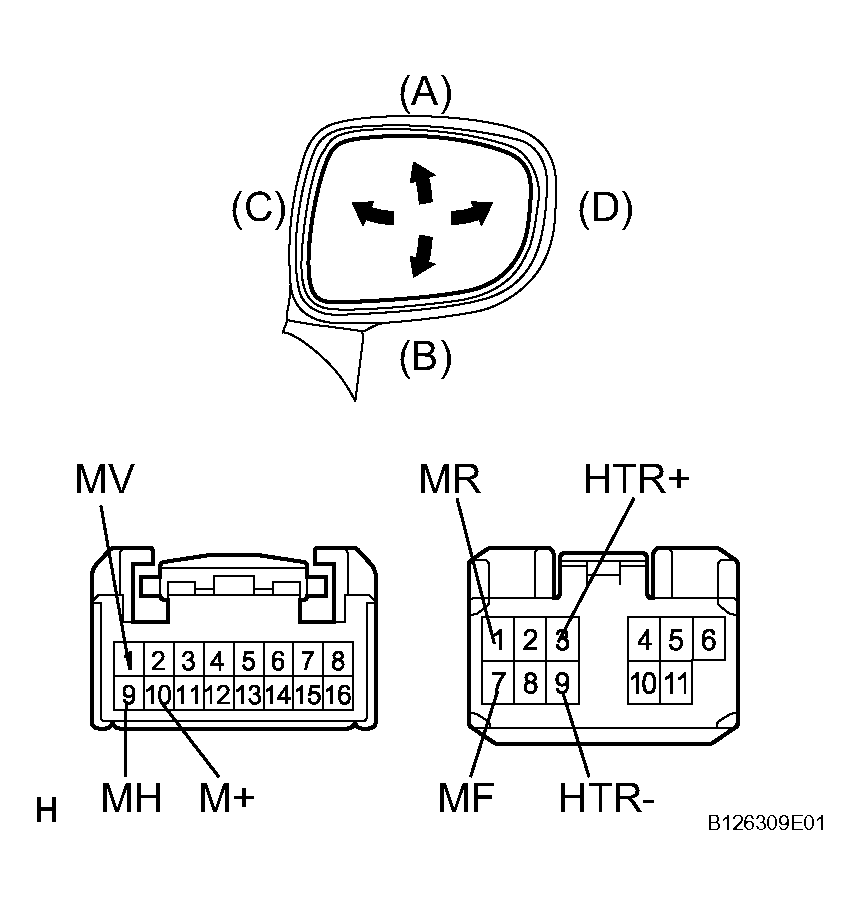

      Fig 5: Inspecting Outer Mirror Motor Operation
      G04050854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Inspect the retract mirror operation.
      1. Apply battery voltage and check operation of the mirror, as shown in MEASUREMENT CONDITION SPECIFIED CONDITION TABLE  .

        Standard

        MEASUREMENT CONDITION SPECIFIED CONDITION TABLE

        Measurement Condition Specified Condition
        Battery positive (+) --> Terminal 7 (MF)
        Battery negative (-) --> Terminal 1 (MV)        		 Returns (Driving position)
        Battery positive (+) --> Terminal 1 (MV)
        Battery negative (-) --> Terminal 7 (MF)        		 Retracts
    3. Inspect outer mirror heater operation.
      1. Apply battery voltage and check operation of the mirror face, as shown in MEASUREMENT CONDITION SPECIFIED CONDITION TABLE  .

        Standard

        MEASUREMENT CONDITION SPECIFIED CONDITION TABLE

        Measurement Condition Specified Condition
        Battery positive (+) --> Terminal 3 (HTR+)
        Battery negative (-) --> Terminal 9 (HTR-)        		 Mirror surface temperature becomes higher
    4. Inspect electrochromatic outer mirror operation.
      1. Apply battery voltage and check operation of the mirror face, as shown in MEASUREMENT CONDITION SPECIFIED CONDITION TABLE  and Fig 6 .

        Standard

      MEASUREMENT CONDITION SPECIFIED CONDITION TABLE

      Measurement Condition Specified Condition
      Battery positive (+) --> Terminal 7 (EC+)
      Battery negative (-) --> Terminal 15 (EC-)      		 Mirror surface changes to dark

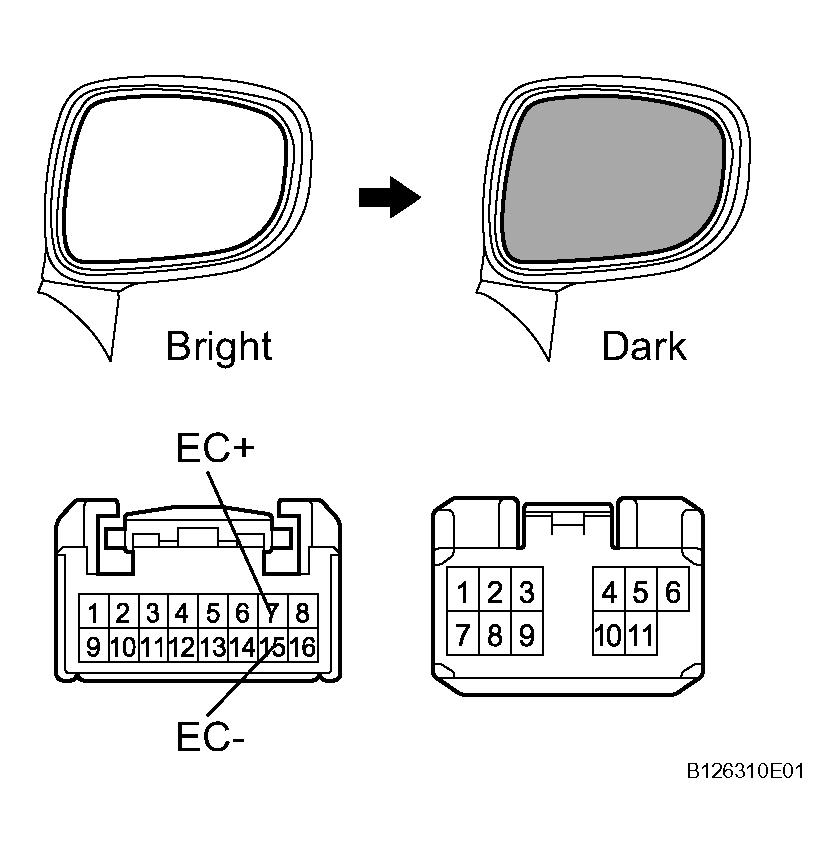

    Fig 6: Inspecting Electrochromatic Outer Mirror Operation
    G04050855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH (w/o Memory)
    1. Inspect outer mirror motor operation.
      1. Apply battery voltage and check operation of the mirror face, as shown in MEASUREMENT CONDITION SPECIFIED CONDITION TABLE  and Fig 7 .

        Standard

        MEASUREMENT CONDITION SPECIFIED CONDITION TABLE

        Measurement Condition Specified Condition
        Battery positive (+) --> Terminal 5 (MV)
        Battery negative (-) --> Terminal 6 (M+)        		 Turns upward (A)
        Battery positive (+) --> Terminal 6 (M+)
        Battery negative (-) --> Terminal 5 (MV)        		 Turns downward (B)
        Battery positive (+) --> Terminal 11 (MH)
        Battery negative (-) --> Terminal 6 (M+)        		 Turns left (C)
        Battery positive (+) --> Terminal 6 (M+)
        Battery negative (-) --> Terminal 11 (MH)        		 Turns right (D)

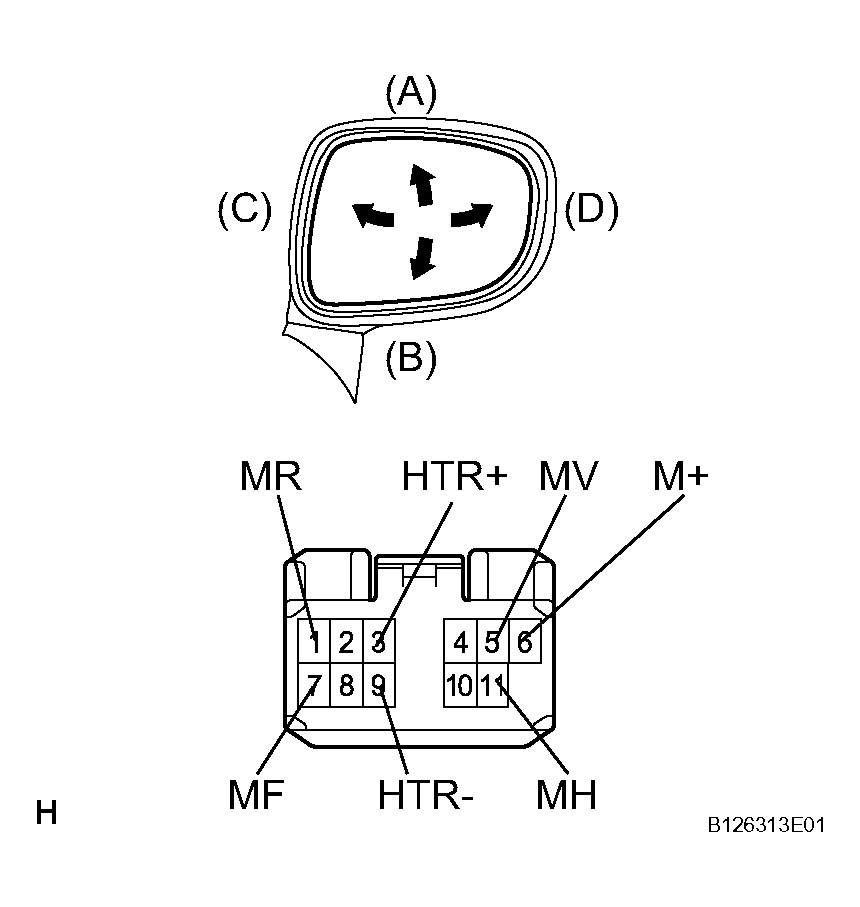

      Fig 7: Inspecting Outer Mirror Motor Operation
      G04050856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Inspect the retract mirror operation.
      1. Apply battery voltage and check operation of the mirror, as shown in MEASUREMENT CONDITION SPECIFIED CONDITION TABLE  .

        Standard

        MEASUREMENT CONDITION SPECIFIED CONDITION TABLE

        Measurement Condition Specified Condition
        Battery positive (+) --> Terminal 7 (MF)
        Battery negative (-) --> Terminal 1 (MV)        		 Returns (Driving position)
        Battery positive (+) --> Terminal 1 (MV)
        Battery negative (-) --> Terminal 7 (MF)        		 Retracts
    3. Inspect outer mirror heater operation.
      1. Apply battery voltage and check operation of the mirror face, as shown in MEASUREMENT CONDITION SPECIFIED CONDITION TABLE  .

        Standard

        MEASUREMENT CONDITION SPECIFIED CONDITION TABLE

        Measurement Condition Specified Condition
        Battery positive (+) --> Terminal 3 (HTR+)
        Battery negative (-) --> Terminal 9 (HTR-)        		 Mirror surface temperature becomes higher
    4. Inspect electrochromatic outer mirror operation.
      1. Apply battery voltage and check operation of the mirror face, as shown in MEASUREMENT CONDITION SPECIFIED CONDITION TABLE  and Fig 8 .

        Standard

        MEASUREMENT CONDITION SPECIFIED CONDITION TABLE

        Measurement Condition Specified Condition
        Battery positive (+) --> Terminal 4 (EC+)
        Battery negative (-) --> Terminal 10 (EC-)        		 Mirror surface changes to dark

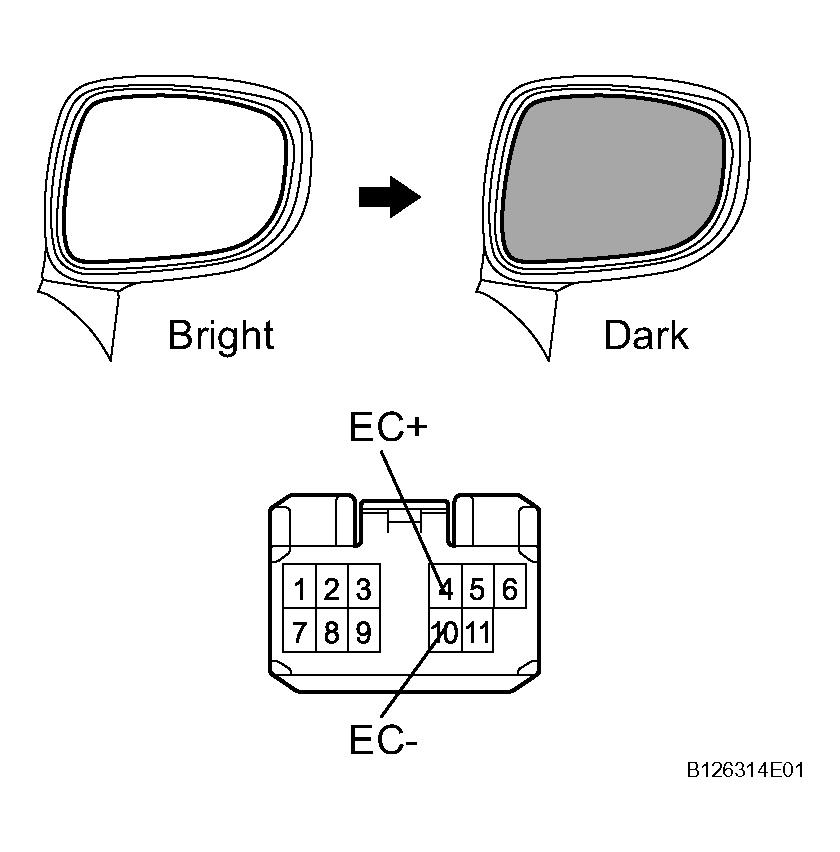

    Fig 8: Inspecting Electrochromatic Outer Mirror Operation
    G04050857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
