FRONT SPEED SENSOR (for 2WD): Components

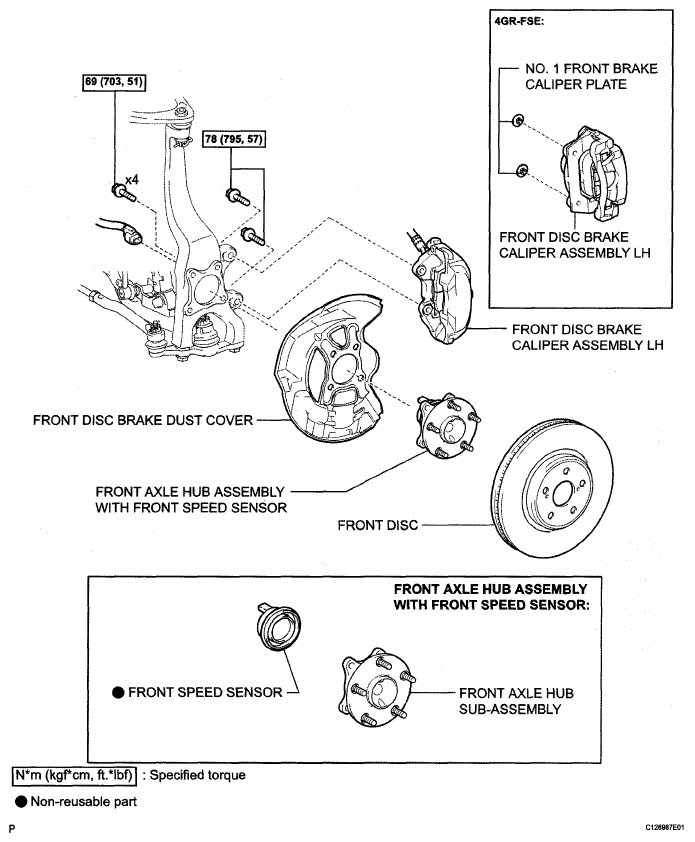

Fig 1: Front Speed Sensor Replacement Components With Torque Specifications (For 2WD)
G05319575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
