Body Electrical: Clock: Installation

  1. INSTALL CLOCK ASSEMBLY (w/o Navigation System)

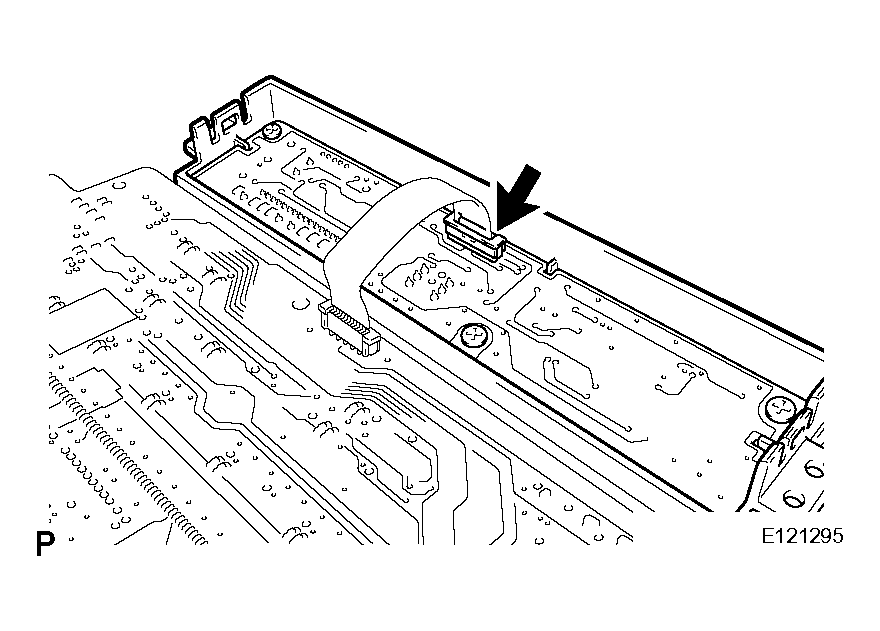

    1. Connect the connector.
      Fig 1: Connecting Connector
      G04050681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

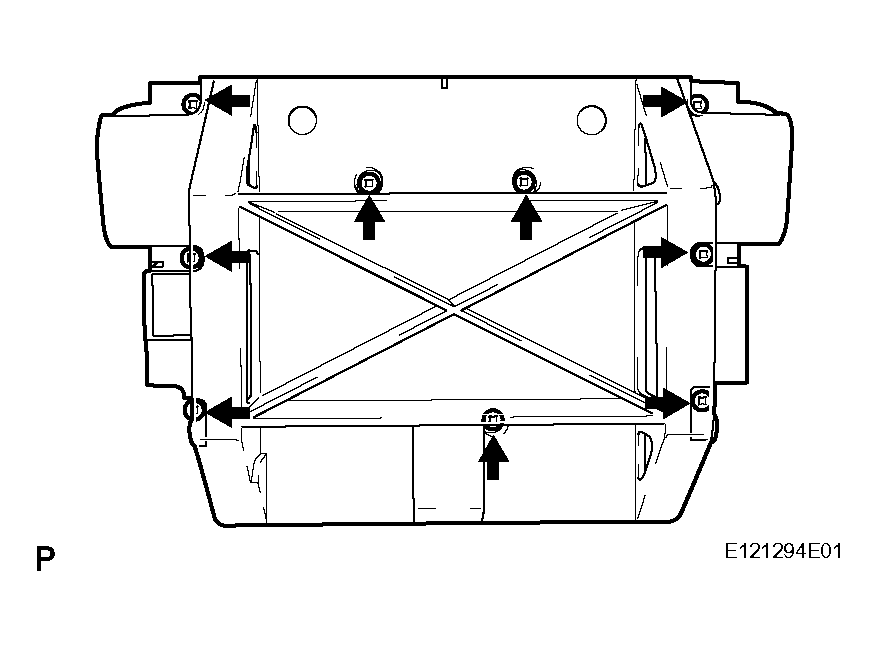

    2. Install the cover with the 9 screws.
      Fig 2: Installing Cover With Screws
      G04050682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

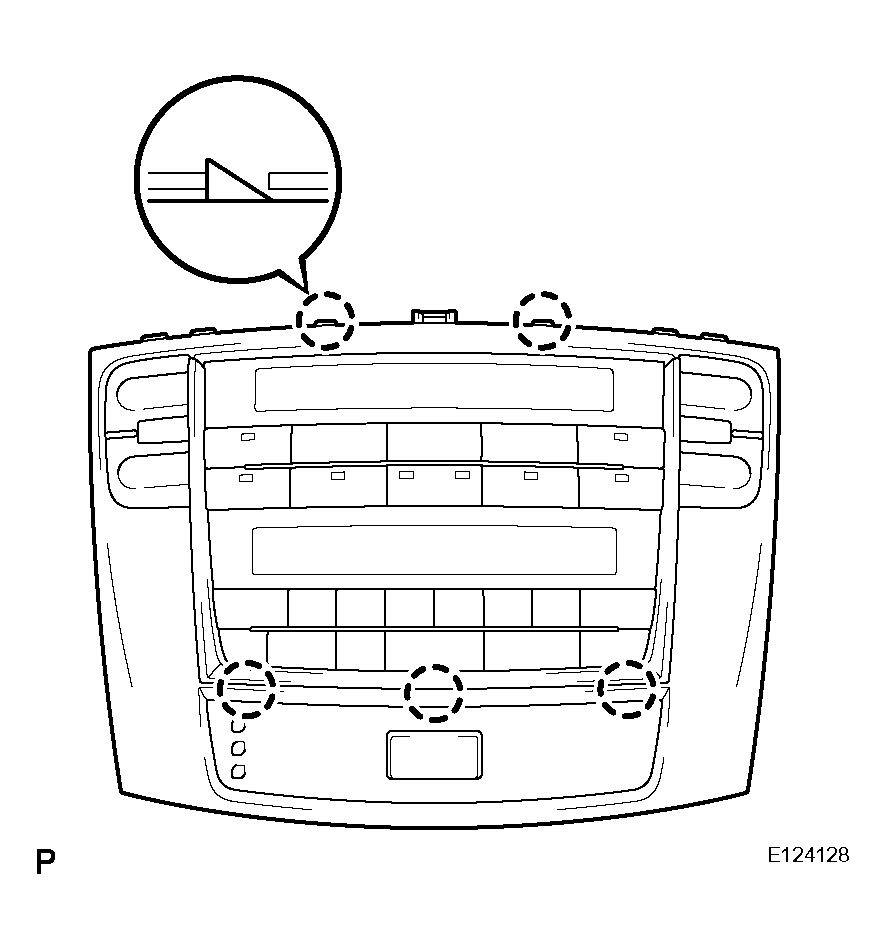

    3. Engage the 5 claws.
      Fig 3: Engaging Claws
      G04050683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

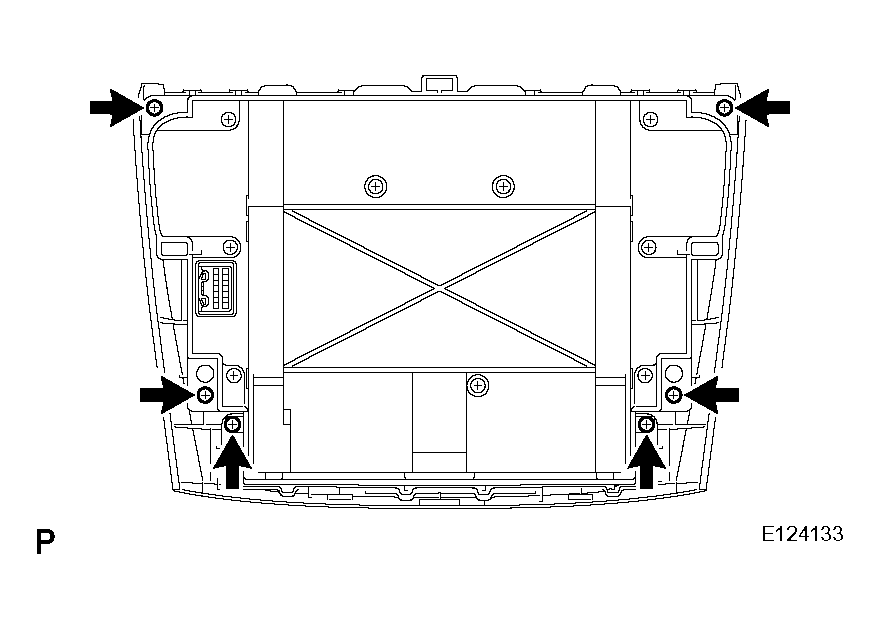

    4. Install the integration control panel with 6 screws.
    Fig 4: Installing Integration Control Panel With Screws
    G04050684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL RADIO RECEIVER ASSEMBLY (w/o Navigation System) (See  INSTALLATION  )
  3. INSTALL NO. 2 RADIO BRACKET (w/o Navigation System) (See Step 2 in  INSTALLATION  )
  4. INSTALL NO. 1 RADIO BRACKET (w/o Navigation System) (See Step 3 in  INSTALLATION  )
  5. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System) (See Step 4 in  INSTALLATION  )

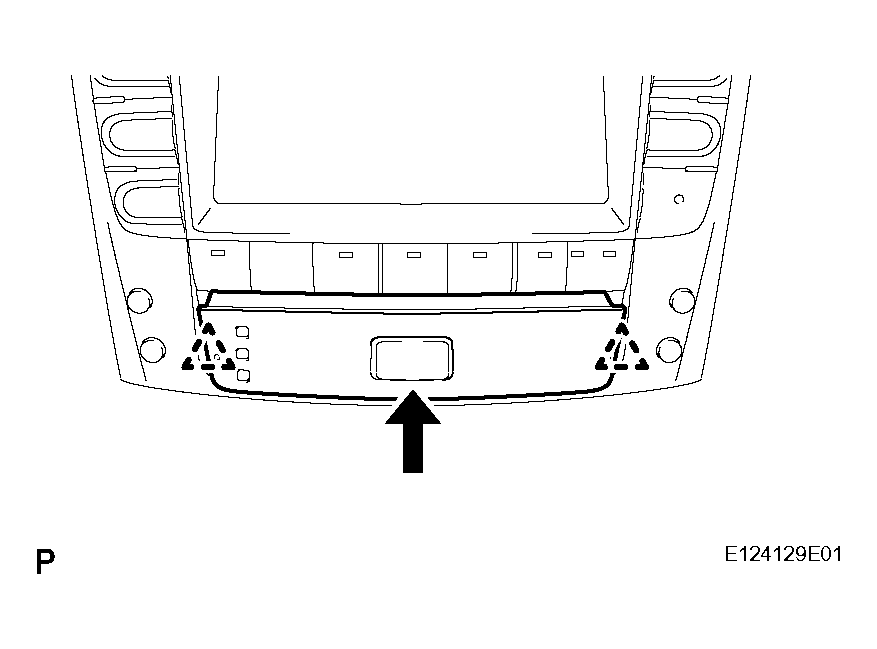

  6. INSTALL CLOCK ASSEMBLY (w/ Navigation System)
    1. Engage the 2 clips and install the clock assembly.
  7. INSTALL RADIO RECEIVER ASSEMBLY (w/ Navigation System) (See Step 5 in  INSTALLATION  )
  8. INSTALL NO. 2 RADIO BRACKET (w/ Navigation System) (See Step 6 in  INSTALLATION  )
  9. INSTALL NO. 1 RADIO BRACKET (w/ Navigation System) (See Step 7 in  INSTALLATION  )
    Fig 5: Installing Clock Assembly (W/ Navigation System)
    G04050685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System) (See Step 8 in  INSTALLATION  )
  11. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL (See Step 40 in  INSTALLATION  )
  12. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY (See Step 41 in  INSTALLATION  )
  13. INSTALL CONSOLE BOX (See Step 42 in  INSTALLATION  )
  14. INSTALL CONSOLE BOX REGISTER ASSEMBLY (See Step 43 in  INSTALLATION  )
  15. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY (See Step 44 in  INSTALLATION  )
  16. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See Step 45 in  INSTALLATION  )
  17. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See Step 46 in  INSTALLATION  )
  18. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) (See Step 47 in  INSTALLATION  )
  19. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) (See Step 48 in  INSTALLATION  )
  20. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) (See Step 49 in  INSTALLATION  )
  21. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
  22. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
  23. ADJUST CLOCK
