Data Link Connector 3: Notes

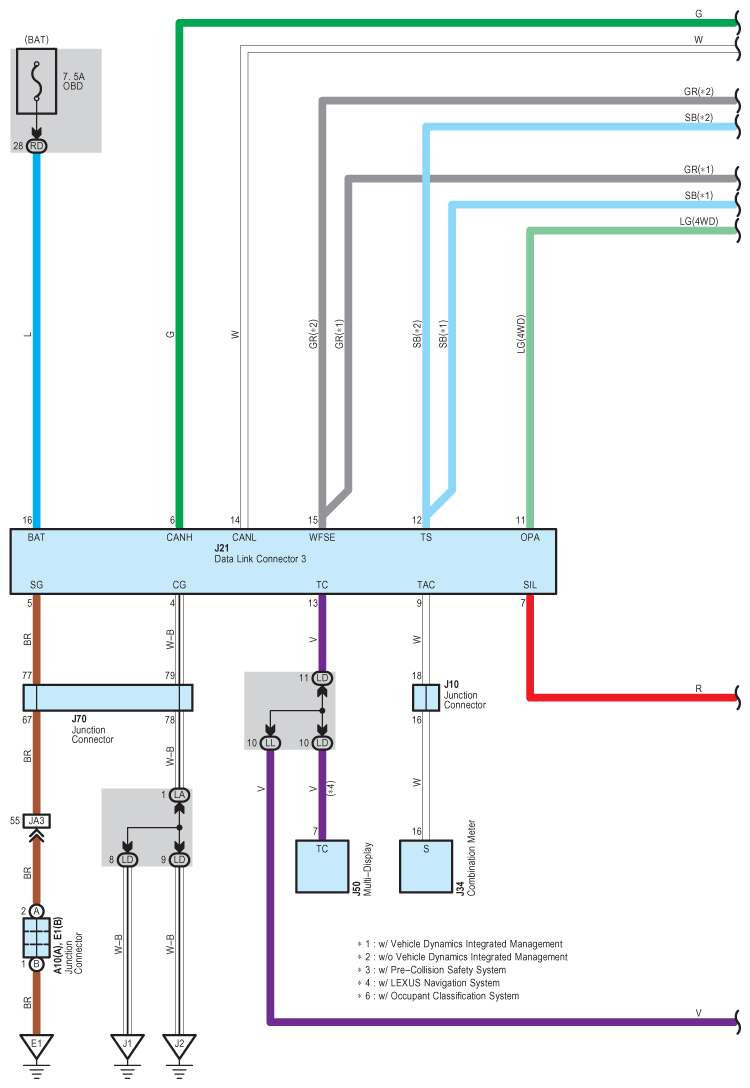

Fig 1: Data Link Connector 3 - Wiring Diagram (1 Of 3)
G08918389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

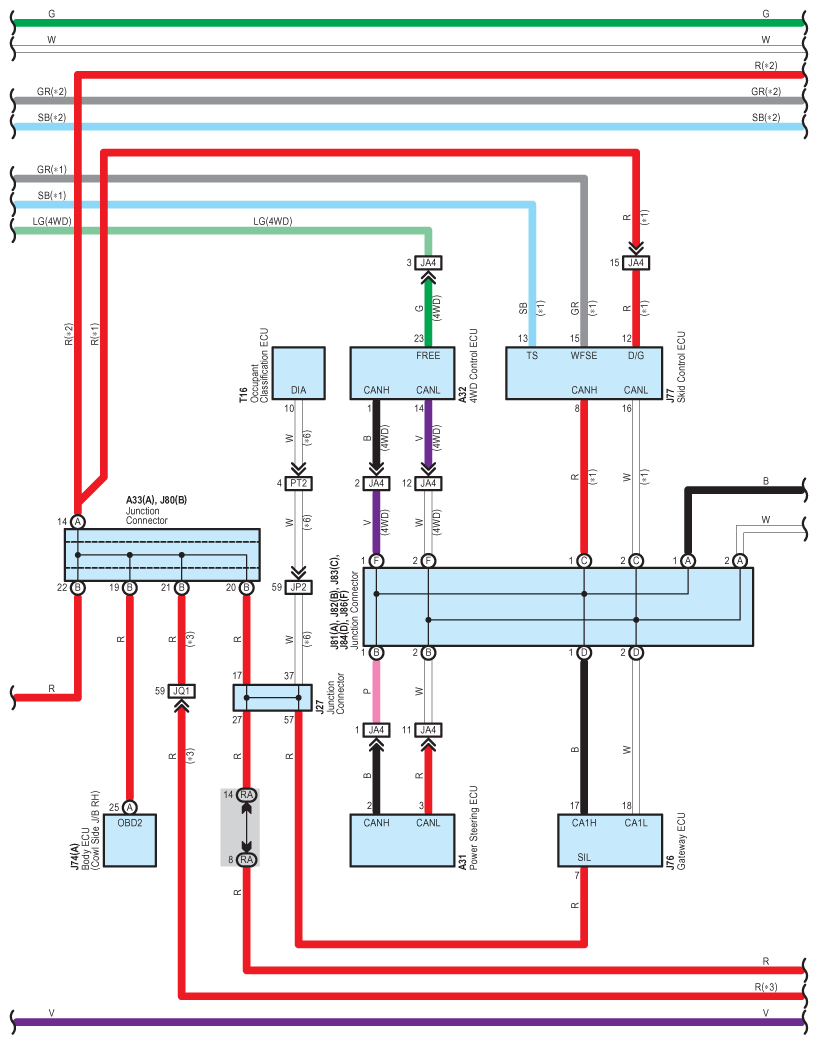

Fig 2: Data Link Connector 3 - Wiring Diagram (2 Of 3)
G08918390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

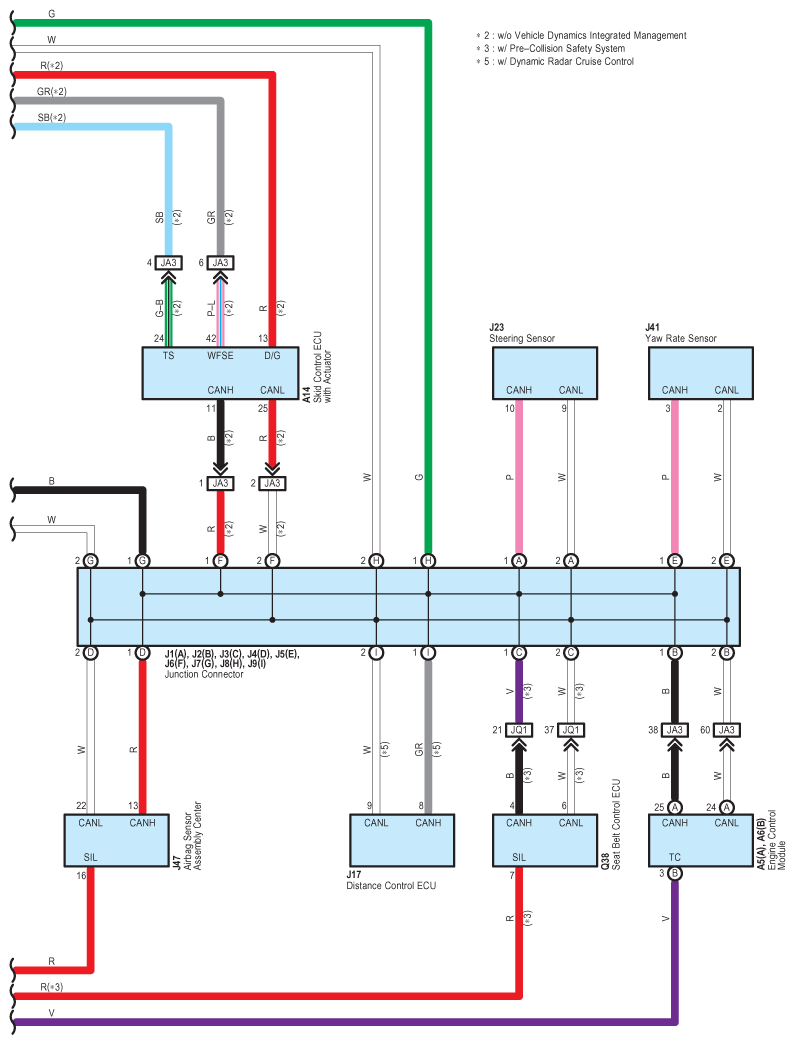

Fig 3: Data Link Connector 3 - Wiring Diagram (3 Of 3)
G08918391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
