Light Auto Turn Off System: Notes

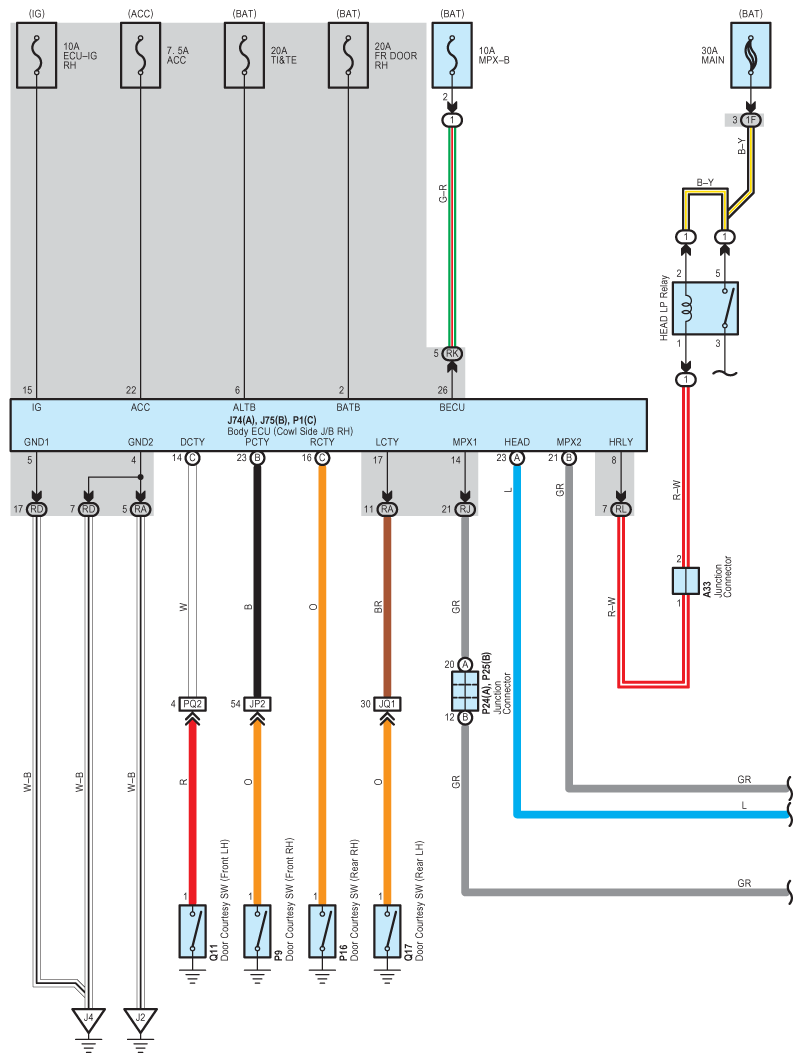

Fig 1: Light Auto Turn Off System - Wiring Diagram (1 Of 4)
G08918448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

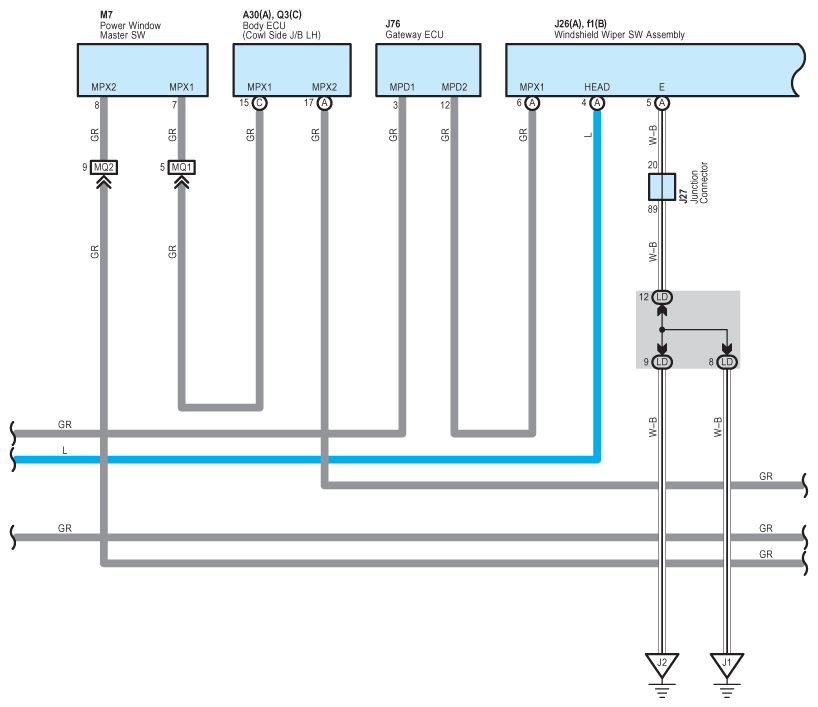

Fig 2: Light Auto Turn Off System - Wiring Diagram (2 Of 4)
G08918449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Light Auto Turn Off System - Wiring Diagram (3 Of 4)
G08918450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

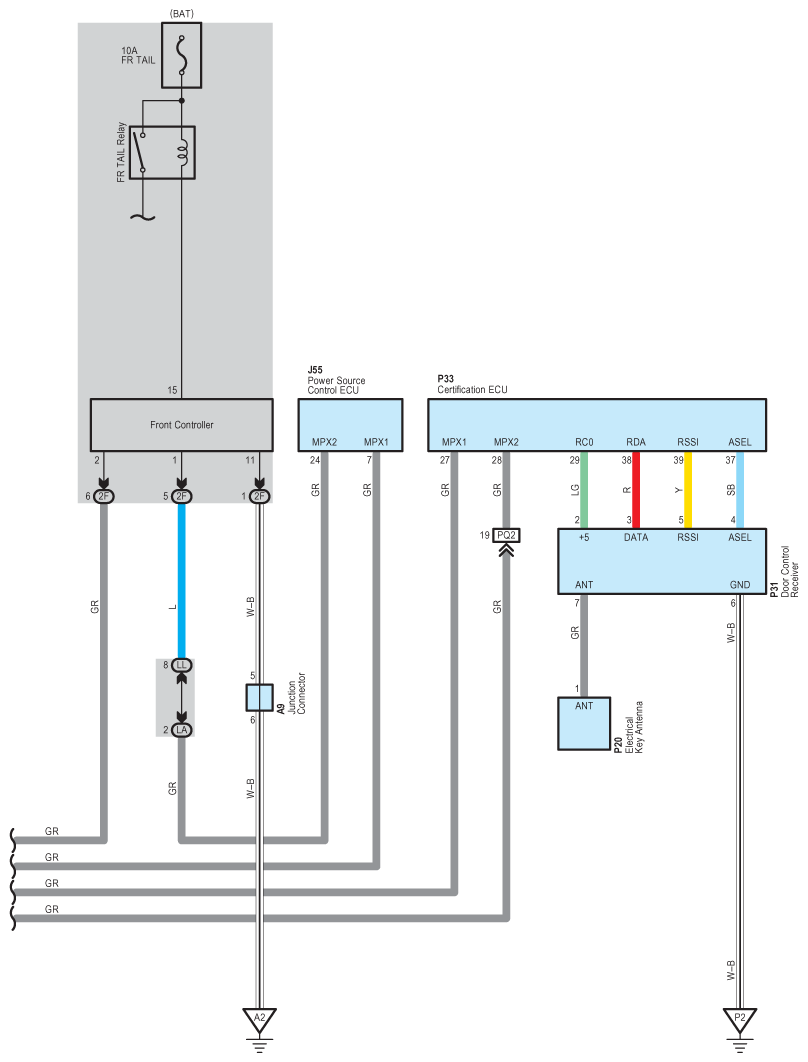

Fig 4: Light Auto Turn Off System - Wiring Diagram (4 Of 4)
G08918451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
