Multiplex Communication System - AVC-LAN: Notes

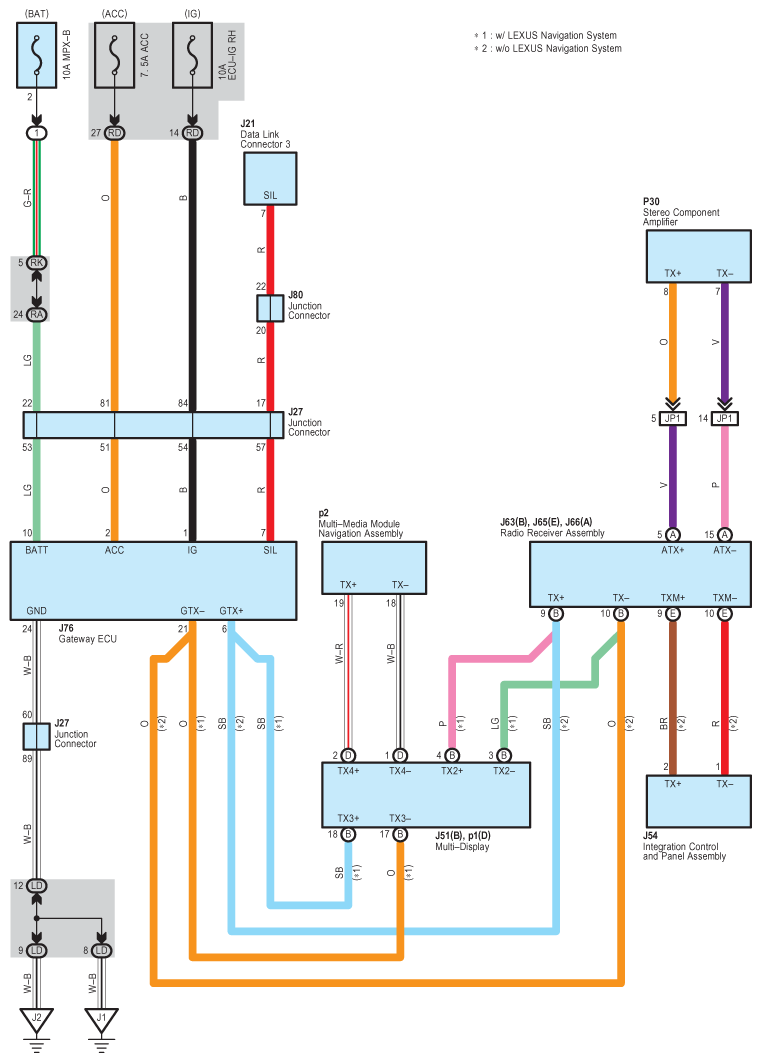

Fig 1: Multiplex Communication System - AVC-LAN - Wiring Diagram
G08918397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
