Ignition Coil: Installation

  1. INSTALL IGNITION COIL ASSEMBLY
    1. Install the 6 ignition coils with the 6 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    2. Connect the 6 ignition coil connectors.

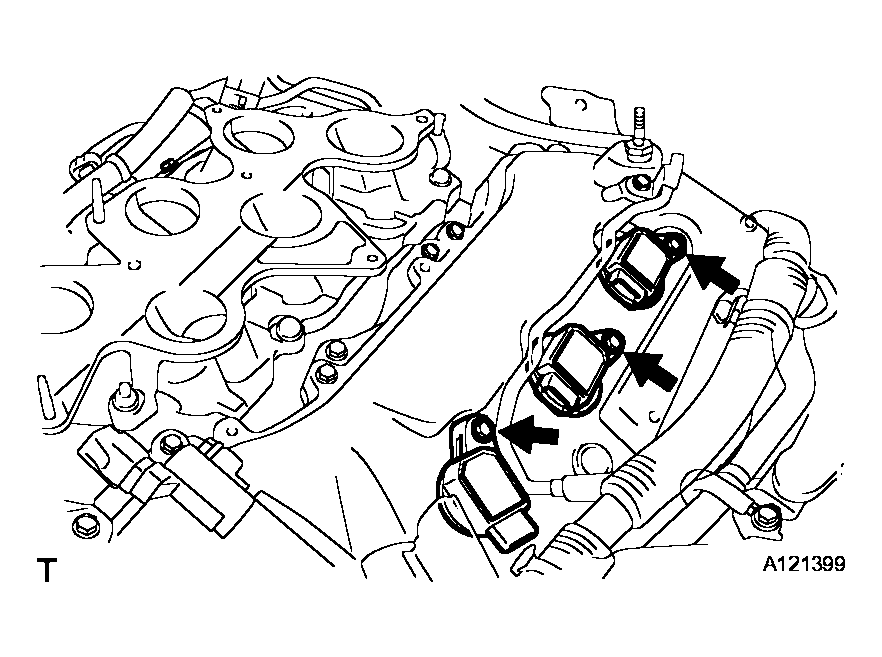

    Fig 1: Identifying Ignition Coils
    G04044914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INTAKE AIR SURGE TANK ASSEMBLY (See Step 13 in  INSTALLATION  )
  3. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE
  4. INSTALL NO. 2 VENTILATION HOSE
    1. Connect the ventilation hose to the cylinder head cover with the clamp.
    Fig 2: Locating Ventilation Hose To Cylinder Head Cover
    G04018097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL ENGINE ROOM SIDE COVER LH (See Step 116 in  INSTALLATION  )
  6. INSTALL ENGINE ROOM SIDE COVER RH (See Step 117 in  INSTALLATION  )
  7. INSTALL COOL AIR INTAKE DUCT SEAL (See Step 118 in  INSTALLATION  )
  8. INSTALL V-BANK COVER SUB-ASSEMBLY (See Step 115 in  INSTALLATION  )
  9. CONNECT BATTERY NEGATIVE TERMINAL (See  INSTALLATION  )
  10. PERFORM INITIALIZATION
    1. Perform initialization (See INITIALIZATION ).
    NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
