Parts Location

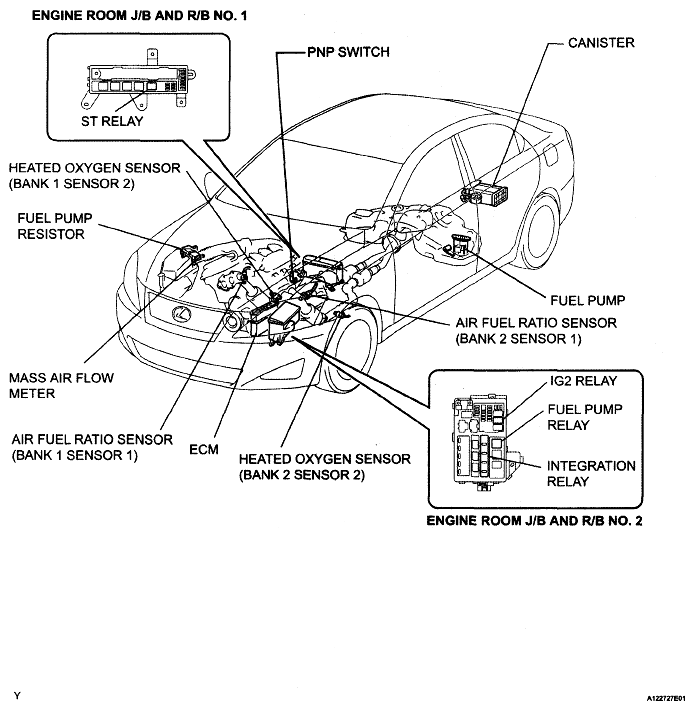

Fig 1: Identifying Engine Control System Components Location (1 Of 3)
G05316288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

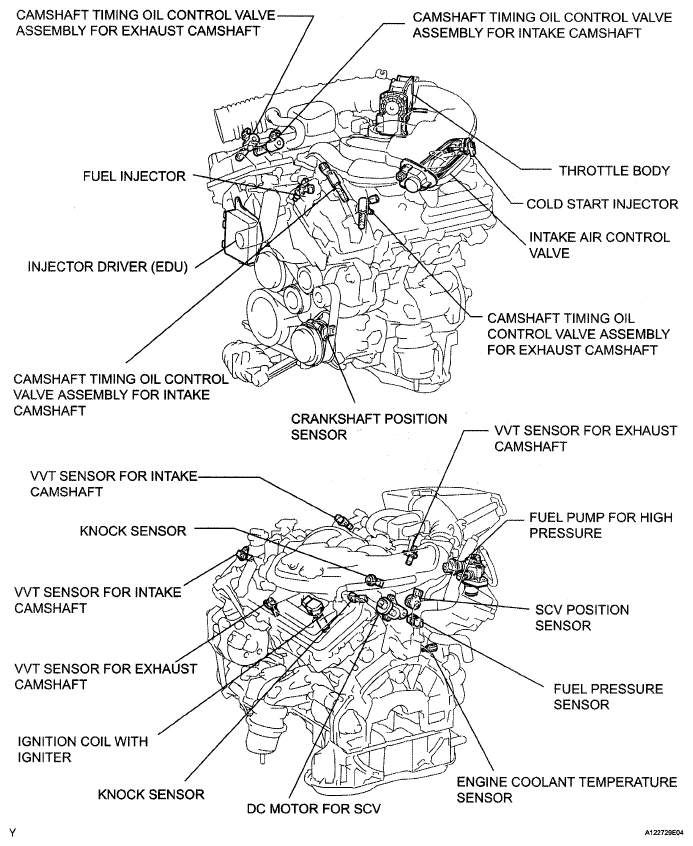

Fig 2: Identifying Engine Control System Components Location (2 Of 3)
G05316289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

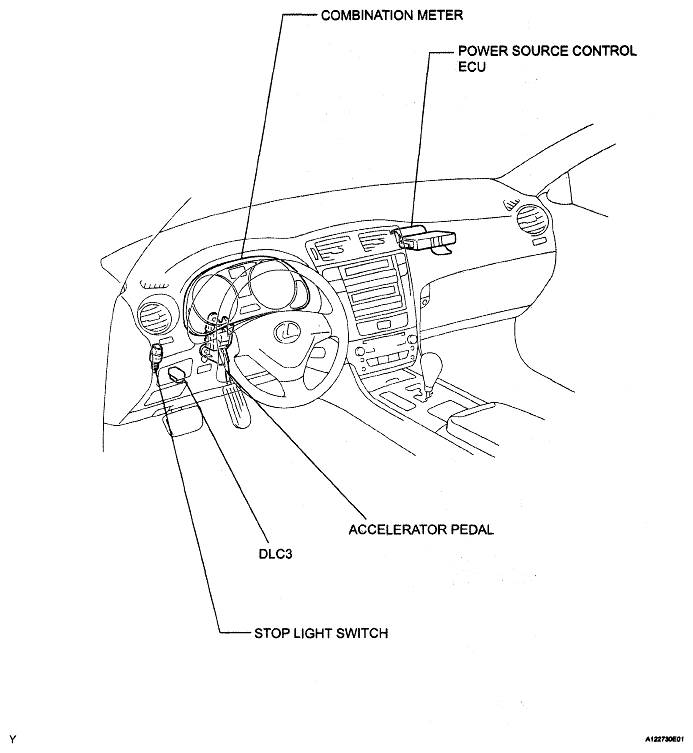

Fig 3: Identifying Engine Control System Components Location (3 Of 3)
G05316290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
