Service Data

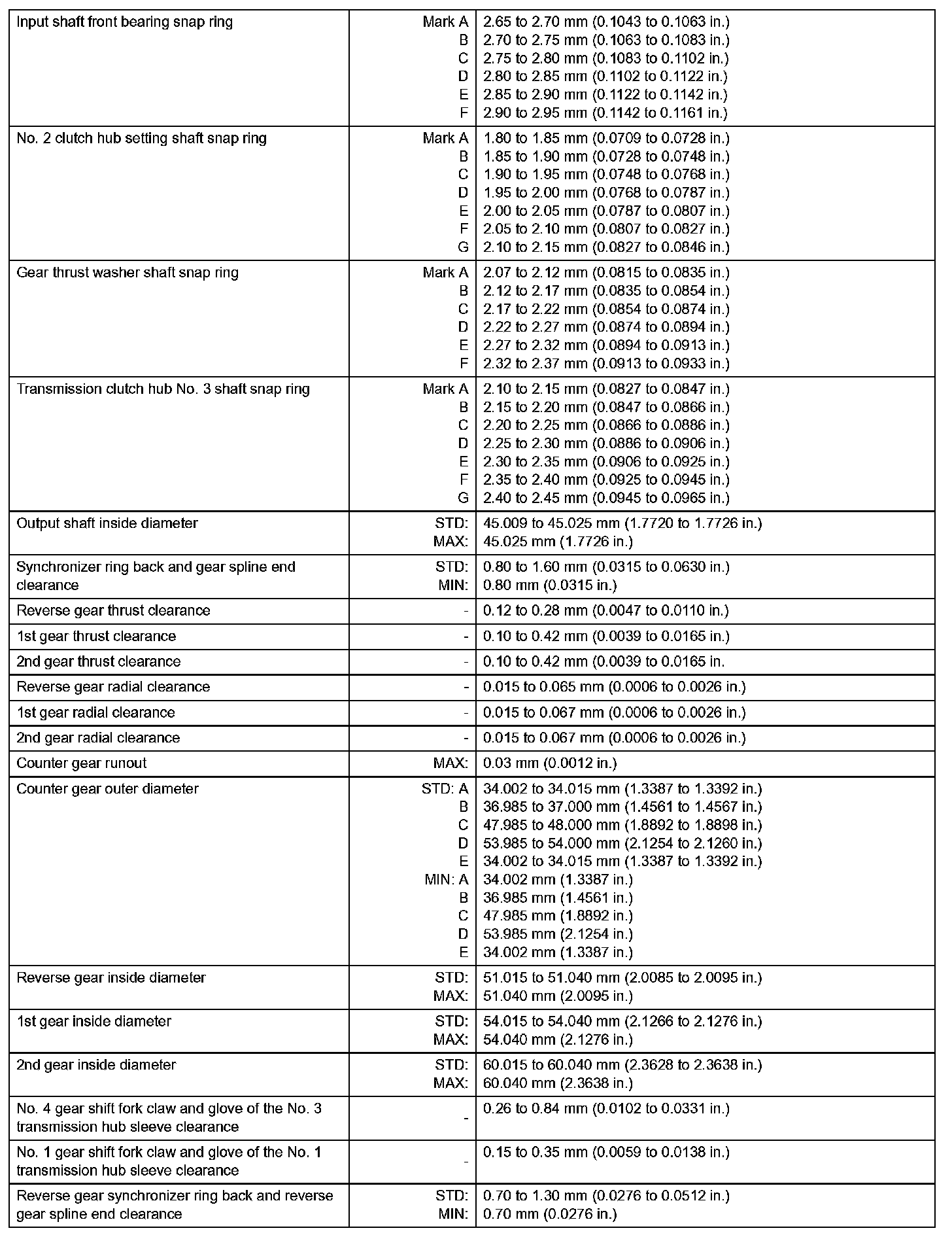

Manual Transmission - Service Data (Part 1):

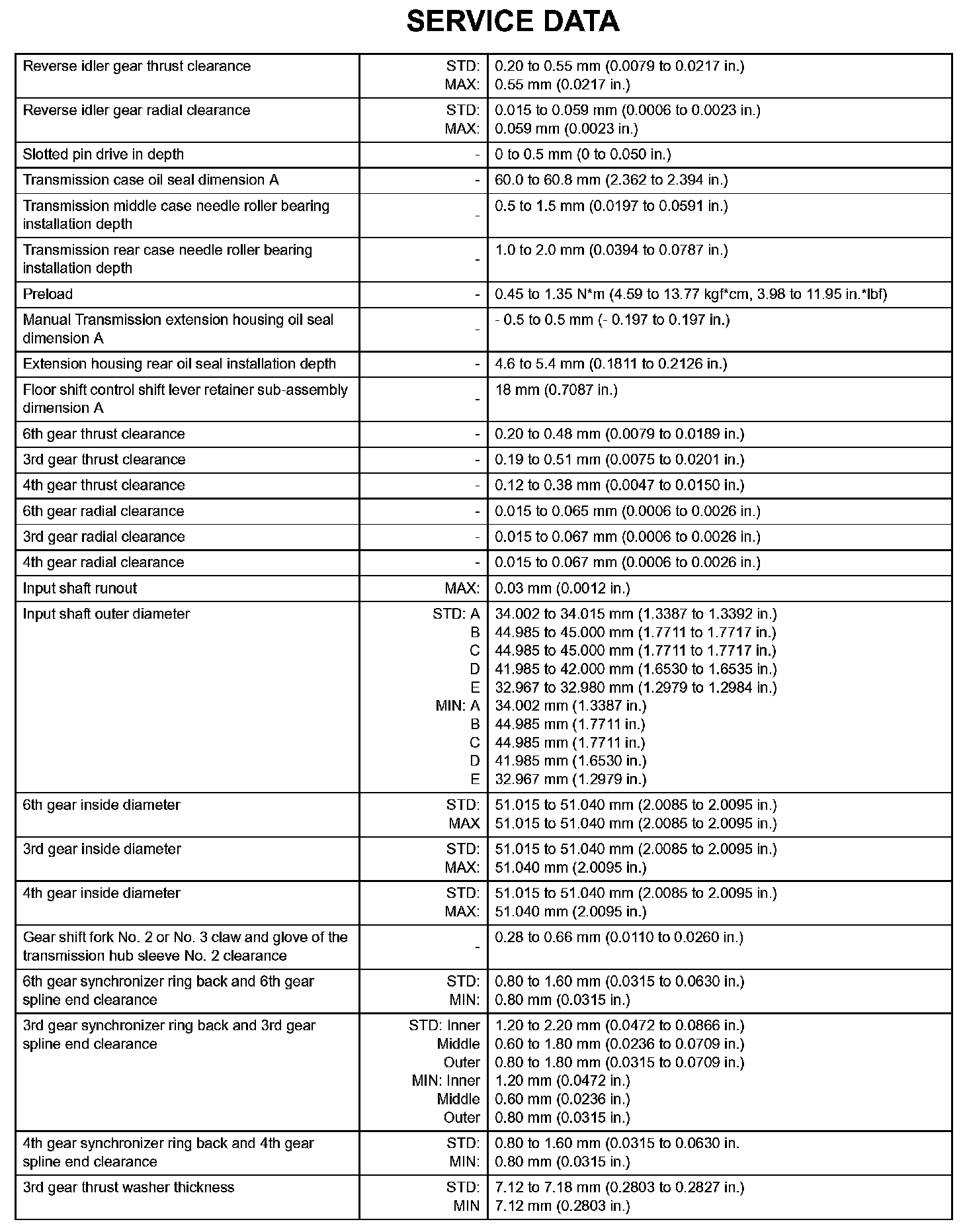

Manual Transmission - Service Data (Part 2):

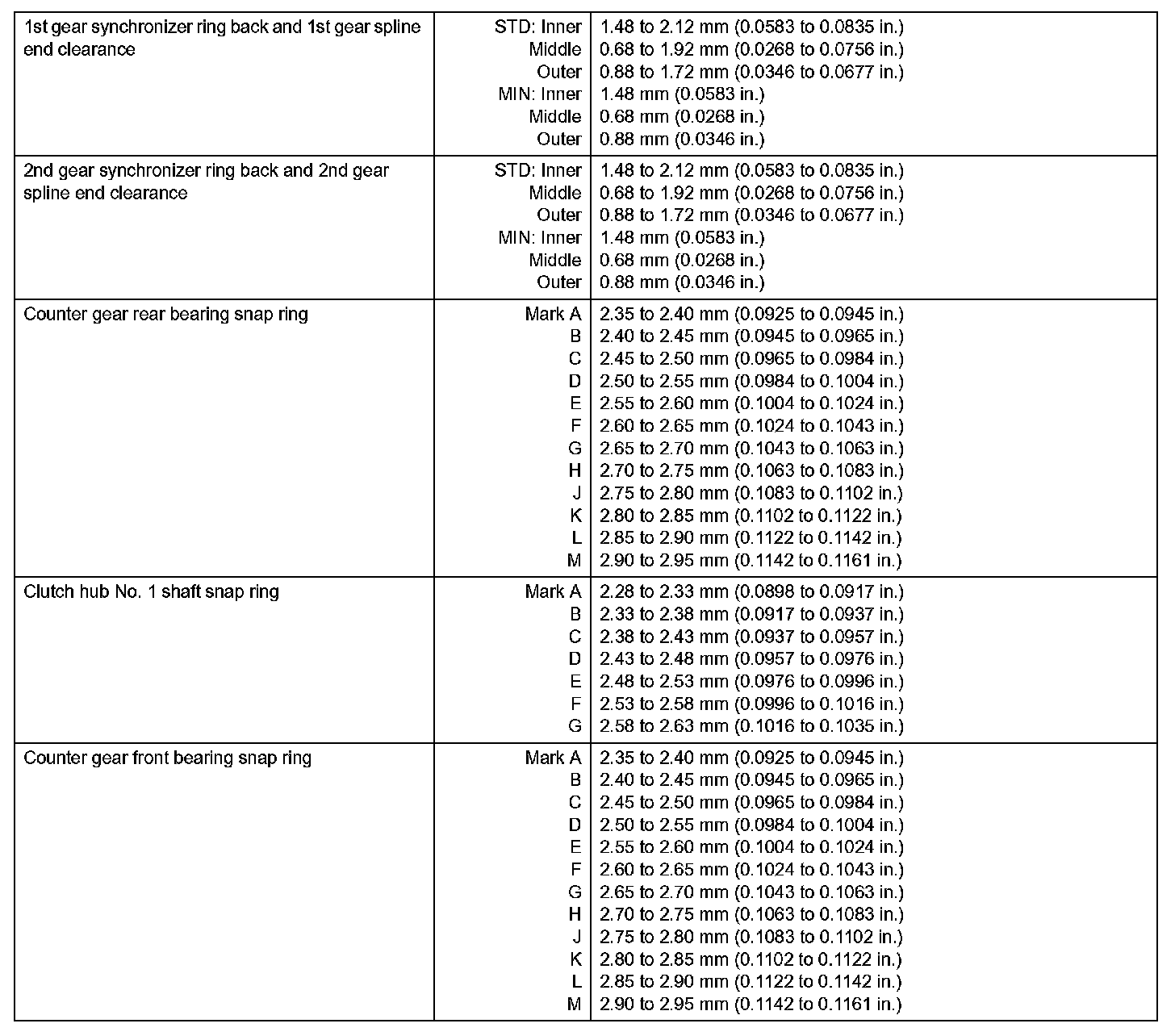

Manual Transmission - Service Data (Part 3):
