Entry Lock Switch Circuit

Entry Lock Switch Circuit

DESCRIPTION

The entry lock switches (trigger switch) are built into the outside handles of the LH/RH door. The certification ECU detects the conditions of the each lock switch.

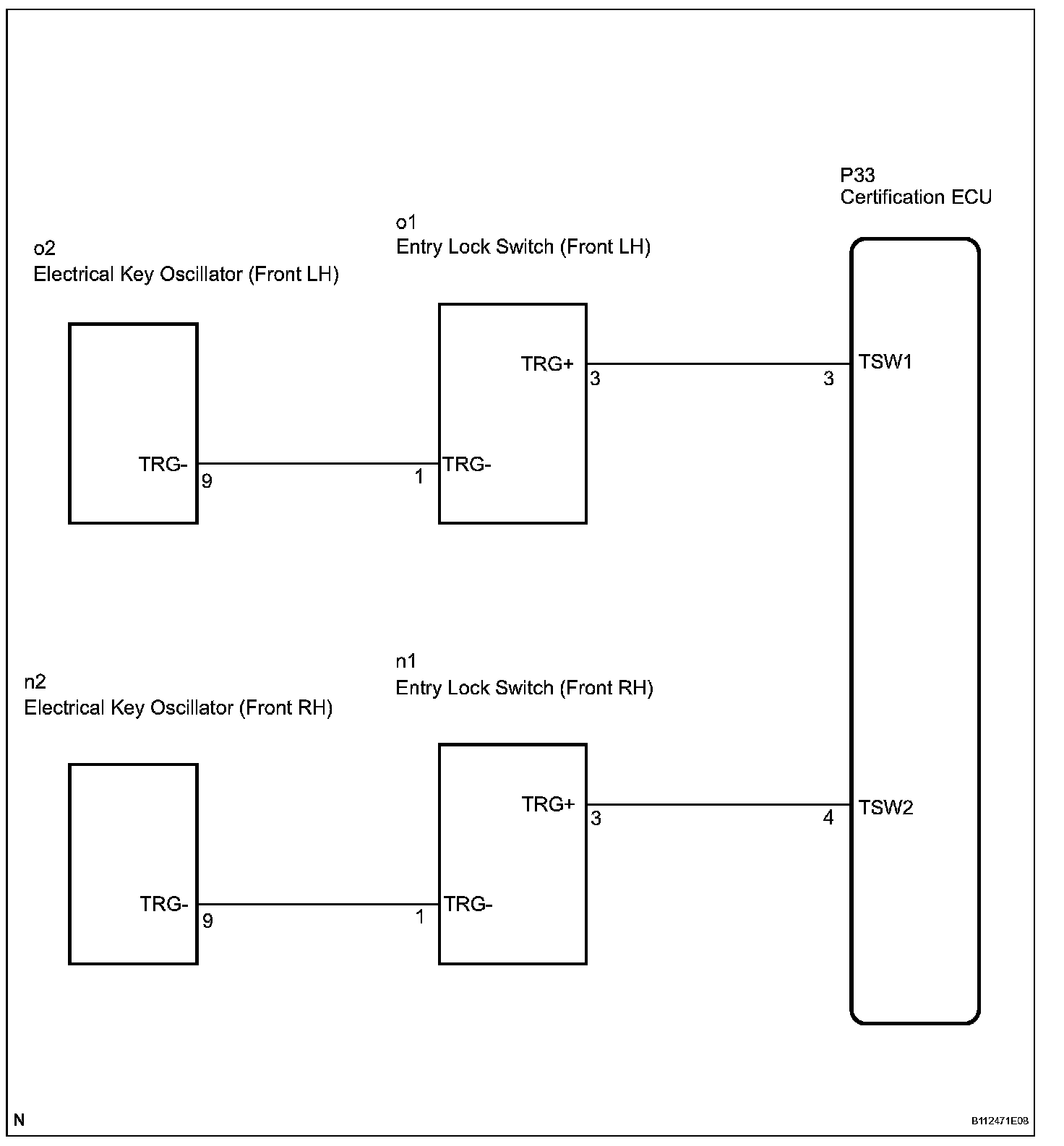

Wiring Diagram:

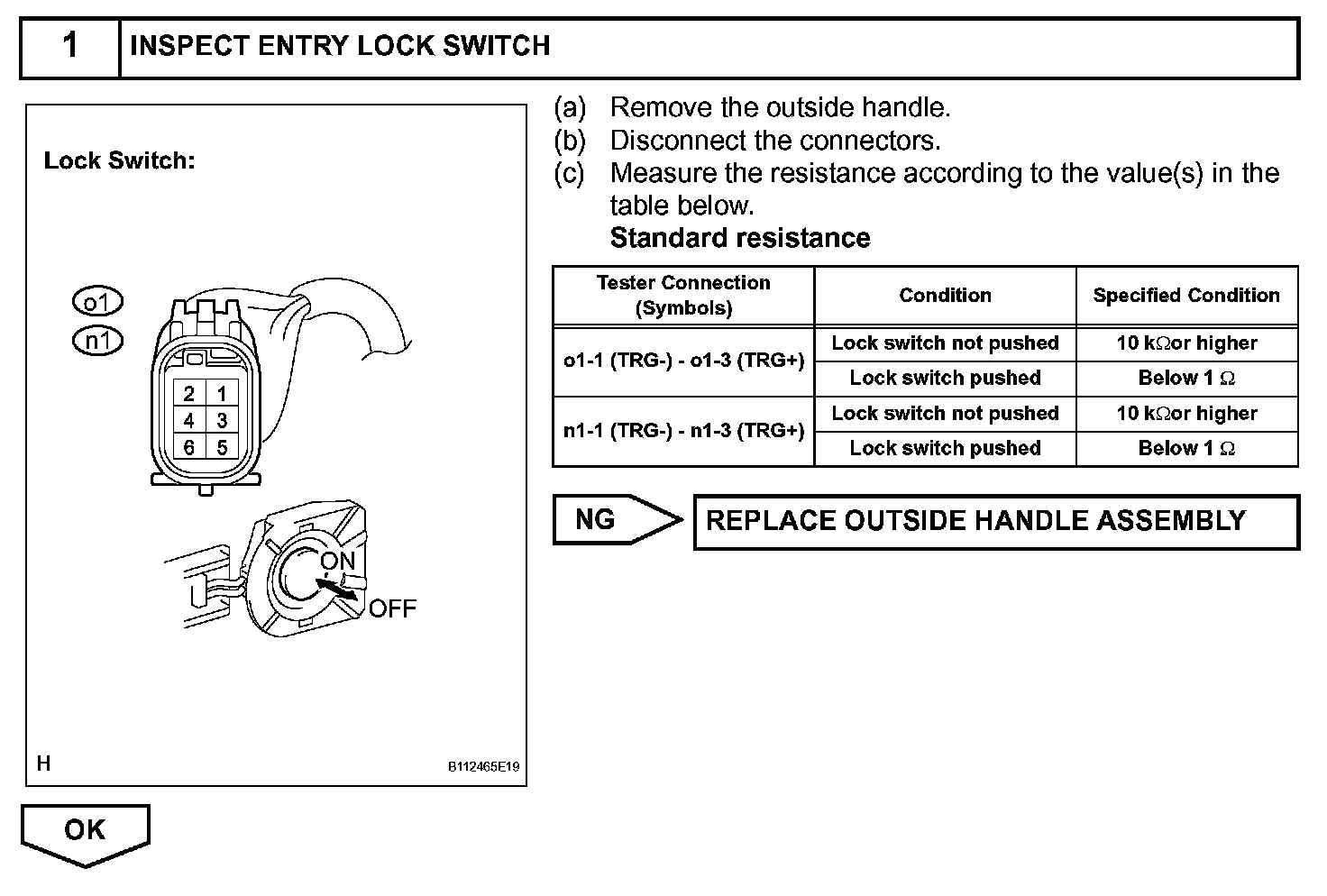

Step 1:

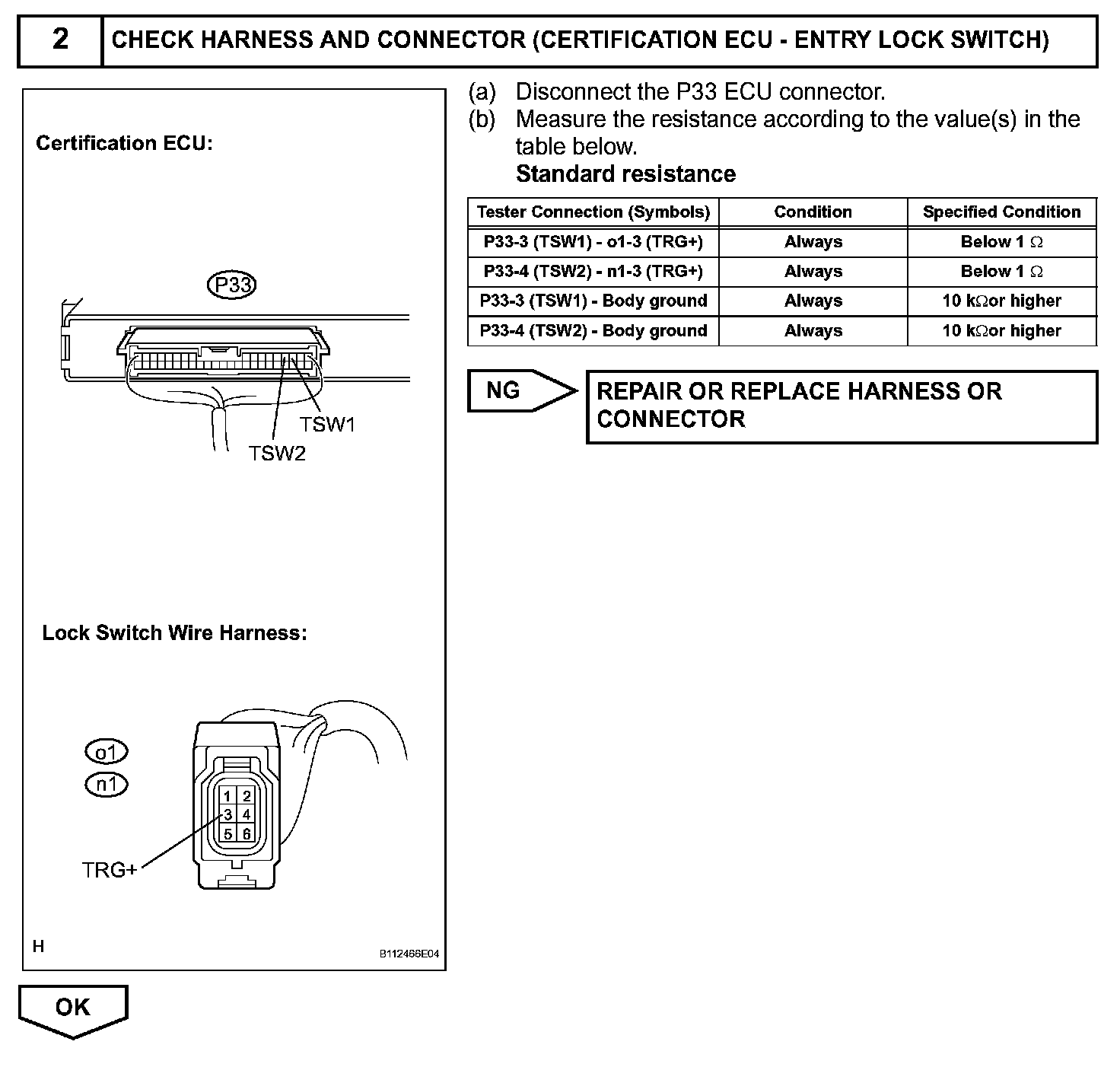

Step 2:

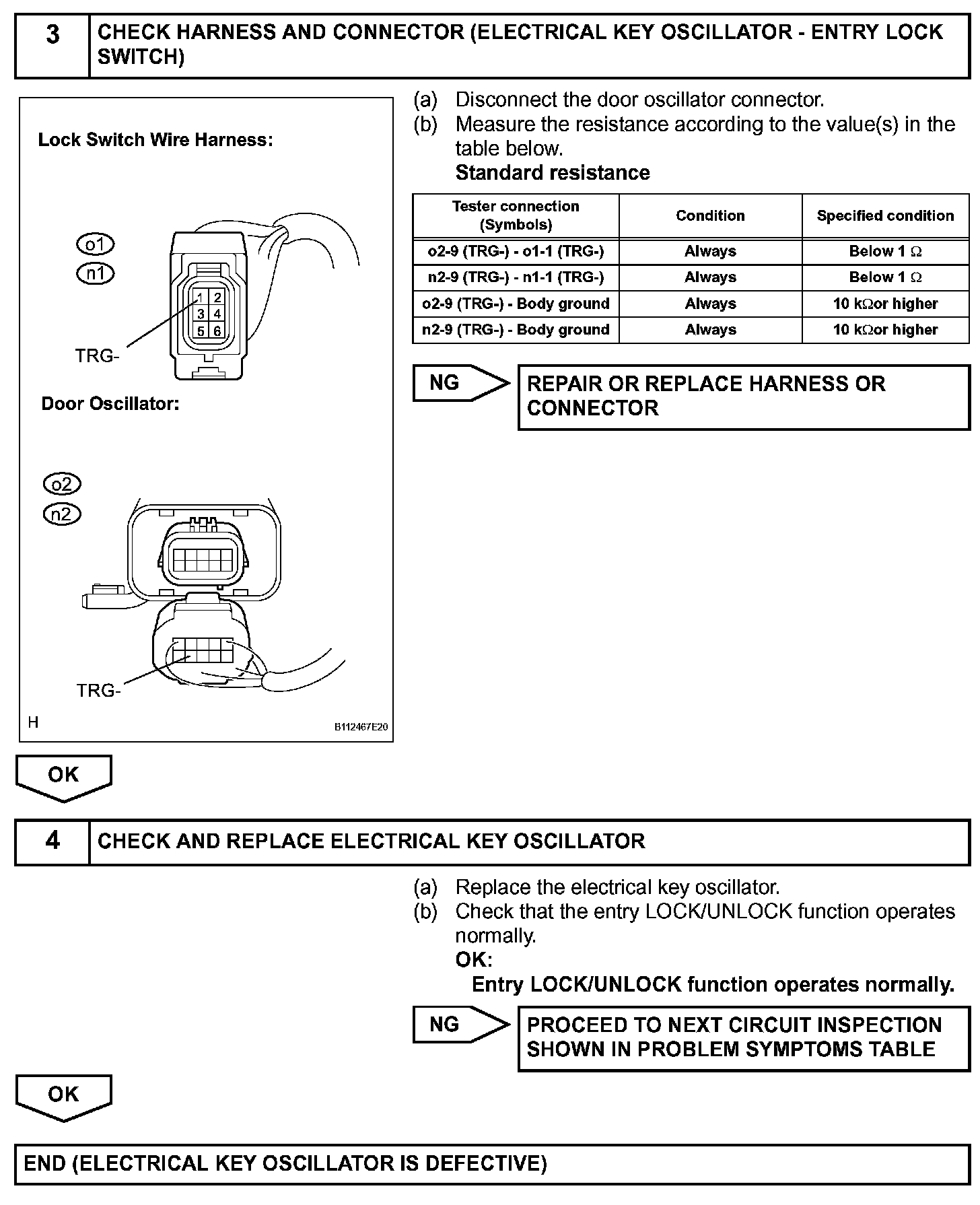

Step 3-4:

INSPECTION PROCEDURE
