Data List

DATA LIST

HINT: Using the intelligent tester DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to shorten labor time.

a. Connect the intelligent tester (with CAN VIM) to the DLC3.
b. Turn the engine switch on (IG).
c. Enter the following menus: DIAGNOSIS / OBD/ MOBD / BODY / DATA LIST.

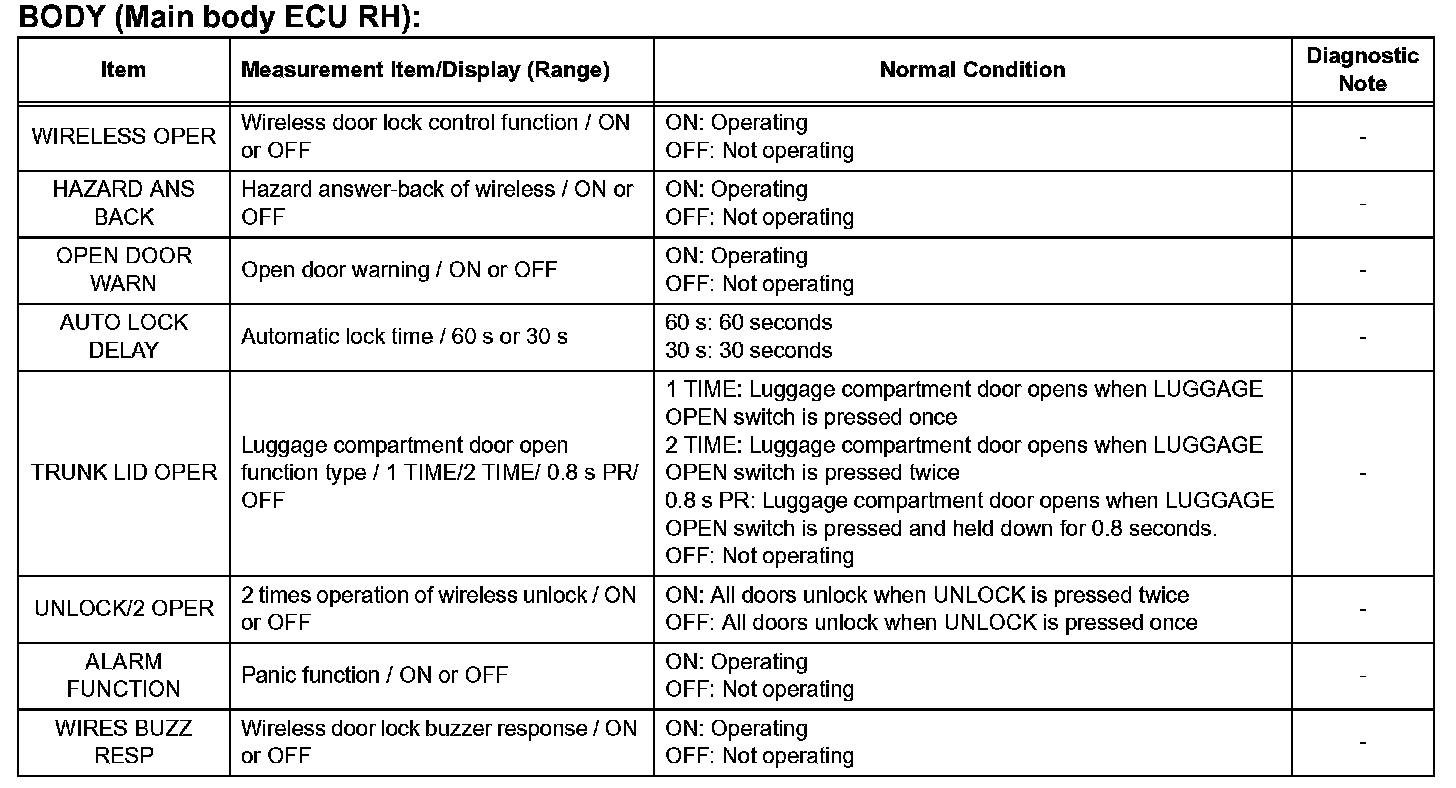

d. Read the DATA LIST according to the display on the tester.
