Starting System

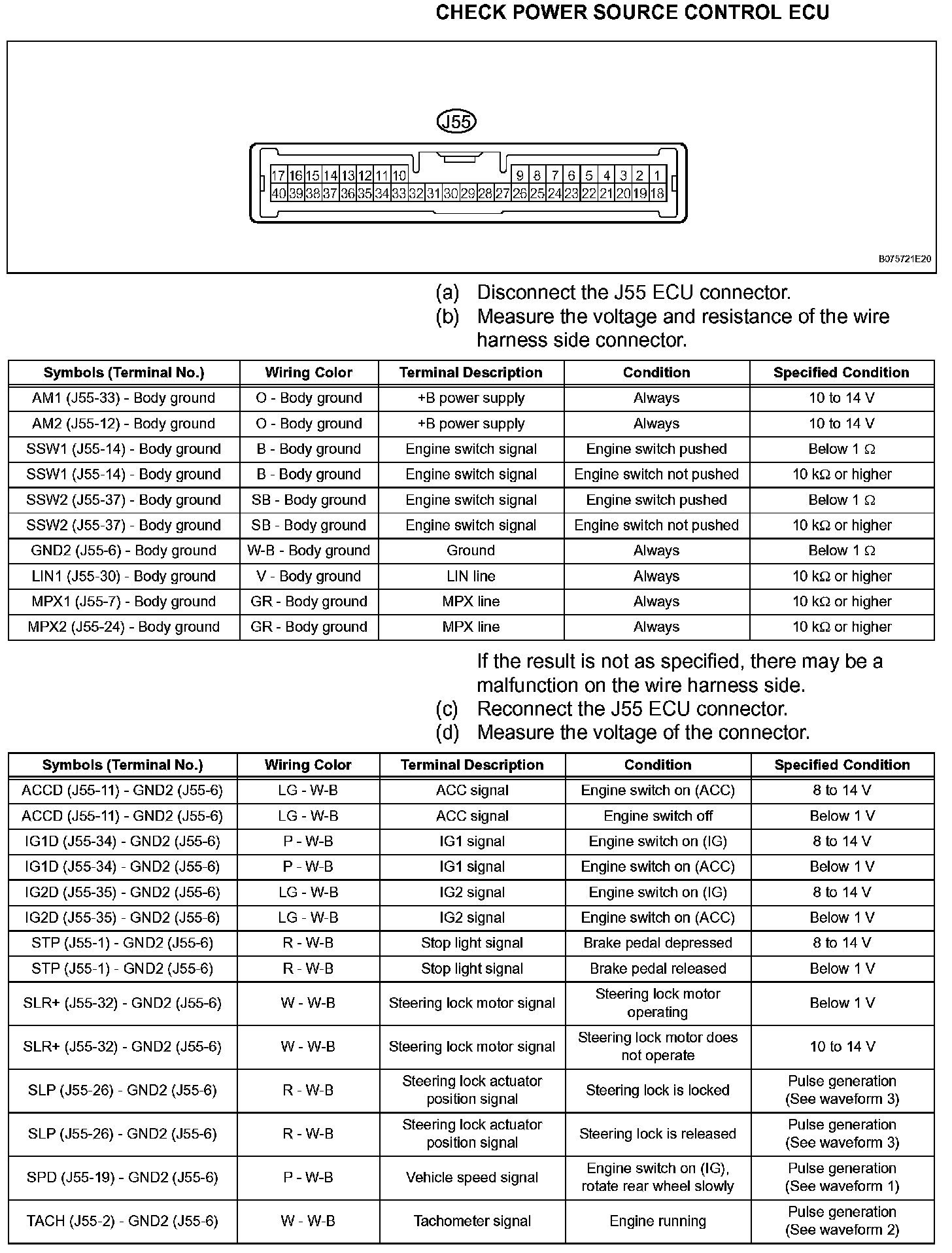

Terminals Of Control Module/Pinouts - Check Power Source Control ECU (Part 1):

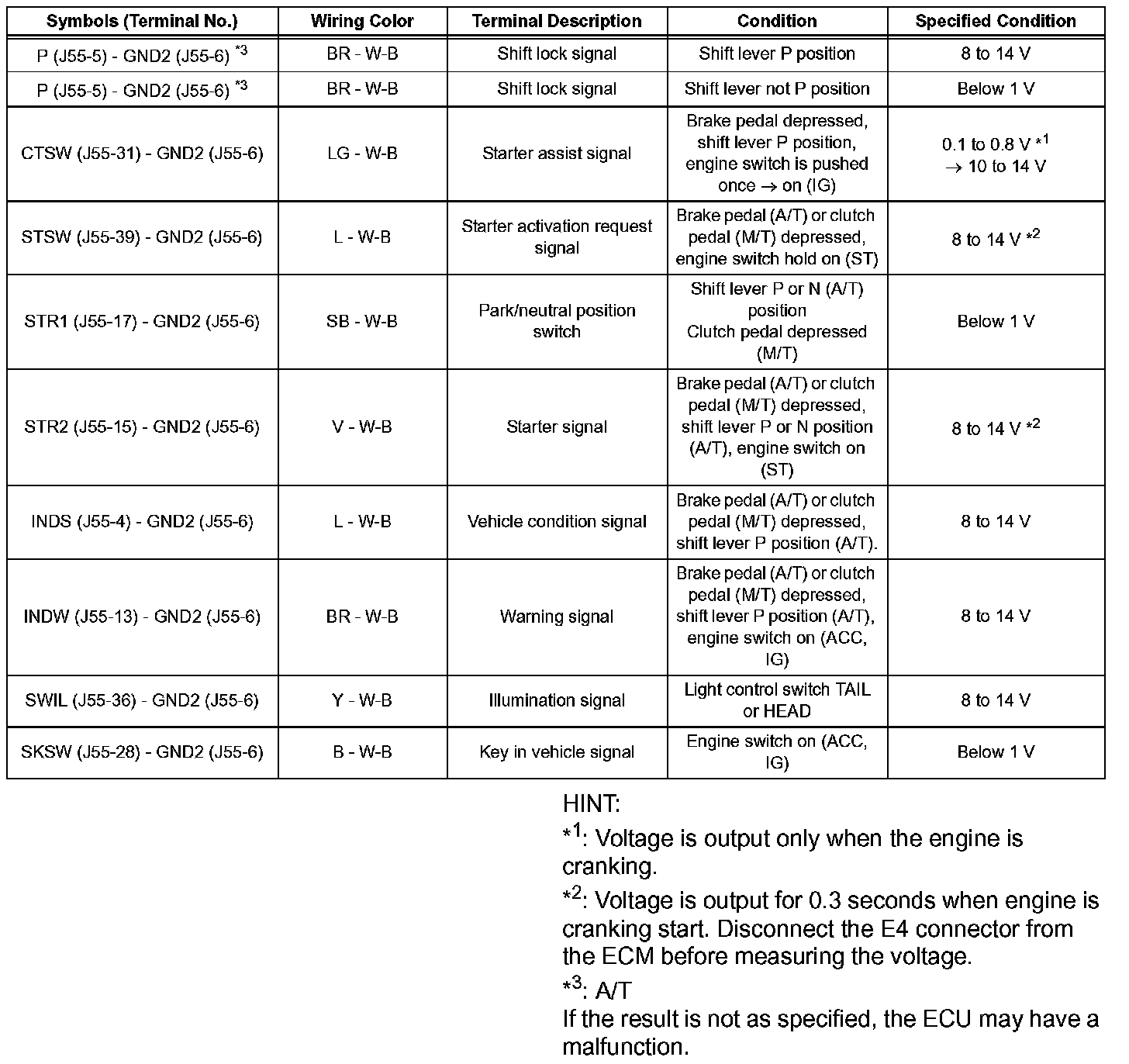

Terminals Of Control Module/Pinouts - Check Power Source Control ECU (Part 2):

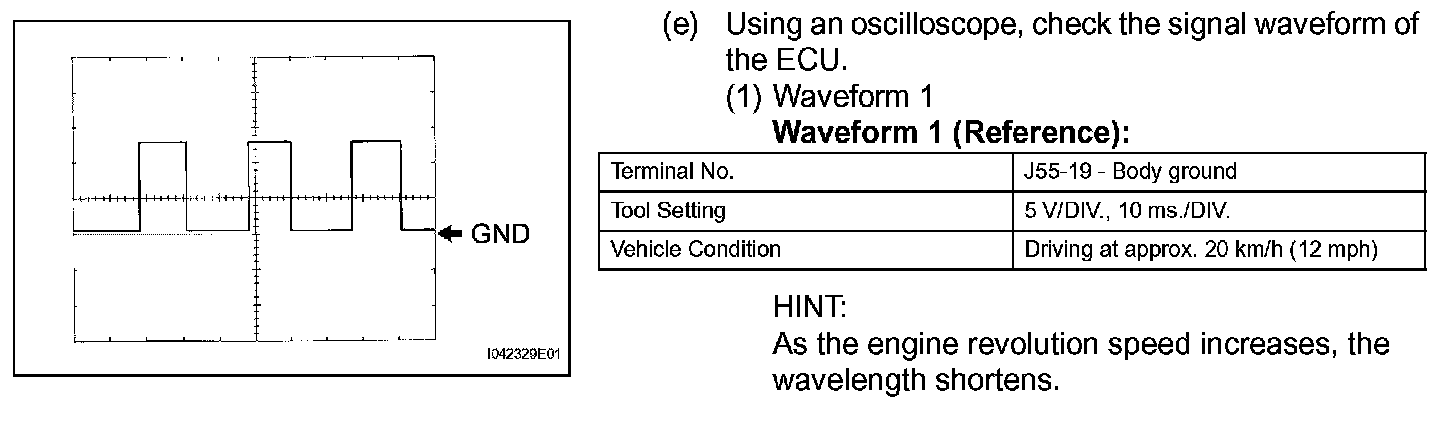

Check Power Source Control ECU - Oscilloscope Waveform (Part 1):

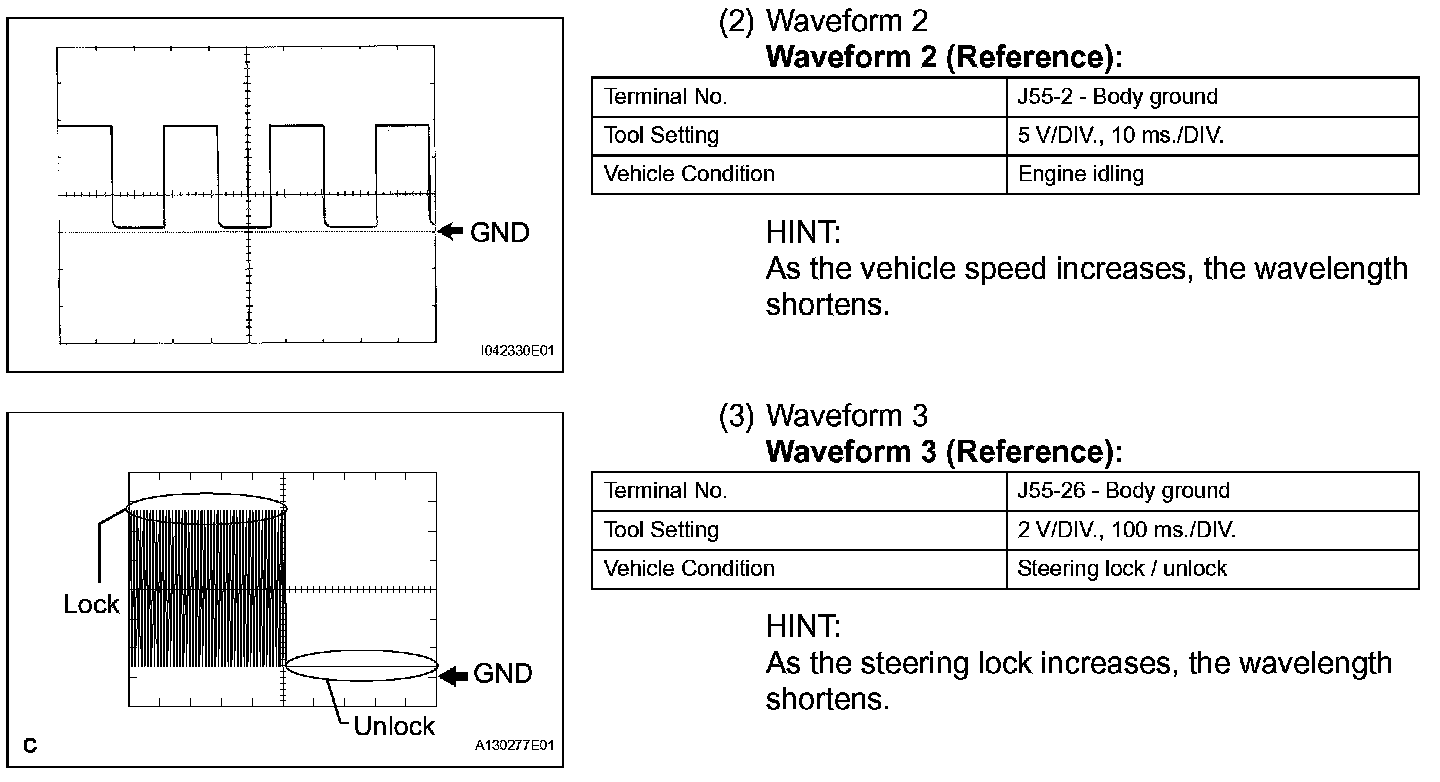

Check Power Source Control ECU - Oscilloscope Waveform (Part 2):

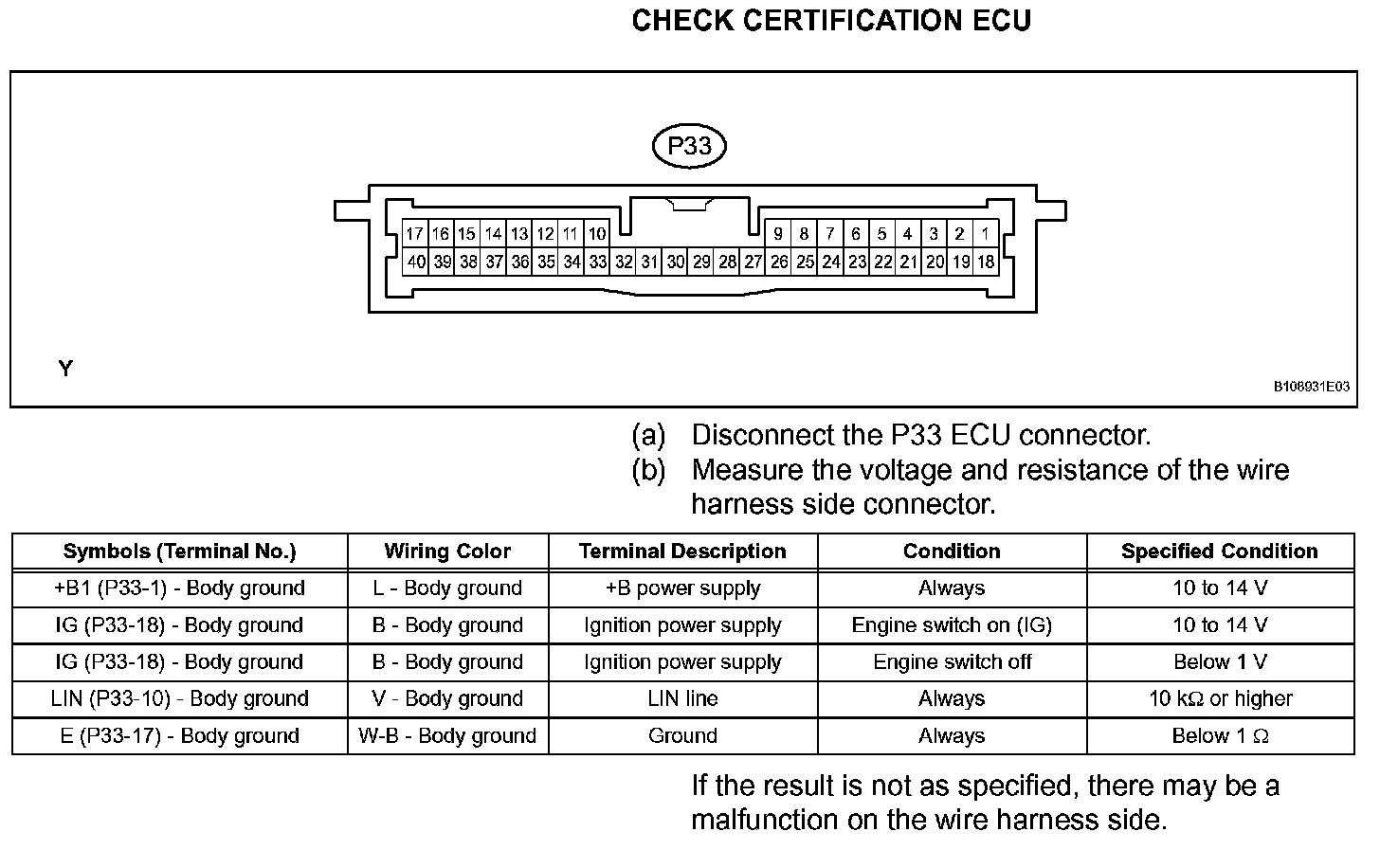

Terminals Of Control Module/Pinouts - Check Certification ECU:

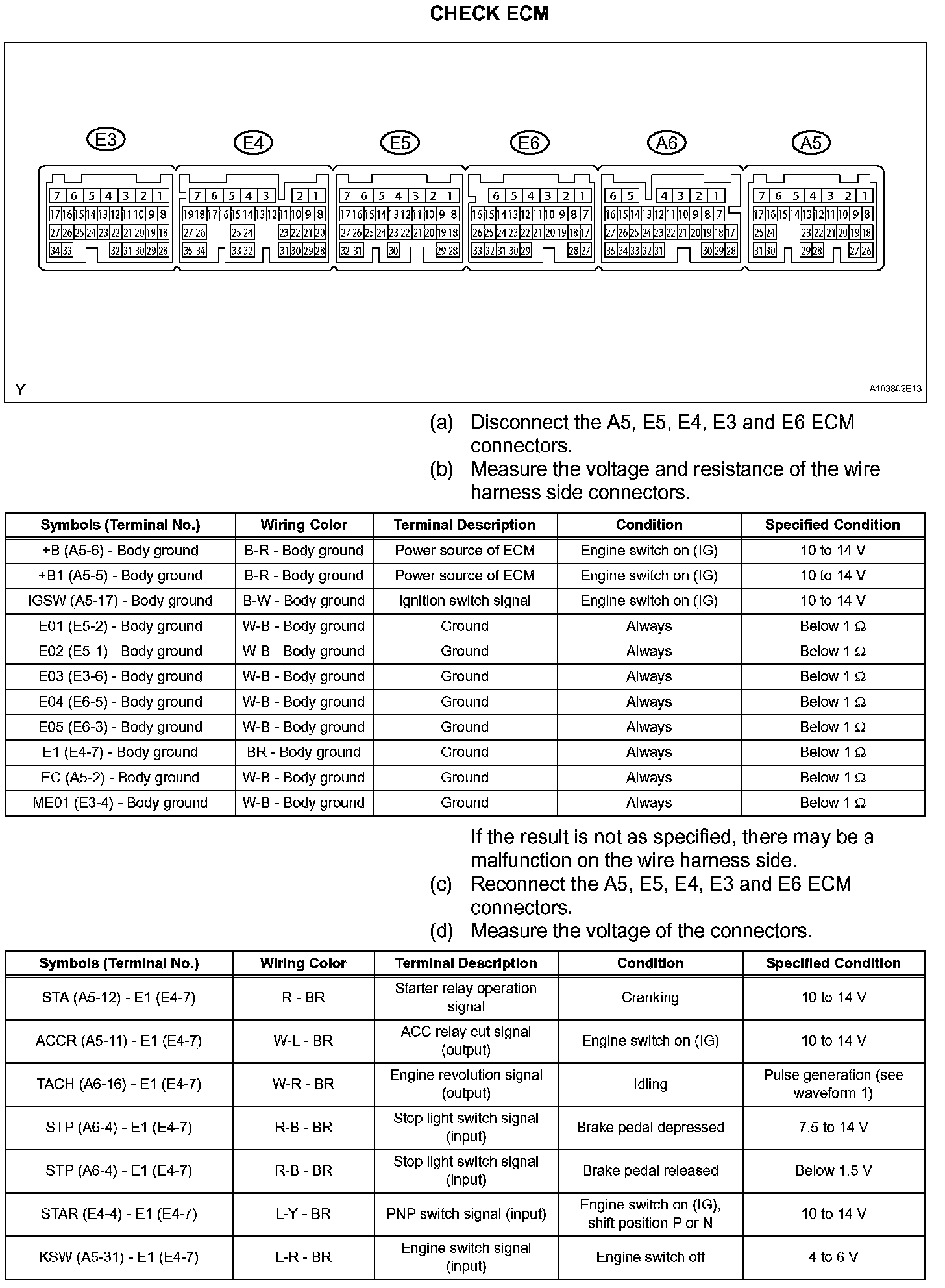

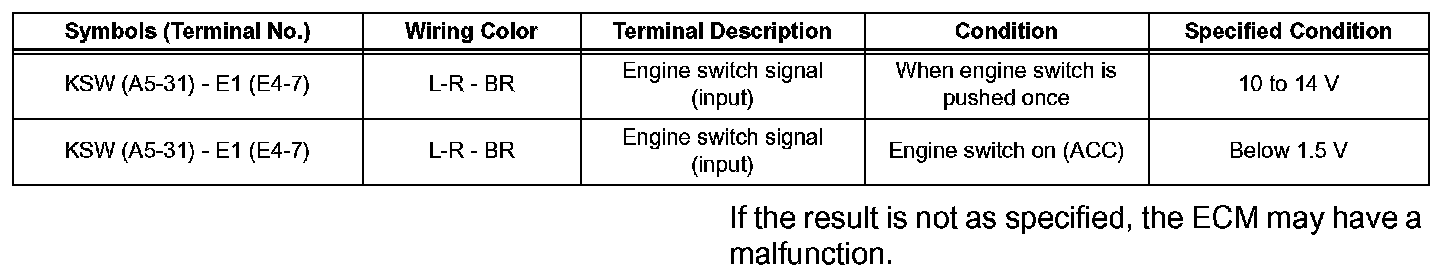

Terminals Of Control Module/Pinouts - Check ECM (Part 1):

Terminals Of Control Module/Pinouts - Check ECM (Part 2):

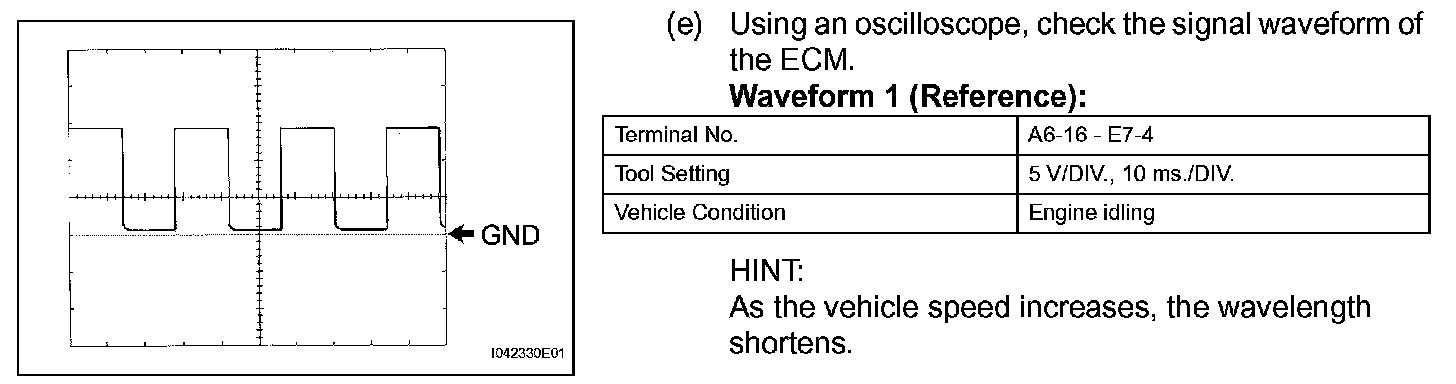

Check ECM - Oscilloscope Waveform:

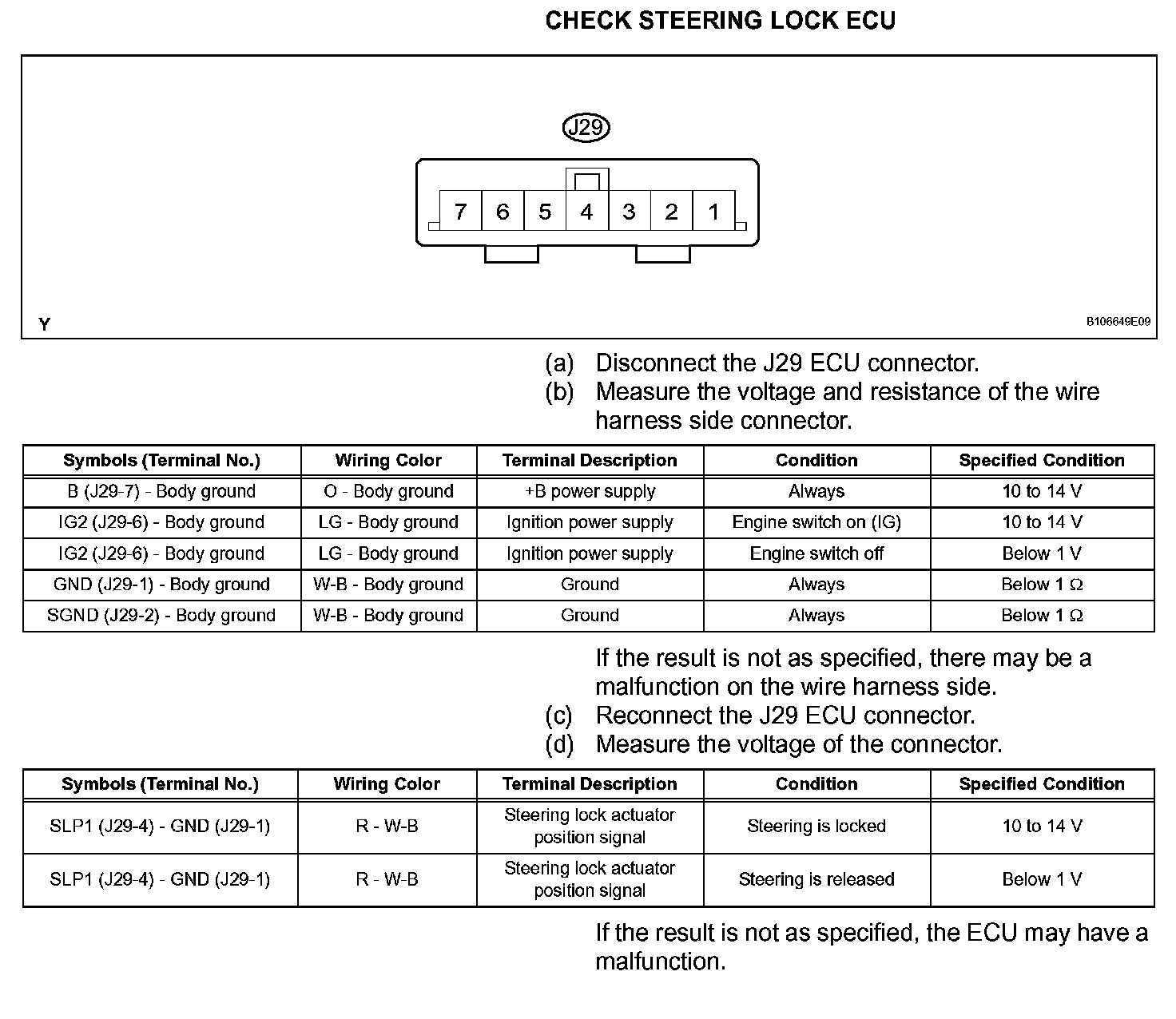

Terminals Of Control Module/Pinouts - Check Steering Lock ECU:
