System Specifications

Timing Cover

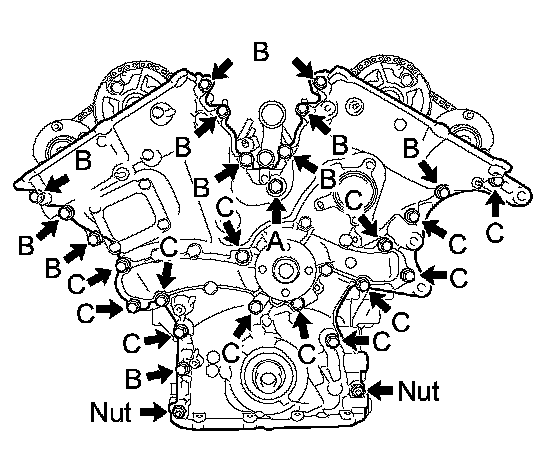

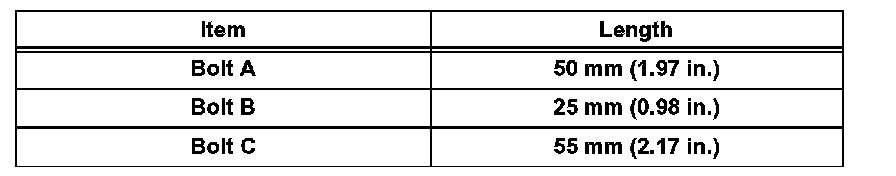

Bolt Length:

First Pass
Bolt A 43 Nm (438 kgf-cm, 32 ft. lbs.)
Except Bolt A 21 Nm (214 kgf-cm, 15 ft. lbs.)

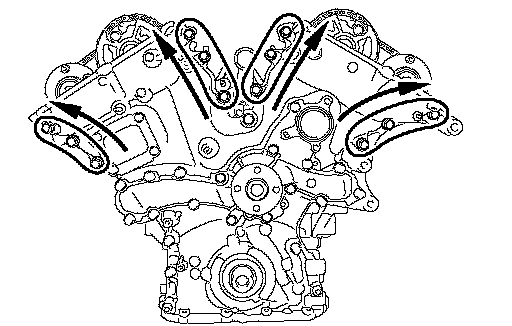

Second Pass
Three Bolts 21 Nm (214 kgf-cm, 15 ft. lbs.)

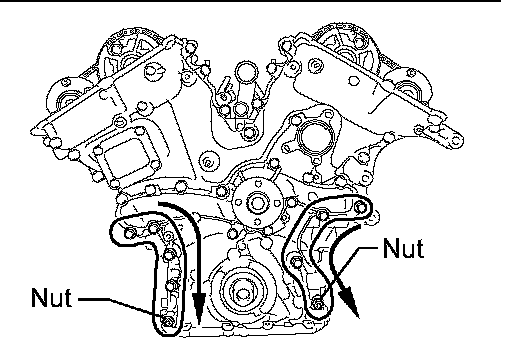

Third Pass
Seven Bolts & Nuts 21 Nm (214 kgf-cm, 15 ft. lbs.)

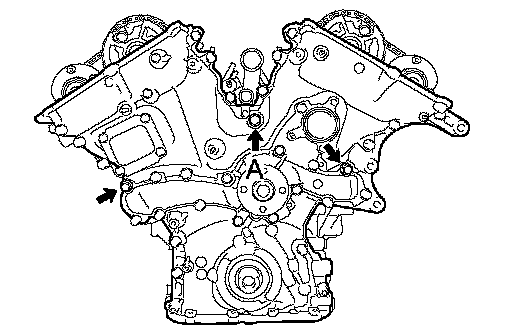

Fourth Pass
Twelve Bolts 21 Nm (214 kgf-cm, 15 ft. lbs.)

Final Pass
Chain Cover Plate Bolts 9.1 Nm (93 kgf-cm, 81 inch lbs.)
