Remote Control Mirror with Memory: Notes

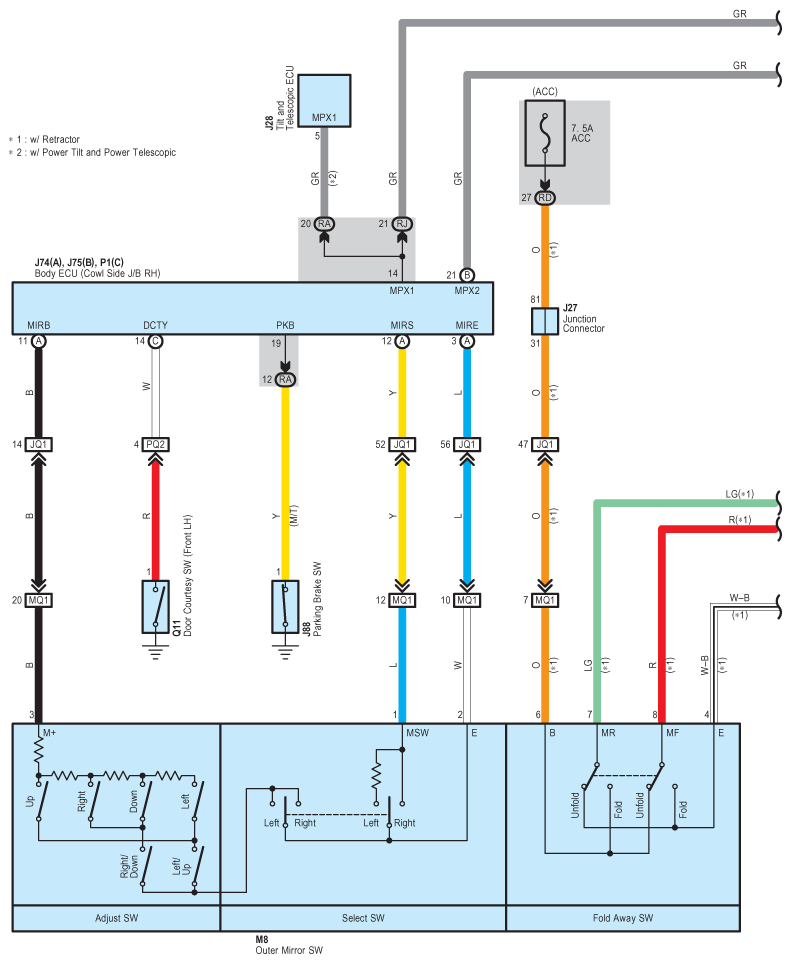

Fig 1: Remote Control Mirror With Memory - Wiring Diagram (1 Of 6)
G08918641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

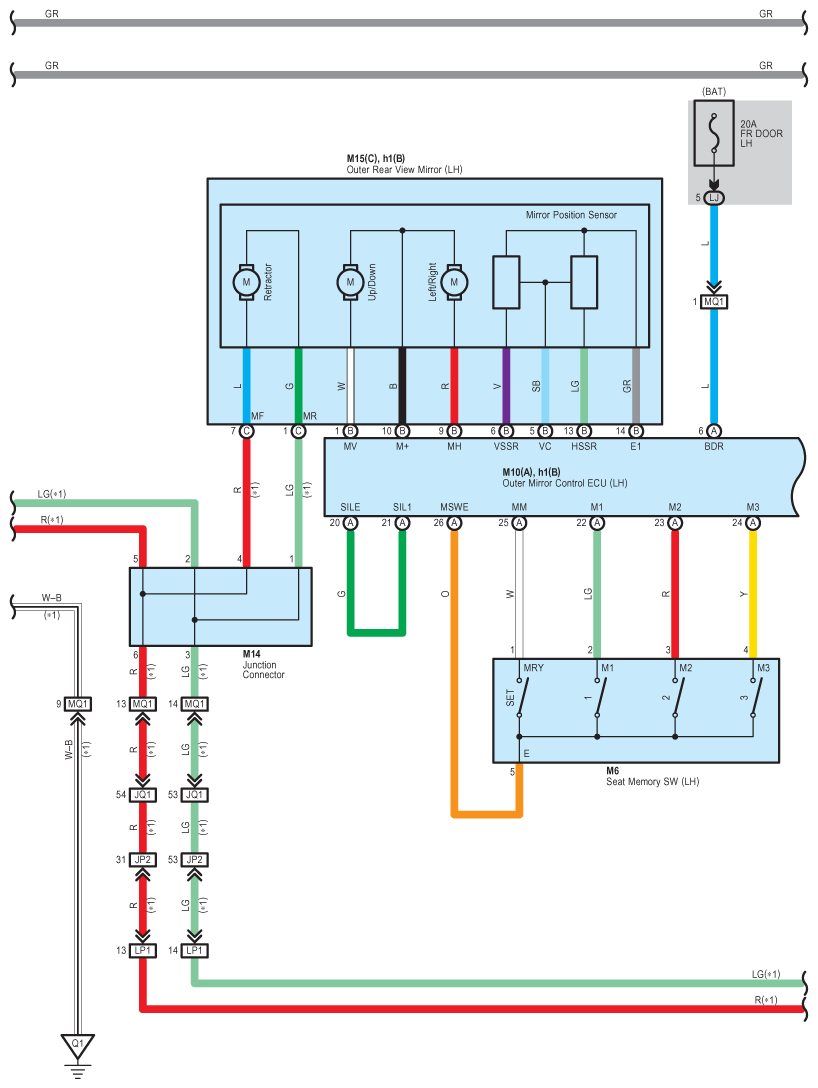

Fig 2: Remote Control Mirror With Memory - Wiring Diagram (2 Of 6)
G08918642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

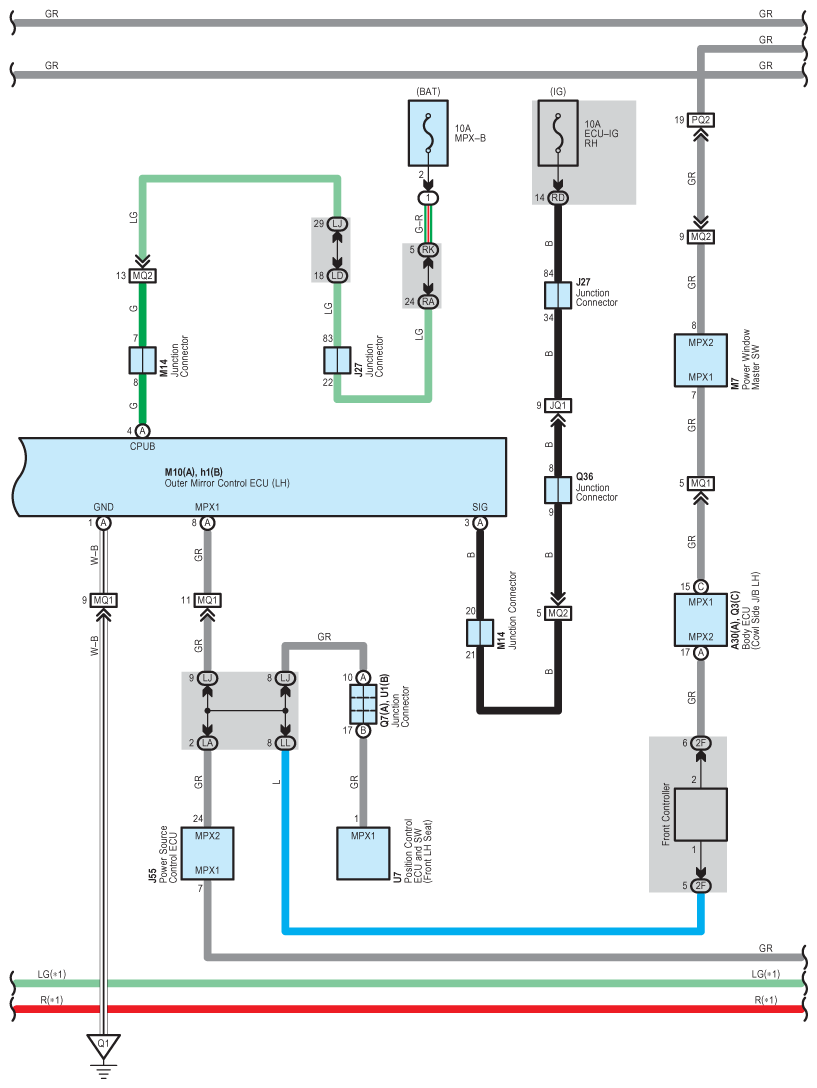

Fig 3: Remote Control Mirror With Memory - Wiring Diagram (3 Of 6)
G08918643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

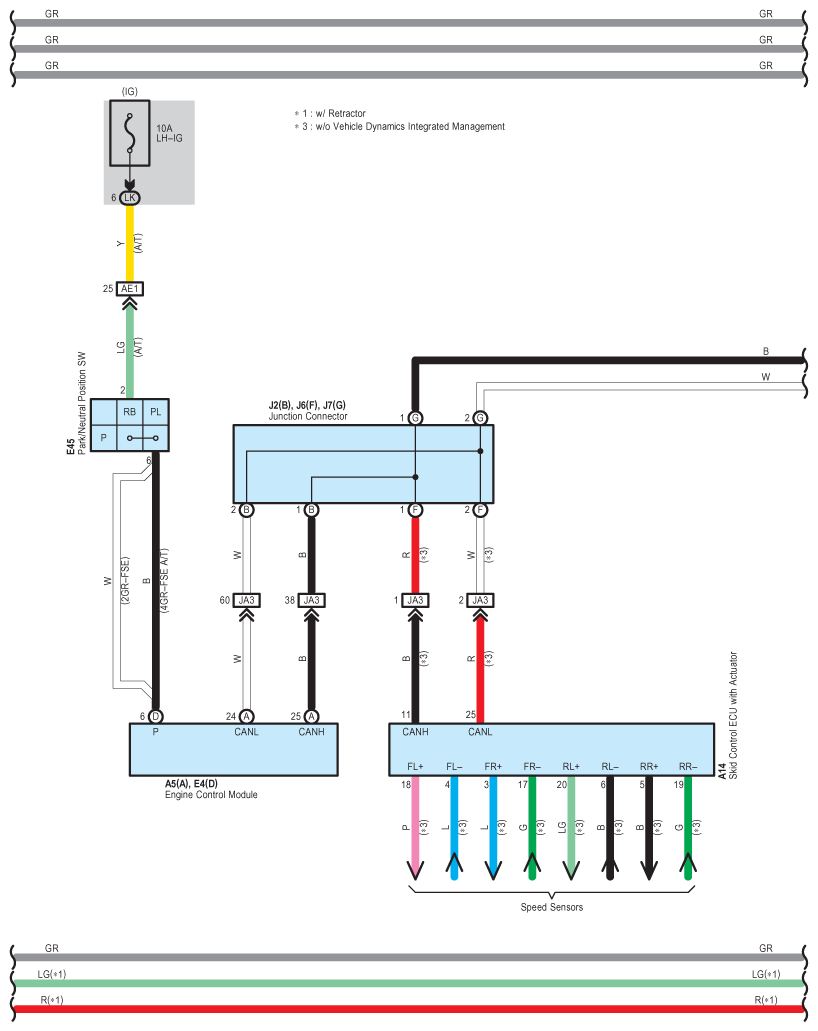

Fig 4: Remote Control Mirror With Memory - Wiring Diagram (4 Of 6)
G08918644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

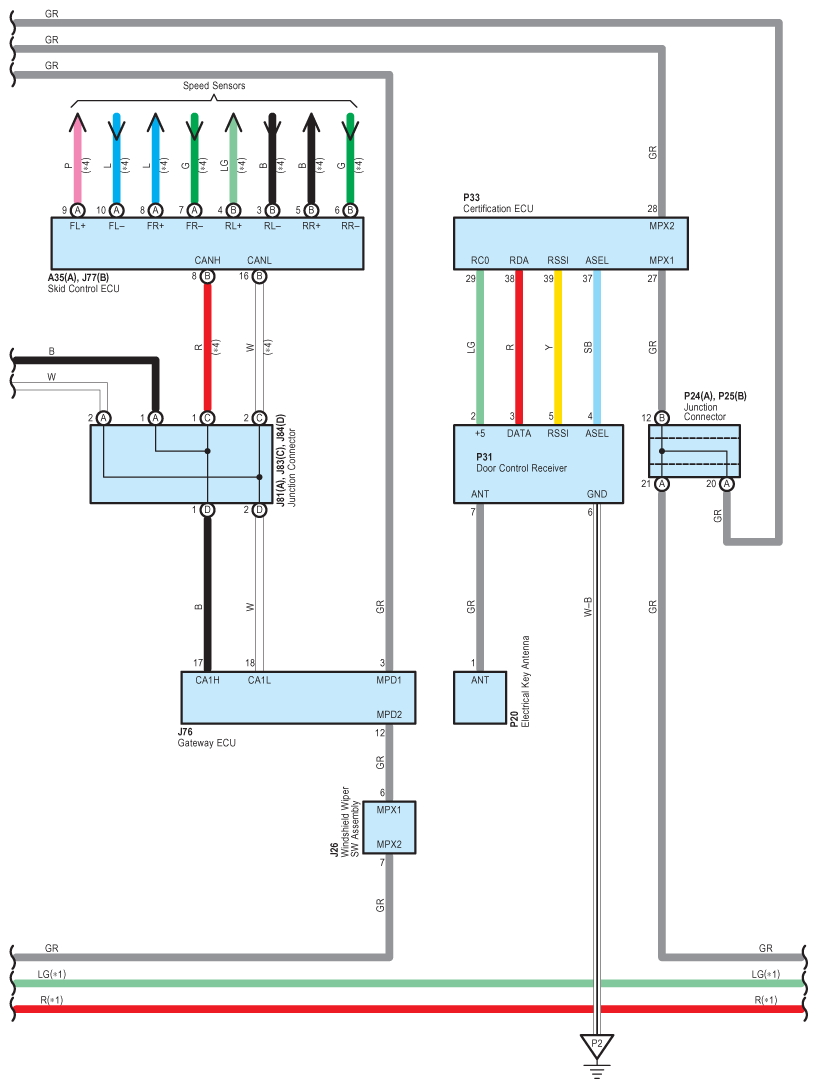

Fig 5: Remote Control Mirror With Memory - Wiring Diagram (5 Of 6)
G08918645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

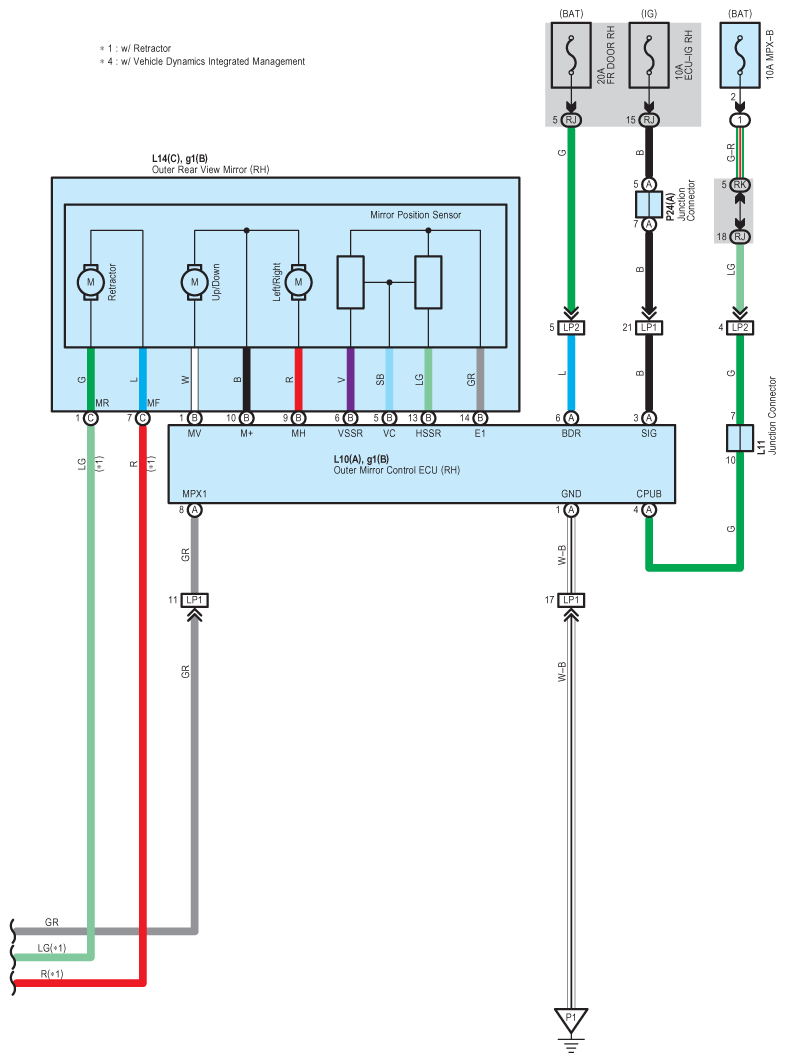

Fig 6: Remote Control Mirror With Memory - Wiring Diagram (6 Of 6)
G08918646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
