Smart Access System with Push-Button Start: Notes

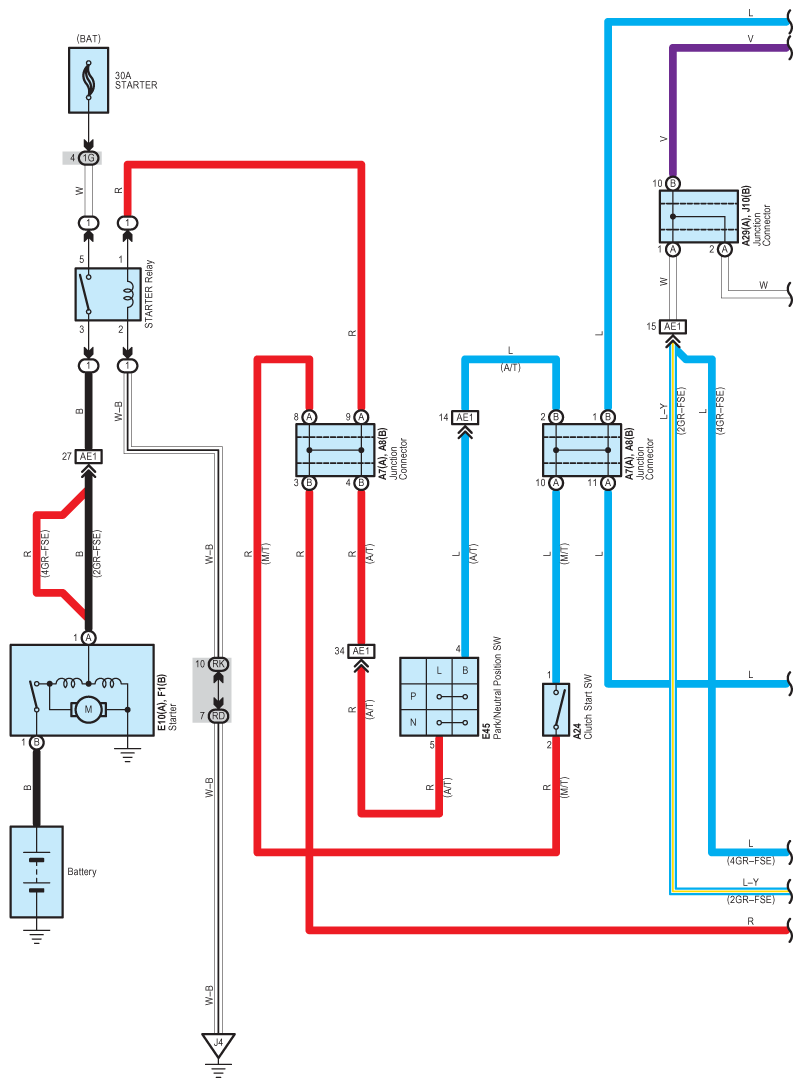

Fig 1: Smart Access System With Push-Button Start - Wiring Diagram (1 Of 20)

G08918330

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

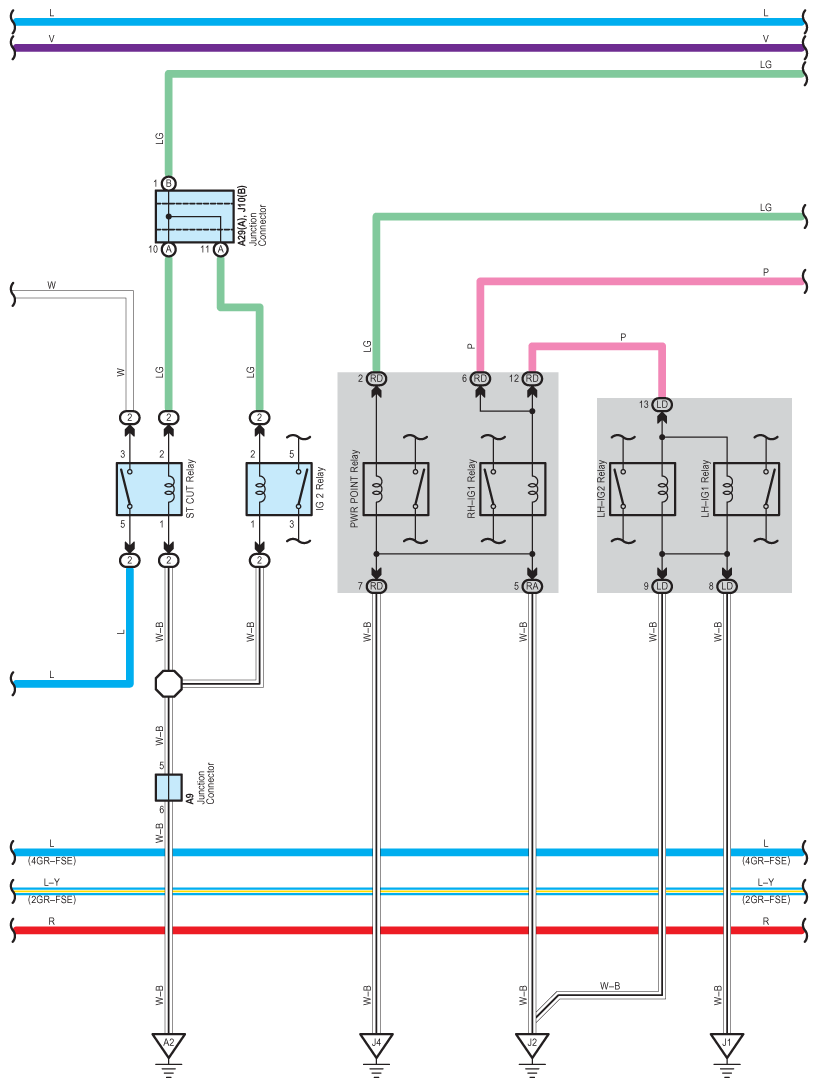

Fig 2: Smart Access System With Push-Button Start - Wiring Diagram (2 Of 20)

G08918331

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

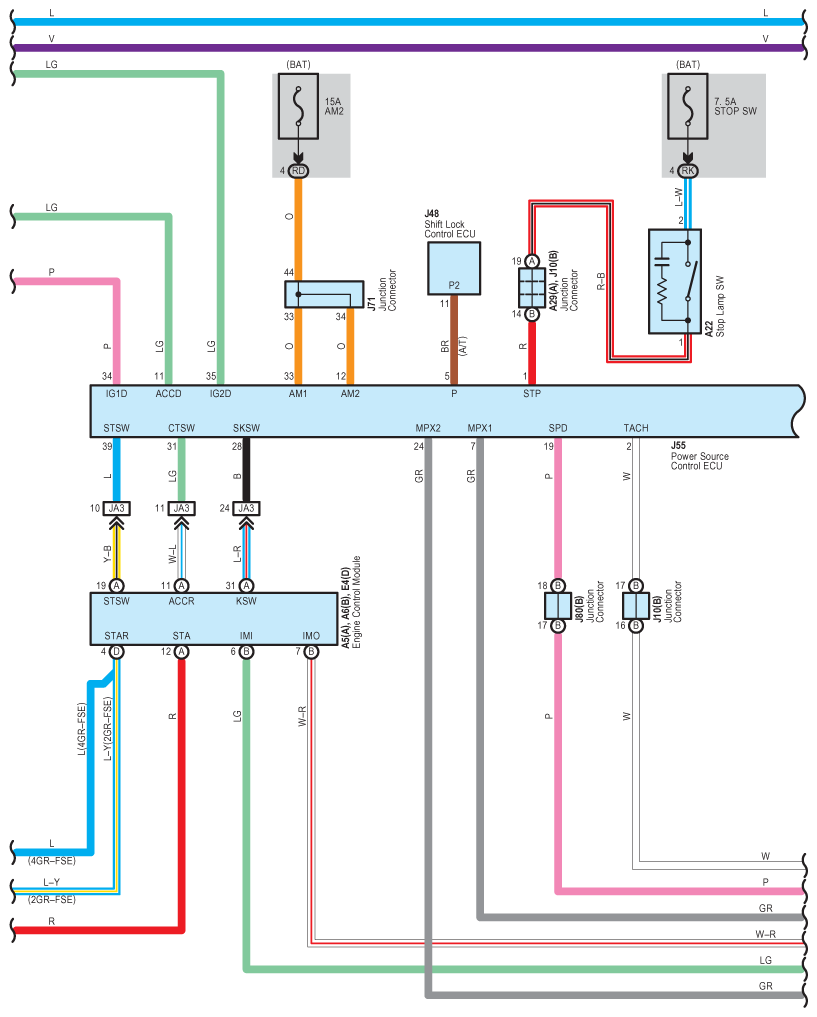

Fig 3: Smart Access System With Push-Button Start - Wiring Diagram (3 Of 20)

G08918332

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

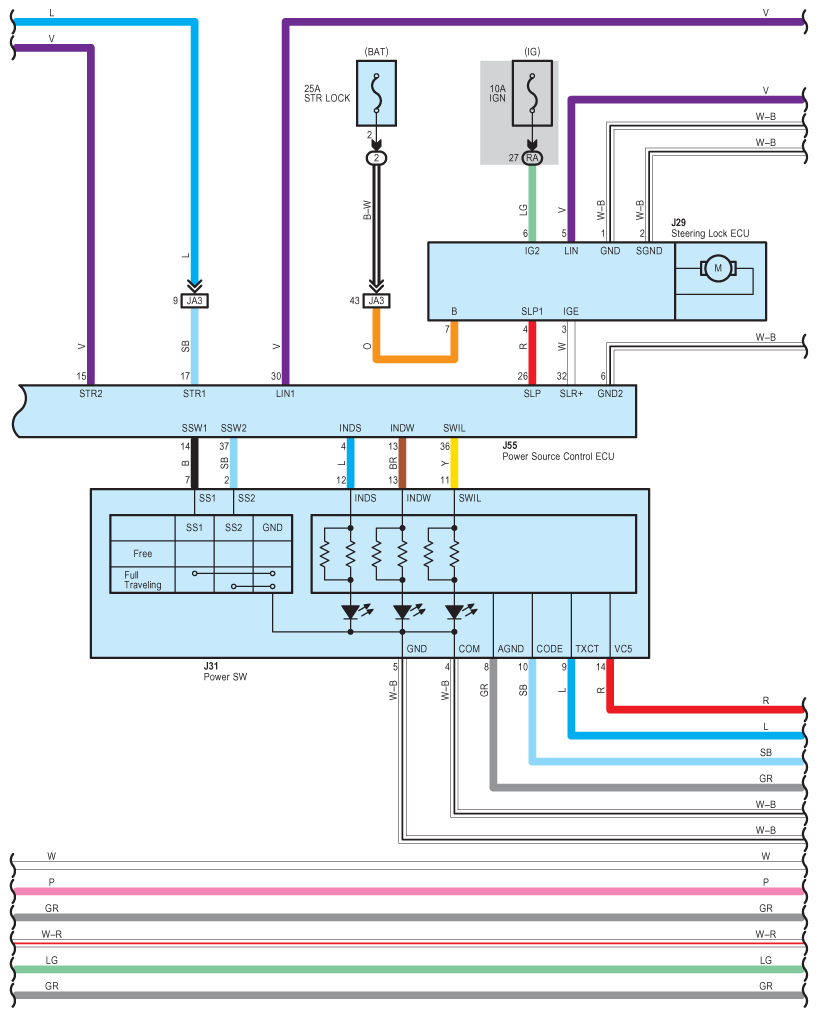

Fig 4: Smart Access System With Push-Button Start - Wiring Diagram (4 Of 20)

G08918333

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

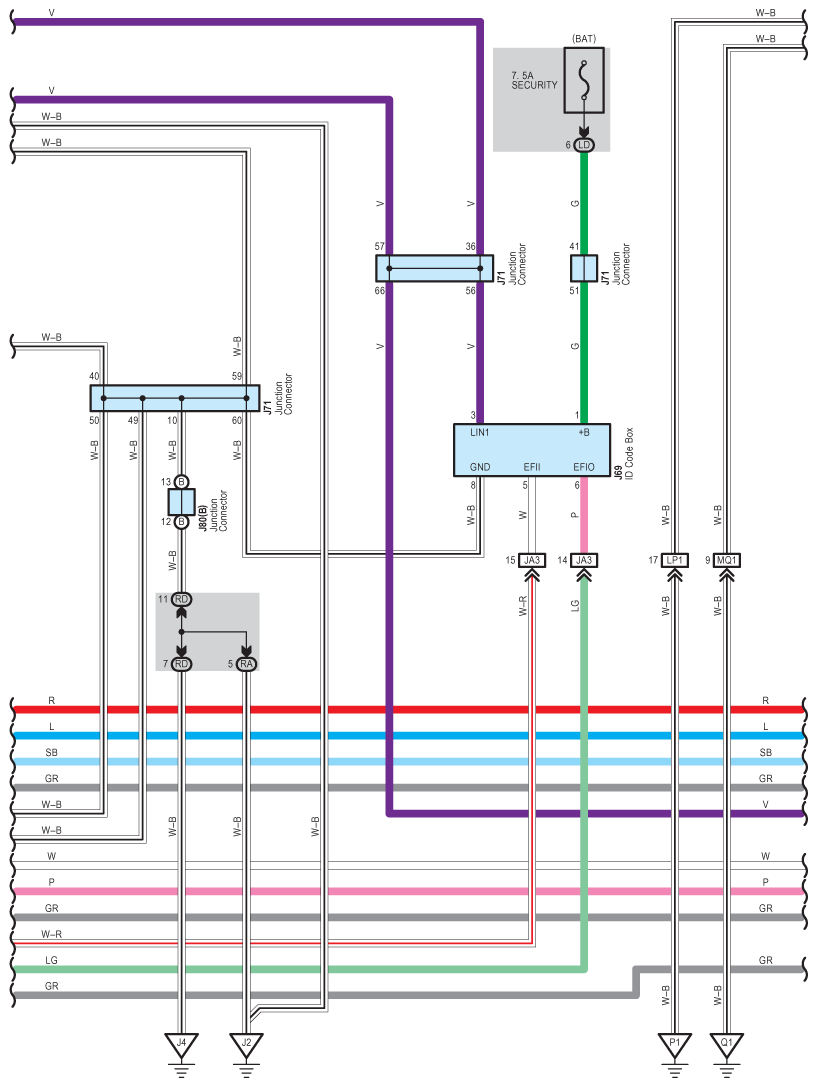

Fig 5: Smart Access System With Push-Button Start - Wiring Diagram (5 Of 20)

G08918334

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

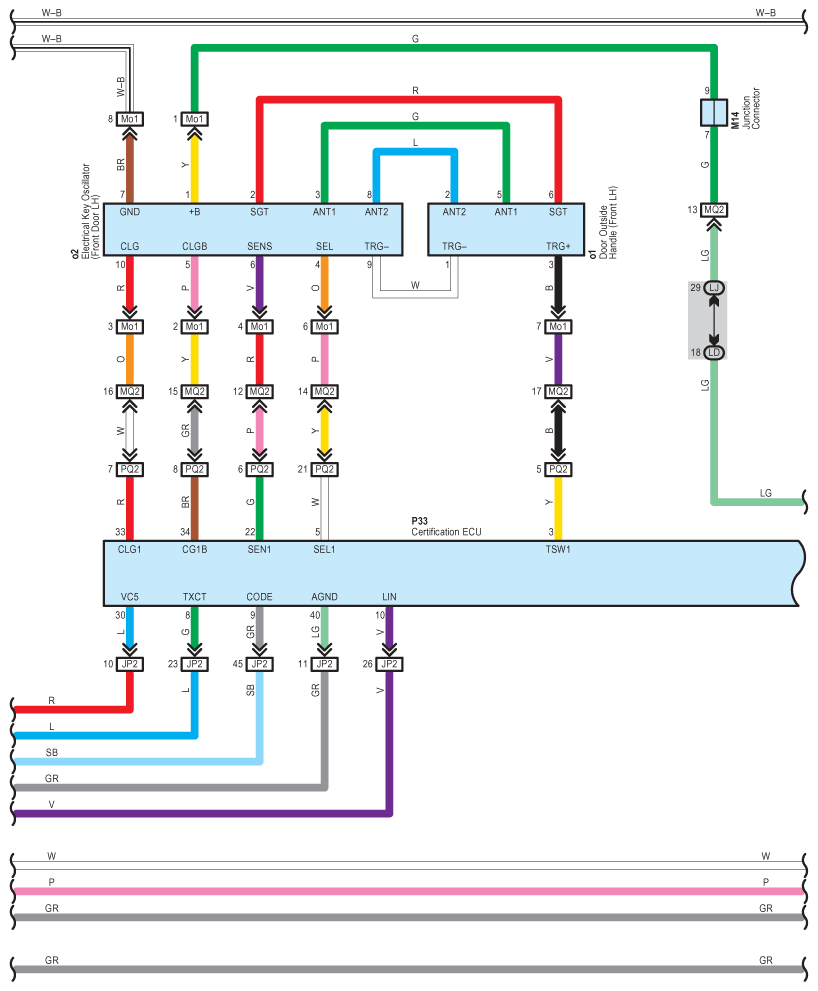

Fig 6: Smart Access System With Push-Button Start - Wiring Diagram (6 Of 20)

G08918335

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

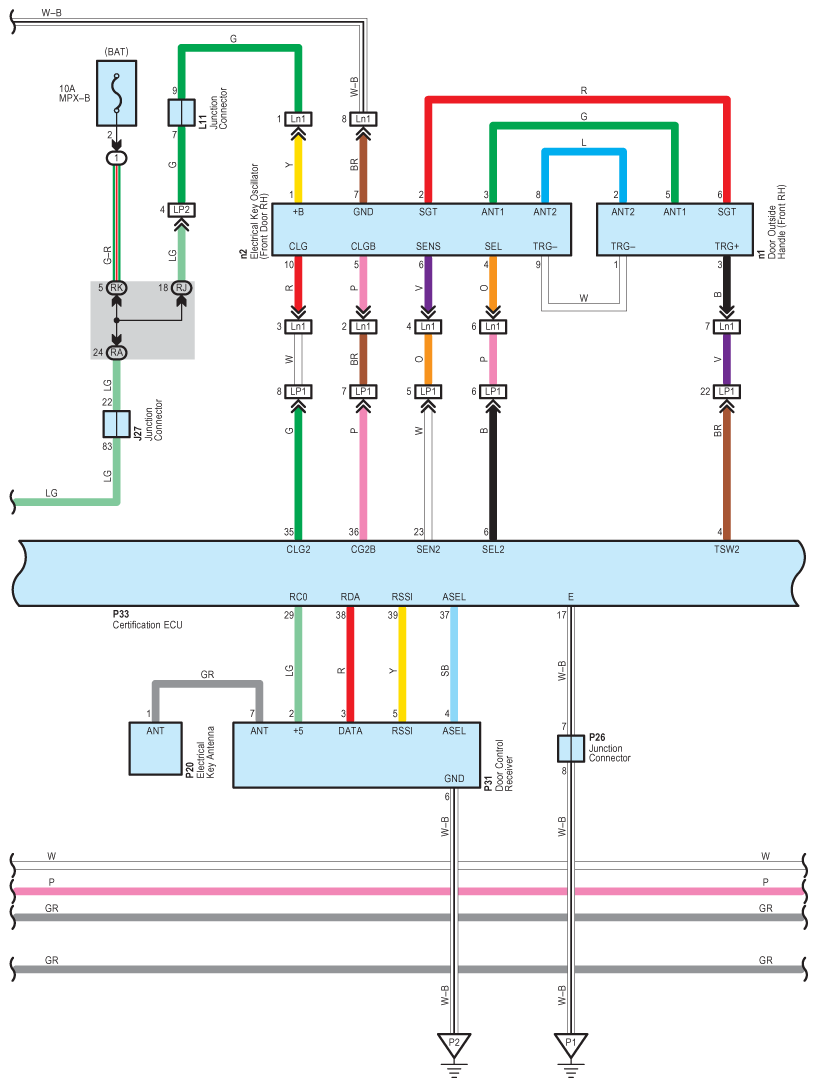

Fig 7: Smart Access System With Push-Button Start - Wiring Diagram (7 Of 20)

G08918336

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

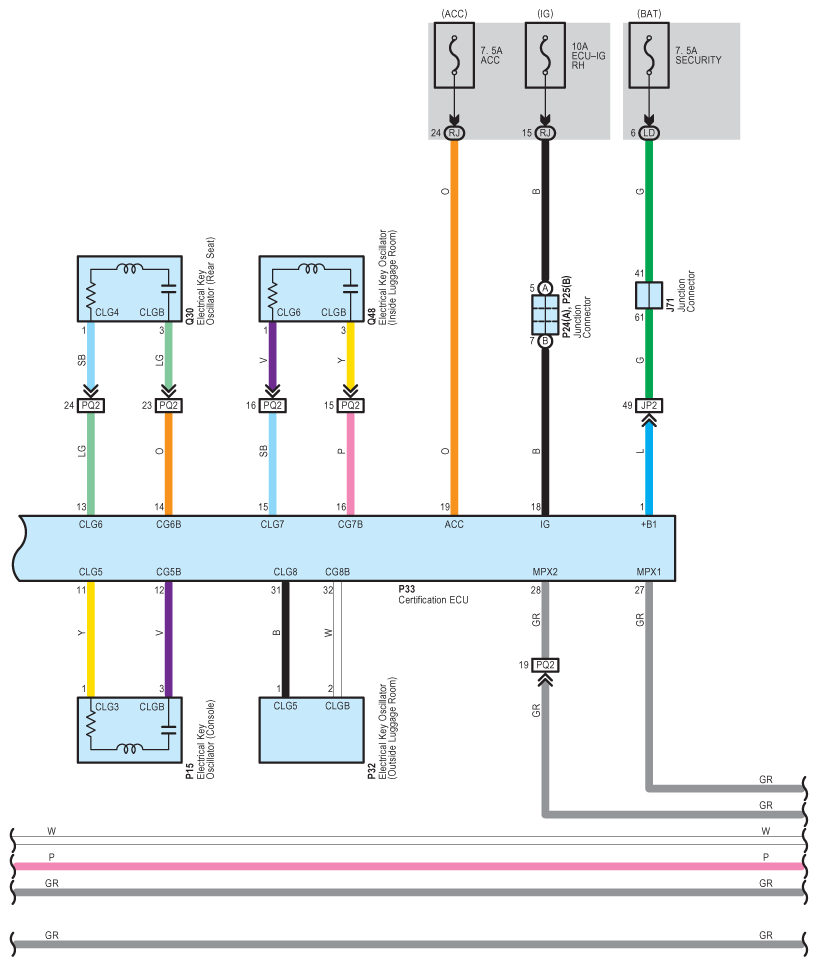

Fig 8: Smart Access System With Push-Button Start - Wiring Diagram (8 Of 20)

G08918337

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

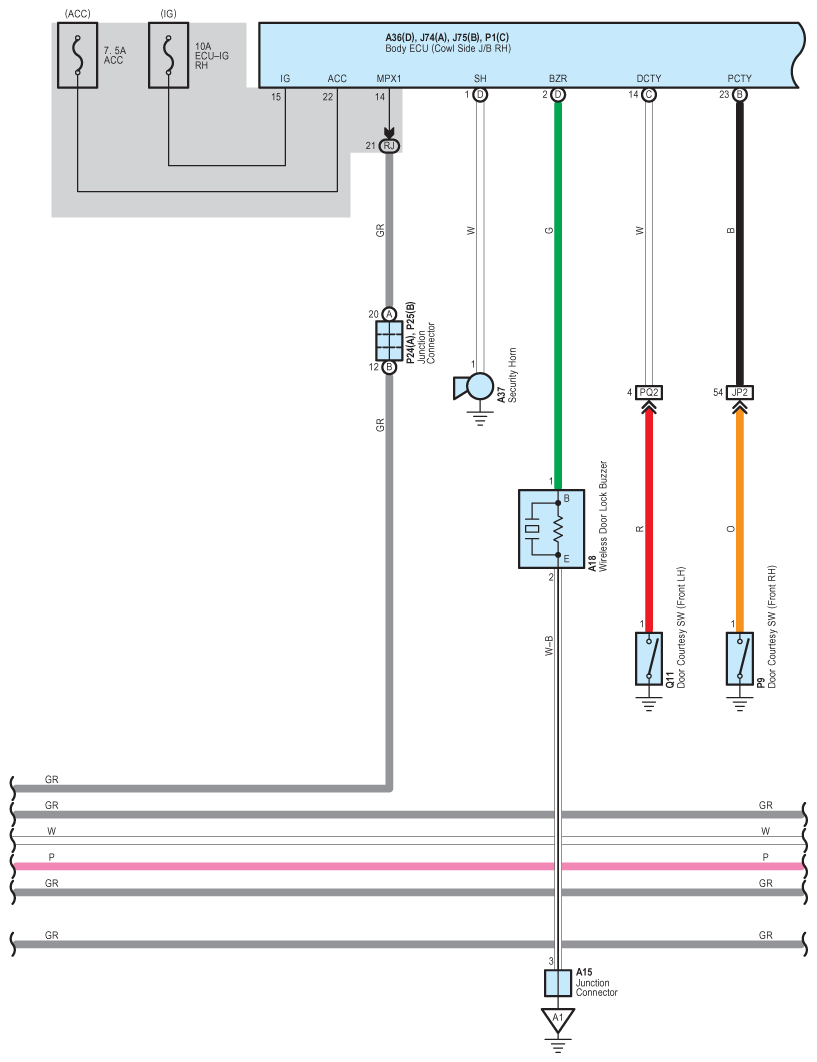

Fig 9: Smart Access System With Push-Button Start - Wiring Diagram (9 Of 20)

G08918338

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

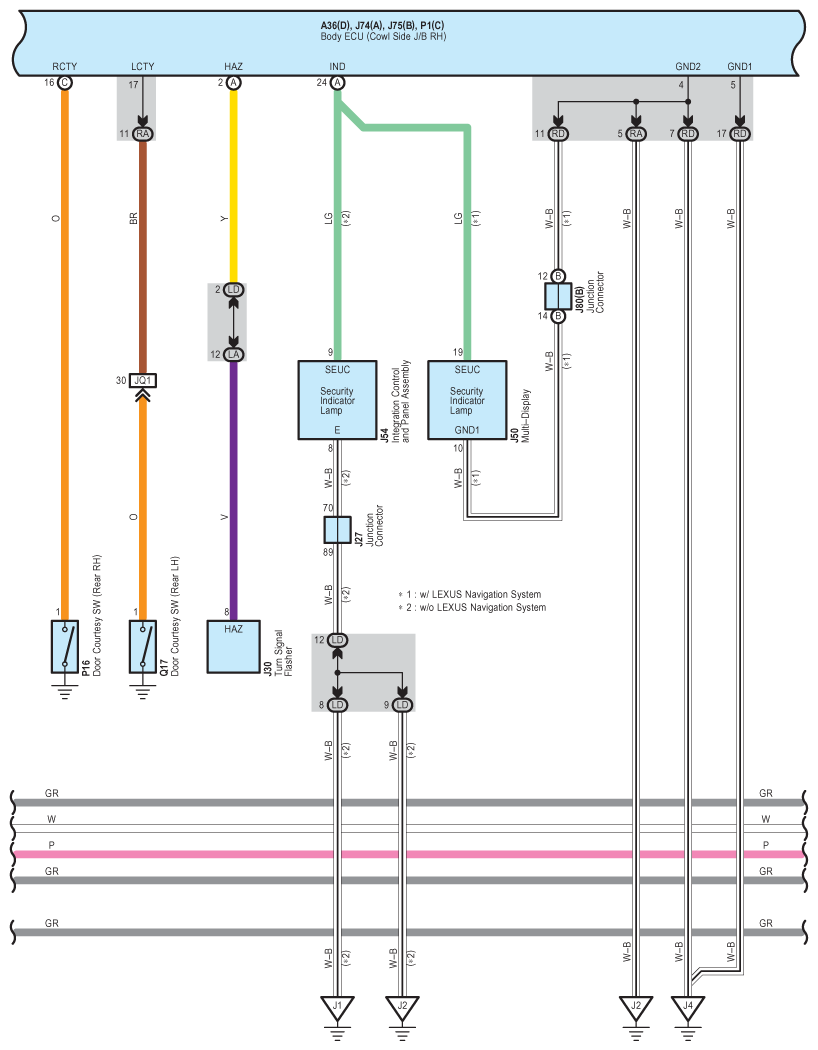

Fig 10: Smart Access System With Push-Button Start - Wiring Diagram (10 Of 20)

G08918339

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

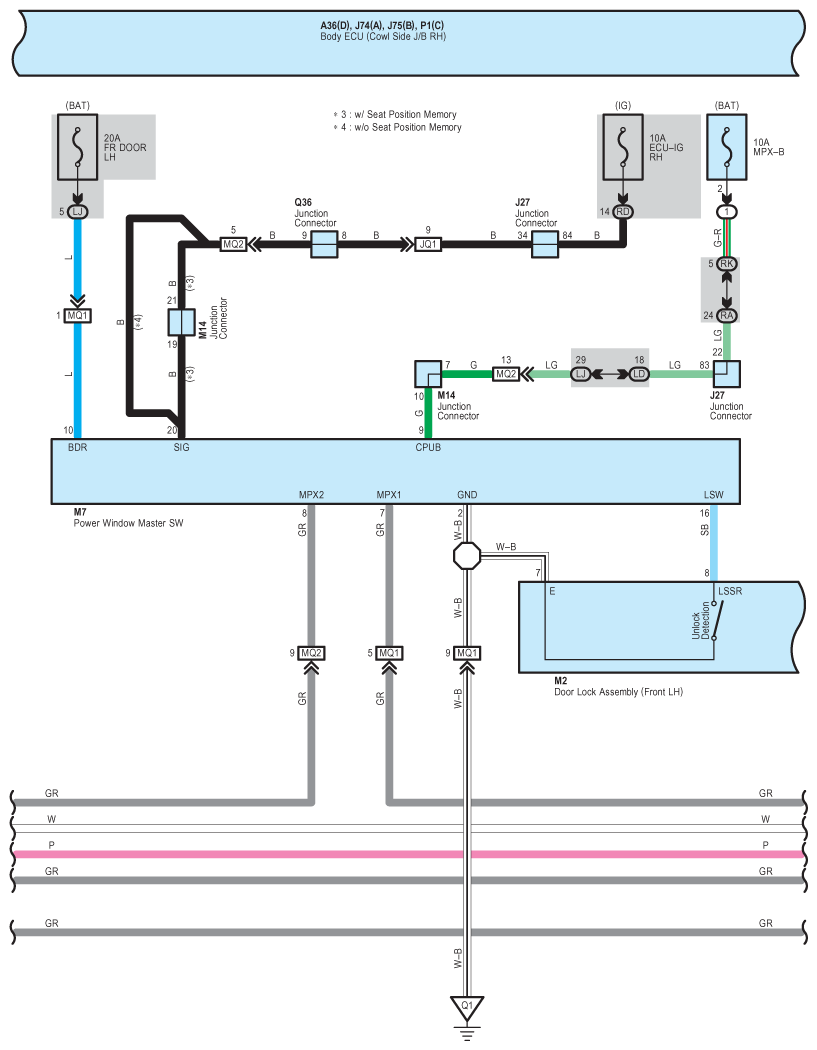

Fig 11: Smart Access System With Push-Button Start - Wiring Diagram (11 Of 20)

G08918340

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

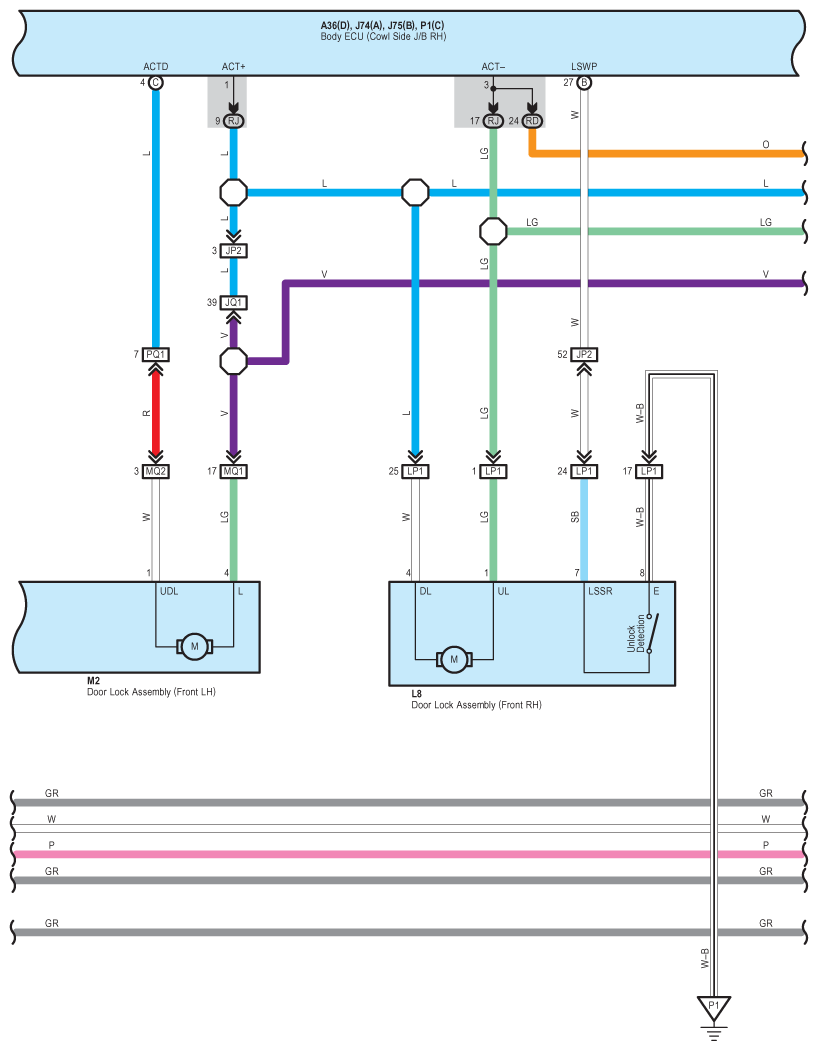

Fig 12: Smart Access System With Push-Button Start - Wiring Diagram (12 Of 20)

G08918341

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

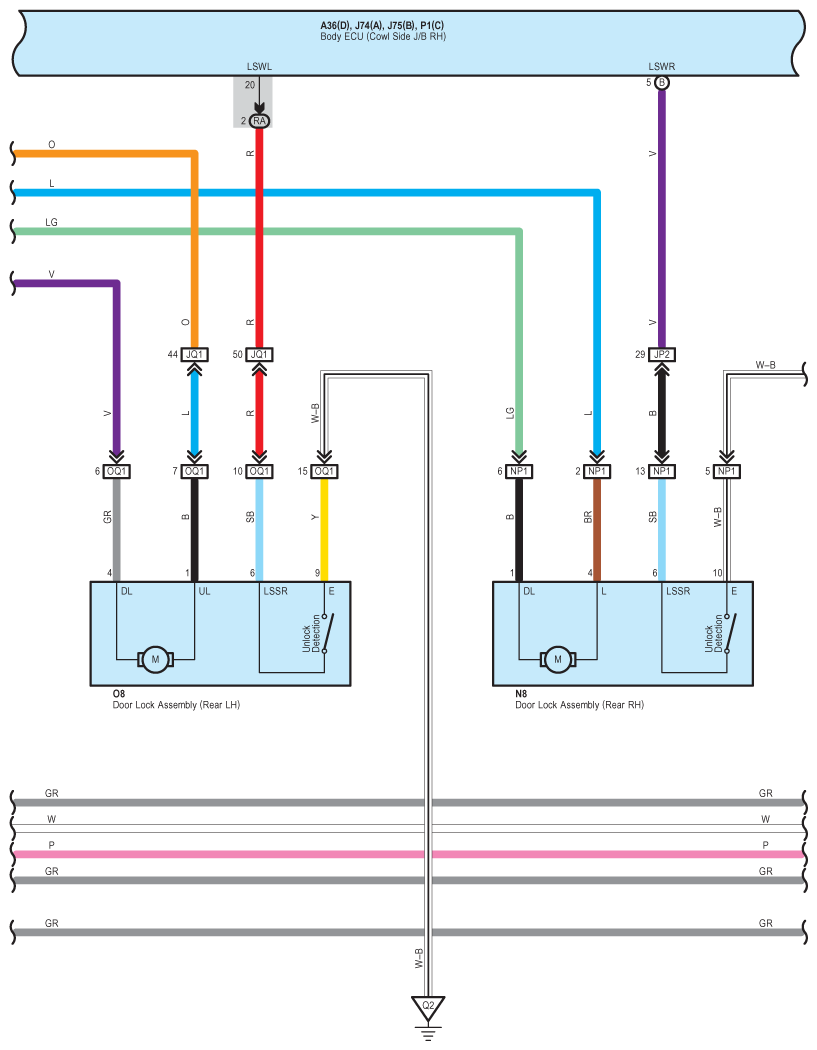

Fig 13: Smart Access System With Push-Button Start - Wiring Diagram (13 Of 20)

G08918342

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

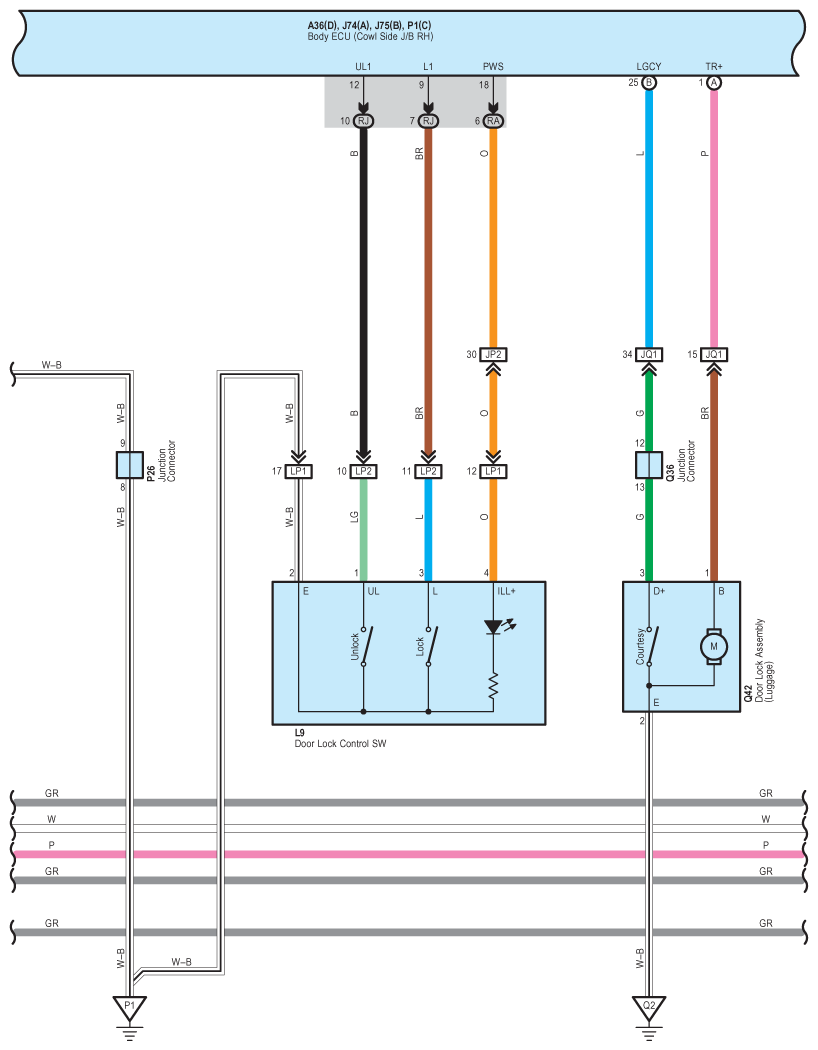

Fig 14: Smart Access System With Push-Button Start - Wiring Diagram (14 Of 20)

G08918343

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

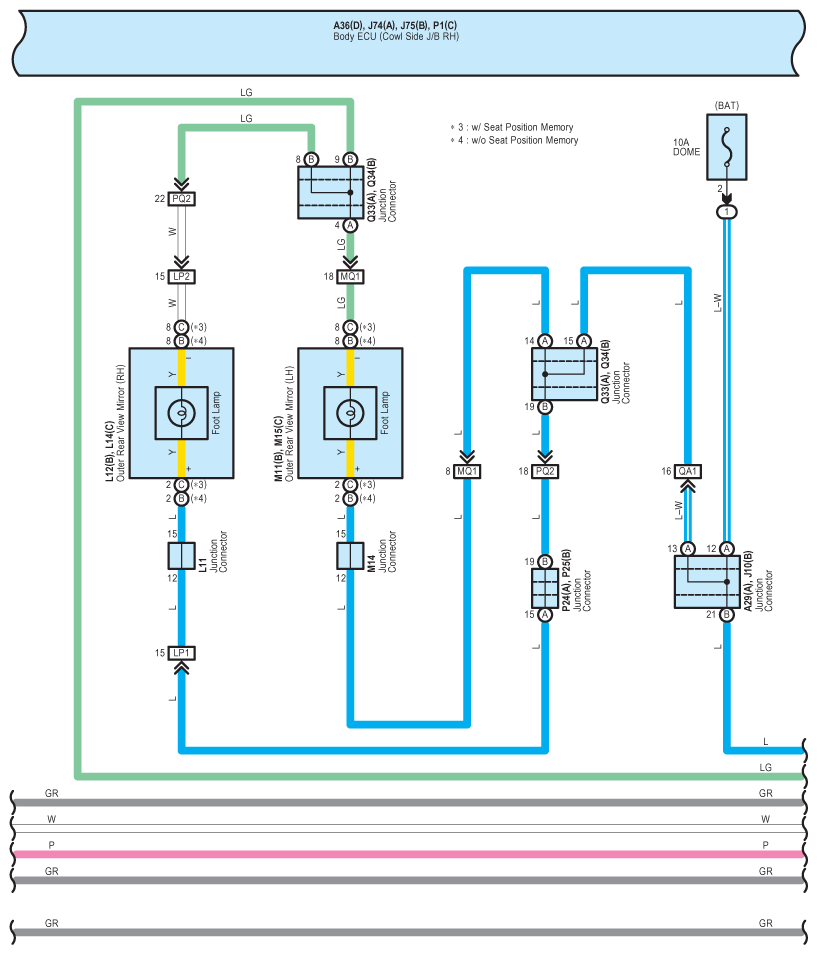

Fig 15: Smart Access System With Push-Button Start - Wiring Diagram (15 Of 20)

G08918344

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

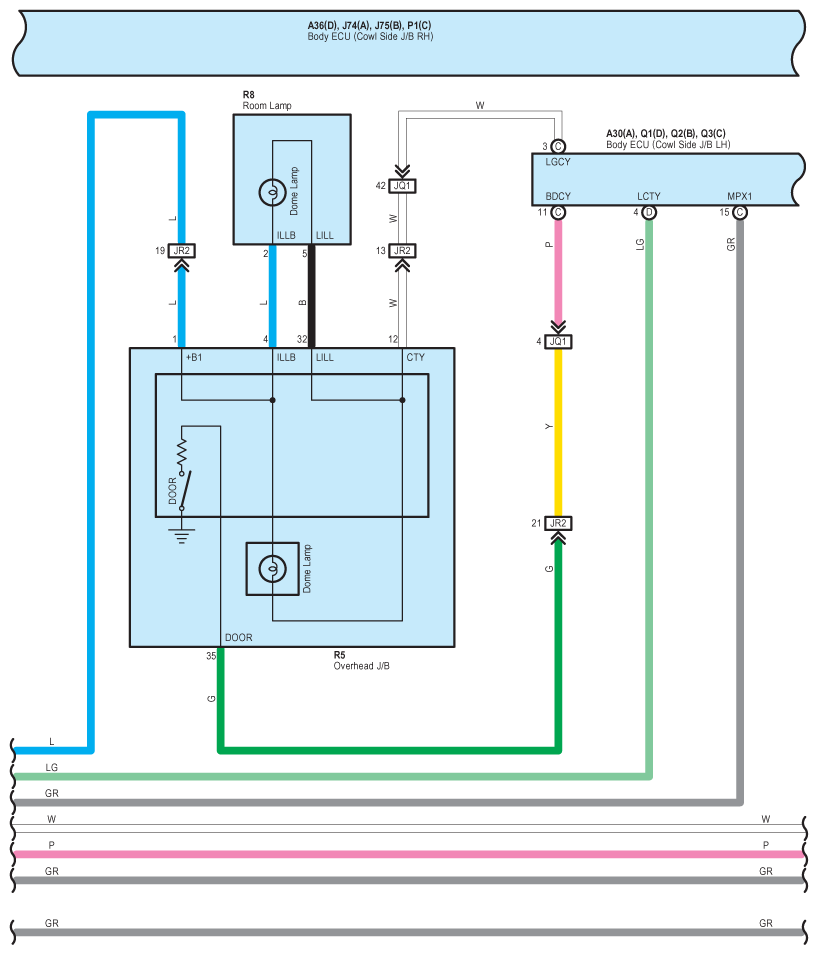

Fig 16: Smart Access System With Push-Button Start - Wiring Diagram (16 Of 20)

G08918345

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

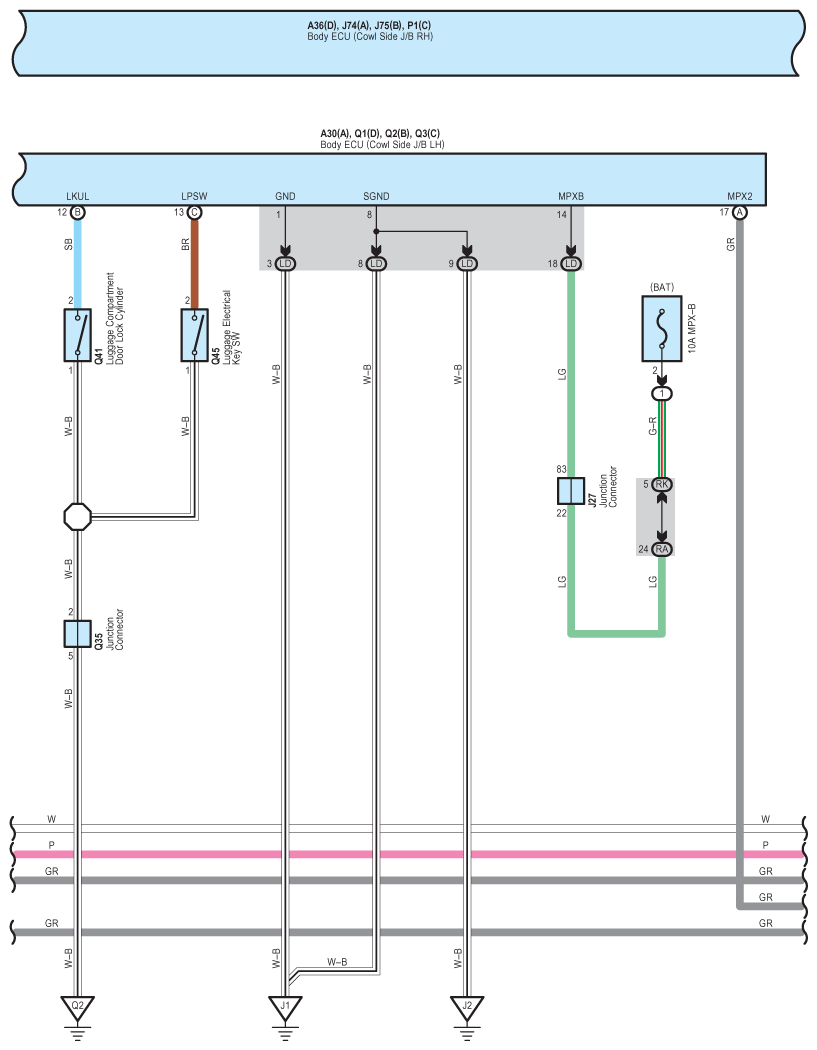

Fig 17: Smart Access System With Push-Button Start - Wiring Diagram (17 Of 20)

G08918346

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

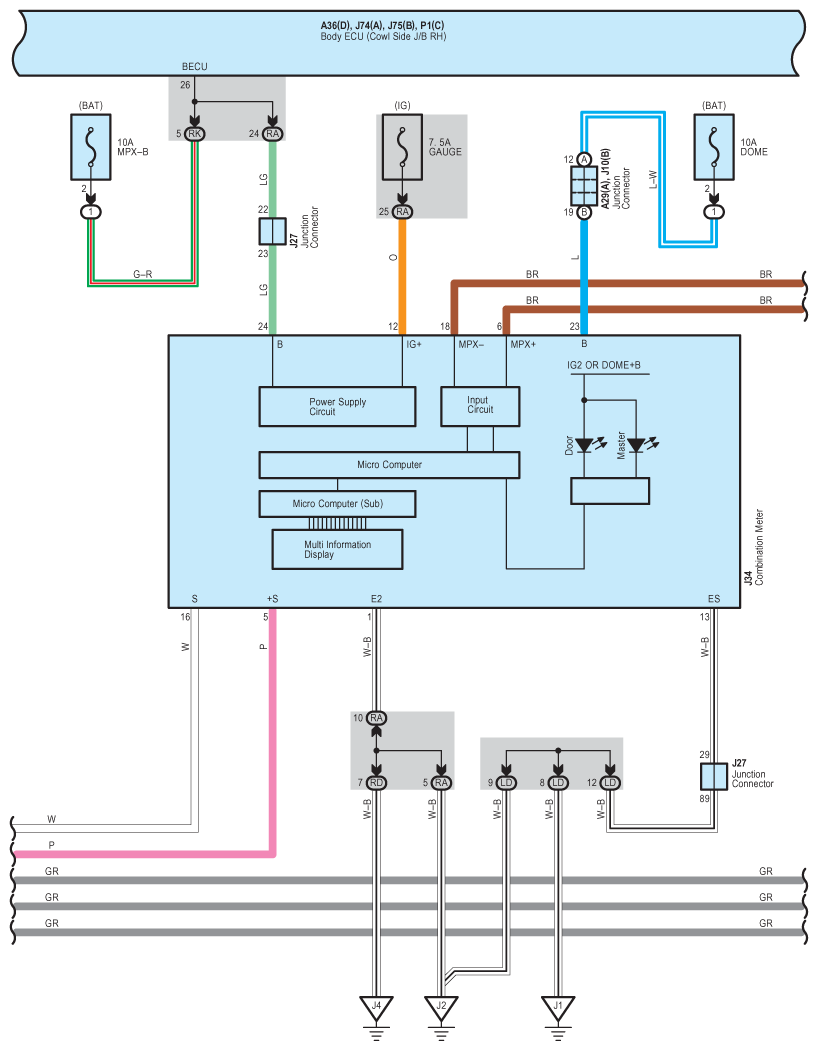

Fig 18: Smart Access System With Push-Button Start - Wiring Diagram (18 Of 20)

G08918347

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

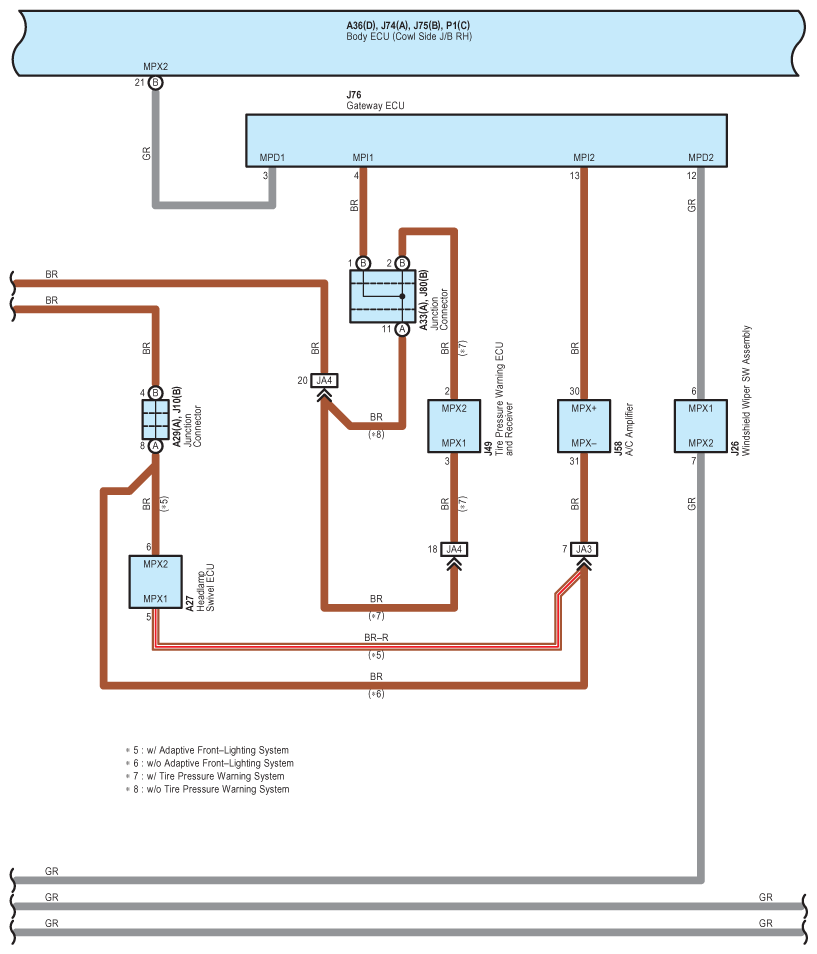

Fig 19: Smart Access System With Push-Button Start - Wiring Diagram (19 Of 20)

G08918348

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

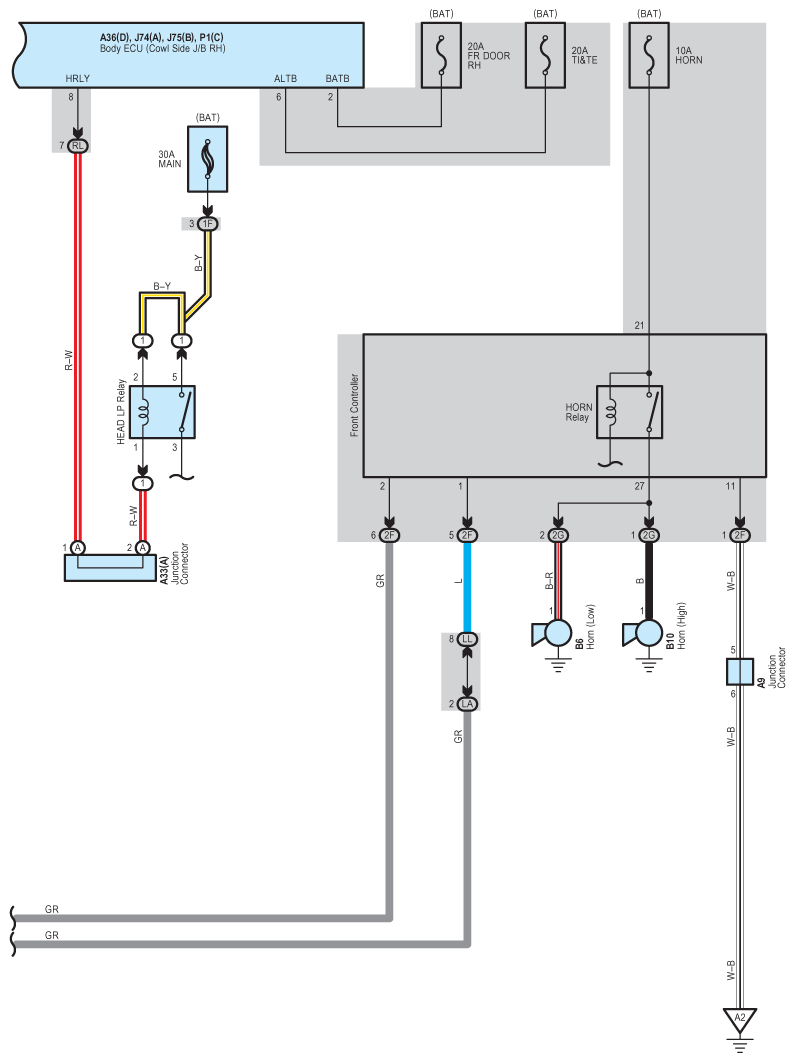

Fig 20: Smart Access System With Push-Button Start - Wiring Diagram (20 Of 20)

G08918349

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
