Clutch Switch: Components

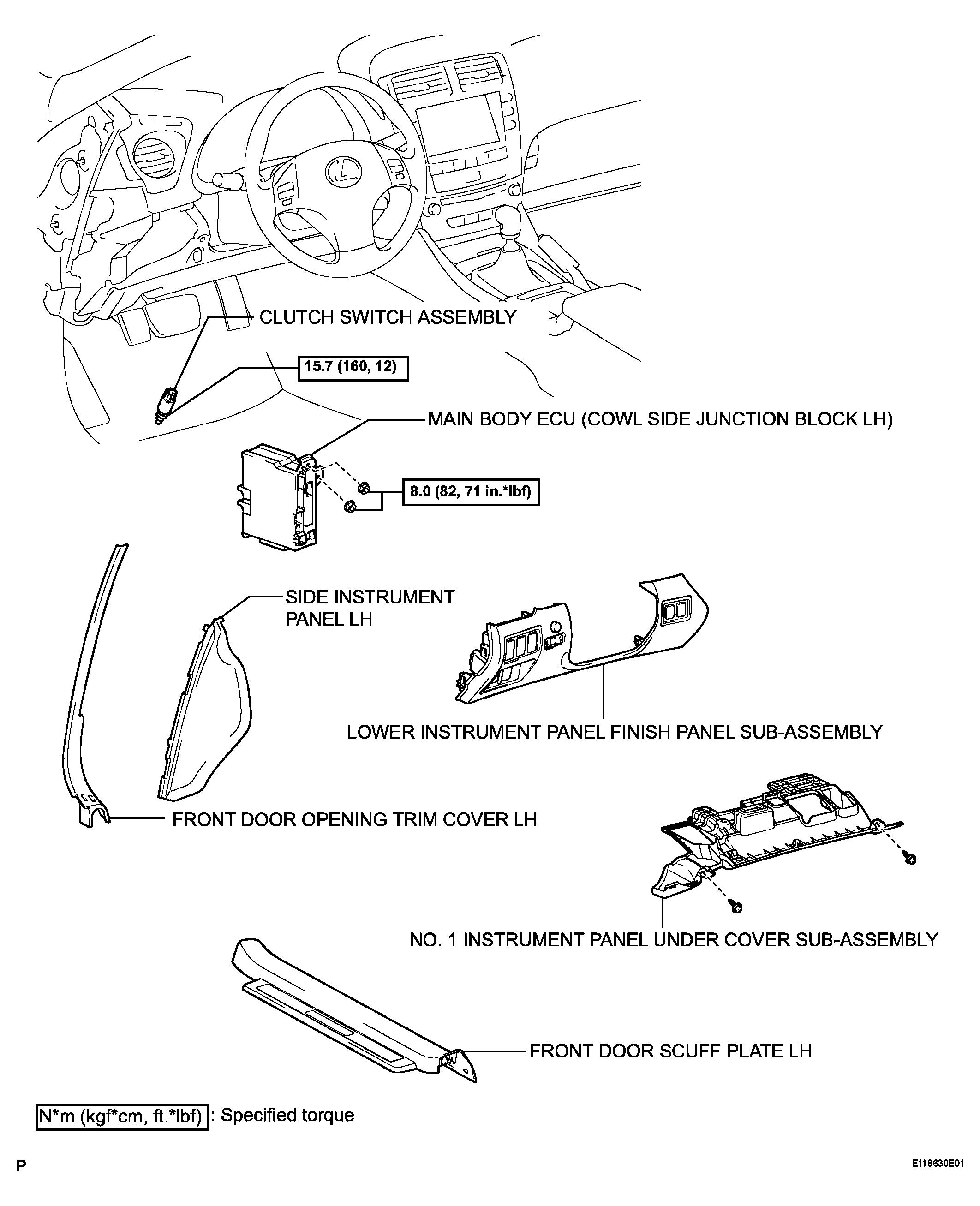

Fig 1: Clutch Switch Replacement Components With Torque Specifications
G04049314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
