Cruise Control Main Switch: Installation

INSTALL CRUISE CONTROL MAIN SWITCH
1. Install the cruise control main switch with the 2 screws.
  Torque: 1.7 to 3.0 N*m (17 to 31 kgf*cm, 15 to 27 in.*lbf)
2. Connect the connector.
INSTALL STEERING PAD (See INSTALLATION )
INSTALL NO. 3 LOWER STEERING WHEEL COVER
INSTALL NO. 2 LOWER STEERING WHEEL COVER
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

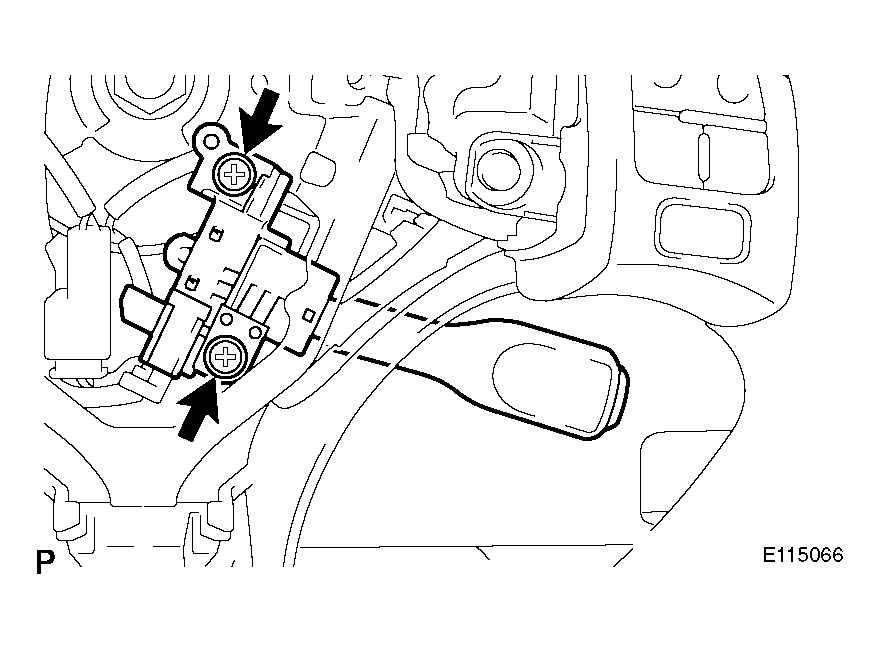

Fig 1: Identifying Cruise Control Main Switch With 2 Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PERFORM INITIALIZATION
NOTE: Some systems need initialization when disconnecting the cable from the negative battery terminal (See INITIALIZATION ).
INSPECT SRS WARNING LIGHT
(See PROBLEM SYMPTOMS TABLE )
