Distance Control Ecu: Removal: Notes
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation (See AIRBAG SYSTEM
).
- REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See REMOVAL
)
- REMOVE DISTANCE CONTROL ECU
- Disconnect the connector.

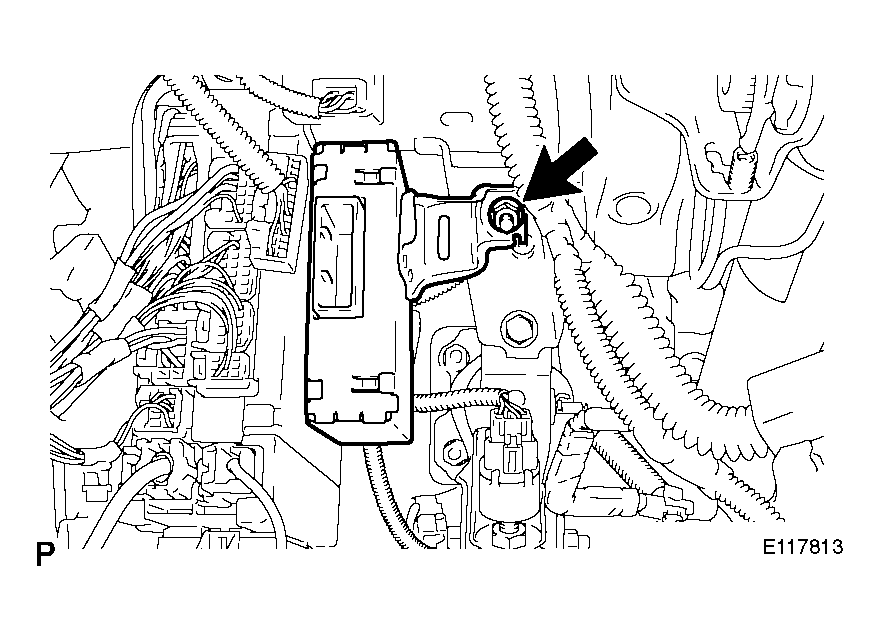

- Remove the nut and the distance control ECU.
