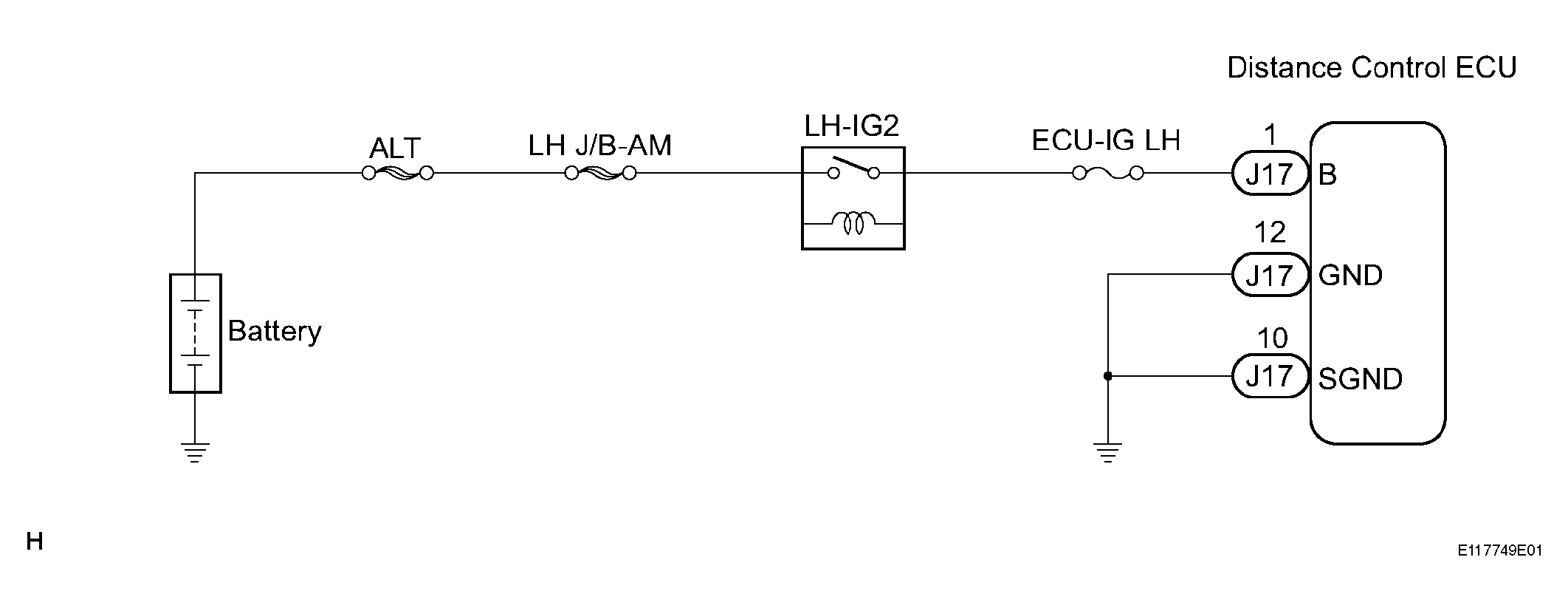

Distance Control ECU Power Source Circuit: Wiring Diagram

1. Disconnect the distance control ECU connector.
2. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   TESTER CONNECTION AND SPECIFIED CONDITION CHART



   Tester Connection	Condition	Specified Condition
   J17-1 (B) - Body ground	Engine switch on (IG)	10 to 14 V

3. Measure the resistance according to the value(s) in the table below.

Standard resistance

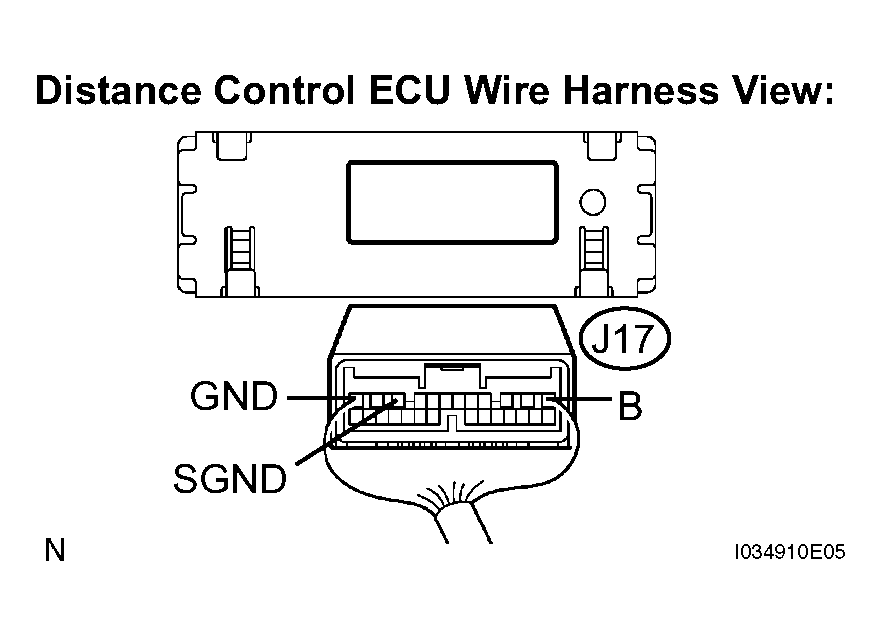

Fig 2: Checking Distance Control ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
