Millimeter Wave Radar Sensor: Removal
- DISCONNECT BATTERY NEGATIVE TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation (See AIRBAG SYSTEM
).
- REMOVE COOL AIR INTAKE DUCT SEAL (See REMOVAL
)
- REMOVE FRONT BUMPER ASSEMBLY (See REMOVAL
)
- REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY
- Disconnect the connector.

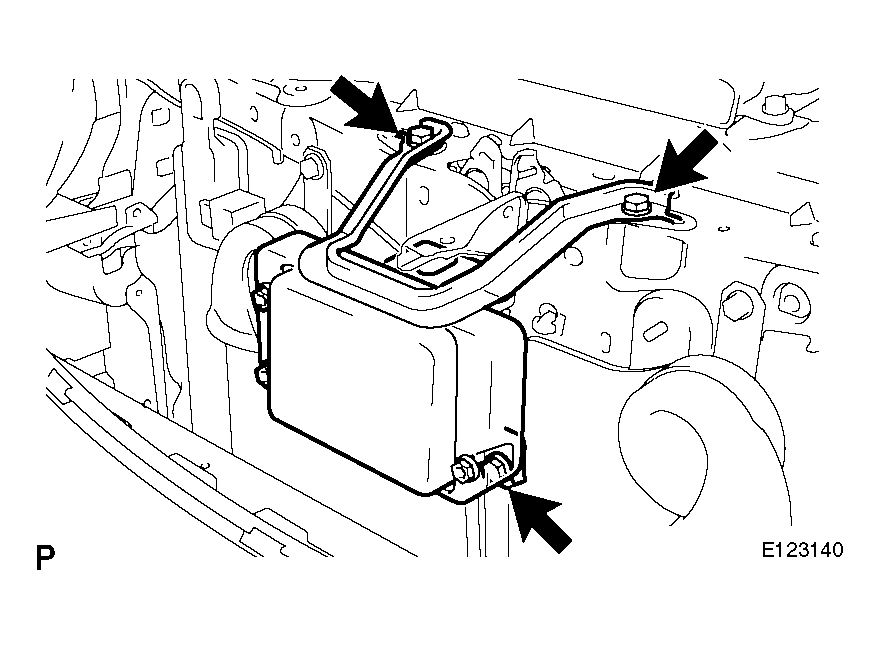

- Remove the 3 bolts and the millimeter wave radar sensor assembly.
