Outer Rear View Mirror: Removal

  1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG (See  DISASSEMBLY  )
  2. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (See Step 2 in  DISASSEMBLY  )
  3. REMOVE COURTESY LIGHT ASSEMBLY (See Step 3 in  DISASSEMBLY  )
  4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY (See Step 4 in  DISASSEMBLY  )
  5. REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP (See Step 8 in  DISASSEMBLY  )
  6. REMOVE FRONT DOOR TRIM COVER (See Step 9 in  DISASSEMBLY  )
  7. REMOVE DOOR FRAME GARNISH (See Step 10 in  DISASSEMBLY  )
  8. REMOVE OUTER MIRROR CONTROL ECU (w/Memory) (See Step 13 in  DISASSEMBLY  )
  9. REMOVE OUTER MIRROR PROTECTOR
    1. Disengage the clamp and disconnect the connector.

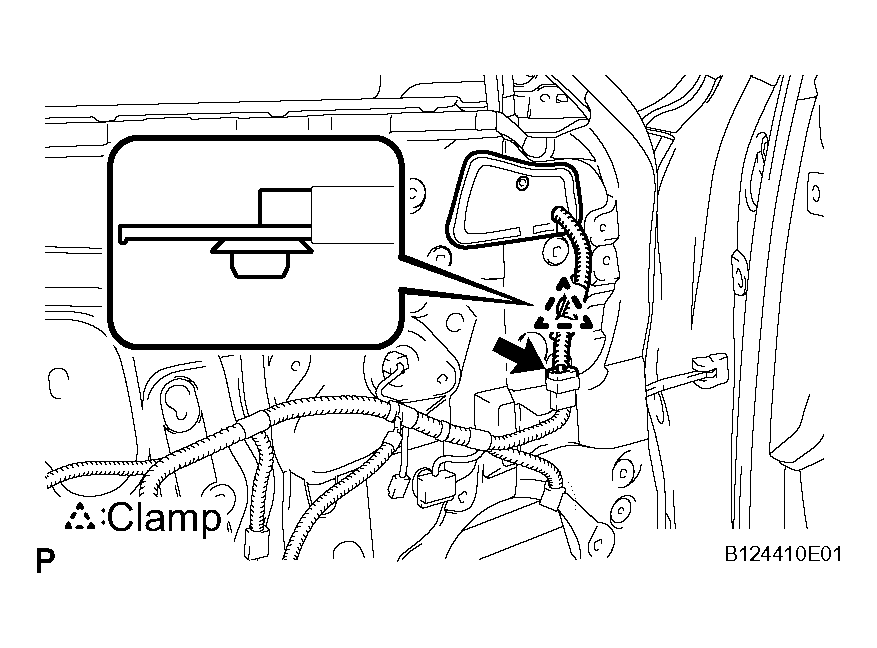

      Fig 1: Disengaging Clamp & Disconnect Connector
      G04050846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the outer mirror protector.

      HINT:

      Remove the remaining tape on the door.

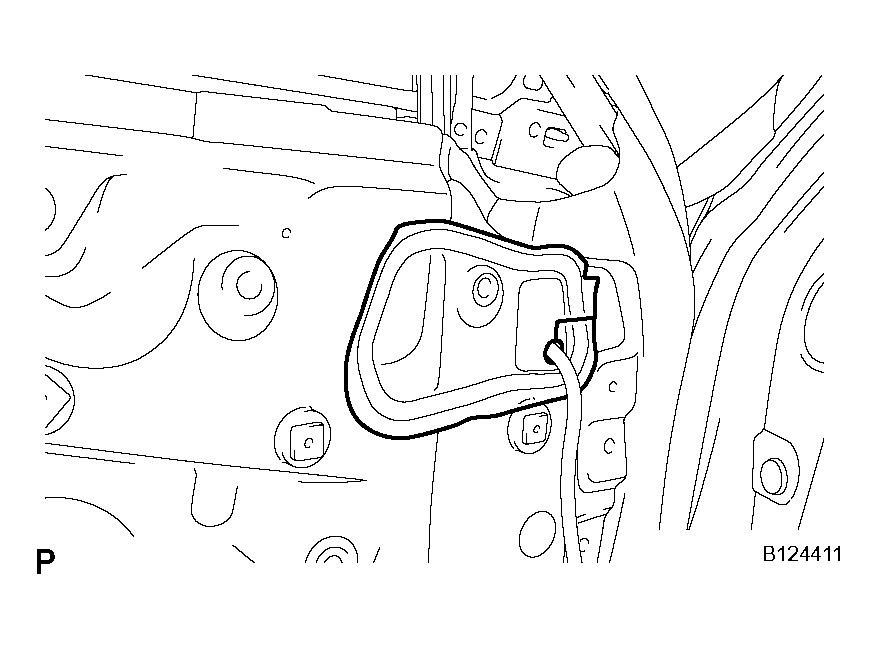

    Fig 2: Identifying Remaining Tape On Door
    G04050847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY
    1. Remove the 3 nuts.

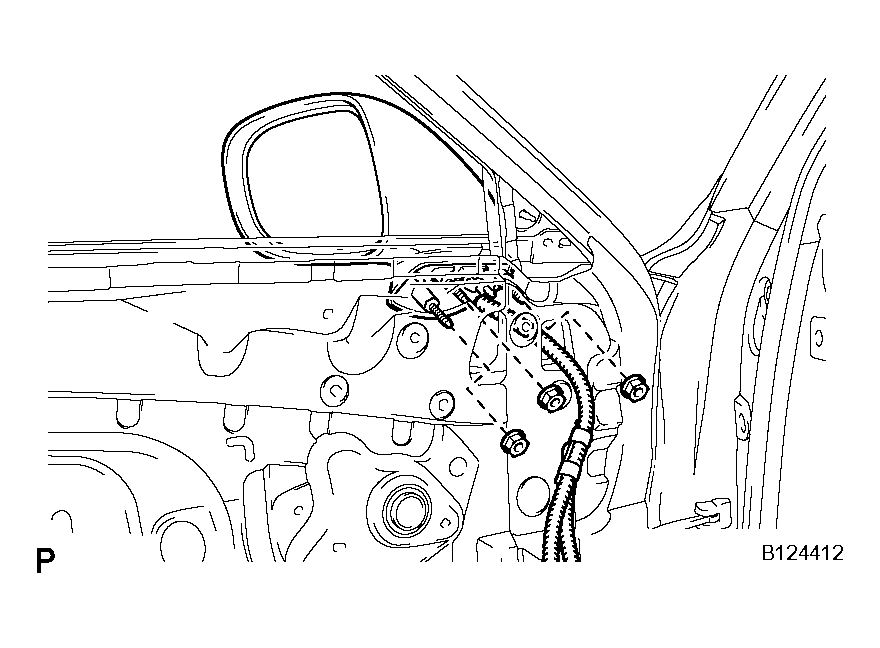

      Fig 3: Identifying Outer Rear View Mirror Assembly Nuts
      G04050848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp and remove the outer rear view mirror assembly.

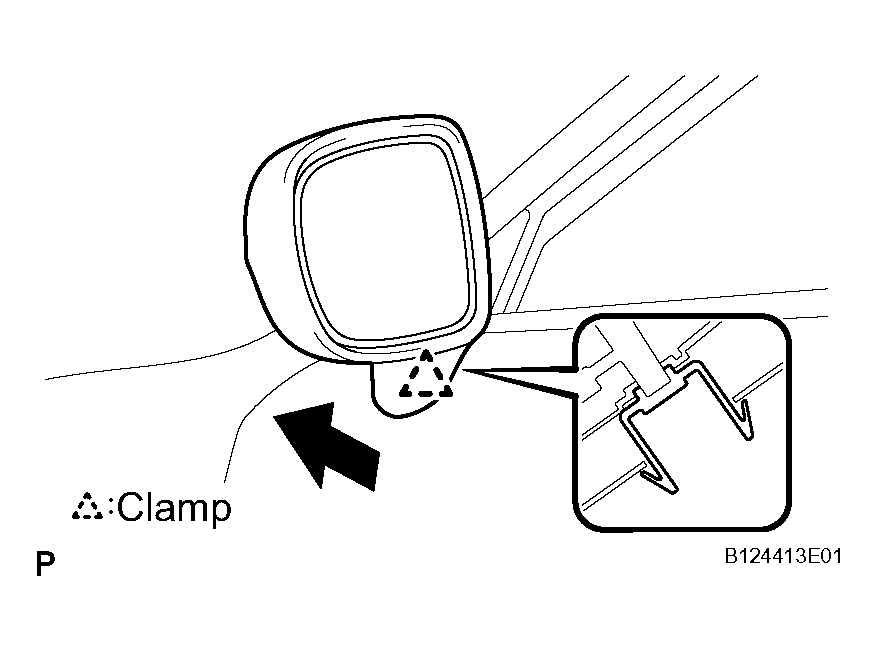

    Fig 4: Identifying Outer Rear View Mirror Assembly
    G04050849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
