Inner Rear View Mirror: Installation

  1. INSTALL INNER REAR VIEW MIRROR ASSEMBLY
    1. Using a "torx" socket wrench (T20), install the inner rear view mirror with the screw.

      Torque: 1.8 N*m (18 kgf*cm, 16 in.*lbf)

    2. Connect the connector.

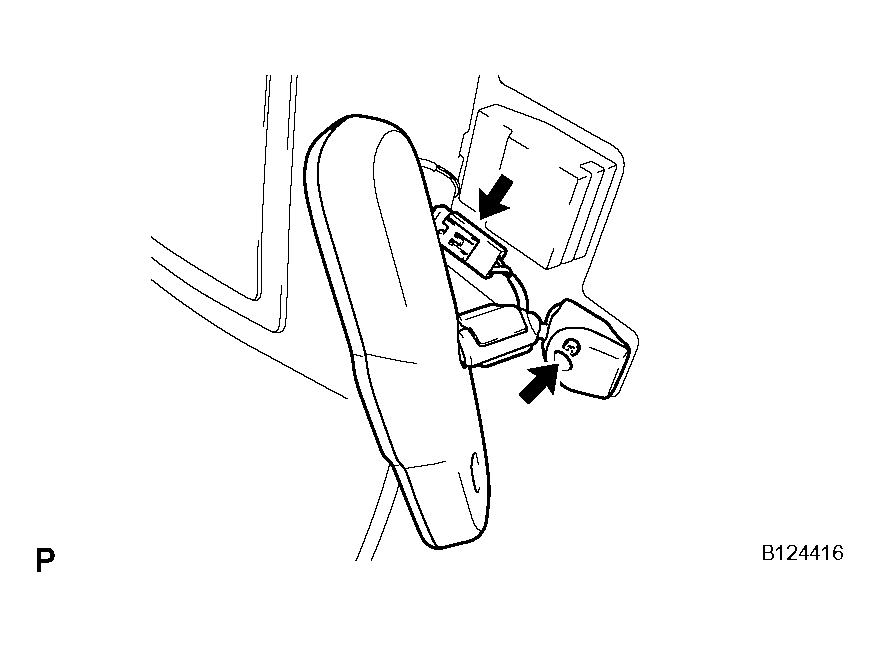

    Fig 1: Identifying Inner Rear View Mirror Assembly
    G04050843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER
    1. Engage the 2 claws and install the inner rear view mirror stay holder cover.

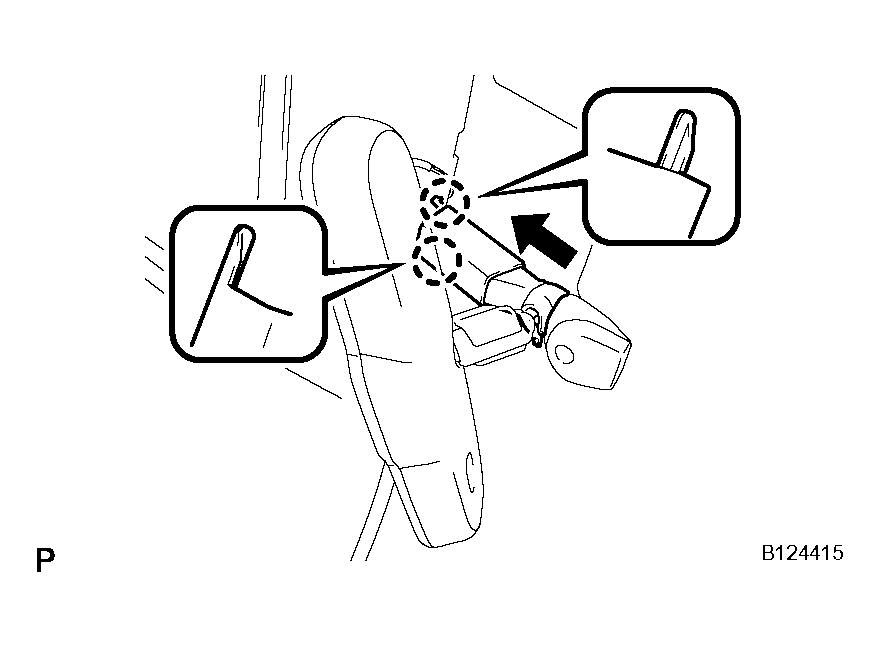

    Fig 2: Identifying Inner Rear View Mirror Stay Holder Cover Claws
    G04050844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
